Defining MSI’s New Wave of GPU Cooling and Power Design
MSI’s latest GPU cooling and power design is a multi-piece engineering approach that combines diamond-laced thermal materials, safer 16-pin power connectors, resettable fuses, and display-equipped liquid and air coolers to manage the higher heat and power demands of next-generation RTX graphics cards. At a high level, this ecosystem spans reworked fans and heatsinks on the graphics card, smarter power-protection features on the PCB, and external GPU cooling solutions with AMOLED panels for real-time monitoring. Together, these technologies aim to keep future RTX GPUs within safe temperature and power envelopes while giving users more visibility into system behavior. The result is a cohesive set of GPU cooling solutions that ties mechanical design, electrical protections, and interface displays into a single high-end cooler technology platform built for rising RTX GPU power management challenges.
Diamond-Laced Thermal Materials and Metal Fans for RTX Cooling

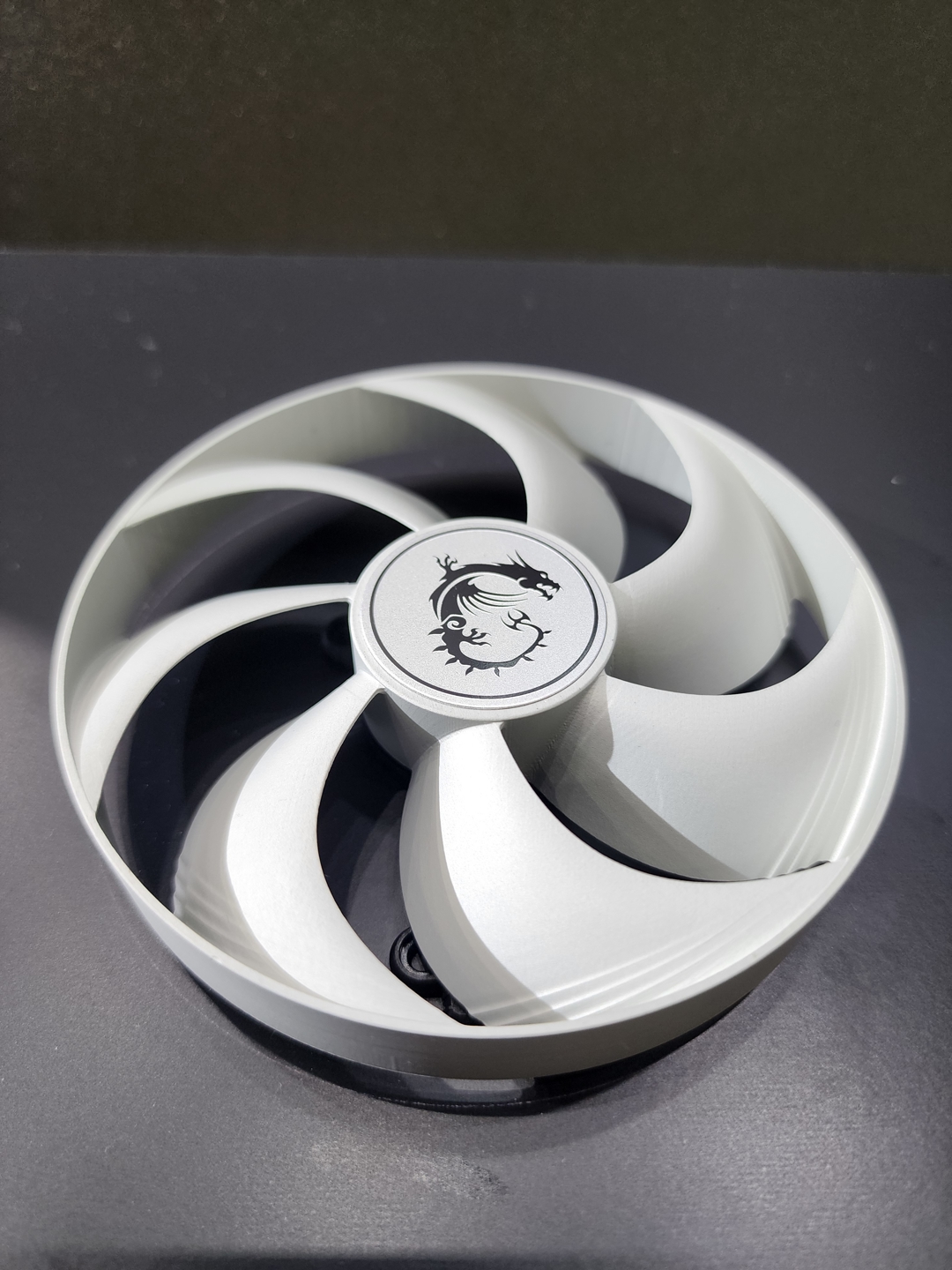

MSI’s next-gen graphics coolers focus on higher efficiency from the fan blades down to the baseplate. The company is moving to ultra-thin metal fan blades that maintain a familiar seven-blade layout but switch to a 0.8mm metal design to increase airflow area and cut airflow resistance. According to Wccftech, these blades can deliver “up to 40% better airflow” thanks to their high-rigidity construction, which resists deformation at high speeds. Under the shroud, advanced spiral-groove heat pipes increase contact area and raise heat transfer efficiency compared with conventional pipes. Memory modules gain a diamond-composite thermal pad, while the GPU itself sits on a Diamond-Copper composite baseplate that sandwiches a diamond-copper layer between copper plates to create a high-conductivity path from die to heatsink. These diamond-laced thermal materials target the dense heat loads expected from next-generation RTX GPUs.
Safer 16-Pin Connectors and Resettable eFuses for Power Protection
Beyond cooling hardware, MSI is reworking power delivery around the 16-pin connector to improve RTX GPU power management. Its Safeguard technology, previously used in MPG power supplies, is now being integrated directly into future graphics cards, so protection and control features are available even without a matching PSU. This design centers on safer 16-pin power connectors combined with additional monitoring and control logic on the card. Complementing that is a shift to server-grade eFuses, which provide a resettable barrier against electrical faults. These fuses include an internal gate-based reset mechanism and respond to short circuits in about 200ns, shielding the GPU from electrical damage while remaining reusable over the product’s lifetime. Together, the smarter connector and eFuse package aim to give high-end RTX GPUs a more reliable power envelope as their power limits increase.
AMOLED-Equipped MEG CoreLiquid E15 360 and System Telemetry

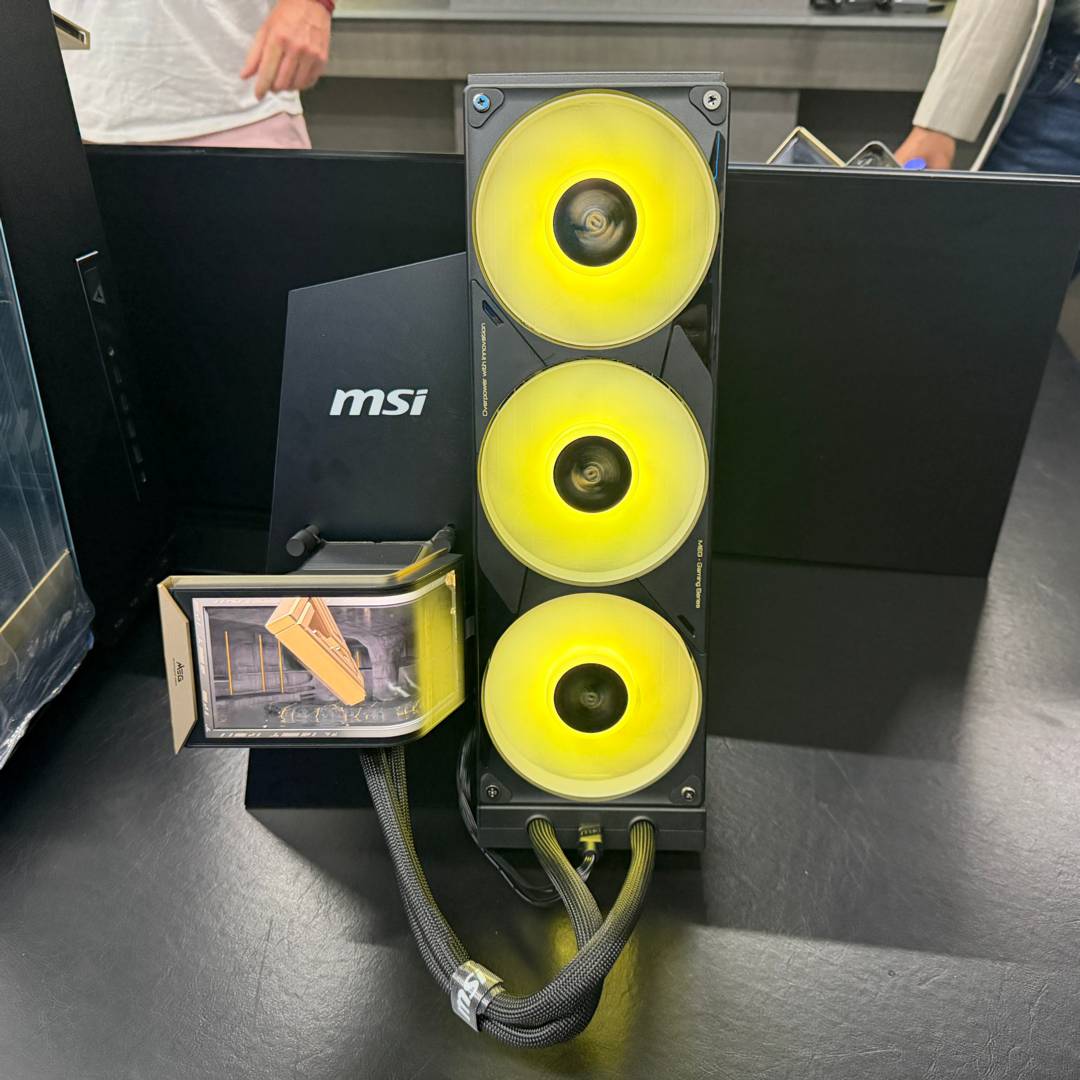

On the external cooling side, MSI’s MEG CoreLiquid E15 360 AIO adds a large liquid cooler AMOLED display to the mix. The 6.67-inch curved AMOLED panel delivers a sharp 2240×1080 resolution at around 372 PPI, turning the radiator-mounted frame into a secondary screen for hardware metrics or custom content. MSI EZ Display handles panel customization, while MSI Center feeds live telemetry such as CPU temperatures, fan speeds, and other system values. The cooler uses Laminar focus fan technology, with the middle fan spinning in reverse to reduce turbulence and noise. If a fan fails, the remaining fans ramp their speed and glow red as a visual alert. A unibody frame means all three fans are replaced together, and on compatible MSI 800-series motherboards the cooler can be powered and controlled by a single 11-pin JAF_2 connector for cleaner cabling.
CoreFrozr AP15 and the Rise of Display-First High-End Cooler Technology

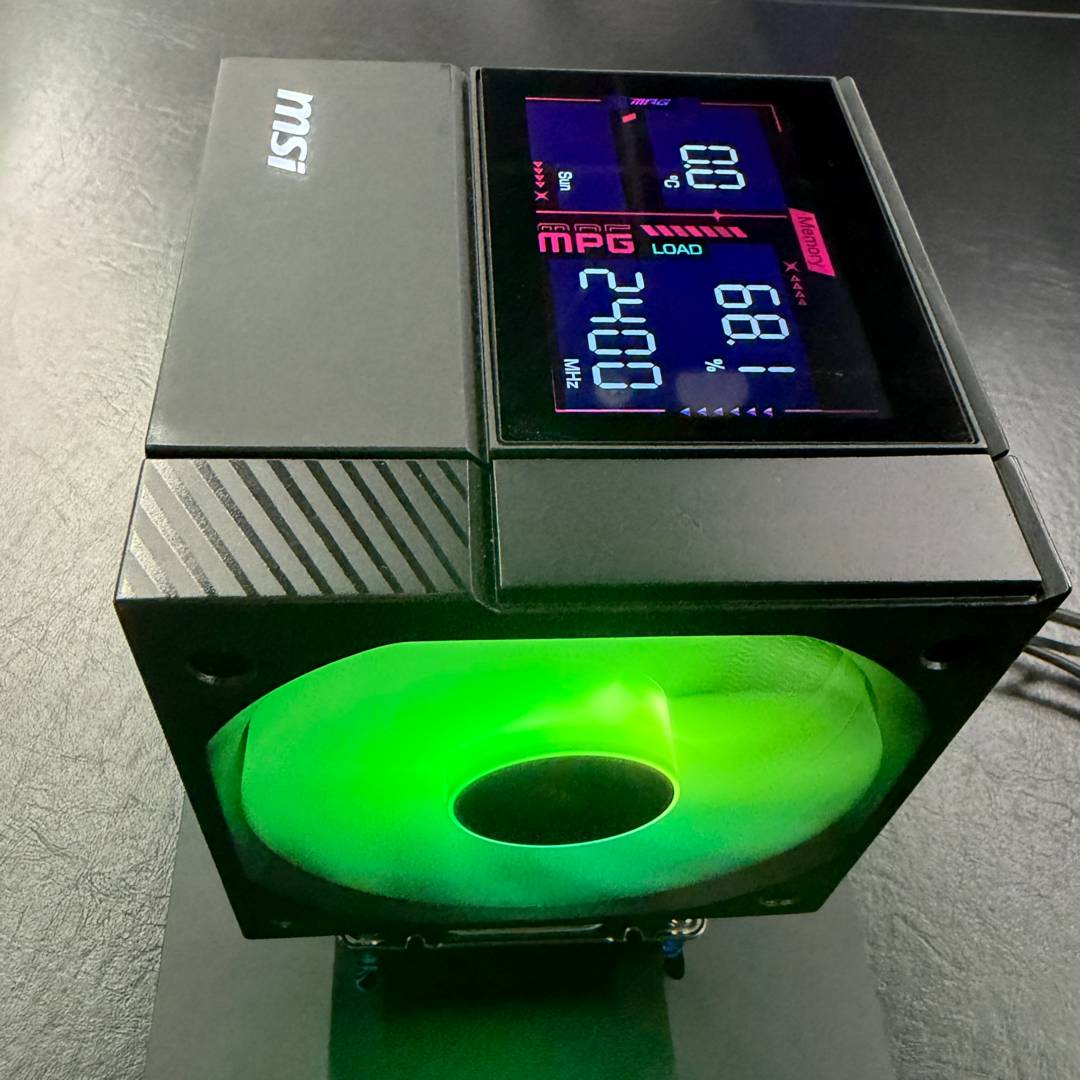

The CoreFrozr AP15 brings similar design thinking to air cooling, with a dual-tower heatsink topped by a large DIGI display for system stats. The screen attaches magnetically to the cooler and draws power through pogo pins, which keeps installation and maintenance simple while still enabling real-time monitoring. Underneath, a six-heatpipe array routes heat from the CPU to the fin stacks, offset to preserve RAM clearance. Unlike many large air coolers, MSI indicates builders will not need to remove the center fan to clip the cooler in place, which will appeal to less experienced PC assemblers. Paired with the MEG CoreLiquid E15, the AP15 shows how MSI is threading display integration across both liquid and air coolers. These products extend high-end cooler technology beyond raw thermals to combine thermal performance, RGB signaling, and on-device stats visualization around next-generation RTX GPU and CPU platforms.
