E-ATX Case Selection: Airflow, Layout and Design Trade-Offs

What Makes a High-End E-ATX Case Worth the Space?

E-ATX case selection is the process of choosing a large format PC case that supports extended ATX motherboards while providing enough airflow, radiator clearance, cable management space, and build flexibility to handle high-end components in a reliable and visually pleasing way. If you build powerful systems, the case is not decoration; it is infrastructure. A good high-end build chassis keeps temperatures under control, gives you room for future upgrades and makes maintenance painless. A bad one turns every GPU swap into a fight with cables and restricts radiator placement to the point that your cooling loop is compromised. That is why enthusiasts now weigh panoramic glass designs against more traditional layouts, comparing case airflow, cooling support and installation ease, rather than picking whatever looks most aggressive on the product page.

Panoramic Layouts: Style, Cable Discipline and Airflow Reality

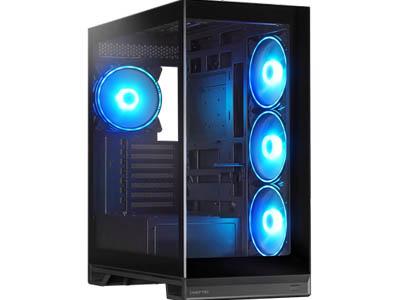

Panoramic designs promise a showcase-style interior, and the CHIEFTEC VISTA MAX is a clear example of that direction. Its panoramic ATX chassis combines an integrated stand, dual power buttons and broad hardware support, including Mini-ITX, Micro-ATX and ATX motherboards, inside a 452 x 239 x 526 mm footprint. The appeal is obvious: your components are on display, helped by four pre-installed 140 mm A-RGB fans, three on the side and one at the rear, with support for up to 140 mm fans and 360 mm radiators on both the side and top, plus extra 120 mm mounts. That much glass, however, magnifies any cable mess and forces more careful thermal planning. To keep case airflow efficient, you need disciplined routing around the panoramic window and smart use of the removable top panel, fan bracket and bottom dust filter so intake and exhaust paths remain clear rather than ornamental.

Airflow and Radiator Support: Where Large Format Cases Earn Their Keep

When comparing airflow in a large format PC case, you are really comparing how well it can move air through dense, hot hardware without drama. The VISTA MAX leans on its four pre-installed 140 mm A-RGB fans and the ability to mount up to 360 mm radiators on the side and top. The dedicated HDD/GPU fan cage, which adds a 120 mm fan right next to the graphics card, is a thoughtful nod to focused GPU airflow. The ASUS GX601, meanwhile, supports three 120 mm and three 140 mm fans, and allows radiator sizes all the way from 120 mm up to 420 mm, with a combined radiator plus fan thickness of up to 90 mm. That specification alone shows why radiator clearance is a key comparison factor: if you want thick radiators or push–pull setups, you must check these limits first instead of hoping your loop will fit once the hardware arrives.

Build Flexibility: Layout, Clearances and Front I/O Quality

For high-end builds, internal layout and clearances matter more than flashy branding. The VISTA MAX supports graphics cards up to 420 mm, CPU coolers up to 178 mm, and ATX power supplies up to 180 mm, while accommodating back-connect motherboards and up to 360 mm radiators. Its adjustable HDD/GPU fan cage doubles as storage, holding one 3.5" HDD and one 2.5" SSD, or up to two 2.5" SSDs if removed. The ASUS GX601 pushes clearances further: it supports Mini-ITX, Micro-ATX, ATX and E-ATX boards, GPUs up to 450 mm, PSUs up to 220 mm, and air coolers up to 190 mm high, plus eight PCIe expansion slots. Storage is handled by four 2.5" bays and two 2.5"/3.5" combo bays, while front I/O includes multiple USB 3.1 ports, Type-C, audio jacks and dedicated LED and fan control buttons. "The ASUS GX601 offers radiator support from 120 mm up to 420 mm, giving builders broad cooling choices".

Conclusion: Choose the Case That Serves Your Build, Not Your Ego

The temptation with a high-end build chassis is to chase the most dramatic glass and lighting, then fight its limits for years. A more disciplined approach treats E-ATX case selection as a balance of airflow, component clearances and day-to-day usability. The panoramic VISTA MAX aims at enthusiasts and high-end system builders by combining a showcase interior with extensive cooling and hardware compatibility. The ASUS GX601 focuses on wide motherboard support, generous radiator and fan options, and practical extras like dust filters on the front, top and bottom, plus well-equipped front I/O. Neither path is wrong, but your priorities should be clear: if you care most about clean thermals and thick radiators, airflow specs and radiator clearance come first; if the system will sit on display, panoramic design and cable routing will matter more. In either case, let your hardware needs, not impulse aesthetics, decide which large format PC case you bring home.
