Why DIY PC Salvage Is Worth Your Time
DIY PC salvage is the process of repurposing discarded laptops, broken desktops, and recycled PC components into new, high-performance computers that cost less, reduce e‑waste, and extend hardware lifespan for budget-conscious enthusiasts and curious tinkerers.
If you enjoy building PCs but your wallet does not match your curiosity, DIY PC salvage is a sweet spot. High-end laptop motherboards pulled from machines with cracked shells or ruined keyboards still carry strong processors, dedicated graphics, and generous memory, yet many repair shops overlook them. That blind spot is your opportunity: you can pick up powerful boards for less than the price of a typical desktop RAM kit. The real caveat is that this isn’t plug-and-play budget PC building. You need patience, basic electronics safety, and comfort with a multimeter, soldering, and improvised mounting solutions. When you treat it like a long-term hobby project rather than a quick parts swap, it pays off in performance and in the satisfaction of keeping gear out of landfills.
Step-by-Step: Turning a Salvaged Laptop Board Into a Desktop
Let’s walk through a practical path: building a desktop-style machine from a salvaged laptop motherboard and a recycled display. Think of it as helping a friend rebuild a powerful system from the “junk” pile.
- Hunt for a suitable laptop motherboard and display: Look for high-end boards from laptops with cracked cases or dead keyboards that still offer strong CPUs, dedicated GPUs, and plenty of memory. Search recycling centers for broken all-in-one machines or iMacs where the outer glass is smashed but the LCD panel is intact.
- Verify the motherboard powers on: Use a multimeter on the keyboard connector to trace the standby voltage line, typically around 3.3V, then bridge the correct pin to ground with a wire to trigger power-on, ensuring a heatsink and fan are attached before any power tests.
- Prepare and separate the salvaged display: Warm the bonded glass layer with a heat gun to weaken the adhesive, then slide a fine wire between the layers slowly to avoid cracking the panel; finish by cleaning the LCD surface with alcohol for a clear, renewed screen.
- Design a simple chassis: Build a shallow frame from hardwood offcuts around the panel, give it an oil finish, then wrap the rear in vinyl and fasten an aluminum sheet behind it. Use wooden spacers between screen and back to create a gap for airflow and cable routing.

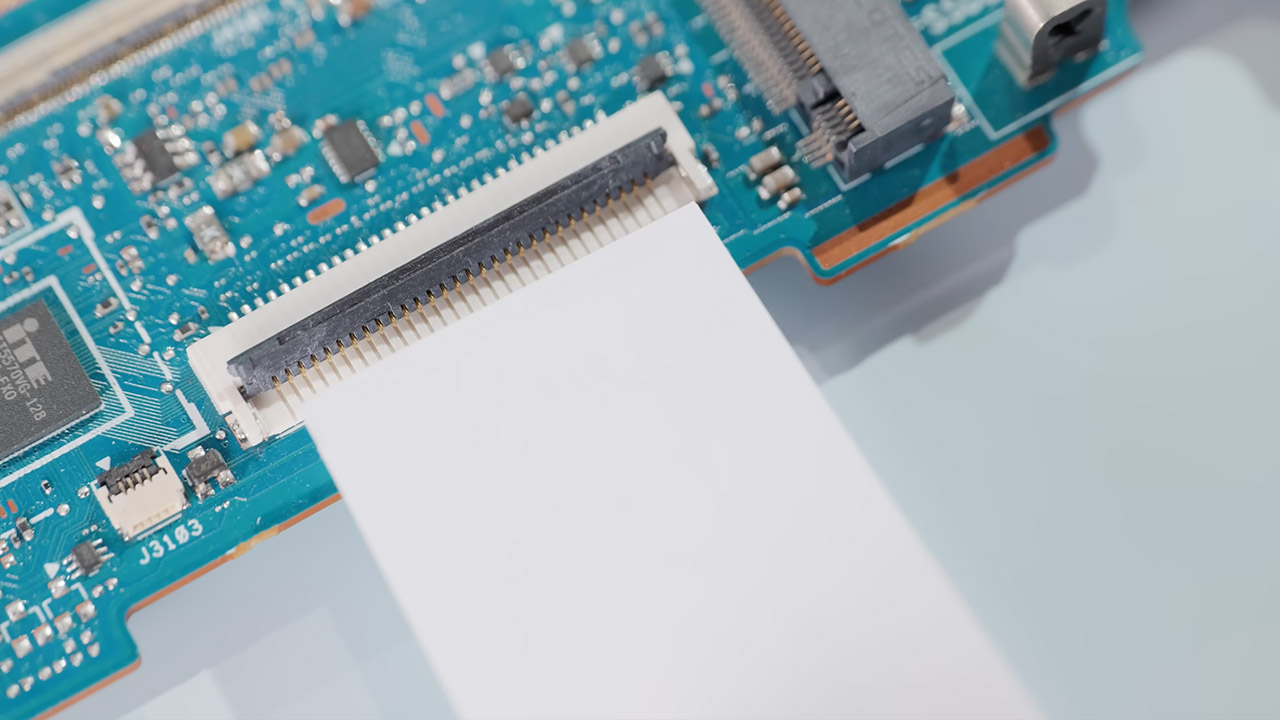

- Mount and connect components: Fix the laptop motherboard to the metal back with standard PCB standoffs, drill extra holes for cables and ventilation, and tuck storage, USB hub, Wi‑Fi card, and card reader wherever they fit while maintaining signal and airflow.
- Add power and controls: Run a handmade ribbon or simple wire to a tactile button that bridges the power-on pins you identified with the multimeter. Connect the board to the display driver and speakers; the driver’s built-in amplifier can feed stereo speakers, while a filtered line drives a small sub amp if you salvage one.
- Finish cooling and aesthetics: Close the back with an aluminum plate, leaving a clear channel for fans to breathe, and block any gaps where warm air could recirculate with tape. Mount the whole assembly on a wooden stand, tripod, or even a basic metal frame depending on your taste.
Each step is about respecting what the salvaged hardware needs: good cooling, clean power, and sensible mounting. Skipping the multimeter detective work can mean never finding the power-on pins; rushing the glass separation can destroy your best recycled part. Done patiently, you end up with what looks like a carefully built all‑in‑one rather than a pile of scrap, and it can run video editing and AI upscaling on a reclaimed RTX-capable board without flinching.
Alternative Power: Beyond the Standard PSU
Once you have a working salvaged system, the next curiosity is power. You do not need to stop at traditional ATX power supplies: DIY PC salvage meshes well with unconventional power ideas, from battery banks to recycled cells. One modder proved that a desktop AMD Ryzen system could run off a pack of 192 AA batteries and still survive stress tests while gaming.

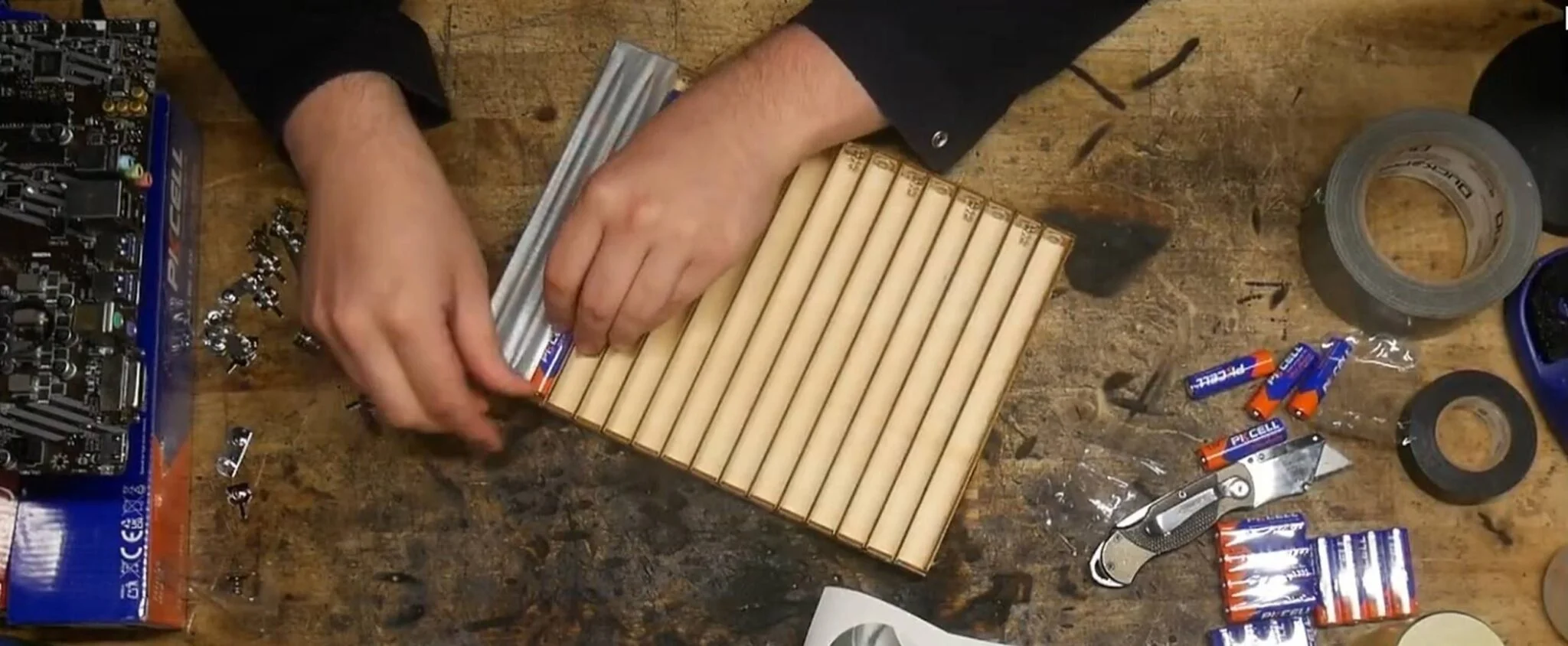

The trick was skipping the usual AC route. Instead of converting DC to AC to feed a standard PSU, the builder wired three laser-cut wood frames, each holding 64 AA batteries, with every eight cells in parallel to produce a 12V pack. Those three packs were then joined with soldered wires into a single 192-cell battery and fed through a 12V DC-to-ATX adapter, which supplied both the 24‑pin and 8‑pin motherboard connectors. The result: a Ryzen G‑series system that pulled around 100W stayed stable for about 30 minutes of use, with voltage sagging only from 13V to 11.95V and enough capacity left for up to another hour or two. This kind of experiment is more about learning and fun than daily practicality; non‑rechargeable cells get expensive and wasteful once drained. But it demonstrates how flexible salvaged builds can be when you’re willing to rethink where power comes from.
Squeezing Value and Life Out of Recycled PC Components
Beyond the novelty, DIY PC salvage and laptop motherboard repurposing are about stretching the useful life of hardware. When someone looks at a pile of discarded machines and sees a complete computer waiting to be assembled, they keep powerful boards, panels, and audio gear from heading straight to the dump.
One salvaged all‑in‑one project assembled a board with an AMD processor featuring AI capabilities, an NVIDIA RTX GPU, and 32GB of DDR5, all soldered on and bought for less than many desktop RAM kits. According to that builder, the finished system cost about a third of what equivalent new parts would have and still delivered clear 4K output plus smooth video editing and AI upscaling performance. A simpler variant, enclosing the same laptop board in a plain metal shell, becomes a compact portable box that behaves much like a modern Steam‑style machine. On the power side, the AA battery experiment showed that even quirky, temporary solutions can handle basic stress tests and gaming on lightweight open-source titles without crashing. Together, these examples show how budget PC building with recycled PC components can remain both cost‑efficient and capable.
Is Salvage Building Worth It?
If you enjoy tinkering, are comfortable around electronics, and dislike seeing good hardware wasted, salvaged PC projects are worth your time. You gain a capable machine built from laptop motherboard repurposing, reclaimed screens, and DIY stands that looks deliberate rather than improvised. You also gain hands-on experience with power distribution, thermal management, and system integration that prebuilt rigs never teach you.
The trade-off is effort and some risk. You may spend evenings tracing keyboard pins with a multimeter, carefully separating bonded glass with a heat gun to avoid cracks, or wiring unconventional battery packs for one-off experiments. But when a salvaged RTX board is driving a bright 4K display rescued from a broken iMac and handling your daily workloads calmly, it feels less like a compromise and more like smart re-use. Pay attention to safety, cooling, and realistic expectations about odd power sources, and DIY PC salvage becomes a satisfying way to keep powerful components working instead of wasting away.
