Rear-connector AM5 boards: from niche experiment to new default
Rear-connector AM5 motherboards are desktop PC motherboards for AMD’s AM5 socket that relocate most power, data, and front-panel connectors to the back of the PCB to improve cable management, airflow, and aesthetics in both compact and full-size builds. That shift is no longer a design experiment—it is quickly becoming the most practical way to build a clean, modern PC. GIGABYTE’s new B850M AORUS Stealth and ASRock’s X870 CHALLENGER WiFi White show how different brands now treat cable routing as a first-class design problem, not an afterthought, while also rethinking power delivery and storage layouts. In other words, the AM5 platform is finally getting motherboards that respect both performance and the visual expectations of today’s builders.
GIGABYTE is expanding its Stealth lineup, a concept first introduced in 2022, with a new B850M AORUS Stealth that pushes the connector-less front aesthetic to a micro-ATX form factor for compact systems. At the same time, ASRock’s X870 CHALLENGER WiFi White arrives as an X870 motherboard that hits all the spec requirements while intentionally trimming “nice-to-have” RGB and some DIY frills to stay accessible. Taken together, these AM5 motherboards show a clear direction: cleaner builds, smarter layouts, and power stages designed to handle Ryzen 7000, 8000, and 9000 series CPUs without the traditional spaghetti of cables dominating the view.

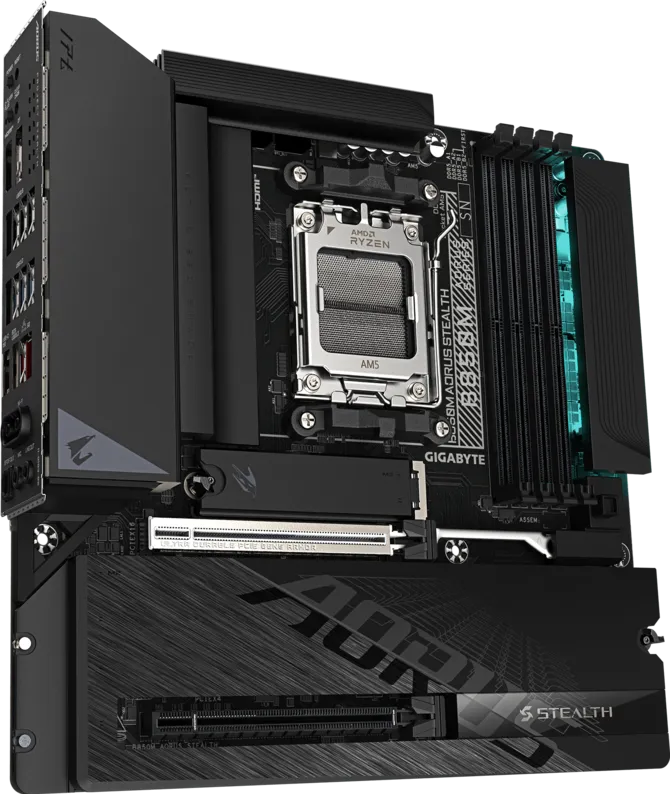

GIGABYTE B850M AORUS Stealth: micro-ATX, macro cable sanity

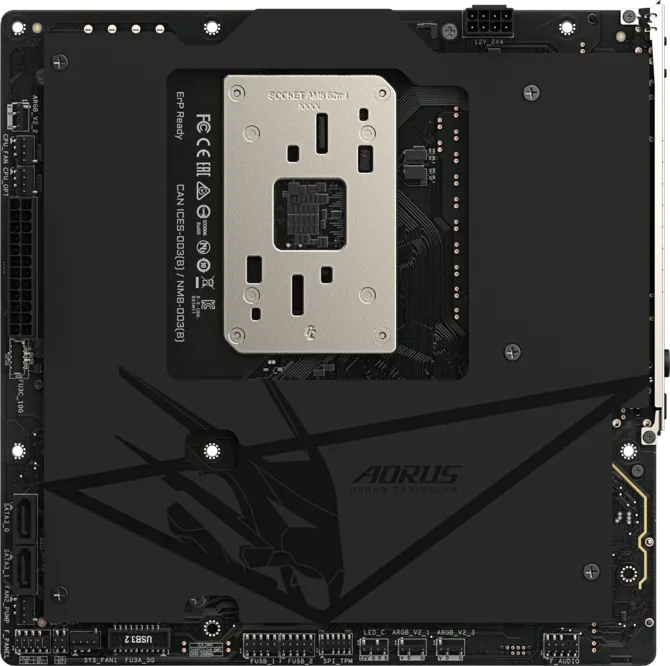

The B850M AORUS Stealth is GIGABYTE’s clearest statement yet that rear connector design belongs in mainstream AM5 builds. This micro-ATX board brings a 12 power phase VRM, four DIMM slots, and dual PCIe x16 slots while moving most of the clutter—24‑pin ATX, 8‑pin EPS, SATA ports, front USB Type‑C, RGB/ARGB headers, and fan headers—to the back of the PCB. For anyone who has spent hours hiding cables behind shrouds, panels, and tie-downs, this is the logical next step. The visible side becomes almost purely functional: DIMMs, PCIe slots, and heatsinks, not a tangle of connectors.
It is not just about looks. With an 8+2+2-phase VRM cooled by an advanced heatsink and a 5 W/mK thermal pad, the board is built to keep power delivery under control even with modern Ryzen chips. GIGABYTE also adds real usability: a brushed aluminum heatsink covers the chipset and M.2 slots for better heat dissipation, and the M.2 EZ-Flex design makes SSD installation tool-less. Features like the Rear EZ button and WiFi EZ-Plug underscore that this connector-less approach is meant for DIY builders, not just boutique modders. As an opinion, this is the first micro-ATX AM5 board that makes “clean build” the default expectation rather than a premium modding project.

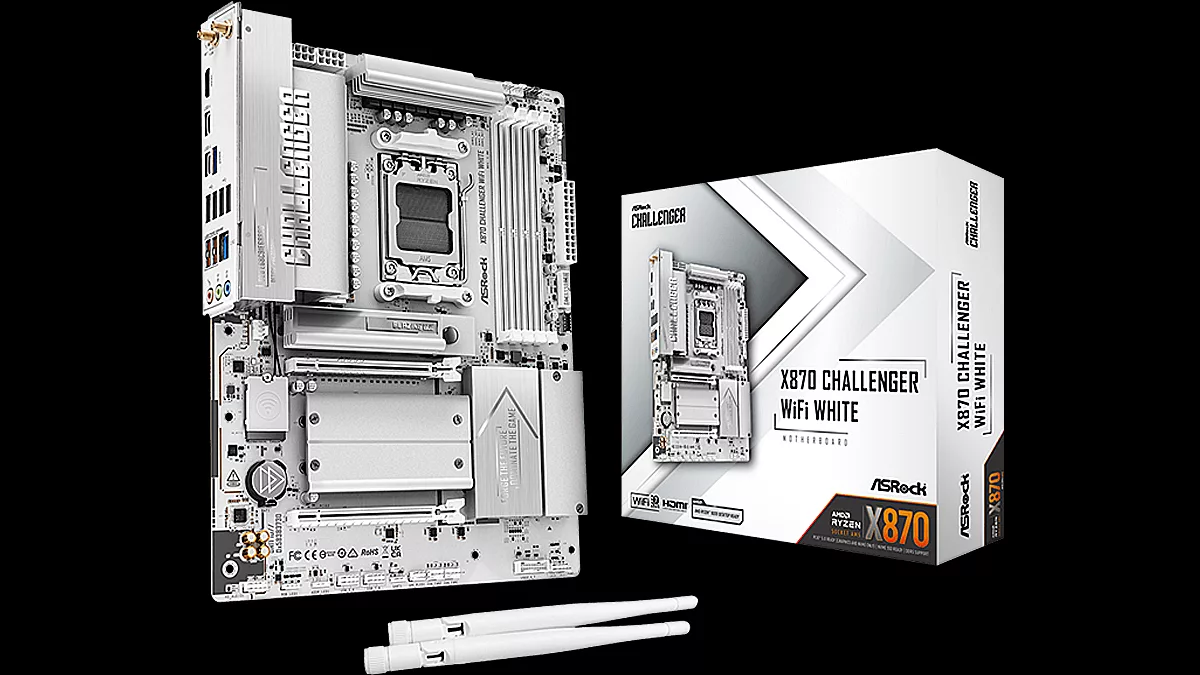

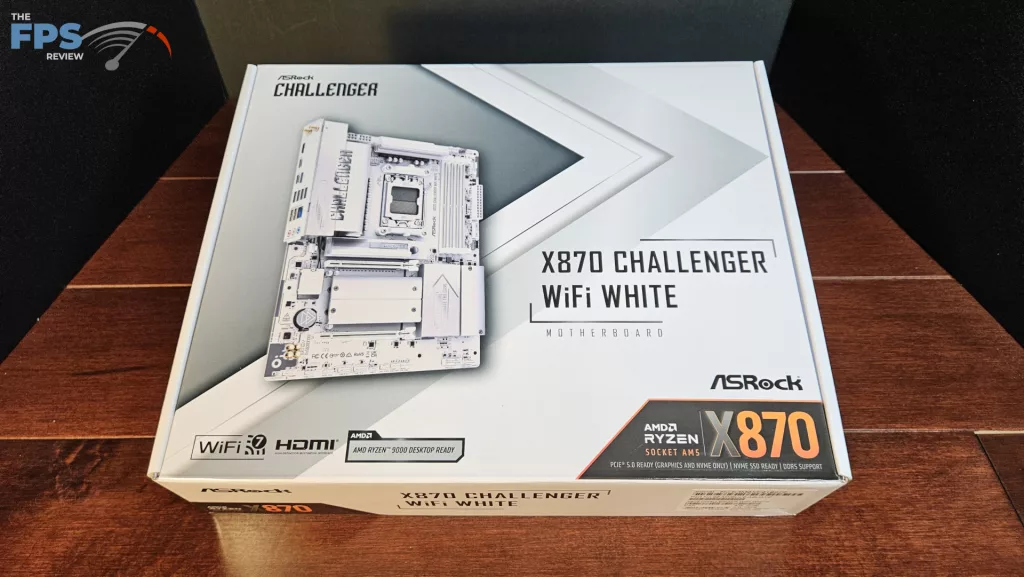

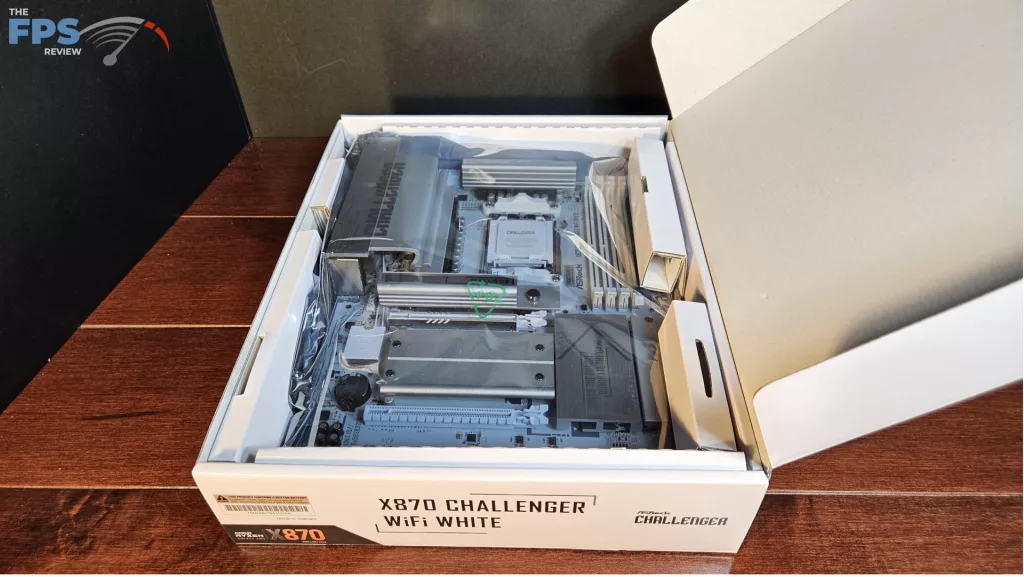

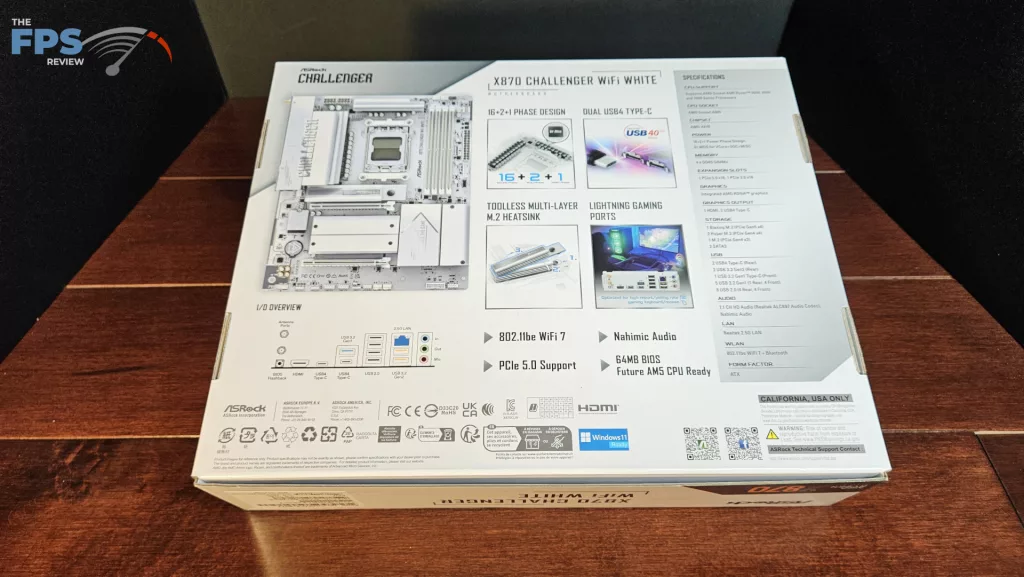

ASRock X870 CHALLENGER WiFi White: budget X870 with serious power
If GIGABYTE’s Stealth line is about hiding cables, ASRock’s X870 CHALLENGER WiFi White is about proving you can still get enthusiast-grade guts in an entry-level gaming board. The CHALLENGER series debuted on B850 in 2025 and expanded to X870 in early 2026. This full ATX X870 motherboard supports AM5 CPUs across Ryzen 7000, 8000, and 9000, and it does so with a focus on fundamentals rather than RGB excess. According to ASRock, the X870 CHALLENGER WiFi White uses a 16+2+1 power phase design with 80A DRMOS for VCore, which is more than adequate for high-end Ryzen chips.
Despite its “entry-level” branding, the feature set reads like a serious enthusiast platform. You get four M.2 slots—one PCIe Gen5 x4 and three Gen4 variants—plus two SATA ports, with the caveat that running M.2_2 at full Gen4 x4 speed requires disabling rear USB4 in the BIOS. The rear I/O includes seven USB-A ports and two USB‑C ports at up to 40Gb/s, along with HDMI, 2.5Gb Ethernet, WiFi, and a BIOS flashback button. The board is currently listed at USD 169 (approx. RM790) with a three‑year warranty. The white-silver design, reinforced primary PCIe slot, and 8‑layer PCB show that ASRock is chasing clean builds and structural quality without leaning on heavy lighting to impress.
Rear connectors and thermal design: why this matters to builders
The deeper story here is not only about how AM5 motherboards look, but how they manage heat and complexity. By moving connectors to the back, the B850M AORUS Stealth clears the front of cable obstruction, which naturally improves airflow paths in compact micro‑ATX cases and makes front intake fans more effective. Combined with extensive heatsink coverage—including a bottom brushed aluminum plate over the chipset and M.2 slots—this board treats thermals as part of the visual design, not a separate engineering afterthought. In dense micro‑ATX layouts, that matters. Fewer cables crossing the board means fewer warm spots and less pressure on VRM and SSD cooling solutions.
ASRock’s X870 CHALLENGER WiFi White takes a different route: it keeps a conventional front connector layout but attacks thermals with heavy VRM heatsinks, an 8‑layer PCB, and careful socket spacing for large coolers. With 16+2+1 phases and 80A DRMOS, the board is clearly built with sustained load in mind rather than marketing-friendly peak clocks. However, the M.2 placement under and around a large GPU hints at the trade-offs of traditional layouts: heat from a 2.5‑slot card can blanket multiple drives, and clearances can force you to choose between using motherboard heatsinks or tall third-party ones. In a world where rear connectors are beginning to clean up thermals as well as aesthetics, these compromises stand out more starkly.
The new normal for AM5: aesthetics and function or nothing
These two boards send a clear signal: AM5 motherboards that ignore cable management and visual layout are going to feel dated fast. GIGABYTE’s B850M AORUS Stealth shows how rear connector design can fix long-standing cable management headaches in compact builds while delivering a 12-phase VRM and serious heatsinking in a micro‑ATX footprint. ASRock’s X870 CHALLENGER WiFi White proves that even “entry-level” X870 can be both visually clean and electrically ambitious, with 16+2+1 phases, four M.2 slots, and enough I/O to anchor a high-end gaming rig. The AM5 platform is no longer only about CPU capability; it is now about how gracefully a board can host that power in real cases, with real cables, and real airflow constraints.
For builders, the takeaway is simple: stop treating cable management and thermal layout as problems you solve after buying the motherboard. The board is now the solution. If you want the cleanest possible front view and easier routing, rear connector designs like the B850M AORUS Stealth should be at the top of your AM5 shortlist. If you prioritize value, white themes, and strong power delivery, the X870 CHALLENGER WiFi White is a compelling X870 motherboard that hits the core of what matters for high‑end builds without taxing your budget or drowning your rig in RGB. The best AM5 boards from here on out will be judged not only by BIOS features and VRM charts, but by how little effort it takes to make them look and run like a premium system.
