From Stereo Limits to Ambisonics Soundfields
Conventional stereo recording was never designed for today’s immersive formats. A left-right image can sound convincing, but it cannot fully represent height, depth, or the complex reflections that define real spaces. Ambisonics microphone recording aims to solve this by capturing the entire 360-degree soundfield as a coherent, three-dimensional dataset. Arrays like mh acoustics’ Eigenmike place many capsules on a rigid sphere, encoding sound so it can later be steered, decoded, and rendered for headphones, surround, or interactive XR environments. This approach is invaluable for spatial audio capture, acoustic research, and soundfield analysis, but historically it demanded large, delicate condenser capsules and painstaking calibration. As a result, higher-order ambisonics tools remained niche, expensive, and mainly confined to specialist studios and labs. The arrival of robust, miniaturised optical MEMS microphone technology is now shifting that balance.
How Optical MEMS Microphones Raise the Bar

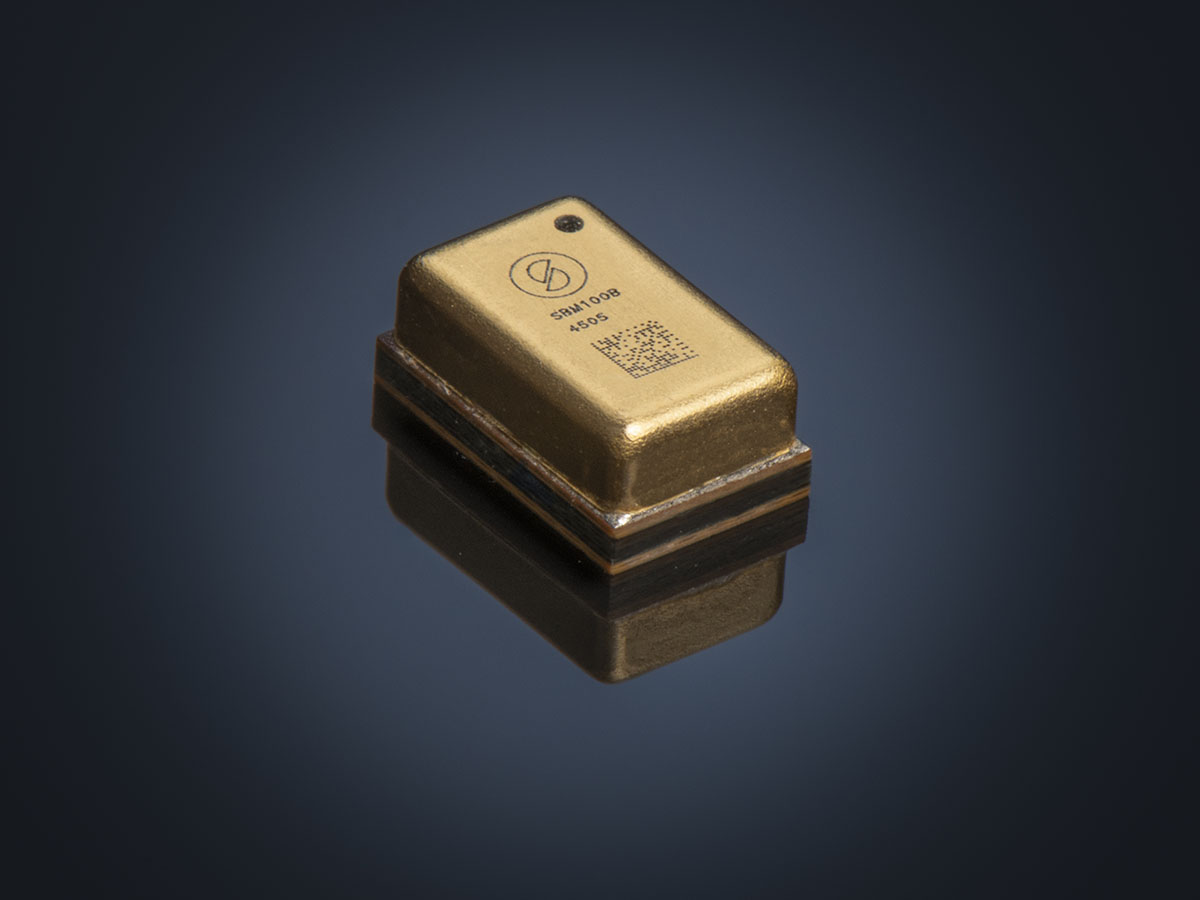

Not all MEMS microphones are created equal. Traditional capacitive MEMS designs use a diaphragm and perforated backplate separated by microns, a structure that inherently limits how far the membrane can move. That restriction caps signal-to-noise ratio and dynamic range, leaving typical digital MEMS stuck around 70dB SNR and roughly 130dB SPL overload capability—adequate for consumer devices, but insufficient for dense ambisonics arrays. sensiBel’s SBM100B optical MEMS microphone sidesteps this bottleneck by eliminating the backplate and measuring diaphragm motion optically via laser interferometry. A tiny VCSEL, diffractive optical element, and photodetector sit inside the package, converting motion directly into a digital audio stream. This architecture enables around 20 times greater diaphragm movement, achieving 80dB SNR, 146dB SPL acoustic overload point, and 132dB dynamic range in a miniature footprint comparable to commodity MEMS, yet rivaling handheld studio condensers many times larger.
The em64d Eigenmike: Sixth-Order Ambisonics in a Sphere
mh acoustics has spent over 15 years advancing commercial higher-order ambisonics, and its latest em64d Eigenmike marks a pivotal upgrade. Retaining the familiar 84mm rigid sphere and sixth-order ambisonics capability of the earlier em64, the new model replaces 64 carefully matched electret condenser capsules with 64 sensiBel SBM100B optical MEMS microphones. The array delivers a 20Hz–20kHz frequency response, 48kHz sampling, and a spatial aliasing cutoff above 12kHz, enabling precise 360-degree recording and detailed soundfield analysis. At the system level, the optical MEMS elements provide about 8dB higher SNR and 16dB higher acoustic overload point than the previous ECM-based design, improving performance in both very quiet and very loud environments. Beyond the hardware, em64d ships as a complete high-order ambisonics solution, with integrated 64-channel capture, advanced beamforming, multi-track recording, and the EigenStudio software plus EigenUnit plug-ins for streamlined post-production.
Why Lower Noise and Wider Bandwidth Matter for 360-Degree Recording
High-order ambisonics arrays are unforgiving. Tiny mismatches in phase or magnitude between capsules can degrade localisation, blur spatial cues, and restrict useful order. By standardising on optical MEMS microphone elements with studio-grade noise performance and tight manufacturing tolerances, the em64d improves both consistency and absolute quality. An 80dB SNR and 14dBA self-noise bring the array into the realm of professional condenser microphones, but with the advantages of surface-mount packaging, reflow compatibility, and long-term stability. For engineers, that means more reliable spatial audio capture, cleaner beamforming, and fewer artefacts when decoding to binaural or multichannel formats. For ambisonics microphone recording workflows, it unlocks more aggressive processing—such as dynamic object steering or high-resolution room impulse measurement—without hitting a noise floor ceiling. The result is a more faithful reconstruction of the original soundfield, from subtle ambience to transient-rich events.
Democratising Spatial Audio Capture and Soundfield Analysis
The combination of em64d’s sixth-order ambisonics and sensiBel’s optical MEMS technology has implications far beyond a single flagship product. By shrinking studio-quality performance into compact, easily assembled elements, optical MEMS makes it more feasible to deploy dense arrays outside traditional studios—on film sets, in concert halls, in complex industrial spaces, or deep in remote natural soundscapes. Content creators gain robust 360 degree recording for immersive music, VR and AR experiences, and interactive installations. Researchers benefit from accurate, repeatable soundfield analysis for room acoustics, noise control, and psychoacoustic studies. As optical MEMS microphone designs scale into different array geometries and price points, both professionals and serious enthusiasts can experiment with higher-order spatial audio production without the historical barrier of fragile, hand-selected condenser rigs. In effect, the technology is pushing ambisonics from a specialist tool into a mainstream production option.
