The one card most builders should buy for compact rigs
A small form factor graphics card is a GPU engineered with shorter length, slimmer slot width, and efficient cooling so it can fit Mini-ITX and other compact PC cases without sacrificing too much performance or stability. For most people building a compact gaming or creator mini PC, the ASUS Prime RTX 5070 OC is the best choice. It is a well-rounded RTX 50‑series card with 12GB of GDDR7 memory, DLSS and Multi‑Frame Generation support, a 2.5‑slot SFF‑ready design, Axial‑tech fans, dual BIOS, and a three‑year warranty. That mix of modern features, thoughtful thermals, and clear SFF intent makes it the safest recommendation for the widest range of compact builds.
This compact GPU for a mini PC is purpose‑built for 1440p and 1600p gaming, esports, and creative workloads that benefit from NVIDIA acceleration, while still fitting better than many oversized cards. If your Mini‑ITX case has room for a 2.5‑slot card and your power supply meets NVIDIA’s wattage guidance, you should buy this first and only look at alternatives if it cannot fit or your workloads demand more memory.
How to pick an ITX graphics card that will actually fit
Before you think about performance, you must confirm that your compact case and power supply can support a discrete GPU. Mini‑ITX is the smallest common form factor and has the most difficulty fitting long or tall graphics cards, even though many late‑model Mini‑ITX cases can now hold powerful GPUs. Ultimately, before you can safely buy a graphics card for a compact PC, you need to know the internal distance between the front and back of the case, the total number of add‑on slots, and the maximum supported card height.
You also need to check your power supply. Compact PCs often ship with smaller PSUs that support lower wattage, and all but the lowest‑end modern GPUs need extra PCIe power cables. Look at the PSU’s rated wattage, compare it to the GPU’s recommended minimum, and confirm that the power connectors match. If the PSU does not have the required connectors, you should stop there because it signals the power supply is not up to the job. With a compact PC you may also want more energy‑efficient cards, as a hot‑running GPU can cause problems in a tightly packed case without enough ventilation.
The best SFF-ready NVIDIA options for compact builds

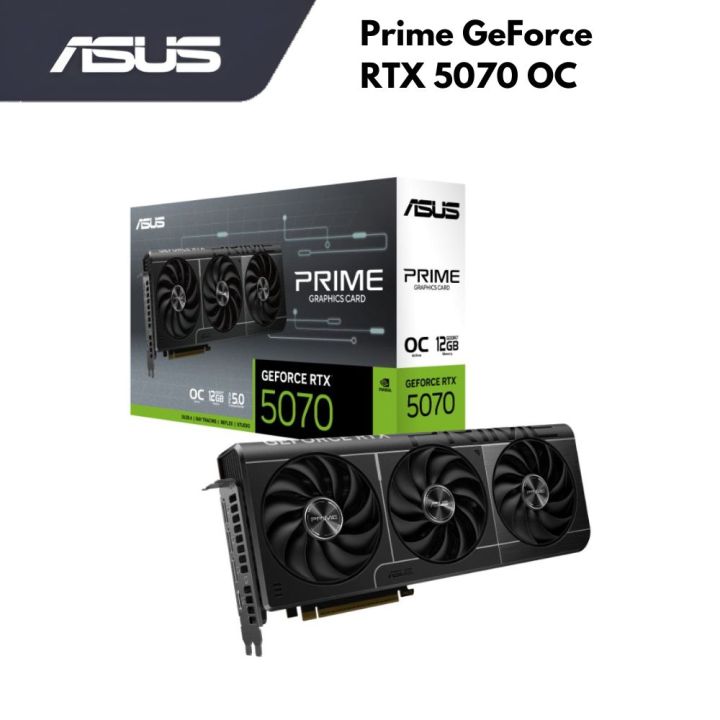

This SFF graphics card guide would be incomplete without a clear view of today’s strongest compact NVIDIA options. The ASUS Prime RTX 5070 OC is the sweet spot for most builders, thanks to its 12GB GDDR7 memory, PCIe 5.0 interface, HDMI/DisplayPort 2.1 outputs, 2.5‑slot Axial‑tech triple‑fan cooler, dual BIOS, and three‑year warranty. It is best suited to compact or mid‑sized gaming PCs that need 1440p performance, DLSS 4 support, and modern display connectivity.

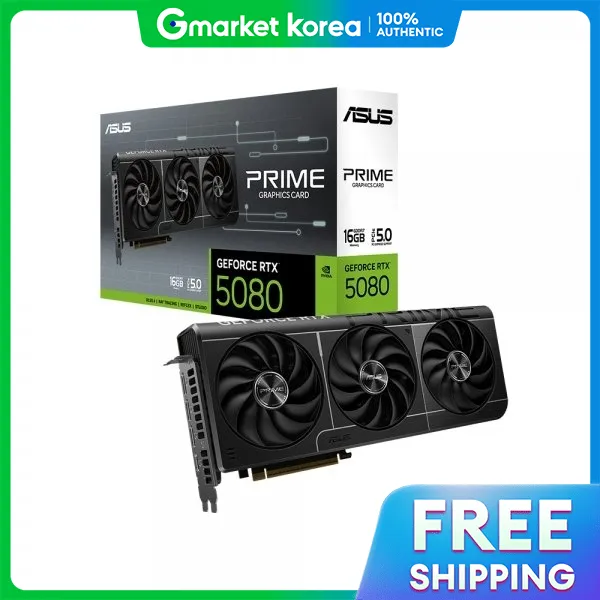

If you run heavier creator workloads or want more headroom, move up to a compact RTX 5080. The SFF‑Ready Prime GeForce RTX 5080 OC Edition from ASUS offers 16GB of GDDR7, PCIe 5.0, HDMI/DisplayPort 2.1, a 2.5‑slot Axial‑tech cooler with vapor chamber, and dual BIOS. PNY’s NVIDIA GeForce RTX 5080 Slim Dual‑Fan is another SFF‑ready, dual‑slot OC card with 16GB GDDR7, 256‑bit bus, 2730MHz boost clock, PCIe 5.0, and HDMI/DP 2.1 on NVIDIA Blackwell with DLSS 4.5. Between these three, you can match almost any compact NVIDIA build to a small form factor graphics card that fits both size and performance needs.
| Spec | ASUS Prime RTX 5070 OC | ASUS Prime RTX 5080 OC | PNY RTX 5080 Slim Dual-Fan |
|---|---|---|---|
| Memory | 12GB GDDR7 | 16GB GDDR7 | 16GB GDDR7 |
| Interface | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 |
| Slot design | 2.5-slot, SFF-ready | 2.5-slot, SFF-ready | Dual-slot, SFF-ready |
| Cooling | Triple Axial-tech fans | Axial-tech fans + vapor chamber | Dual-fan cooler |
| Key features | DLSS 4, Multi-Frame Generation, dual BIOS | DLSS 4, dual BIOS | DLSS 4.5, 2730MHz boost clock |
Compact AMD Radeon and Intel Arc options for tight cases
If you prefer an ITX graphics card from AMD, a compact Radeon option can be a strong fit for creator‑heavy workloads or for systems tuned around AMD software. The ASUS Dual Radeon RX 9060 XT uses 16GB of GDDR6 on PCIe 5.0, with HDMI 2.1b, DisplayPort 2.1a, and a 2.5‑slot design that uses Axial‑tech fans and 0dB technology to control noise. That SFF‑friendly footprint matches many Mini‑ITX and small ATX designs while giving you the frame buffer size creatives often want.
You will also find compact NVIDIA cards in more modest tiers, such as the MSI GeForce RTX 5060 Ti 16G Ventus 2X OC Plus, which pairs 16GB of GDDR7 (28Gbps, 128‑bit) with PCIe 5.0 and a dual‑fan thermal design that uses two STORMFORCE fans, plus HDMI 2.1b and DisplayPort 2.1b outputs. While the sources do not list a specific Intel Arc model, the same rules apply when you shop: check card length, height, and slot thickness against your case; confirm PSU wattage and connectors; and prefer cooler, more efficient GPUs in cramped layouts. As quoted in the guidance, "With a compact PC, you may want to consider more energy‑efficient cards over more powerful ones" because of heat and ventilation limits.
Buy if / Skip if
- Buy the ASUS Prime RTX 5070 OC if you want the best all-round compact GPU for 1440p gaming and creative work in a Mini‑ITX or small tower case.
- Skip the ASUS Prime RTX 5070 OC if your case only accepts half-height or very short cards and cannot fit a 2.5-slot cooler.
- Buy the ASUS Prime RTX 5080 OC if you need a small form factor graphics card with 16GB of GDDR7 and higher performance for heavier creator workloads in a roomy Mini‑ITX chassis.
- Skip the ASUS Prime RTX 5080 OC if your power supply has limited wattage or lacks the right PCIe power connectors, as that signals it is not suitable.
- Buy the PNY RTX 5080 Slim Dual-Fan if you want a dual-slot SFF-ready Blackwell card with DLSS 4.5 and a slightly slimmer profile for tighter cases.
- Skip the PNY RTX 5080 Slim Dual-Fan if your case airflow is poor and you prefer a thicker card with a larger cooling surface to cope with heat in a compact build.
- Buy the ASUS Dual Radeon RX 9060 XT if you prefer AMD, want 16GB of GDDR6, and your compact case supports 2.5-slot cards with good airflow.
- Skip the ASUS Dual Radeon RX 9060 XT if your mini PC uses a low-wattage PSU without the necessary PCIe power connectors.
- Buy the MSI GeForce RTX 5060 Ti 16G Ventus 2X OC Plus if you are building an efficient compact GPU for a mini PC where 16GB GDDR7 and a dual-fan design are enough.
- Skip the MSI GeForce RTX 5060 Ti 16G Ventus 2X OC Plus if you have no length and power limits and want the highest possible tier instead of a more efficient mid-range option.
