What Belkin’s Thunderbolt 5 dock really is—and why it matters
Belkin’s 14‑in‑1 Thunderbolt 5 dock is a high-bandwidth USB-C docking station that combines 120Gbps graphics throughput, triple 4K 144Hz display support, and 140W Power Delivery charging into a single-cable desktop hub for demanding multi-display setups.
This dock is not another generic 4K display docking station; it is Belkin’s statement that Thunderbolt 5 is the new baseline for serious external workstations. Priced at 2,299 yuan (USD 338, approx. RM1,580), it plugs into your laptop over a Thunderbolt 5 upstream port and pushes up to 80Gbps in normal use, with a boost mode that reallocates bandwidth up to 120Gbps when high-resolution or high-refresh monitors are connected. In plain terms, Belkin is betting that one fat pipe is better than a tangle of adapters, and the numbers back that up. Older Thunderbolt 4 tops out at 40Gbps in both directions, while Thunderbolt 5 can transmit up to 120Gbps while receiving at 40Gbps, a threefold jump where it counts for displays.
Triple 4K at 144Hz: why 120Gbps bandwidth changes the rules
The headline feature is simple and bold: on compatible Windows machines, Belkin’s Thunderbolt 5 dock can drive three external 4K displays at 144Hz, or up to four independent screens in total. That is not marketing fluff; it is the direct result of Thunderbolt 5’s 80Gbps baseline and 120Gbps boost mode for outbound video. When the system detects high-resolution or high-refresh-rate monitors, bandwidth is dynamically shifted so more lanes serve display output instead of symmetric data.
This is where Thunderbolt 5 leaves older standards behind. Thunderbolt 4’s 40Gbps cap could already feel tight with dual high-refresh displays. Thunderbolt 5, by contrast, is designed for multiple 8K screens or extremely high-refresh gaming panels up to 540Hz in other configurations. Belkin taps this headroom using one DisplayPort 2.1 port and one HDMI 2.1 port, each capable of up to 8K60 or 4K240 on compatible hardware, plus two downstream Thunderbolt 5 ports that can also carry video. The message is clear: if you want a serious multi-display setup without bottlenecks, 120Gbps is no longer a luxury; it is the requirement.
140W Power Delivery: one cable to rule your power budget
Belkin’s other big swing is power. The dock’s Thunderbolt 5 upstream connection offers up to 140W of USB Power Delivery, enough to charge larger laptops that need higher draw while under full load. A 180W power adapter in the box feeds both the host and the attached peripherals. This aligns perfectly with the Thunderbolt 5 spec, where certified cables can support 140W charging and some cables go up to 240W via USB Power Delivery.
This turns the dock from a convenience accessory into infrastructure. Instead of juggling the laptop’s original charger plus a 4K display docking station, you plug one Thunderbolt 5 cable into the Belkin dock and you are done. One USB‑C 3.2 port adds 30W charging for smaller devices, while another offers 7.5W for lighter accessories. The two downstream Thunderbolt 5 ports provide 15W each, which is enough for many external drives or smaller hubs. In practice, this is “single-cable life” done properly: data, displays, and serious Power Delivery charging through one port, without compromising headroom.
14 ports, real-world workflows, and where the limits show

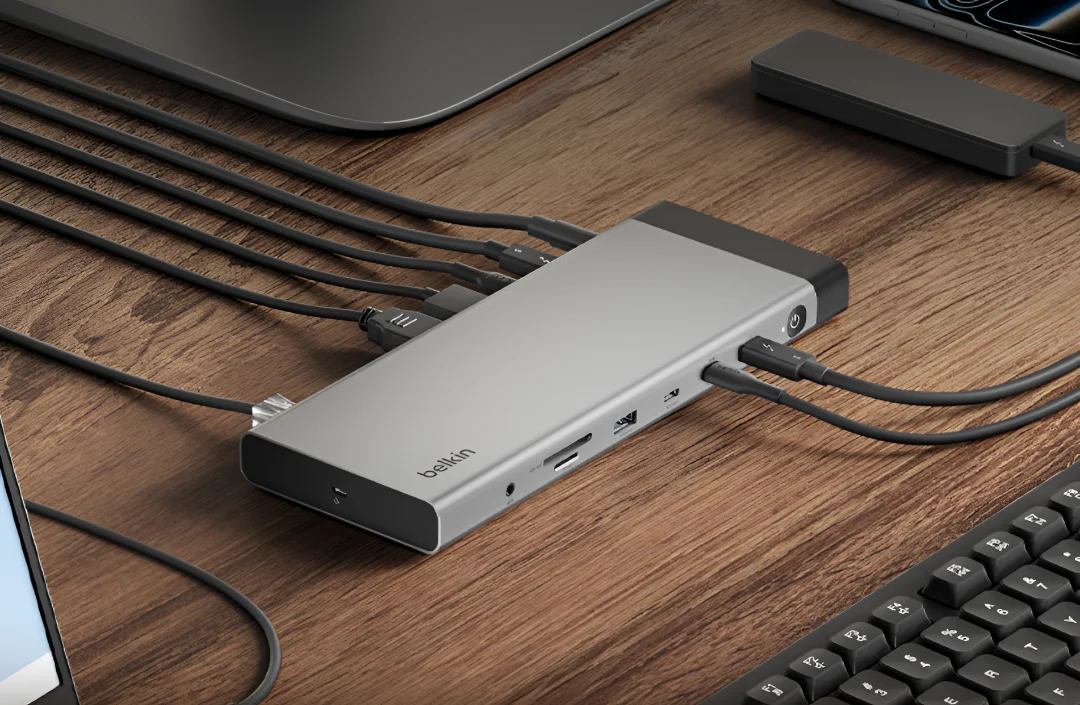

Belkin’s 14‑in‑1 design is not about inflating a port count; it is about consolidating an entire desk into one Thunderbolt 5 dock. Beyond the display outputs and Thunderbolt ports, you get one USB‑C 3.2 port with 30W charging, a second USB‑C 3.2 port with 7.5W output, one 10Gbps USB‑A 3.2 port, and two 5Gbps USB‑A 3.0 ports. For storage and media, there are UHS‑II SD 4.0 and microSD 4.0 card readers rated at 312MB/s, plus 2.5 Gigabit Ethernet and a 3.5mm audio jack. The aluminum body, 510g weight, and distributed thermal management underline that this is meant to stay on your desk, working hard without cooking itself.
The catch is that this power comes with conditions. At Thunderbolt 5 speeds, even minor interference can disrupt signals, which is why longer cables are often active with retimer chips to keep data clean. Mac users face another constraint: multiple external displays depend on the specific Apple Silicon processor. Newer M4 and M5 models support more screens, while M1, M2, and M3 machines are still limited by Apple’s own hardware. And despite backward compatibility with Thunderbolt 4, USB4, and standard USB‑C devices, older Thunderbolt 3 laptops and displays are not supported at all. In other words, the dock is unforgiving if the rest of your gear is stuck in the past.
Thunderbolt 5 in a USB-C shell: why this dock points to the future

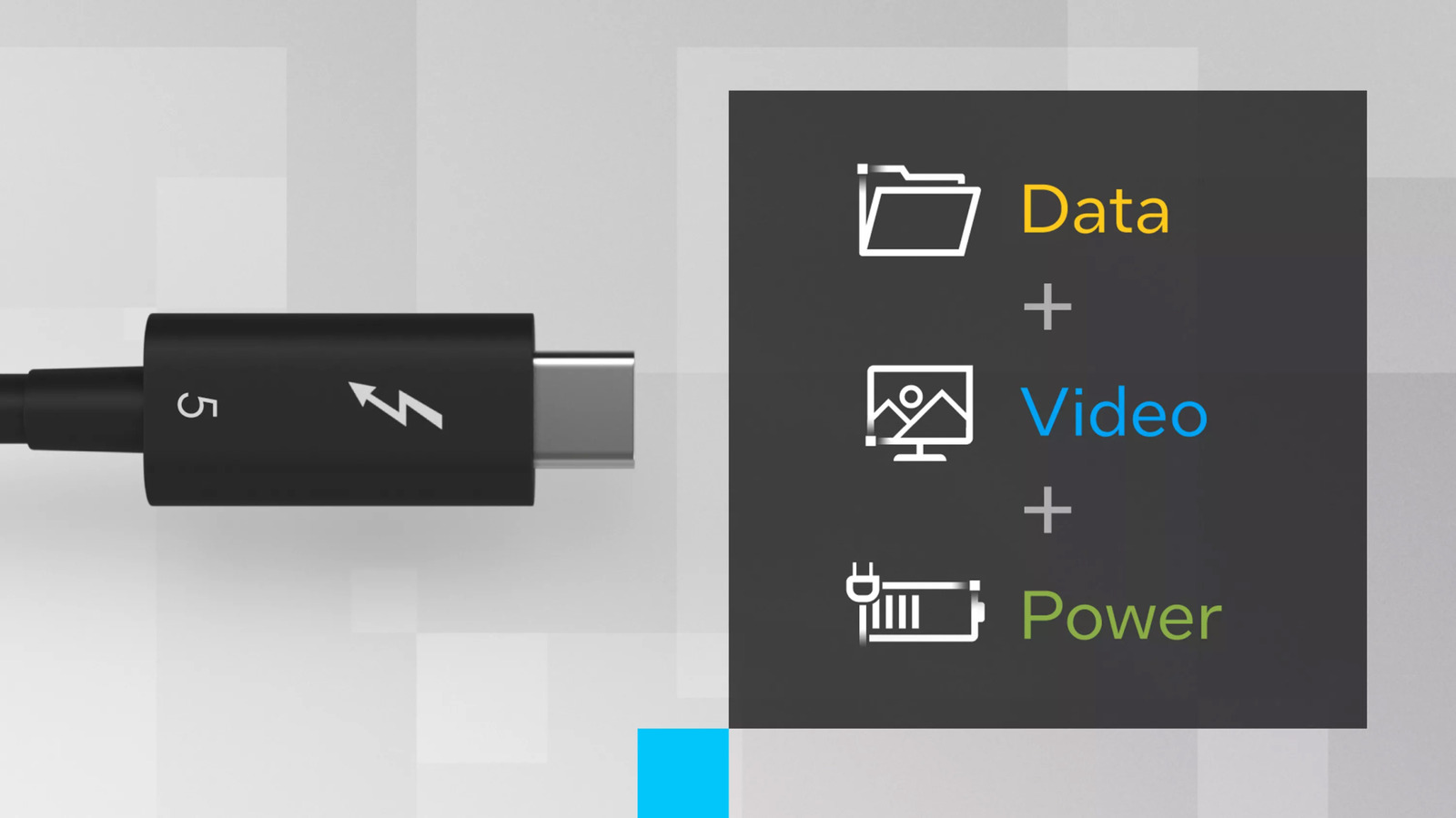

At a glance, Belkin’s Thunderbolt 5 dock looks like any other USB‑C docking station, and that is the dangerous illusion. The port shape is identical, but the behavior is not. Thunderbolt 5 can move up to 80Gbps bidirectionally and reallocate up to 120Gbps in one direction when needed, while receiving at 40Gbps. USB4 V2 can match 80Gbps, yet Thunderbolt adds display, PCIe, daisy chaining, and standardized Power Delivery in one coherent stack. If you need one cable to handle all your data and power needs, Thunderbolt is the way to go.
Belkin’s dock makes that argument tangible: triple 4K at 144Hz, 140W laptop charging, 14 ports, and a single plug into your machine. This is not about theoretical bandwidth charts; it is about finally making a multi-display setup behave like an integrated desktop, not a science project of dongles. The limitation is that you must buy into the Thunderbolt 5 ecosystem—from laptop to cable to dock—and accept that older Thunderbolt 3 hardware is excluded. But if you do, this dock shows what the USB‑C future was supposed to be all along: one cable that does not ask you to pick between display, storage, or power.
