From Spec Races to Signal Purity
Premium DAC upgrades and modern phono preamp design increasingly focus on cleaner analog signal paths, better clocking, and lower noise floors instead of adding more features, sample rates, or display options, as makers target more natural, musically convincing sound from both digital and vinyl sources. In digital audio, the spec sheet race has delivered tiny boxes packed with Bluetooth, streaming modules and filter menus, but those additions do not guarantee better conversion or a more engaging listen. The current wave of high-end source components is reacting against that clutter, returning attention to clock stability, output-stage impedance, component choices and voicing by ear. At the same time, the vinyl boom has forced phono stages to become more adjustable, quieter and more transparent, so that turntables and cartridges can perform to their potential without hum, hiss or loss of dynamics.
Weiss DAC204-MK2: ESS9028PRO and a Near-Zero-Ohm Exit
Weiss’s DAC204-MK2 shows how a premium DAC can evolve through smarter engineering rather than feature overload. The compact unit replaces its original conversion board with an ESS9028PRO chip, tapping the Sabre platform’s advanced jitter-elimination circuitry and pairing it with a revised analog output stage. According to Weiss Engineering, the DAC204-MK2’s “near-zero-ohm output impedance improves compatibility with difficult cable loads and low-impedance headphones used with a suitable external adapter.” The design stays focused: USB, RCA and Toslink inputs feed balanced XLR and single-ended RCA outputs, with support for PCM up to 384 kHz and DSD64/128, but there is no streaming client, DSP engine, or headphone jack. Instead, Weiss optimizes distortion behavior and reconstruction filters by ear, underlining the shift from chasing spectacular measurements toward tuning the analog signal path for long-term listening.

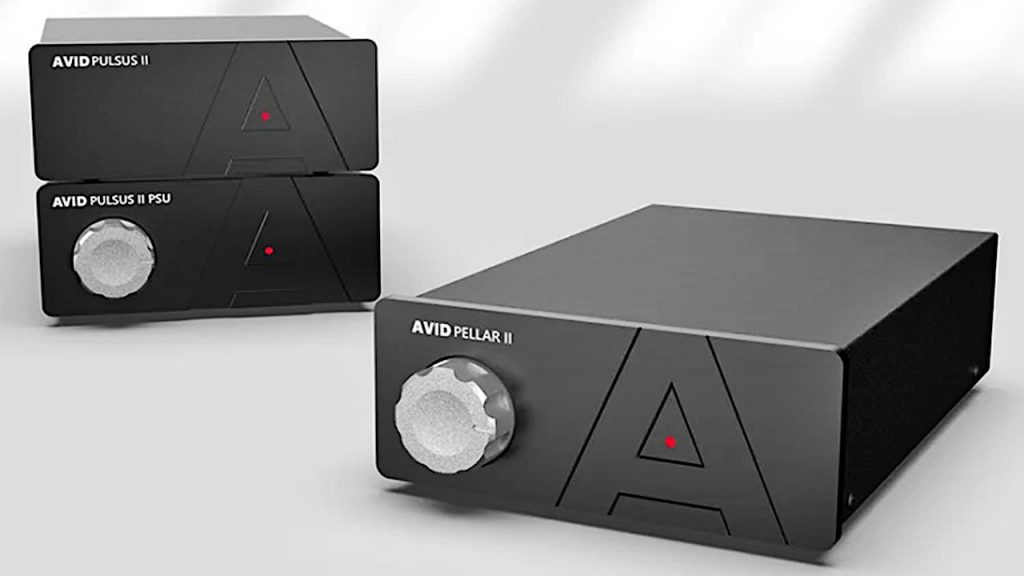

AVID HiFi Pulsus II and Pellar II: Quieter, Smarter Vinyl Gain
On the analog side, AVID HiFi’s Pulsus II and Pellar II phono stages refine long-running designs with lower noise and added flexibility for both MM and MC cartridges. The Pulsus II keeps a dual-box format, with separate phono and power-supply units and a dual-mono circuit layout aimed at channel separation and cleaner power regulation. Cartridge loading starts at 47k ohms for MM, with DIP-switch adjustment for MM or MC as required. The Pellar II takes a more compact, single-chassis approach, using a single-board layout with low-noise op-amps and preset 47k loading for MM, plus adjustable resistance values for MC. AVID highlights more careful component selection and improved noise-reduction strategies to give vinyl playback greater transparency, stronger dynamics and a more natural presentation without throwing away what made the original Pulsus and Pellar respected for more than a decade.

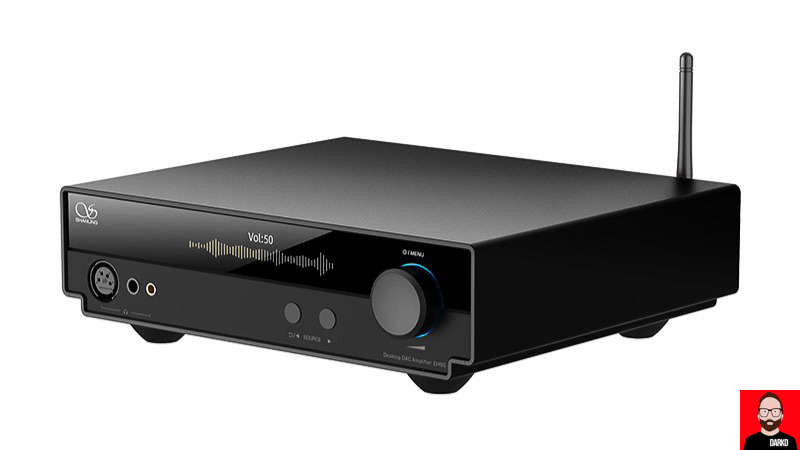

Shanling EH90: R2R DAC Architecture Meets Discrete Head-Fi
Shanling’s EH90 enters the crowded R2R DAC architecture arena by integrating a ladder-based converter with a discrete headphone amplifier in a compact desktop chassis. The design speaks to enthusiasts who value the tonal density and timing many associate with resistor-ladder DACs, but who also want a self-contained head-fi front end. Unlike feature-heavy all-in-one streamers, the EH90 leans into its core strengths: a carefully implemented R2R conversion stage and an analog output section built to drive headphones directly without an external amplifier. This combination turns attention to resistor matching, power-supply cleanliness and the gain structure of the discrete stage, instead of piling on software features. The result is an example of how manufacturers are using R2R not for nostalgia, but as a platform for fine-tuning the entire analog signal path between bits and ears.
Why Analog Stages Now Define Premium Sources
Across these three products, a common theme emerges: premium source components are now defined less by headline specifications and more by how they handle the analog signal that leaves the box. The Weiss DAC204-MK2 uses the ESS9028PRO chip and jitter control not to win a data sheet battle, but to feed a carefully voiced, low-impedance output stage. AVID HiFi refines its Pulsus II and Pellar II phono preamps with better parts, quieter power arrangements and flexible loading, so cartridges can track with less noise and more dynamic headroom. Shanling’s EH90 pushes R2R DAC architecture and discrete amplification to achieve a different flavor of transparency. In each case, the engineering effort clusters around clocking, grounding, power supply, gain structure and output impedance. That is where modern designers see the biggest gains in realism, even as raw specs plateau.
