What DGX Spark Clustering Gives You (and Who It’s For)
DGX Spark clustering is the process of daisy‑chaining two Dell Nvidia GB10 systems into a single multi‑node AI box cluster so they share compute and memory, turning a powerful standalone unit into a home AI lab able to run larger models, longer contexts, and more demanding experiments than a single machine can handle. If you’re already comfortable running local AI models on one GB10 and find yourself hitting memory ceilings or juggling containers, clustering is the next step. Think of it as going from cooking for a family to catering an event: the same skills, bigger kitchen. The main caveat is that clustering pushes you into distributed computing territory, which means networking quirks, Linux troubleshooting, and a willingness to keep poking at logs until things work. If that sounds like fun rather than a nightmare, you’re the right person for this.
Prerequisites: Hardware, Networking and a Separate Front End
Before you start daisy‑chaining AI boxes, you need to know what you’re signing up for in terms of local AI hardware. Each Dell Pro Max with GB10 is based on Nvidia’s DGX Spark design, and the magic is at the back: ConnectX‑7 network adapters that provide 200Gbps bandwidth, the kind of enterprise‑grade networking you don’t see in typical desktop workstations. To link the nodes you’ll use a Quad Small Form Factor Pluggable (QSFP) cable between the ConnectX‑7 ports. On the software side, Nvidia’s "Connect Two Sparks" playbook walks through the basics of getting the units to talk: you’ll create user accounts on both systems and grant permission for secure shell (SSH) communication so they can coordinate workloads. For a true home AI lab setup, it helps to run your user interface elsewhere. One practical approach is installing Open WebUI on a separate Linux laptop — for example, a Dell Pro Max 18 Plus running Ubuntu Linux 24.04 LTS — so the cluster can focus fully on model execution.
Step‑by‑Step: Daisy‑Chaining Two GB10 AI Boxes
Here’s the high‑level sequence for turning two GB10s into a DGX Spark clustering setup. Treat this as guidance from someone who learned the hard way where things go wrong, not a replacement for vendor documentation.
- Place both GB10 units with plenty of airflow and connect them to reliable power; note where the ConnectX‑7 ports are located on the rear of each box.

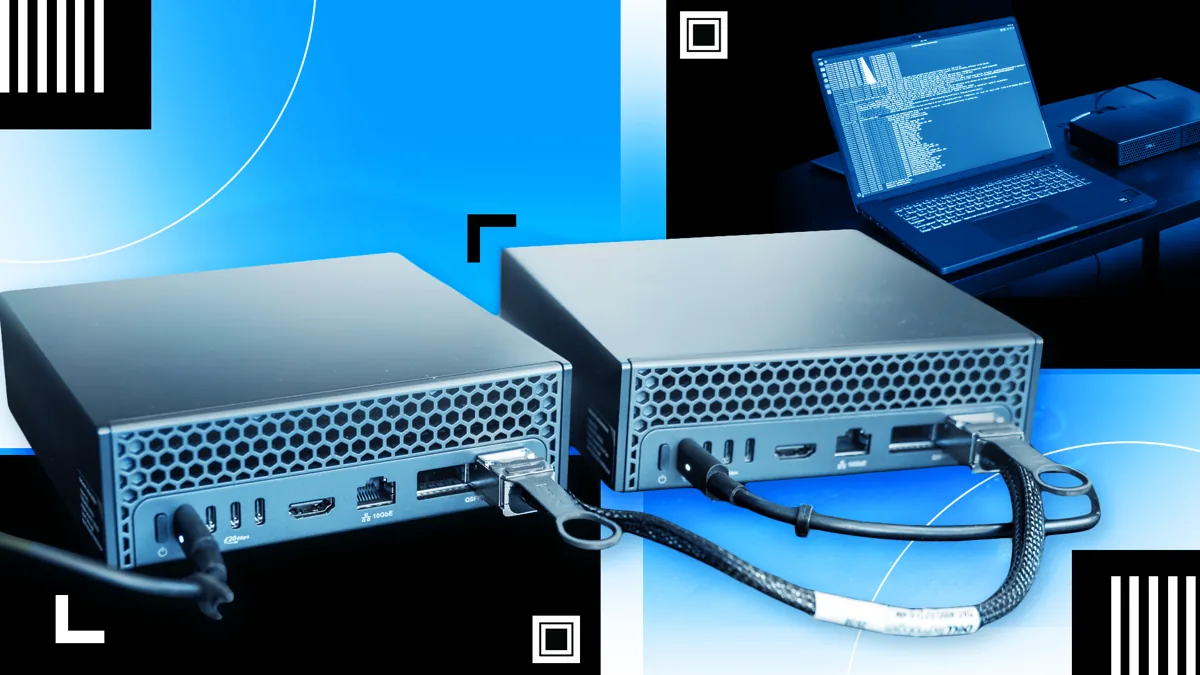

- Use a QSFP cable to link the right‑most ConnectX‑7 port on the first GB10 to the right‑most port on the second, following Nvidia’s assumption that these ports carry the primary 200Gbps link.
- On each GB10, create user accounts and configure SSH keys so the nodes can authenticate and communicate securely, as outlined in the Connect Two Sparks playbook.
- Verify that the proper GPU‑enabled CUDA libraries are installed rather than any CPU‑only variant; correct installations on both nodes are critical for multi‑node tensor parallelism.
- Deploy your chosen model using the clustering tools recommended in the playbook, confirming that tensor parallelism shards the model across both machines to share compute and memory.
The tempting shortcut is to rush through cabling and software checks, but that’s where most of the pain happens. One common mistake is plugging the QSFP cable into the left‑side port instead of the right‑most ConnectX‑7 port; nearly all guides assume you’re using the right‑most ports, and using the wrong one can leave the AI box daisy chain half‑connected and mystifying to debug. Another frequent pitfall is ending up with a CPU‑only CUDA stack instead of the GPU version, which prevents the cluster from starting even though everything "looks" installed. Take the time to double‑check both cabling and CUDA before chasing more exotic problems.
What Changes Once the Cluster Is Running
Once your model is running across two DGX Spark systems, the experience changes quickly. The linked GB10s use tensor parallelism to shard the model between nodes, so you’re not only doubling processing power but also doubling memory capacity, which opens the door to longer contexts, complex reasoning chains, and multi‑modal tasks that would otherwise overwhelm a single box. The cluster turns an already‑formidable single‑node machine into a genuine home AI lab and shifts your mindset from tinkering to experimentation. Response times for text requests can feel almost instant because the workload is spread efficiently across both units. You will, however, notice that AI development starts to feel like a mix of engineering and detective work: debugging containers, chasing misconfigurations, and updating code from repositories become part of daily life. Over time, many enthusiasts stop viewing these hiccups as failures and start treating them as learning steps — the price of admission to multi‑node AI.
Heat, Costs and Whether Clustering Is Worth It
Daisy‑chaining two AI boxes in a living room has real‑world side effects. Two GB10 units put out more heat than you might expect, and thermal considerations matter: give them open space, avoid stacking them, and make sure your room can shed the warmth they generate during long training or inference runs. On the money side, GB10 systems originally debuted around USD 3,000 (approx. RM13,800) but now sell closer to USD 4,699 (approx. RM21,600) or even USD 6,000 (approx. RM27,600) due to an ongoing memory shortage. That puts them in the same ballpark as traditional desktop workstations and makes a two‑node cluster a significant investment compared with a single high‑end PC or pay‑as‑you‑go cloud credits. In return, your home AI lab setup provides more capable models without resource anxiety and keeps your data private, with the only recurring cost being electricity. If you care about local control, fast experimentation, and long‑term tinkering, clustering is worth it — as long as you’re ready to live with extra heat, higher upfront cost, and some stubborn debugging sessions.
