Gen5 QLC NVMe SSD Capacity Breaks the 122TB Barrier

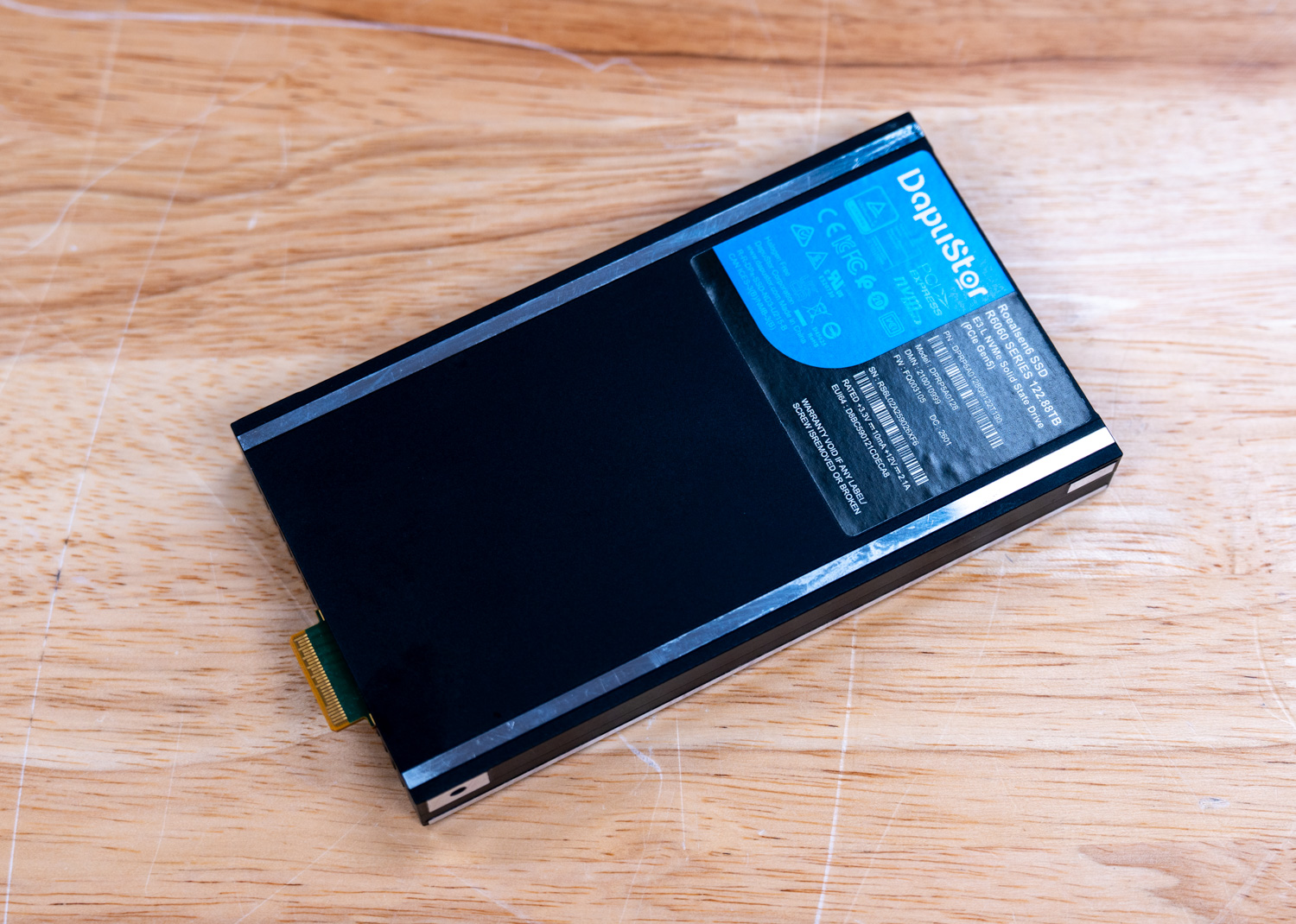

Enterprise storage density is entering a new phase as Gen5 QLC NVMe SSD capacity now stretches to 122.88TB in a single drive, with roadmaps already pointing higher. DapuStor’s R6060 line exemplifies this shift, pairing PCIe 5.0 x4 or 2×2 dual-port interfaces and NVMe 2.0 with 3D enterprise QLC NAND. The family spans traditional U.2 as well as E3.L and E1.L form factors, offering 15.36TB, 30.72TB, 61.44TB, and 122.88TB options, plus a flagship 245TB SKU. This scale fundamentally changes how data centers think about high-capacity drives and storage footprints. Instead of deploying many smaller data center SSDs, operators can hit petabyte-level pools with far fewer high-capacity drives, simplifying cabling and backplanes. The result is a new class of high-capacity drives that prioritizes NVMe SSD capacity and density over raw mixed-workload performance, particularly for read-intensive datasets common in AI, analytics, and cold-but-online storage tiers.
Read-Optimized Performance: Where Gen5 QLC Shines
Gen5 QLC storage like the DapuStor R6060 is engineered around read-heavy workload patterns rather than traditional transactional profiles. Across the family, DapuStor rates sequential read bandwidth at up to 14GB/s, with sequential writes at 4GB/s, clearly signaling its design emphasis. The 122.88TB model delivers up to 2.8 million random read IOPS, while random write IOPS are much lower and tuned for larger block sizes, reflecting its placement in capacity-centric tiers. Latency figures are competitive for this class: 80µs/25µs random read/write and 7µs/8µs sequential read/write, helping keep high-throughput read pipelines fed efficiently. In benchmark comparisons against other high-capacity enterprise SSDs, the R6060 consistently ranks near the top in 128K sequential read performance, surpassing many density-focused peers while trailing only more performance-oriented TLC competitors. This balance makes it well-suited to large-scale, read-dominant workloads such as content libraries, AI model repositories, and object storage layers that demand bandwidth and capacity more than small-block write agility.
FDP and Enterprise Features Make QLC Safer for Multi-Tenant Workloads
One of the biggest advances making QLC viable in enterprise data centers is the adoption of NVMe 2.0 Flexible Data Placement (FDP). The DapuStor R6060 leverages FDP to give hosts more control over how data is laid out on flash, reducing write amplification and improving endurance—critical for high-capacity QLC drives rated at 0.6 DWPD. FDP helps isolate workloads, enabling better separation of tenant data and more predictable performance in shared environments. Beyond FDP, the R6060 aligns with modern data center SSDs by offering OCP 2.5 compliance, NVMe-MI 1.2 for manageability, end-to-end data protection, secure boot and firmware verification, sanitize support, telemetry, and latency monitoring. Dual-port support adds path redundancy for mission-critical infrastructures. Together, these capabilities move QLC from a purely cost-focused option to a credible choice for multi-tenant clouds and hyperscale environments that need both high-capacity drives and enterprise-grade reliability.
Density, Power, and Rack-Level Efficiency Gains
High-capacity Gen5 QLC NVMe SSDs such as the R6060 redefine enterprise storage density at the system level. With a single E3.L 122.88TB drive drawing a maximum of 25W and idling at 5W, operators can pack far more usable capacity per rack unit while keeping power budgets in check. Consolidating capacity into fewer, larger data center SSDs reduces the number of slots, cables, and controllers required, simplifying infrastructure and lowering the overall failure surface. In dense AI and cloud architectures, this translates to more data per node and fewer chassis to manage. It also opens the door to tiering strategies that keep massive, read-heavy datasets entirely on flash instead of spilling into slower media. When scaled across racks, Gen5 QLC storage can significantly improve space efficiency and reduce operational complexity, especially for environments where capacity growth and access latency are more critical than maximum write endurance.
Looking Ahead: Gen6 Controllers and Future QLC Platforms

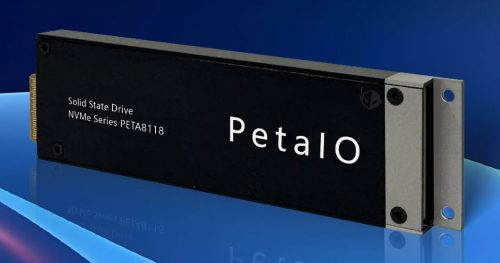

While Gen5 QLC NVMe SSDs are redefining today’s storage tiers, controller innovation is already pushing toward even higher performance and capacity. PetaIO’s Titanium Himalaya controller, unveiled as part of its PCIe Gen6 NVMe SSD roadmap, illustrates this future direction. Built on a 6nm process, it targets AI inference and vector retrieval workloads with over 28GB/s sequential read throughput, up to 50 million random read IOPS at 512-byte blocks, and latency as low as 2.7µs. The platform also integrates AI technology and supports CXL 3.0, pointing to closer coupling between compute and storage. When such controllers are paired with future generations of QLC or denser NAND, the combination of extreme NVMe SSD capacity and bandwidth will further blur the line between primary and secondary storage, enabling data centers to design architectures that are both flash-dense and performance-optimized for read-heavy workloads.
