What HBM4E Is and Why Early Samples Matter
HBM4E is the seventh generation of high-bandwidth memory built as vertically stacked DRAM dies around a base logic die, designed to deliver extreme bandwidth, higher capacity, and lower power for AI accelerators and datacenter GPUs that run large language models and other demanding workloads. SK Hynix has now shipped 12‑layer HBM4E memory samples ahead of its original schedule to major customers, including leading GPU vendors. In the current AI chip cycle, the timing of HBM4E memory samples has become a competitive weapon: GPU and accelerator designers cannot lock down package, signal integrity, and thermal designs until real stacks arrive. By moving samples into customer labs earlier than promised, SK Hynix is not only proving engineering readiness but also shaping future sockets in the crowded AI chip memory supply chain.
Inside SK Hynix’s 12-High HBM4E: Bandwidth, Capacity, and Efficiency

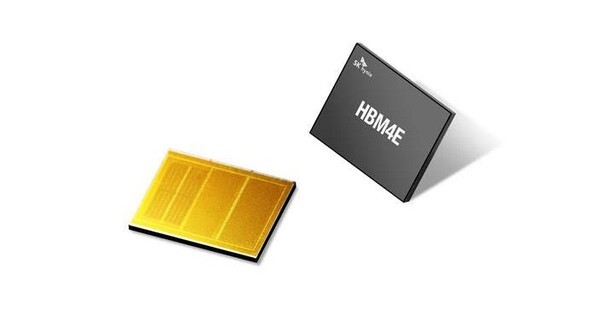

SK Hynix’s 12‑high HBM4E stack is built on sixth‑generation 10‑nanometer‑class 1c DRAM, the first time this node has been used in HBM, replacing the 1b DRAM in HBM4. Each die offers 32Gb (4GB), lifting density by 50% over the 24Gb (3GB) dies used in HBM4, so a 12‑high stack reaches 48GB instead of 36GB. I/O count stays at 2,048 pins, but data rate climbs to as much as 16Gbps per pin, giving a single stack around 4TB/s bandwidth—about 40–50% higher than HBM4—while improving energy efficiency by more than 20%. SK Hynix also reports lower latency through interface and design changes. The company uses MR‑MUF packaging and says thermal resistance drops by roughly 17%, which should help datacenter GPU memory operate reliably under sustained AI training and inference loads.
Timing as a Competitive Weapon in AI Chip Memory Supply
The race to deliver HBM4E memory samples first is shaping how AI chip contracts will be awarded. SK Hynix stated that experience mass‑producing HBM3, HBM3E, and HBM4 allowed it to accelerate HBM4E and pull sampling forward from the second half of the year. Samsung disclosed that it shipped its own 12‑high HBM4E samples, also based on 32Gb 1c DRAM, on May 29. With both vendors now in customer qualification, the calendar has become as important as raw specs. GPU and accelerator makers want to avoid AI chip memory bottlenecks, so they are likely to favor suppliers that can show early silicon, stable yields, and a clear mass‑production schedule. Early HBM4E memory samples therefore give SK Hynix a chance to secure design wins before volume ramps and to defend its leading share in SK Hynix high-bandwidth memory.
Implications for Nvidia, Datacenter GPUs, and AI System Design
For Nvidia and other GPU and accelerator vendors, the arrival of 48GB, 4TB/s HBM4E stacks changes system planning. Higher per‑stack density can reduce the number of HBM stacks needed on a package for a given memory footprint, easing routing and thermal design while freeing area for more compute chiplets. The bandwidth and efficiency gains are attractive for datacenter GPU memory, especially for large language model inference, where memory capacity and energy use directly affect cost per token and rack power budgets. SK Hynix has said it will work closely with key customers to “help eliminate bottlenecks in AI systems,” signaling deeper co‑design around next‑generation GPU and accelerator packages. As HBM4E moves from samples into mass production, datacenter AI chip memory supply will hinge on which HBM vendors can align their roadmaps with GPU launches and large cloud deployment timelines.
