What DualSense Robotics Control Means

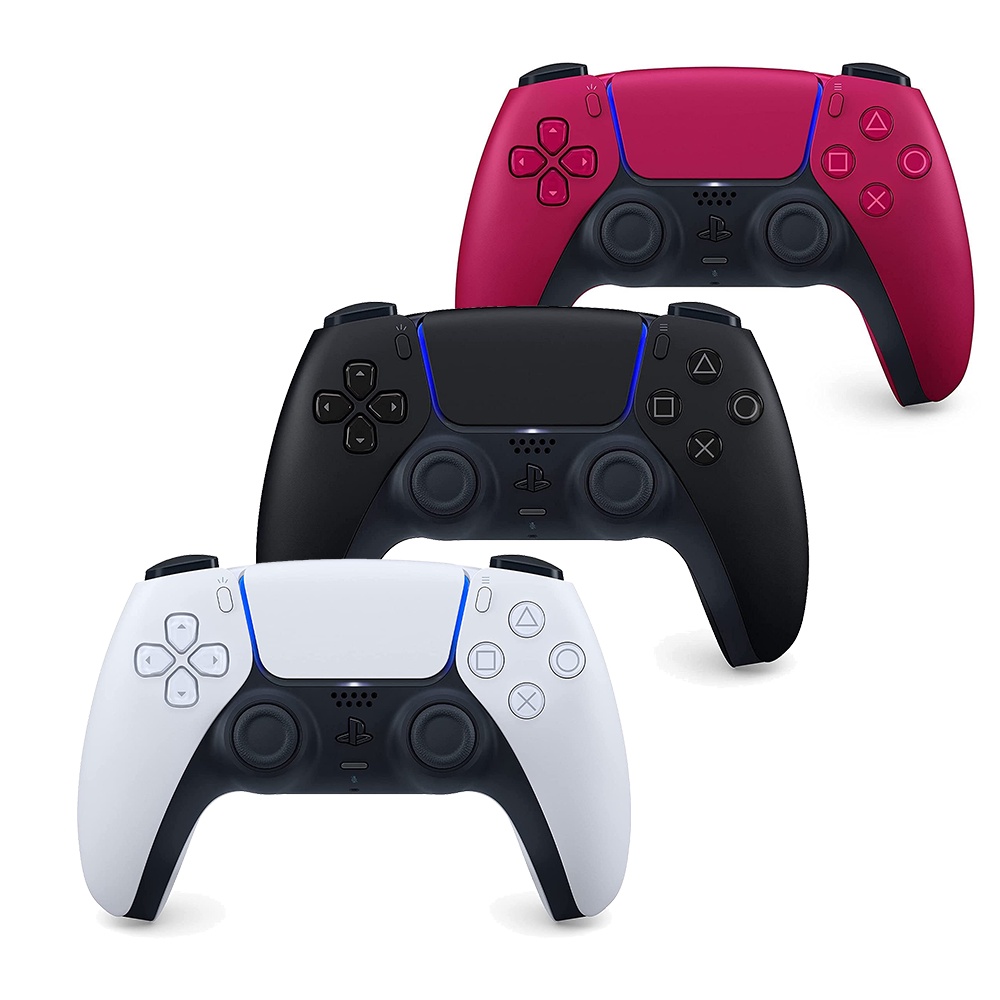

DualSense robotics control means using the PS5 DualSense game controller as a precise, Bluetooth-connected input device to command robots, tools and custom hardware instead of limiting it to console gaming. By pairing its wireless connection, analog sticks, buttons, haptic feedback and adaptive triggers with small computers like Raspberry Pi and Arduino, makers can build gaming controller hardware projects that move physical devices, sense user intent and provide tactile response. This turns a familiar gamepad into a practical human–machine interface for tasks such as wireless robotic arm control, teleoperation of mobile robots, or accessible input devices for people who find regular keyboards and mice difficult. In short, the same controller used for exploring virtual worlds can steer real-world machines with surprising finesse.
Core Setup: PS5 Controller, Raspberry Pi and Arduino

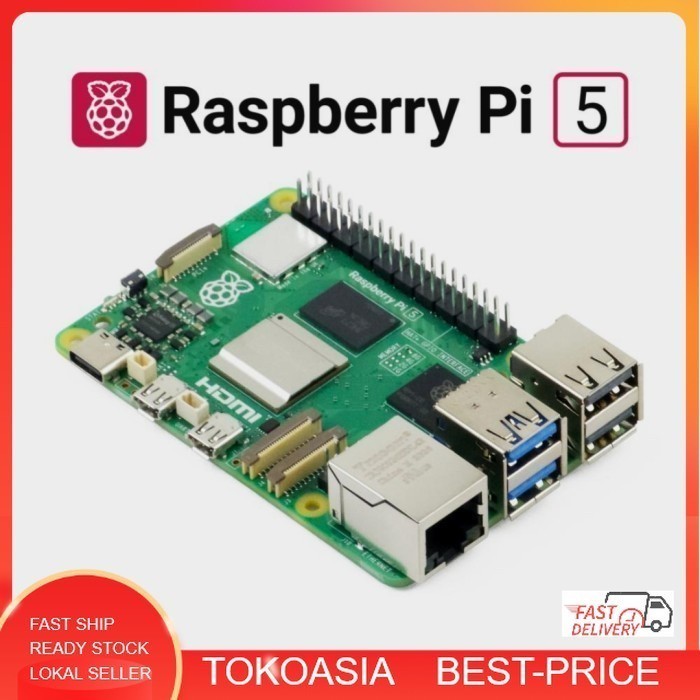

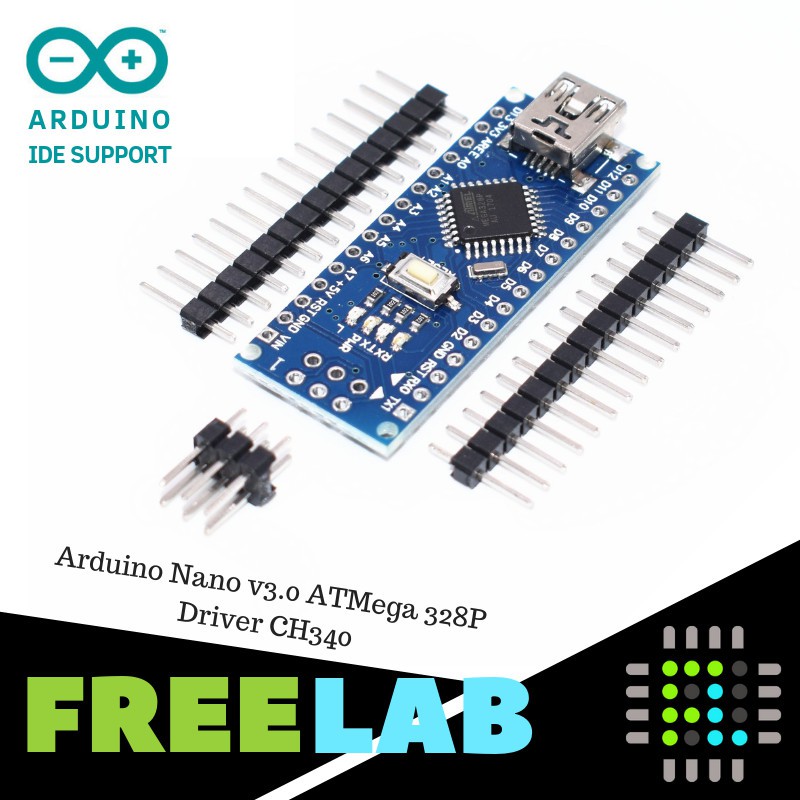

A proven pattern for DualSense robotics control is a three-part chain: PS5 controller → Raspberry Pi → Arduino → robot. The DualSense connects to the Raspberry Pi over Bluetooth, while a USB cable links the Pi to an Arduino board that drives motors or servos. On the Pi, a Python script reads joystick positions and button presses, then sends simple numeric commands over USB serial. The Arduino interprets these numbers and generates clean control signals for your hardware. According to Hackster.io’s “PS5-Controlled 6DOF Robotic Arm Using Raspberry Pi 5 and Arduino Nano,” this split works well because “Raspberry Pi = brain and controller reader” while “Arduino Nano = servo driver.” This design scales: swap the robotic arm for wheels, LEDs or relays and you have a flexible input layer for many gaming controller hardware projects.
Building Wireless Robotic Arm Control

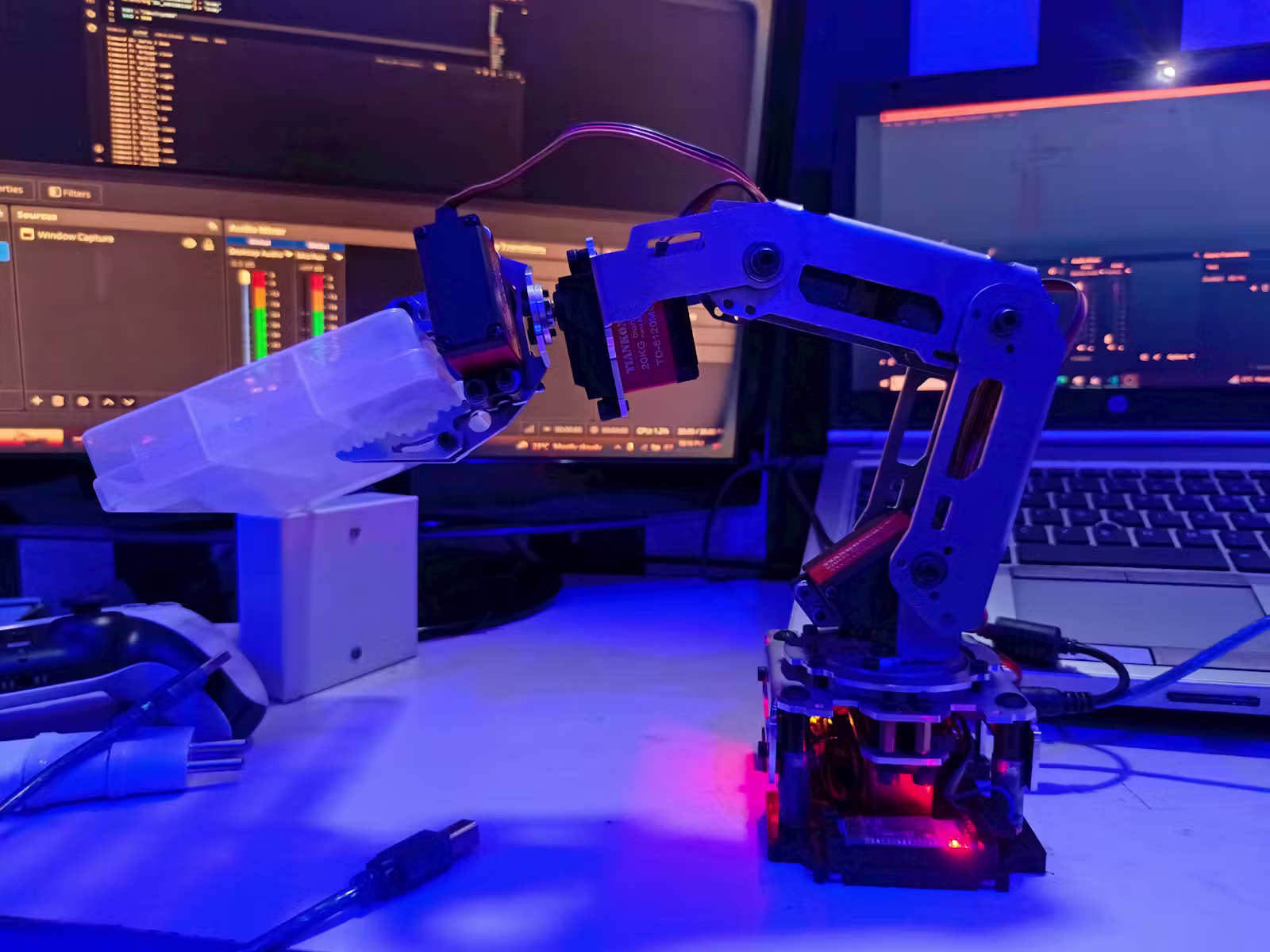

The PS5-controlled 6DOF robotic arm project is an excellent blueprint for wireless robotic arm control. A DualSense pairs with a Raspberry Pi 5 running Raspberry Pi OS, Python 3, Pygame and PySerial. The Pi connects by USB to an Arduino Nano mounted on a servo expansion board, which in turn drives six servo motors on an aluminium robotic arm and gripper. The key is to separate signal and power: the Pi’s USB-C supply powers the Pi; the USB cable powers only the Arduino logic and data; and an external power supply feeds the servo rail so the arm can move without brownouts. Once the first test command moves a servo, you can map sticks to joint angles, buttons to gripper open/close, or triggers to speed, creating intuitive PS5 controller Raspberry Pi projects that feel like professional teleoperation systems.
Beyond Arms: Mobile Robots, Tools and Accessibility
Once your DualSense talks to a Raspberry Pi and Arduino, you can reuse the same structure for many gaming controller hardware projects. The Hackster.io build notes that the same setup can be extended from a 6DOF arm to a robot car using an L298N motor driver, so the PS5 controller can steer both the arm and a mobile base. You can also swap motor drivers to control camera gimbals, pan–tilt mounts, or DIY CNC-style rigs. For accessibility, the familiar layout, large buttons and analog sticks can become a custom input device for assistive tools, such as environmental controls or simple computer interfaces. Combining adaptive triggers and haptic feedback allows users to feel resistance or confirmation signals, making DualSense-based controls more informative than basic switches or infrared remotes.
Open-Source Resources and Next Steps
Open-source communities are making DualSense integration easier through shared code and documentation. The 6DOF arm project uses GitHub for source hosting and Hackster.io or Instructables for documentation, giving you ready-made Python scripts, Arduino sketches and wiring guidance to adapt. With libraries such as Pygame on Raspberry Pi and standard Servo libraries on Arduino, you can focus on mapping inputs to actions instead of reinventing the connection layer. Start with a simple PS5 controller Raspberry Pi script that prints button values, then incrementally connect motors, sensors or LEDs. From there, grow toward full DualSense robotics control frameworks that support multiple robots, modes and profiles. As more makers contribute examples of wireless robotic arm control, mobile bases and assistive devices, the DualSense will continue to move from living-room accessory to versatile interface for physical computing.
