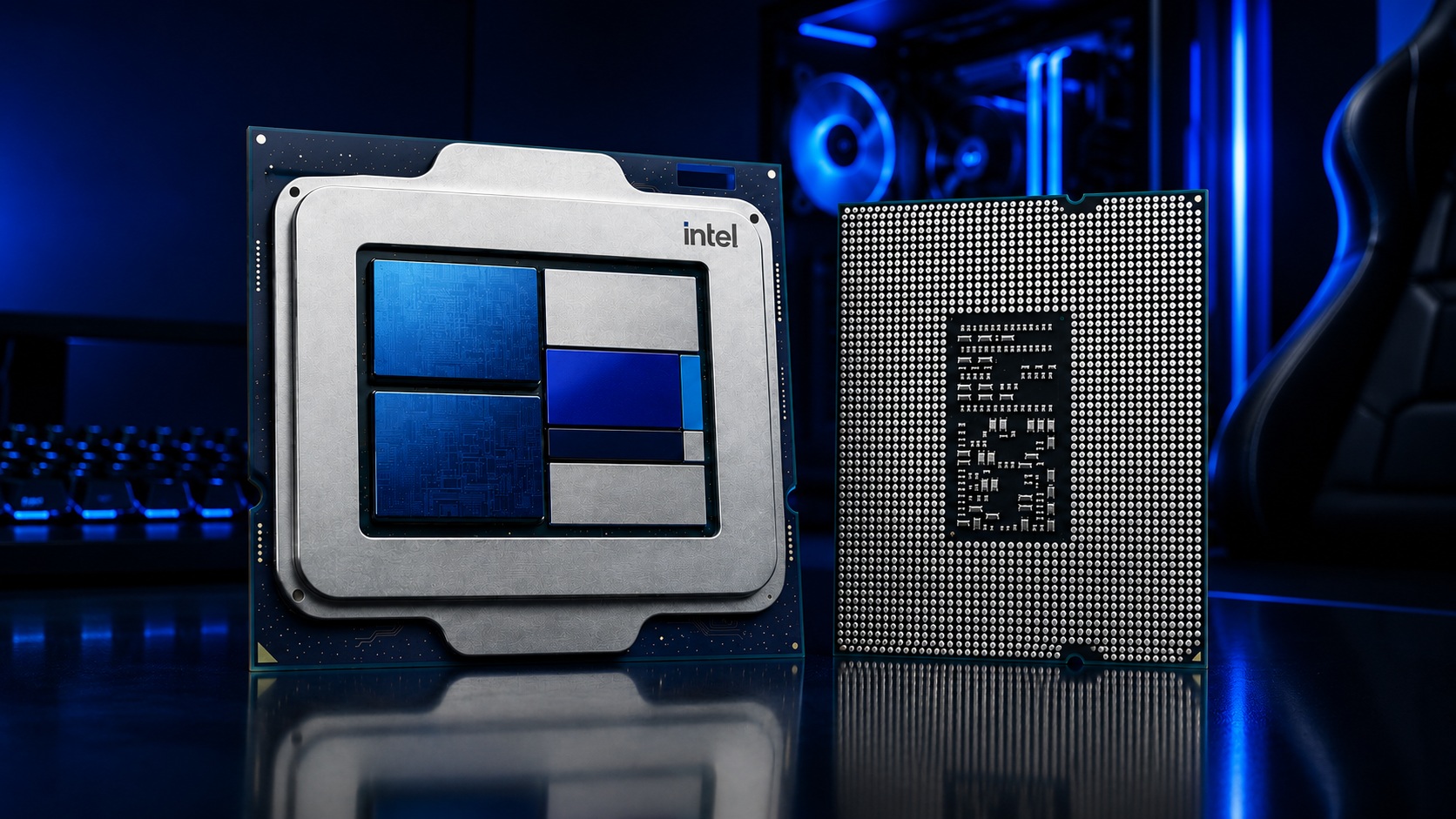

Nova Lake in One Line: 52 Cores, 474W Spikes, Serious Cooling
Intel’s Nova Lake flagship desktop CPU is a 52-core, dual-tile processor designed to hit very high short-burst performance by allowing a PL2 power limit reportedly up to 474W, which forces PC builders to rethink cooling, case airflow, and power delivery as core counts and boost behavior far exceed previous mainstream generations.
That headline number is not theory; leaks point to dual-tile Nova Lake chips supporting a PL2 target of up to 474W to sustain stock performance limits. This is a dramatic jump from the roughly 250W boost ceilings that have defined Intel’s desktop platforms since earlier generations, and it signals a clear design choice: Intel is prioritizing peak multi-core throughput over traditional efficiency envelopes. Builders chasing those 52 cores are signing up for a CPU that behaves more like a compact space heater than a conventional desktop chip. If you treat Nova Lake like a typical 175W-class processor and pair it with “good enough” cooling, you should expect aggressive throttling and wasted silicon.
Why 474W PL2 Changes Everything About Thermal Design
A 474W PL2 limit is not simply “a bit more” power; it fundamentally shifts how you must think about thermal design and Nova Lake power consumption. PL2 is the short-burst boost window, and leaks suggest those bursts could be hit frequently under favorable conditions, not reserved for rare stress events. In other words, your cooling system will see repeated, sustained attempts to dump nearly half a kilowatt of heat into the loop.
Per-core, the situation looks less wild: dividing 474W by the rumored 52 cores gives about 9.11W per core, which is in the same ballpark as earlier designs and lower than the approximately 10.41W per core estimate for a 24-core chip with a 250W PL2. The problem is density and duration, not raw inefficiency. Two compute tiles packed with up to 16 P-cores, 32 E-cores, and four LP-E cores concentrate that power into a relatively small footprint. That dual-tile layout pushes higher local temperatures and makes heat extraction far more demanding than on previous single-die or lower-core-count chips.
Z990 Motherboard Power: Triple 8-Pin Is a Statement, Not a Suggestion
To keep an Intel 474W CPU fed, the platform itself has to grow up. Intel has reportedly revised Z990 motherboard power design so dual-compute-tile Nova Lake processors can sustain that 474W PL2 at stock performance. The most visible sign is the move to power architectures featuring three 8‑pin CPU power plugs on some boards, up from the usual two.
Next-gen LGA1954 platforms, especially high-end Z990 boards, are expected to offer up to three 8‑pin EPS connectors to handle this envelope, even though some vendors will still ship 175W-class boards with two connectors. One leaker is explicit that three connectors are a “nice-to-have” and do not automatically unlock a higher power state for the 52-core chip; instead, boards will be segmented into power classes, and CPUs placed into boards rated below their PL1 will drop to lower performance profiles. That means if you cheap out on Z990 motherboard power delivery, you are not only risking instability under transient load; you are voluntarily capping the very performance you paid for.
High-End CPU Cooling Isn’t Optional Anymore
The cooling story is blunt: high-end CPU cooling is no longer an enthusiast luxury at this tier; it is the entry ticket. Even a current 24-core chip with a recommended 250W PL2 can run into thermal throttling on air, which means trying to contain nearly double that PL2 with a tower cooler is asking for sustained clock cuts and fan noise bordering on absurd.
Leaks already frame liquid cooling as “non-negotiable” for Nova Lake’s top SKU, and that is not hyperbole when short-burst draw can touch 474W and PL4 protection thresholds are rumored to exceed 700W. To keep this in check, builders should assume a large 240–360 mm class loop at minimum, paired with aggressive case airflow designed around clear intake and exhaust paths. Any compromise—tight small-form-factor cases, minimal exhaust, or underpowered pumps—will turn those dual tiles into permanent hot spots. The whole point of 52 cores is sustained, heavy parallel work; if your cooler cannot keep PL2 from collapsing after seconds, you are paying for marketing slides instead of real-world throughput.
So Should You Build Around Nova Lake?
Nova Lake is shaping up as a statement piece: a massive jump from 24 cores to a 52-core configuration, with a dual-tile architecture and a PL2 envelope that dwarfs earlier mainstream parts. It is not a casual upgrade; it is a deliberate choice to run desktop silicon at what used to be workstation-style power levels.
If your workloads genuinely scale—heavy creation, compilation, or simulation—this trade-off may be worth it, provided you plan for it. That means pairing the CPU with a Z990 board in the right power class, wiring all available EPS connectors, and treating a strong liquid loop and serious airflow as mandatory line items, not afterthoughts. If, on the other hand, most of your time is spent gaming at moderate thread counts or idling at the desktop, Nova Lake power consumption at 474W PL2 is overkill and a liability. The bottom line: Nova Lake’s flagship is for builders ready to design around its power, not those hoping it behaves like the last 250W chip they dropped into an old case.
