A Flagship Loudspeaker That Refuses to Stand Still

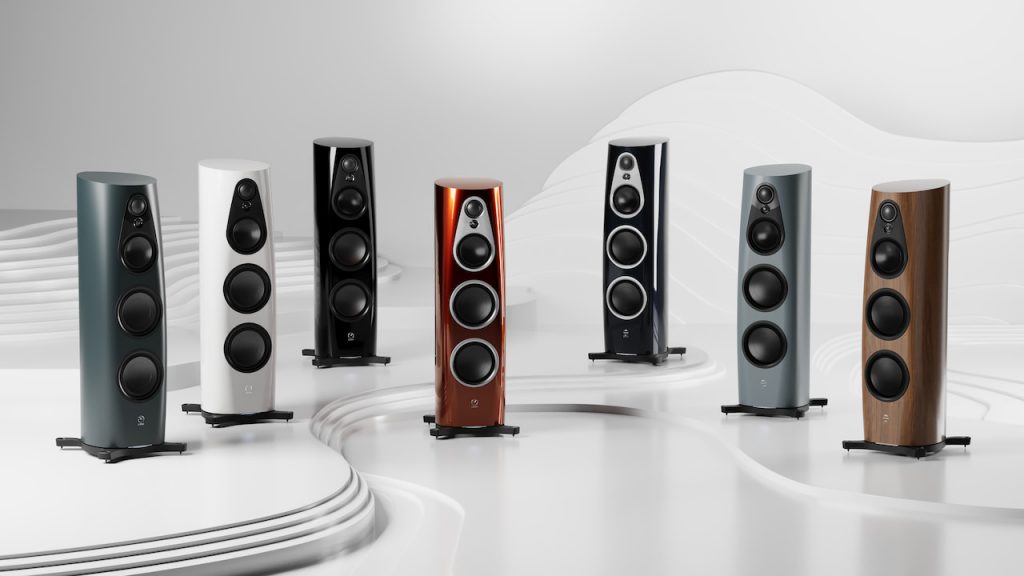

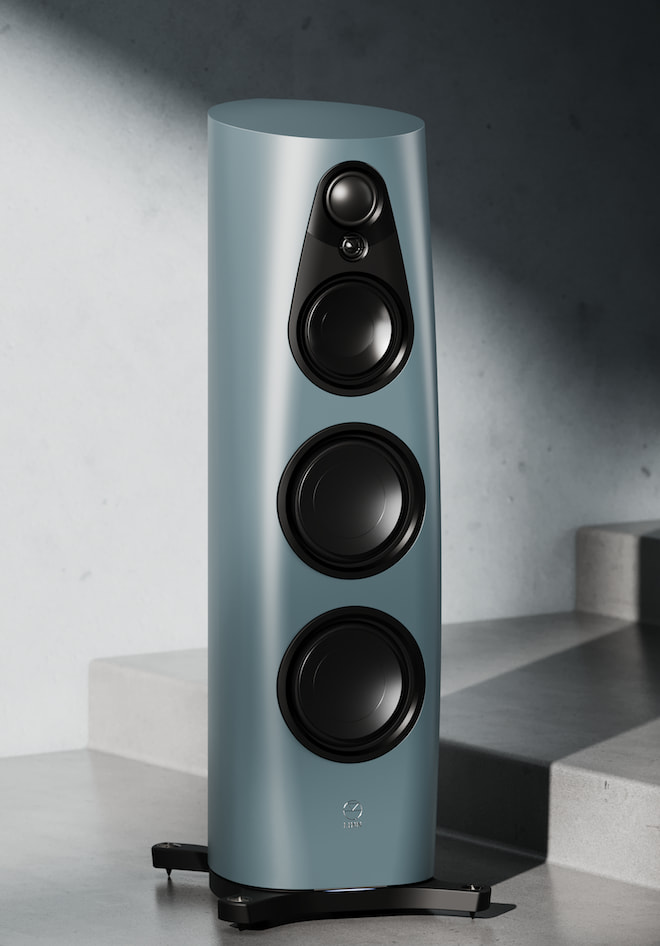

The Linn 360 speakers were already positioned as reference-class high-end loudspeakers when they launched, combining Exakt phase-linear digital crossovers, Adaptive Bias Control, Power DAC architecture and a heavily engineered cabinet. Yet Linn concluded that the system’s off-the-shelf bass drivers remained a weak link, still contributing measurable distortion at low frequencies. Instead of redesigning the whole loudspeaker or releasing a replacement model, the company chose to refine the existing platform with a targeted bass driver upgrade built around its new Pistonik motor system. Crucially, this is offered as a loudspeaker retrofit, not just a feature for new buyers. Owners can have the 6-inch upper-bass driver and 8-inch woofer swapped in their existing Linn 360 speakers, preserving their investment while accessing the latest engineering. It is a quietly radical approach in a segment where flagships are often rendered obsolete by the next revision.
Inside the Pistonik Motor: Engineering Bass for Linearity, Not Hype

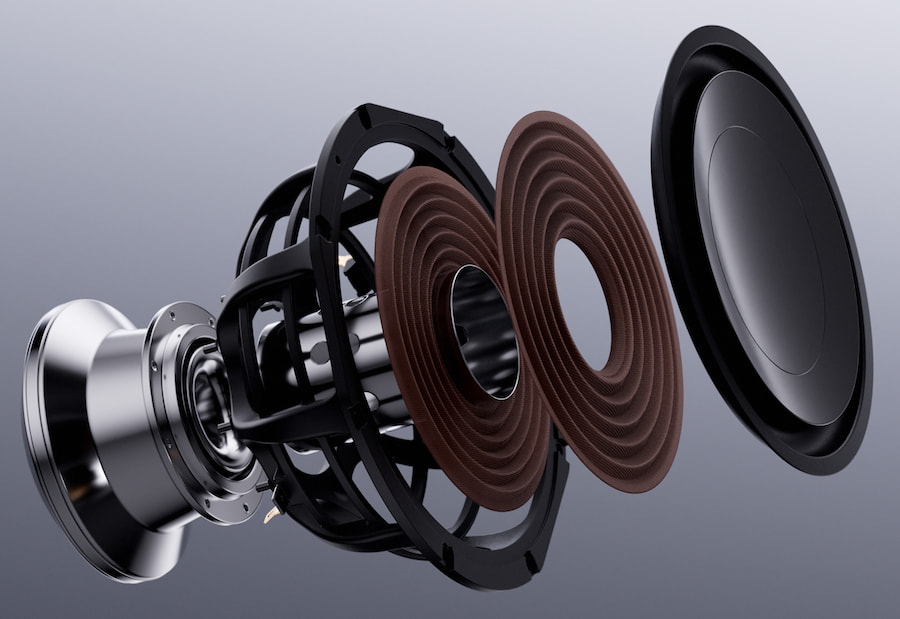

At the heart of the Linn bass driver upgrade is the Pistonik motor, designed from first principles to keep force on the voice coil consistent across the driver’s entire excursion. Instead of chasing headline-grabbing cone sizes, Linn engineers focused on magnetic, mechanical and thermal linearity. The motor is operated in permanent magnetic saturation to stabilise the field in the gap and reduce eddy-current effects, aiming to lower distortion and ease amplifier load. A triple-layer ventilation network manages airflow through the motor to minimise acoustic compression and turbulence, while carefully designed thermal pathways draw heat into surrounding steel and aluminium structures so performance remains stable over extended listening. Paired with a bespoke suspension that stays linear through most of its travel before stiffening predictably at the extremes, Pistonik is built to move more air with greater control than typical low-frequency drive units, especially at demanding output levels.
Aluminium Diaphragms and Exakt Profiling: Precision from Driver to Room

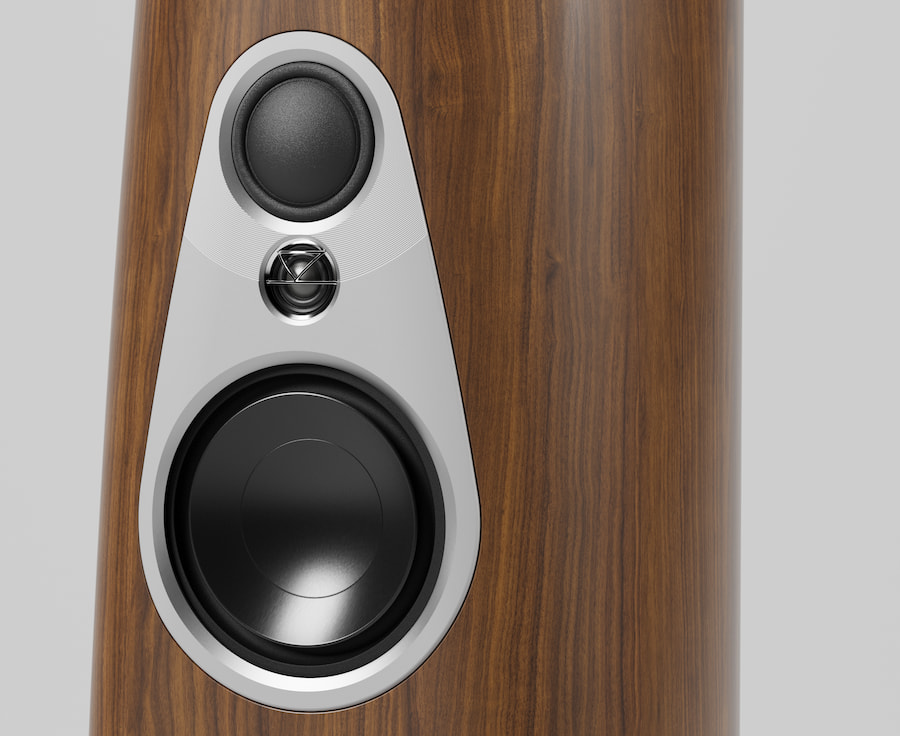

The new 6-inch upper-bass and 8-inch woofer in the Linn 360 speakers use hard aluminium diaphragms, chosen for their strength, rigidity and low mass. By carefully coupling the diaphragm to the surround and Pistonik motor, Linn pushes cone break-up modes and resonances well beyond the drivers’ operating range, further reducing distortion in the critical low and lower-mid bands. This mechanical precision is matched by digital optimisation via Linn’s Exakt technology. Each drive unit is individually measured by laser at the factory, with its unique behaviour captured as a dedicated Exakt profile. Once installed, the loudspeaker retrieves that profile and applies a correction filter that Linn says is accurate to within 0.0625 dB of the reference. The aim is not just impressive lab figures but real-world consistency: every 360 system, new or upgraded, should deliver the intended reference performance once integrated into a listener’s room.
Why a USD 23,620 Retrofit Makes Sense in High-End Loudspeakers
The retrofit cost for the new bass driver upgrade is quoted at USD 23,620 (approx. RM108,700) to replace all affected drivers in a Linn 360 system. In isolation that is an eye-watering figure, but in context it reflects both the engineering depth in the Pistonik-equipped units and the value of protecting an existing flagship platform. Compared with buying a new pair of 360s at USD 95,920 (approx. RM441,200) or USD 142,440 (approx. RM655,200), depending on configuration, the retrofit is a far less costly route to state-of-the-art performance. High-end loudspeakers increasingly hinge on premium audio components—particularly bass drivers, which handle the most energy and distortion risk. By allowing owners to retrofit advanced motors, suspensions, and diaphragms rather than start over, Linn demonstrates how precision-engineered parts can justify five-figure pricing while extending the lifespan and relevance of its top-tier loudspeakers.
Taking Bass Personally: An Engineering Philosophy Built Around Low Frequencies
Linn’s latest evolution of the 360 underlines a broader philosophy in premium audio: low-frequency performance is foundational, not optional. Bass drivers carry the heaviest mechanical workload and can easily become the dominant source of distortion if compromised. By investing years into the Pistonik motor system, bespoke suspension and aluminium diaphragms, Linn is effectively stating that the integrity of the entire soundstage depends on how cleanly and linearly those low-frequency units behave. The combination of long-stroke linearity, advanced cooling, and per-driver Exakt correction is designed to deliver deeper, cleaner, more controlled bass with wide, truly linear excursion. For listeners, that translates into greater impact and authority without muddiness, and a more stable foundation for midrange detail and imaging. In an era where many upgrades are cosmetic or incremental, this loudspeaker retrofit shows how seriously a leading manufacturer still takes the fundamentals of bass reproduction.
