Thermal Drone Cameras Move to the Center of the Battlefield
Thermal imaging has moved from niche payload to core capability in today’s drone surveillance systems. Leonardo DRS’s new Tenum 640 Orbit thermal drone camera illustrates why. Built around an uncooled VOx microbolometer, the module delivers 640 x 512 resolution in the long-wave infrared band with 10-micron pixels, providing detailed thermal contrast even in darkness, smoke, or dust. Crucially, it offers high frame-rate output at 60 frames per second and thermal sensitivity of less than 20 mK, enabling persistent detection and tracking of subtle heat signatures. Optimized for size, weight, power, and cost, the uncooled thermal sensor is designed for Group 1–3 unmanned platforms in the air, on the ground, and at sea. By making high-performance thermal imaging easier to integrate and more affordable, systems like Tenum 640 Orbit are expanding access to precision military drone targeting across a wider range of small unmanned assets.
Uncooled Thermal Sensors Boost Precision and Survivability
The shift to uncooled thermal sensors is reshaping how militaries design and deploy drone surveillance systems. Unlike cooled infrared imagers, uncooled modules such as Leonardo DRS’s Tenum 640 Orbit avoid bulky cryogenic components, reducing power draw and simplifying integration. This enables longer endurance and higher payload flexibility for compact drones that must stay aloft for extended missions. The Tenum 640 Orbit’s compact footprint and MIPI CSI / CCS compatibility, with optional USB connectivity, allow straightforward pairing with onboard processors and AI co-processors for edge analytics. At 60 fps, the camera supports rapid detection and collision avoidance, improving safety in cluttered airspace and degraded visibility environments. The result is a new generation of drones that can navigate, detect, and classify targets autonomously using thermal data, even when visual sensors are blinded, expanding the envelope of missions that small unmanned systems can safely perform.
Vision-Based Targeting Fills the Gap When GPS Fails
A critical vulnerability for military drone targeting is dependence on GPS, which can be spoofed or jammed. BAE Systems’ GXP software ecosystem and Vantor’s Raptor vision-based suite aim to close this gap. Their Raptor Sync technology georegisters live full-motion video from a drone’s camera against an onboard 3D terrain database in real time, achieving geolocation accuracy of under three meters. By aligning imagery with terrain models, the system corrects or replaces unreliable positional data before it reaches analysts. Corrected Key-Length-Value metadata is injected directly into the video stream at the edge, producing more trustworthy coordinates for mission planning and strike decisions. This approach addresses “targeting paralysis,” where high-resolution video lacks reliable geospatial context. Integrating such vision-based systems with thermal drone cameras allows drones to generate precise target locations even when GPS and other onboard sensors are degraded by electronic warfare.
MQ-9B Airborne Early Warning Extends the Drone’s Tactical Reach

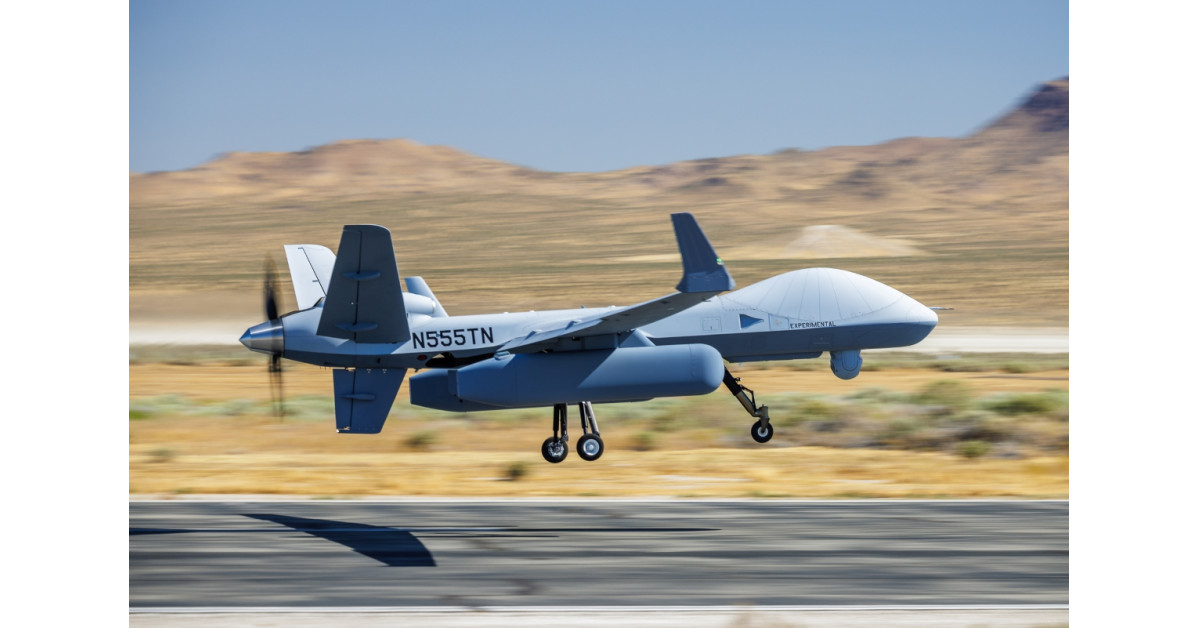

While small drones gain better targeting sensors, larger platforms are evolving into airborne early warning nodes. General Atomics Aeronautical Systems has completed the first flight of its MQ-9B remotely piloted aircraft equipped with AEW pods developed with Saab. The LoyalEye sensor suite turns the medium-altitude, long-endurance platform into a cost-effective air surveillance asset capable of early detection and long-range tracking of air-breathing threats, guided missiles, and other aerial targets. Operating over line-of-sight and SATCOM links, the MQ-9B AEW configuration offers persistent coverage without exposing aircrews to danger. Models such as SkyGuardian, SeaGuardian, Protector variants, and a short takeoff and landing configuration can all potentially host the AEW payload. By fusing radar data with infrared and electro-optical feeds, the MQ-9B enhances situational awareness for joint forces, spotting threats sooner and cueing smaller drones or shooters to engage with greater precision and speed.
AI-Driven Fusion of Thermal and Geospatial Data
The convergence of thermal imaging, vision-based georegistration, and airborne early warning is setting the stage for fully AI-driven military drone targeting. High-frame-rate, uncooled thermal cameras like Tenum 640 Orbit feed detailed heat maps of the battlefield into onboard processors, which can automatically detect, classify, and track targets in real time. Simultaneously, tools such as Raptor Sync correct video metadata by matching sensor feeds to 3D terrain databases, anchoring detected objects to accurate coordinates without relying solely on GPS. At the operational level, platforms like the MQ-9B with AEW pods provide a wide-area air and surface picture, cueing smaller drones toward areas of interest. Together, these advances create a layered drone surveillance system where AI can correlate multiple sensors, reduce false positives, and deliver more reliable military drone targeting, enabling faster, more informed engagement decisions while minimizing collateral risk.
