Why Turn Your PCB Into the Drone Frame?
A PCB drone frame merges the integrated circuit board and airframe into one object, so the same fiberglass sheet carries both signals and structural loads. Instead of a separate carbon or plastic frame with a flight controller bolted in the middle, motors on the arms, and ESCs wired everywhere, you design a single board that does it all. This radically simplifies a DIY quadcopter build: no wiring harness, fewer connectors, and a clear visual map from sensors to motors. It is also an excellent teaching tool. A student can flip the PCB over and literally see how power, IMU data, and control outputs travel through the quadcopter design. The trade‑off is clear: you gain integration and simplicity, but sacrifice some repairability and upgrade flexibility compared with modular frames intended for aggressive outdoor flying.
Planning the PCB Drone Frame and Electronics

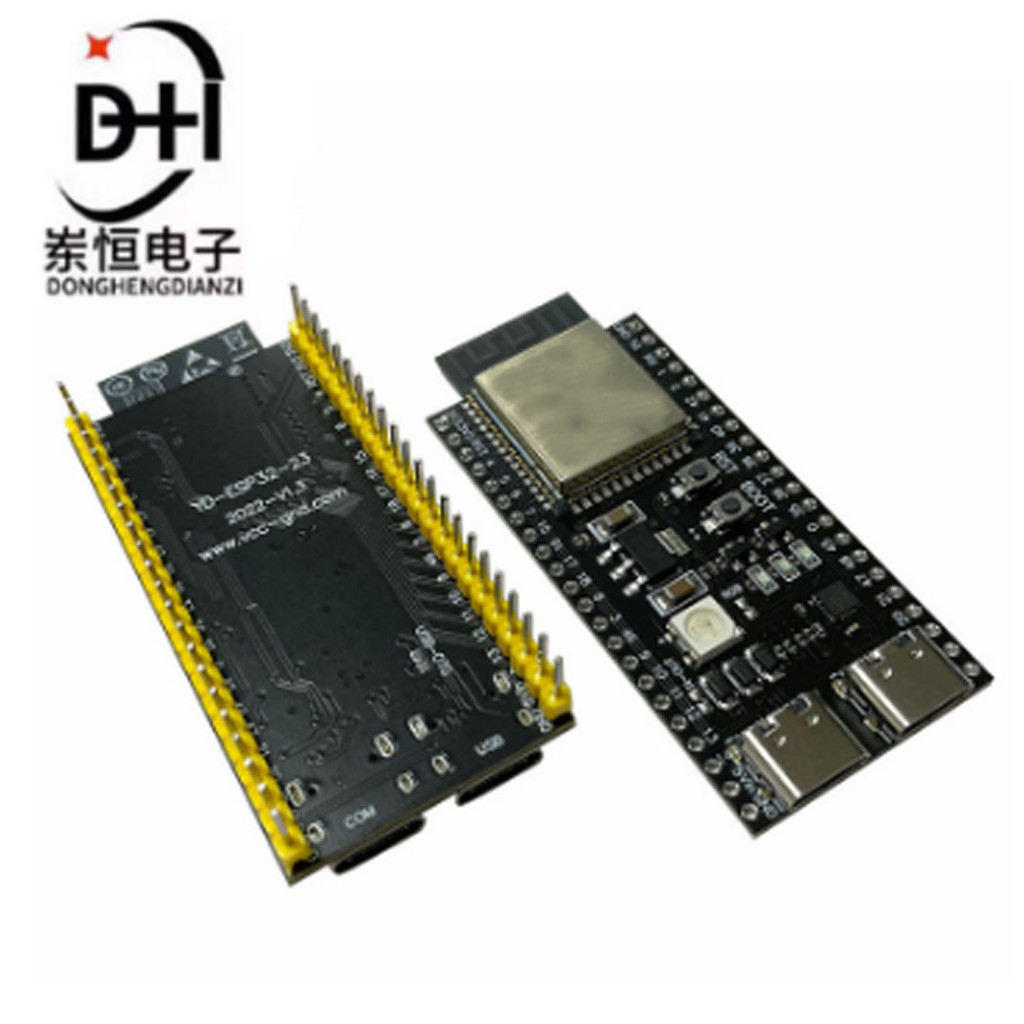

Start by sketching the geometry of your PCB drone frame: four arms radiating from a central hub that hosts the microcontroller, IMU, and power distribution. FR4, the standard fiberglass PCB material, is surprisingly capable structurally at this scale, especially for short arms and light motors. Coreless brushed motors are an ideal starting point because they can be driven directly by PWM from a microcontroller like an ESP32, eliminating discrete ESCs and keeping the integrated circuit board compact and readable. Place heavy components—battery pads, microcontroller module, and connectors—so the center of gravity sits near the geometric center of the board. Unlike traditional frames, you cannot slide components later to trim balance, so run simple CoG calculations before finalizing the layout. Treat wide copper pours as both power rails and reinforcement, especially where current is high and mechanical stress is concentrated.
Structuring for Rigidity, Vibration, and Motor Mount Strength
Rigidity in a PCB quadcopter is less about preventing visible flex and more about managing vibration. FR4 will usually handle static loads for small DIY quadcopter builds, but motor harmonics couple straight into the IMU through the board. Plan for this from day one by reserving a small island for the IMU and soft‑mounting it with foam tape or a similar isolator. That single choice can dramatically clean up sensor readings and make PID tuning a drone far easier. At the arm tips, the motor mount holes are classic stress concentration points. Reinforce these areas with circular copper pours and generous annular rings so stress spreads into a larger section of the laminate. Avoid narrow necks or sharp internal corners on the arms, and keep trace routing away from edges where cracks are most likely to start over repeated takeoffs and landings.
Firmware, PID Tuning, and Dealing with a Flexible Airframe

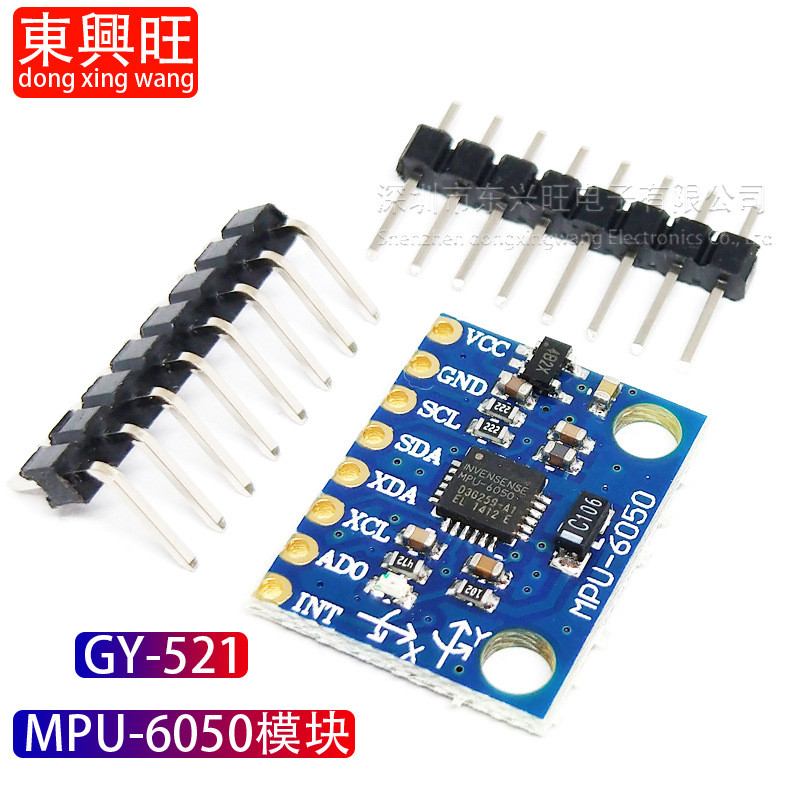

Once the hardware is flying, firmware and PID tuning become the real challenge. Use a standard flight stack structure: read gyroscope and accelerometer data from an IMU such as the MPU‑6050, run three PID loops for pitch, roll, and yaw, then feed the outputs into a motor mixing algorithm matched to your quadcopter design geometry. Because the PCB frame may transmit extra vibration and subtle flex, the sensor data will be noisier than on a stiff carbon frame. That makes careful PID tuning essential. Expect to spend significant time iterating P, I, and D gains to find a stable hover without oscillation. A live tuning interface—such as a simple web page served over WiFi that lets you adjust gains without reflashing—can save hours. Add telemetry showing attitude, motor outputs, and battery voltage so you can see exactly how the controller reacts in flight.
Lessons Learned and Ideas to Extend Your PCB Quadcopter
Flying a PCB airframe highlights its strengths and limits. You gain an elegant, integrated PCB drone frame that exposes every signal path for learning and debugging. You learn how vibration, not just rigidity, shapes flight behavior, why soft‑mounting the IMU is effectively mandatory, and how copper around motor mounts can prevent micro‑cracking over repeated flights. You also see the main downside: if an arm fails, the entire board must be replaced, which is acceptable for a classroom platform but less ideal for rough outdoor use. Once the basics are solid, you can extend your design by adding a camera module for WiFi video, experimenting with brushless motors and external ESCs, or integrating extra sensors like barometers and optical flow. Each iteration teaches more about embedded systems, control theory, and practical quadcopter design grounded in a single, smart piece of fiberglass.
