Microcontroller Music Production: Why It Belongs in Your Studio
Microcontroller music production is the practice of turning small, programmable boards like the ESP32 and RP2040 into full musical instruments and controllers, using open-source firmware, community-built DSP engines, and simple touch interfaces so producers can design custom synthesizers, loopers, and MIDI tools that integrate directly with their existing digital audio workstations and performance setups. This is not a novelty trend; it is a quiet revolt against closed hardware. When your synth, looper, or RP2040 MIDI controller is built from public code and schematics, you gain control over its sound and workflow. Instead of adapting to whatever a commercial box offers, you shape the instrument around your creative habits. That design freedom is the real reason these projects matter: they convert cheap boards into open-source DAW hardware on your terms, not a manufacturer’s.
Build a Touch-Activated ESP32 Synthesizer

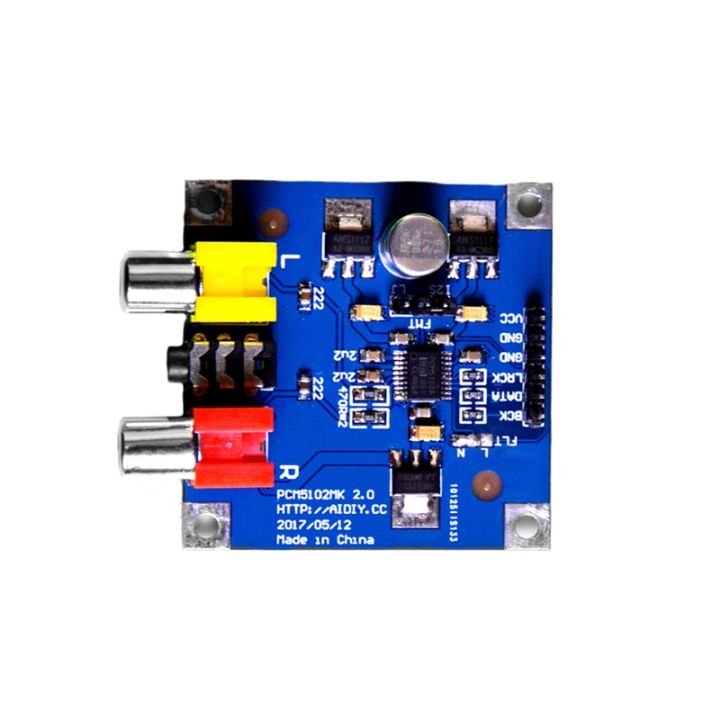

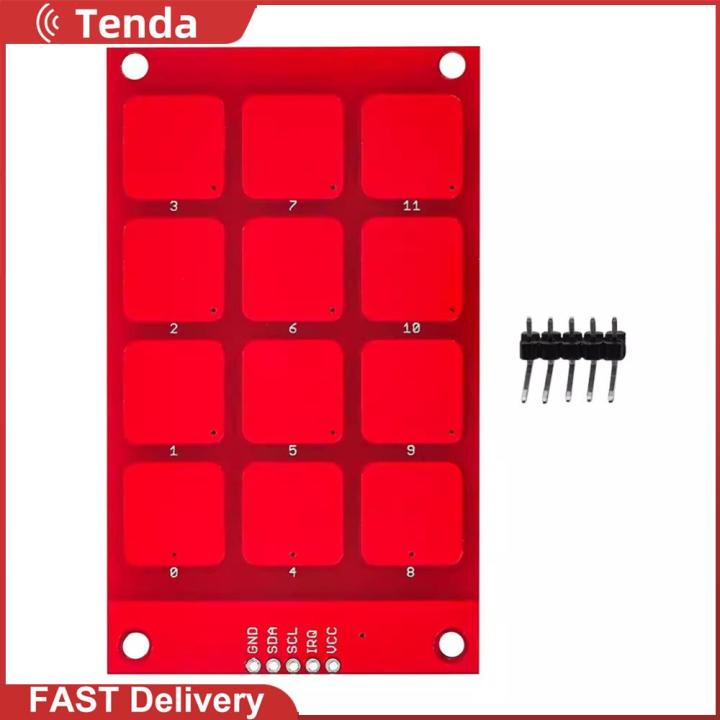

Turning an ESP32 into a synthesizer is the clearest proof that microcontroller music production is studio-grade, not a toy experiment. One open project builds a touch-based polyphonic ESP32 synthesizer using copper strips and MPR121 sensors so that each finger press on the metal triggers musical notes. The audio travels via I2S into a PCM5102A DAC, with a custom C++ DSP engine providing a state-variable filter, envelopes, and an effects chain. In practice, that means you are not locked into someone else’s filter curves or envelope shapes; you can edit the source to change how the synth responds. The developer optimized the DSP to avoid ESP32 crashes, showing that reliability is as much part of the design as sound. Once this firmware is released under an open license, that single board becomes a touch-activated polyphonic instrument you can rewrite almost from the oscillator up.

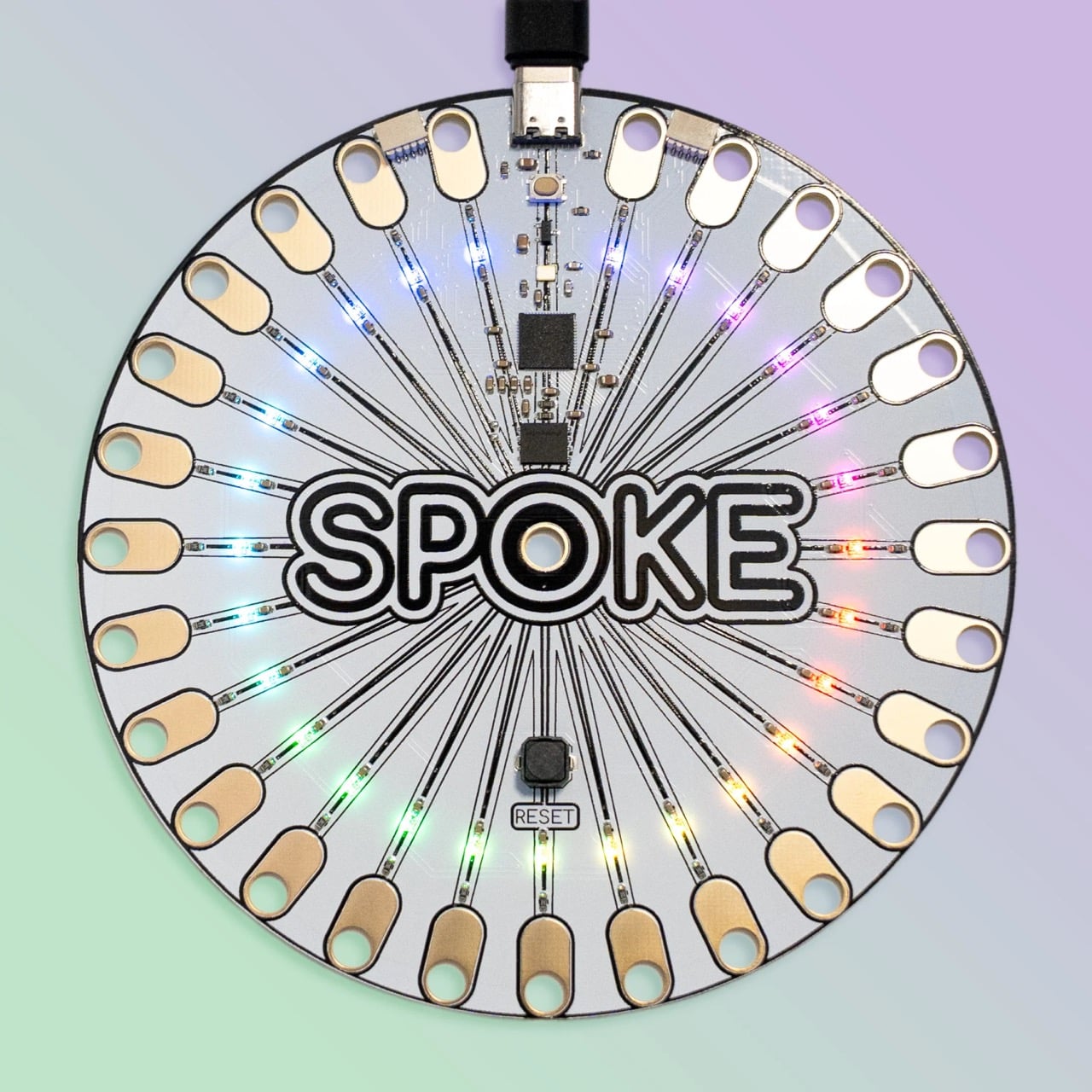

Use SPOKE as an RP2040 MIDI Controller and HID Hub
If the ESP32 synth is about tone, the SPOKE board is about control. Built around an RP2040 microcontroller and 27 capacitive touch pads, it ships with firmware that turns it into a standard MIDI controller the moment you connect it to a computer, with each pad sending a note when touched. According to the project’s own specification, SPOKE can output USB MIDI, HID keyboard and mouse events, OSC, and serial data. That mix of MIDI and HID means you can tap a pad to play a note in your software synth, then map another pad to trigger a DAW shortcut or scroll a session. CircuitPython firmware makes the board editable like any other RP2040 platform, with pad note assignments and scales changed directly in code. This is where open-source DAW hardware pays off: instead of buying yet another fixed-layout controller, you script a control surface that fits your workflow.
Transform M5Stack Core2 into a Looper and Multi-Effect Unit
The M5KaossLooper project shows how far an ESP32-based touchscreen platform can go when treated as a full instrument. With an M5Stack Core2 for AWS and the Module Audio, you get a complete musical instrument in one stack: touchscreen, audio codec, and storage, without any breadboard, USB audio interface, or external screen. The firmware implements 60 DSP effects—filters, modulations, delays, reverbs, granular, distortion, and combinations—in a chain of eight slots, each with its own program, bypass, and frozen hold position that can be repositioned in real time. On top of that sits a genuine four-track looper streaming raw 22050 Hz stereo from micro-SD with BPM-quantised recording, overdub, and undo, all synced by a real-time BPM detector in the audio pipeline. This is purpose-built microcontroller music production: a table-top box that behaves like a performance multi-effect and looper rather than a demo gadget.
What These Projects Teach: Openness, Engineering, and Mistakes
The most important lesson across these projects is that open hardware forces you to confront engineering details instead of hiding behind presets. The M5KaossLooper documentation openly lists real bugs and how they were fixed: an ES8388 codec library left the analog bypass on so dry signal leaked through processed audio, solved by writing the value 0x90 to registers 0x27 and 0x2A. The device originally rebooted every 8–17 seconds because the audio task starved the idle watchdog, and I2S FIFO stalls needed timeouts, automatic DMA recovery, and an external watchdog to soft-restart after repeated stalls. None of this is glamorous, but it is the difference between a glitchy prototype and a reliable instrument. Since SPOKE’s CircuitPython firmware and the M5KaossLooper code are public and well documented, anyone can learn from these mistakes, modify the designs, and build their own ESP32 synthesizer or RP2040 MIDI controller with fewer problems. The conclusion is blunt: if you care about control, durability, and learning, open microcontroller music gear is worth more than yet another closed black box.
