What the Intel 18A-P Process Is and Why It Matters

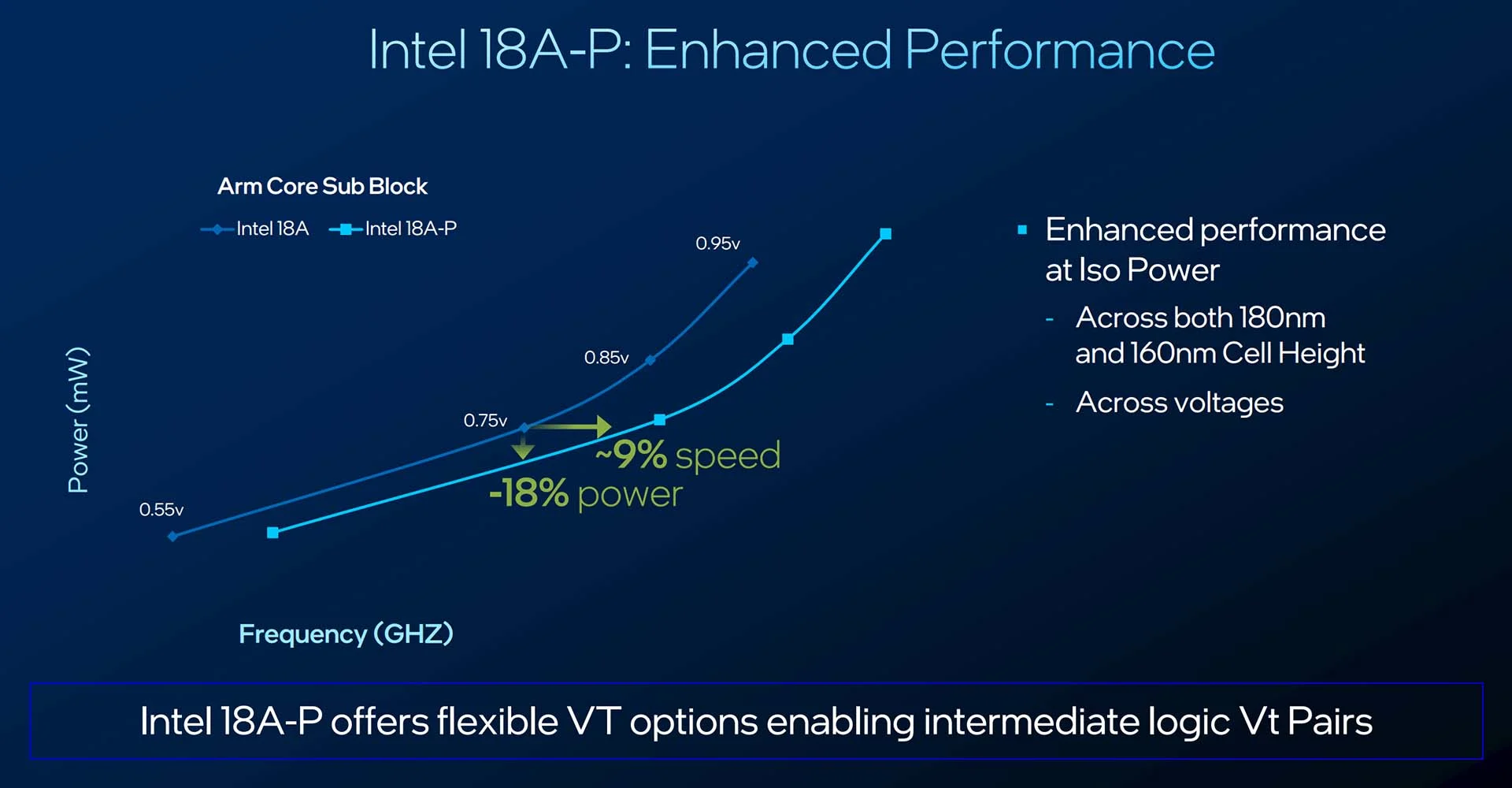

Intel 18A-P is an enhanced chip manufacturing node derived from the existing Intel 18A process, designed to deliver higher CPU clock speed boost, lower power consumption, and improved thermals while remaining fully compatible with 18A design rules and intellectual property so chipmakers can migrate designs with minimal changes. Announced at the VLSI Symposium, 18A-P enters risk production, where small batches of silicon validate the process before full-scale manufacturing. Performance claims are clear: Intel says 18A-P can offer 9% higher performance at the same power or up to 18% lower power at the same performance level compared with baseline 18A. Better thermal resistance—quoted in the 20–40% range—means these chips should run cooler, making sustained clock speeds more realistic in slim laptops, desktops, and dense AI servers.
Power Boost, Thermals, and Consistency: Inside the Node Upgrade

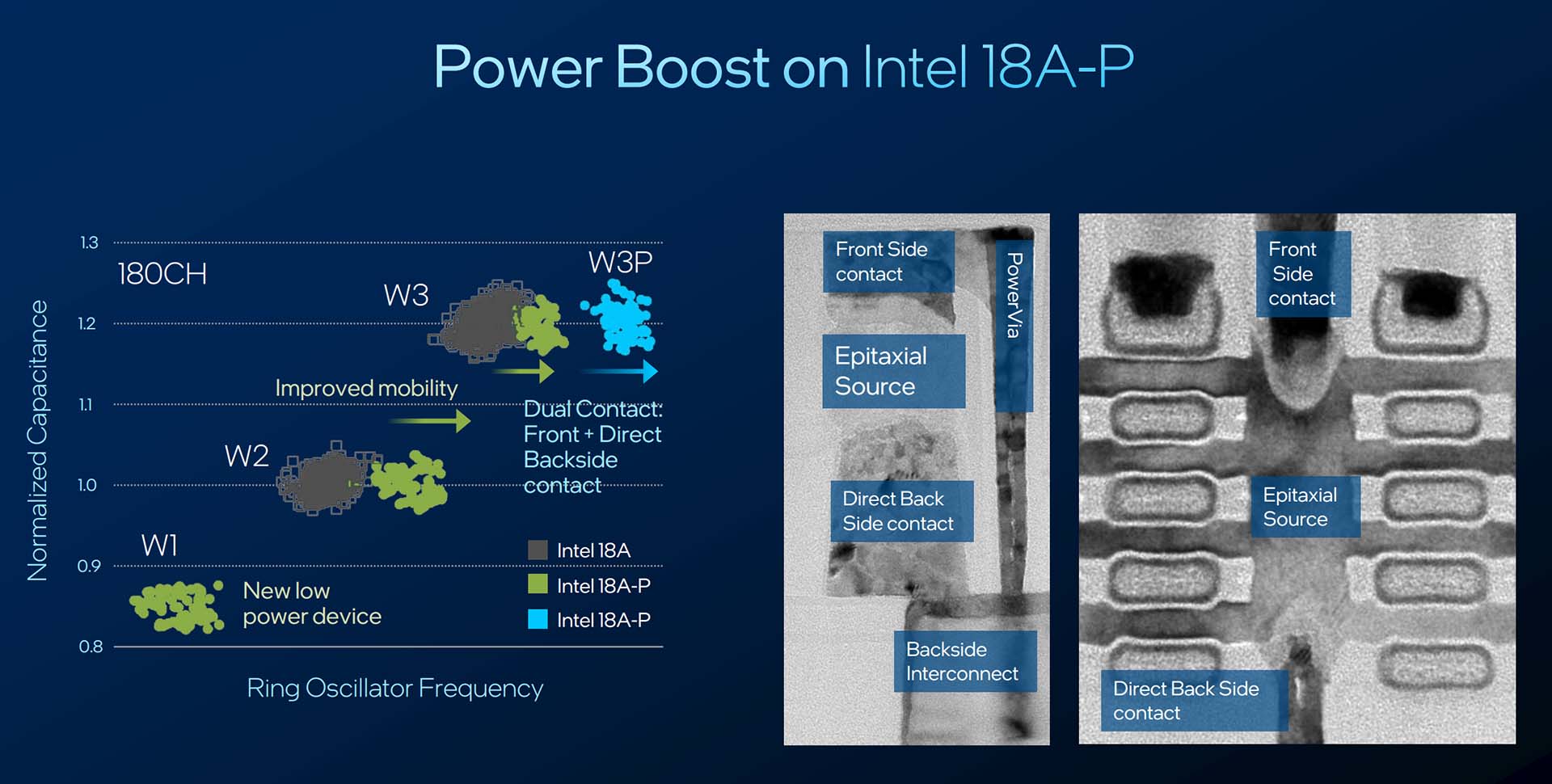

The Intel 18A-P process adds a notable structural change called Power Boost, a dual-contact transistor design built on Intel’s RibbonFET architecture and backside power delivery. Instead of all current crowding through a single front contact, 18A-P uses contacts on both front and back, increasing drive current without enlarging the transistor footprint. Alongside this, Intel reports 20–40% better thermal resistance compared with 18A, meaning heat can move away from hotspots more effectively. The node also tightens skew corners by 33%, so transistor characteristics vary less from chip to chip. That consistency helps raise safe voltage and clock limits, supporting more aggressive turbo frequencies. New W1, W1.5, and W3P standard cells round out the update, letting designers trade off density, power, and performance more flexibly within Intel’s 18A libraries.
From Risk Production to Real Products: CPUs, GPUs, and AI Silicon
Risk production means Intel is already running early wafers on 18A-P for real designs, even though formal qualification is not finished. According to Intel Foundry, “18A-P delivers 9% higher performance at the same power level or 18% lower power at the same speed versus Intel 18A, with better thermals and more design flexibility.” Because the Intel 18A-P process is design-rule-compatible with 18A, existing IP can move over, paving the way for refreshed designs such as future versions of Panther Lake client CPUs and Diamond Rapids server parts built on the enhanced node. For external customers, this compatibility lowers risk and accelerates time-to-market for AI processors, custom accelerators, and possibly consumer GPUs that want better AI processor performance without a complete redesign.
AI Demand and Foundry Ambitions Behind 18A-P
Intel ties 18A-P’s timing to booming demand for AI CPUs and custom accelerators. Its foundry arm now promotes 18A and 18A-P as viable options not only for Intel-branded processors but also for outside chipmakers building AI and cloud silicon. Cloud providers like Google have already committed to multiple generations of Intel server processors, and companies such as Amazon are planning custom AI chips on Intel’s advanced nodes. This surge in AI workloads has been strong enough that Intel reported selling through older, previously written-off inventory. Delivering 18A-P on schedule in risk production sends a signal to potential foundry customers that Intel can keep to its process roadmap, an important factor as rivals compete to host the next wave of AI processor performance designs.
What 9% Faster, Cooler Chips Mean for Gaming and Workstations
For gamers and workstation users, the 18A-P node’s 9% CPU clock speed boost at the same power can translate into higher frame rates and smoother performance, especially in CPU-bound titles and simulation-heavy workloads. Improved thermal resistance and skew corner tightening should help processors sustain turbo clocks longer without throttling, even in compact gaming laptops or small-form-factor desktops. Lower power at a given performance level also gives GPU designers more headroom: they can hold clocks steady while cutting power draw, or reinvest some of the savings into higher frequencies for ray tracing and AI-driven upscaling. As AI features in games and creative tools grow, the combination of power-efficient CPU cores and potential AI accelerators on 18A-P makes the node attractive for future consumer chips focused on both play and productivity.
