What X870 and X870E Bring to Ryzen 9000 Builders
An X870 motherboard comparison for Ryzen 9000 is the process of weighing X870 and X870E chipset features, lane counts, and prices to decide which board tier offers the most real-world value for gaming and productivity builds. Both chipsets belong to AMD’s second-generation AM5 800‑series platform and natively support Zen 5-based Ryzen 9000 CPUs along with new Precision Boost Overdrive and Curve Optimizer algorithms. According to Wccftech, all X870 and X870E boards standardize USB4 and PCIe Gen5 for both graphics and NVMe, alongside higher EXPO memory clocks than previous 600‑series designs. The difference is that X870E uses two Promontory 21 dies, while X870 uses one, so total PCH lanes are higher on X870E. In practice, this means more bandwidth for extra M.2, USB, and SATA devices, but baseline gaming performance remains tied primarily to the CPU and GPU you install.

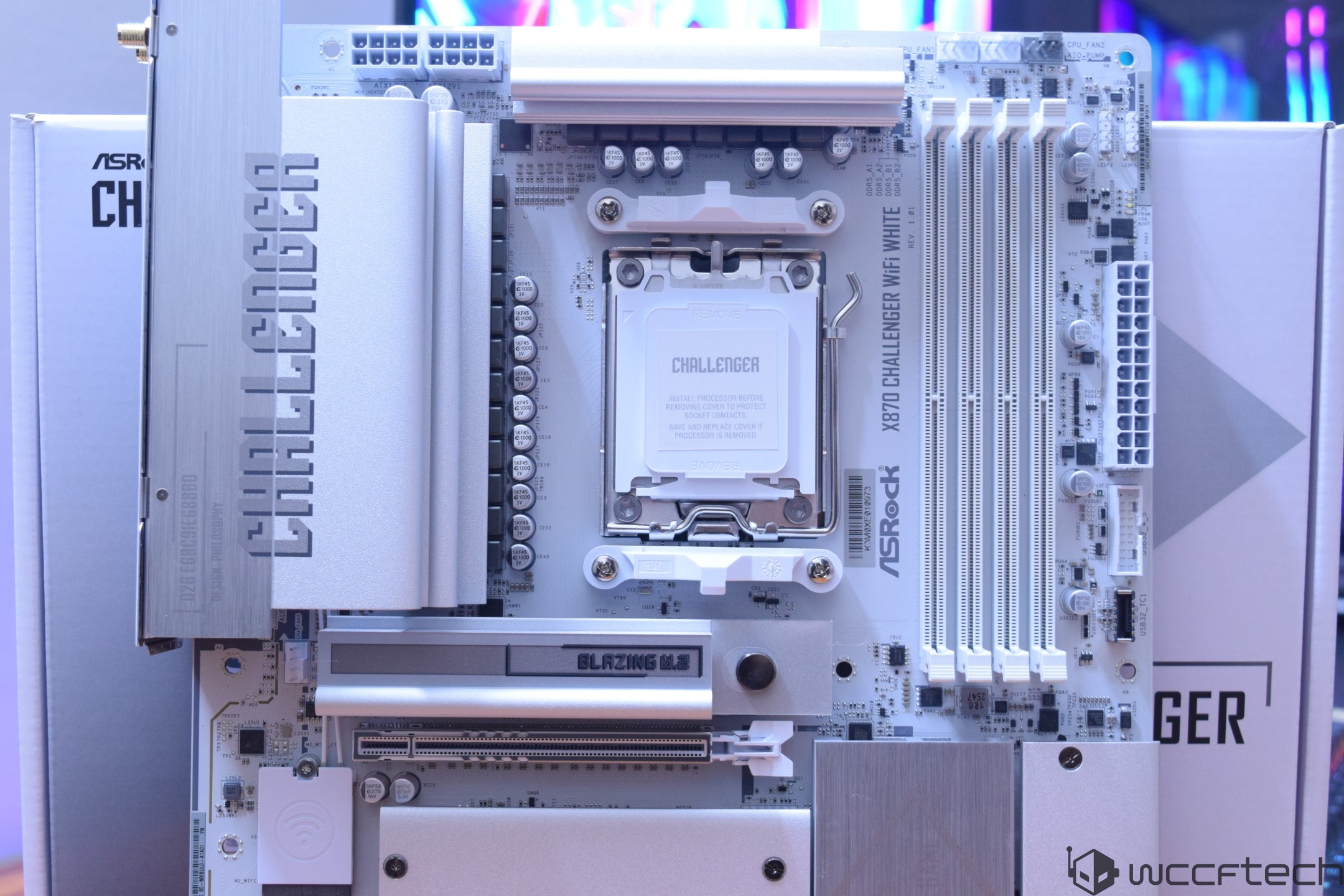

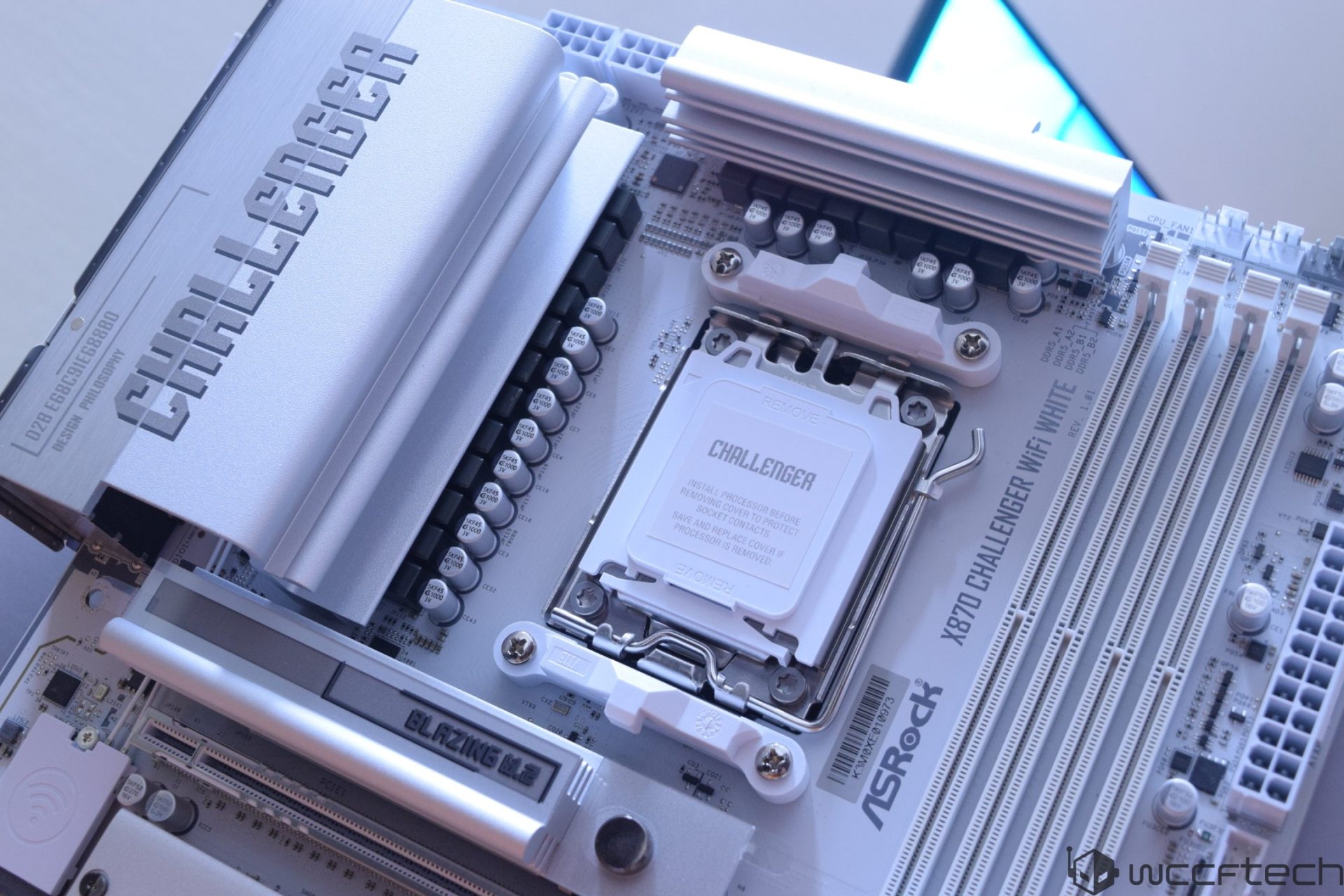

ASRock X870 Challenger WiFi White: Best Budget X870 Board?
The ASRock X870 Challenger WiFi White aims squarely at the best budget X870 board segment, delivering high-end essentials at USD 169.99 (approx. RM800). It offers quad SSD support, DDR5-8000 EXPO capability, WiFi 7, and USB4, hitting most of the X870 motherboard comparison checklist for modern Ryzen 9000 builds. You still get PCIe Gen5 for a graphics card and at least one NVMe slot, plus a 19-phase power design that is more than enough for current Ryzen 9 chips. The white aesthetic targets clean, light-themed builds without demanding a premium price. With four M.2 slots, builders can run multiple fast drives for games and content, reducing the need for extra SATA storage. For most users, ASRock vs Gigabyte X870 on this tier comes down to whether you need extra Gen5 lanes and aesthetic refinements, because the Challenger already covers core performance features.

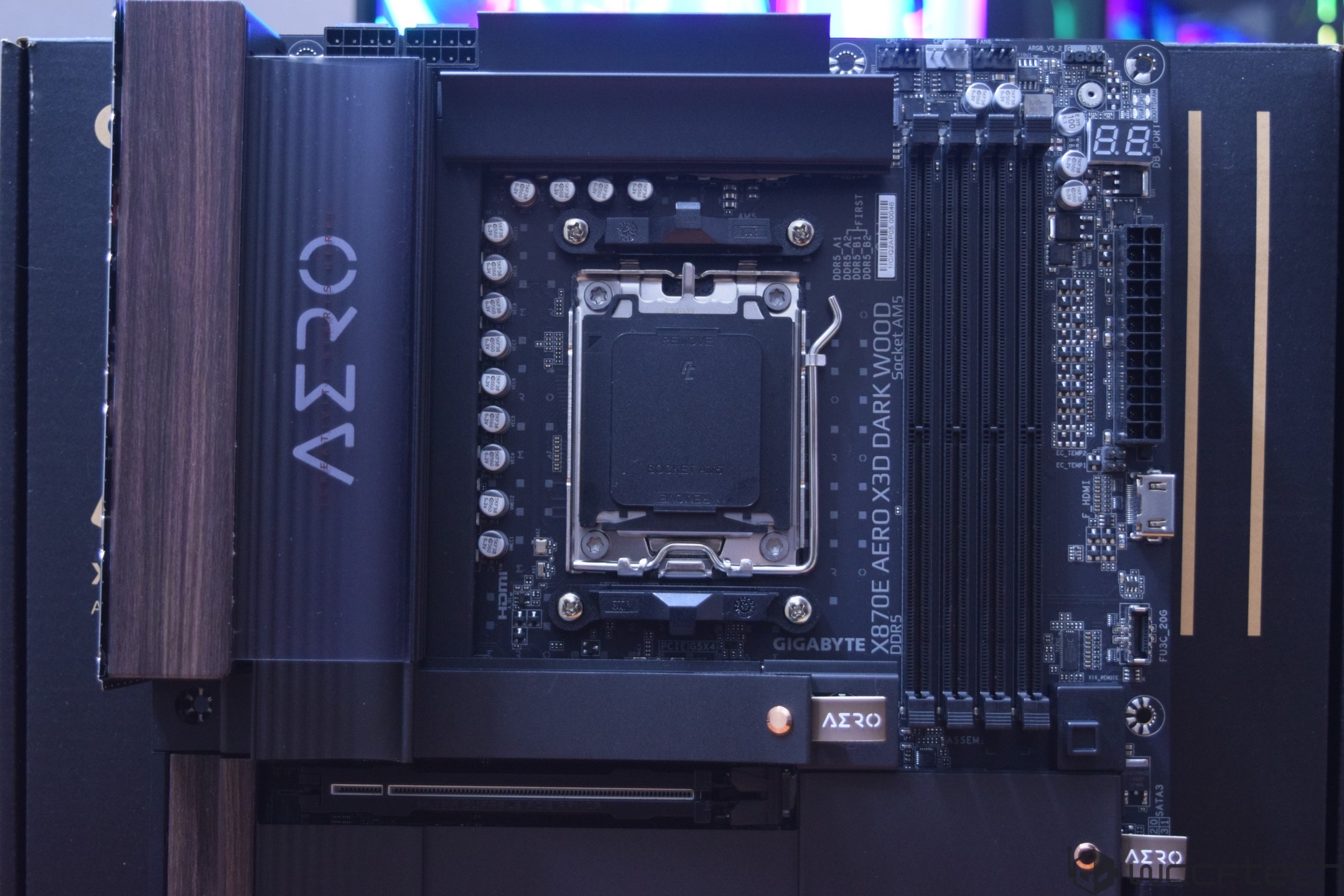

Gigabyte X870E AERO X3D DARK Wood: X870E Premium Features
Gigabyte’s X870E AERO X3D DARK Wood sits in the X870E premium features category, priced at USD 499 (approx. RM2,340). It combines a distinctive dark wood-inspired design with high-spec hardware: DDR5-9000 memory support, dual PCIe Gen5 slots for GPU and NVMe, and a richer I/O layout enabled by the dual-die X870E chipset. That lane advantage means more Gen4 and Gen3 PCH connectivity for additional SSDs, high-speed USB, and expansion cards. Aimed at creators and power users, this board aligns with Ryzen 9000 X3D CPUs and heavy multitasking workloads. The aesthetic is a major selling point, designed for open cases and show builds where the motherboard is part of the visual centerpiece. In the ASRock vs Gigabyte X870 debate, this model embodies the high-budget choice: you pay more for extreme memory headroom, extra Gen5 bandwidth, and refined styling rather than basic compatibility gains.
X870 vs X870E: Do Extra Lanes and Speed Ratings Matter?
On paper, X870E looks clearly superior: more PCH lanes (8 Gen4 and 12 Gen3 vs 4 Gen4 and 8 Gen3 on X870), plus the flexibility to run more high-bandwidth devices simultaneously. In real-world gaming, though, Ryzen 9000 motherboard choice is dominated by GPU and CPU clocks; a single PCIe Gen5 x16 slot and one Gen5 NVMe drive already cover most needs. DDR5-8000 vs DDR5-9000 support is also a diminishing-returns area, where memory controller limits and tuning skill matter more than the label on the box. Productivity users with multiple scratch SSDs, capture cards, and 40 Gbps USB4 devices will benefit more clearly from X870E premium features. For a typical gaming PC with one GPU, one or two SSDs, and a few USB peripherals, the X870 baseline is usually enough, and performance differences between the chipsets themselves will be minimal at the same CPU and memory clocks.
Feature-per-Dollar: Which X870 Board Should You Buy?
When you compare feature-per-dollar, the ASRock X870 Challenger WiFi White delivers most of the platform’s headline features for a fraction of the Gigabyte board’s price. At USD 169.99 (approx. RM800), you get USB4, WiFi 7, PCIe Gen5 for GPU and NVMe, quad M.2, and strong power delivery, making it an easy recommendation for cost-conscious Ryzen 9000 builds. The Gigabyte X870E AERO X3D DARK Wood at USD 499 (approx. RM2,340) targets a different buyer: someone who values DDR5-9000 support, dual Gen5 slots, expanded I/O, and premium aesthetics enough to pay a USD 330 (approx. RM1,540) difference. For most gamers and mainstream creators, the ASRock board is the better value and likely the best budget X870 board. Choose the Gigabyte only if you can use its additional lanes, higher memory ceiling, and design flair in a high-end showcase PC.
