From Big Boxes to Invisible Bass
Invisible bass solutions in premium listening rooms are compact subwoofer designs and wall-integrated bass systems that deliver deep, controlled low frequencies while reducing visual impact and floor-space demands for design-conscious listeners. High End Vienna 2026 underlined how far this idea has moved from niche concept to mainstream expectation among enthusiasts. Audiophiles want cinema-grade low end, but not the traditional cube parked in every corner. Interior designers want clean lines and symmetry, not equipment dictating furniture layout. Manufacturers are responding with slimmer enclosures, architecturally integrated modules, and smarter crossover design. Børresen’s new BM2 folded dipole subwoofer and JL Audio’s Pavilion Thin-line in-wall and in-ceiling range approach the same problem from different angles, but both aim at the same goal: bass that feels physical and full-range yet looks nearly invisible once installed.

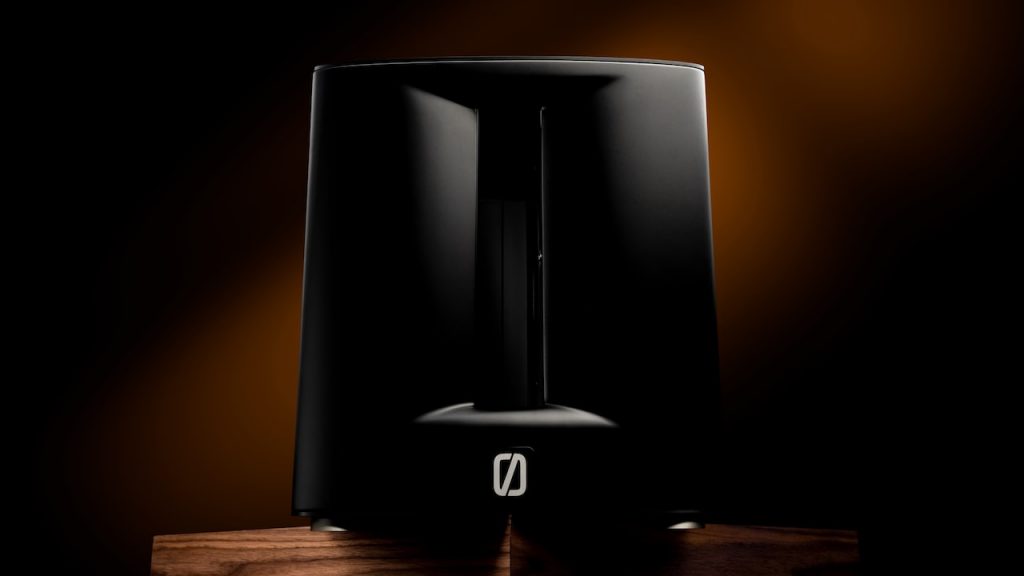

Børresen BM2: Folded Dipole Bass in a Smaller Footprint
The Børresen BM2 is a compact folded dipole subwoofer module that aims to preserve speed and control while easing integration. Priced at USD 10,000 (approx. RM46,000), it distills the larger BM3 concept into a smaller, lighter cabinet while keeping the focus on premium two-channel systems. Two 10-inch drivers, with a combined cone area comparable to a 15-inch woofer, sit in a folded dipole configuration: they share a common front opening while their rears are open to the back of the enclosure. This side-cancelling radiation pattern is meant to reduce room interaction and limit boom. According to Michael Børresen, “Fitting the folded dipole principles of the BM3 into the much tighter framework of the BM2, while working with fewer but larger drivers, was anything but easy.” For buyers deep into the Audio Group Denmark ecosystem, it functions as a premium bass module rather than a brute-force sub.

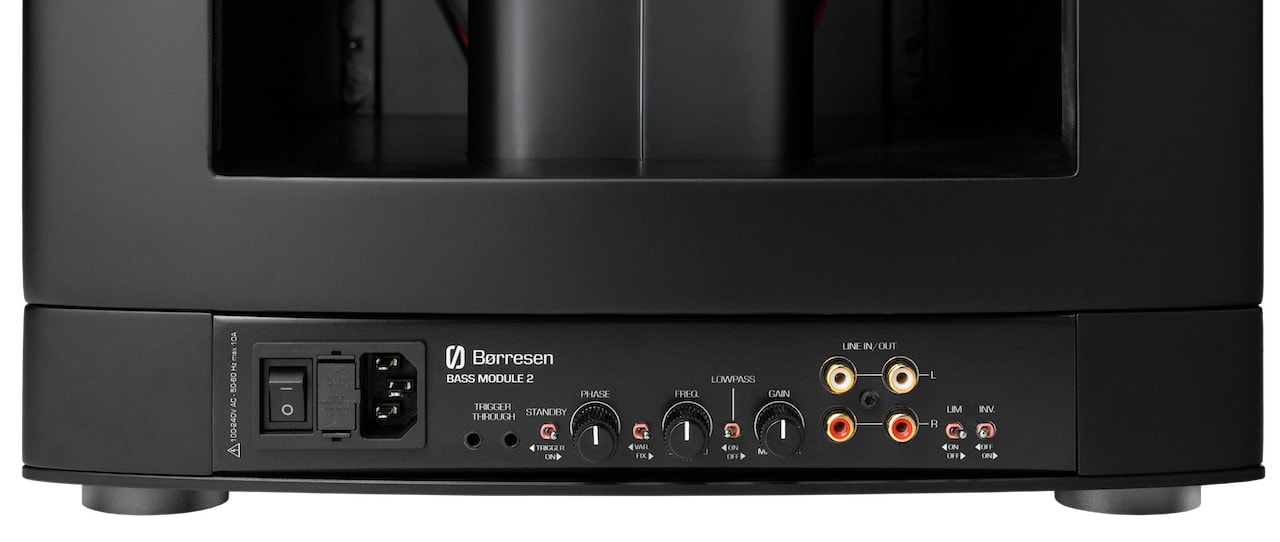

Analog Crossover and System Integration Priorities
Where many modern subs lean on DSP, the BM2 doubles down on an analog approach to protect timing and coherence. Its built-in Class D amplification is paired with an all-analog crossover built from high-grade components, borrowing Aavik amplifier know-how inside. Listeners can adjust the low-pass crossover from 30 Hz to 170 Hz, making the module adaptable to different main speakers and room sizes. Once set, the BM2 rolls off content above the chosen point with a 24 dB/octave slope, which helps the bass hand-off happen cleanly without smearing the midrange. The goal is reinforcement, not nightclub theatrics: more scale, weight, and low-frequency detail without smearing transients. For purist stereo rooms, this design choice answers a core audiophile concern—adding extension and authority without sacrificing the character of carefully chosen loudspeakers and amplifiers.
JL Audio Pavilion: Wall-Integrated Bass for Any Space
JL Audio’s Pavilion Thin-line Subwoofers take a different path toward invisible bass by disappearing into walls and ceilings. Built around 8-inch drivers and priced at USD 1,000 (approx. RM4,600) each, they are aimed at homeowners and integrators who need strong low end without floor boxes. The drivers use DMA-optimized motors and Concentric Tube Suspension to allow long, linear excursion while cutting mounting depth to around 4 inches, enabling infinite-baffle in-wall or in-ceiling use. A dog-leg mounting system supports installs in varied materials, indoors or outdoors, and marine-grade parts with IPX5 water resistance make them suitable for covered outdoor spaces. Flush-mount grilles in round or square form, available in paintable black or white, help the speakers blend into ceilings and walls. In living rooms, media rooms, and terraces, the result is wall-integrated bass that preserves clean sightlines and flexible furniture placement.
A New Aesthetic for Premium Bass Modules
Together, the BM2 and Pavilion lines point to a shift in how high-end systems handle low frequencies. At High End Vienna 2026, these products stood out not for raw SPL claims but for how they solve layout and aesthetic pain points. Børresen’s folded dipole subwoofer shows one path: a compact subwoofer design that behaves more like an extension of the main speakers than a separate effects box. JL Audio focuses on wall-integrated bass that frees every square meter of floor space while retaining meaningful impact for movies and music. For system designers, this opens modular strategies: discreet premium bass modules at the front wall, distributed in-wall subs around the room, or a hybrid of both. The common message is clear: in the next generation of premium listening rooms, serious bass will be heard and felt, but almost never seen.
