From Lab Benches to Living Rooms: Why a Speaker Analyzer Tool Matters
Serious audiophiles have long relied on marketing sheets and listening impressions to judge loudspeakers, but that approach leaves big gaps. Manufacturer specs often quote ideal conditions and small-signal behavior, while real-world systems face complex loads, cabinet interactions, and level-dependent distortion. Traditionally, exploring these effects required expensive lab analyzers, lock-in amplifiers, and painstaking manual setups, putting rigorous loudspeaker measurement out of reach for most hobbyists. Dayton Audio’s DATS LA loudspeaker analyzer aims to close that gap by condensing many laboratory-style tests into a compact, USB-connected box. Instead of relying purely on ears and brochures, enthusiasts can now capture objective data such as impedance curves and Thiele-Small parameters on their own workbench. For anyone building DIY speakers, evaluating drivers, or double-checking performance claims, this kind of audio testing equipment offers a way to replace guesswork with repeatable measurements and data-driven decisions.
Inside the DATS LA: Compact Hardware and PC-Based Workflow

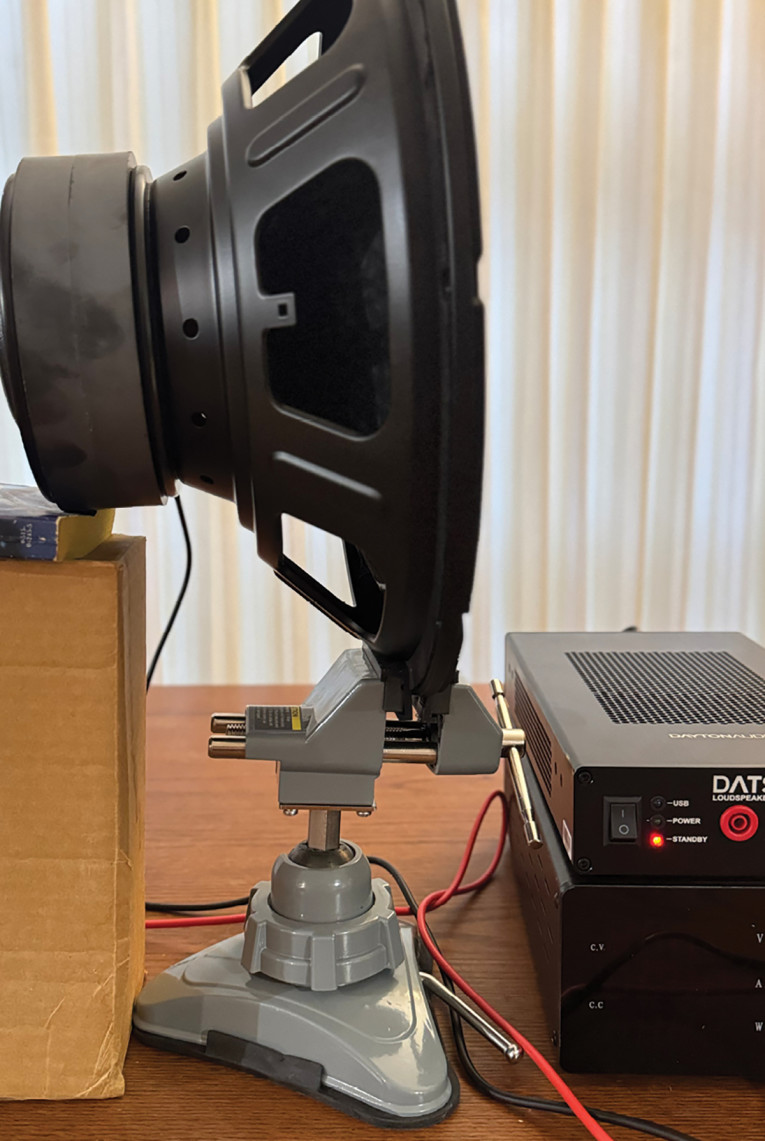

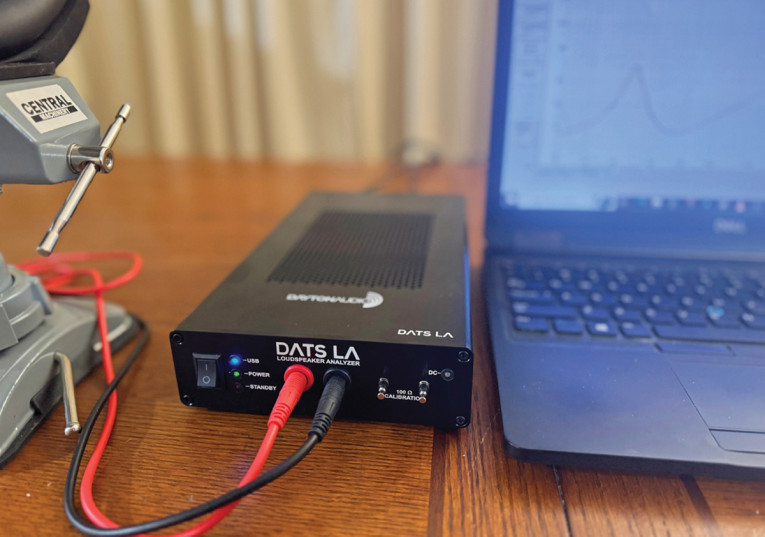

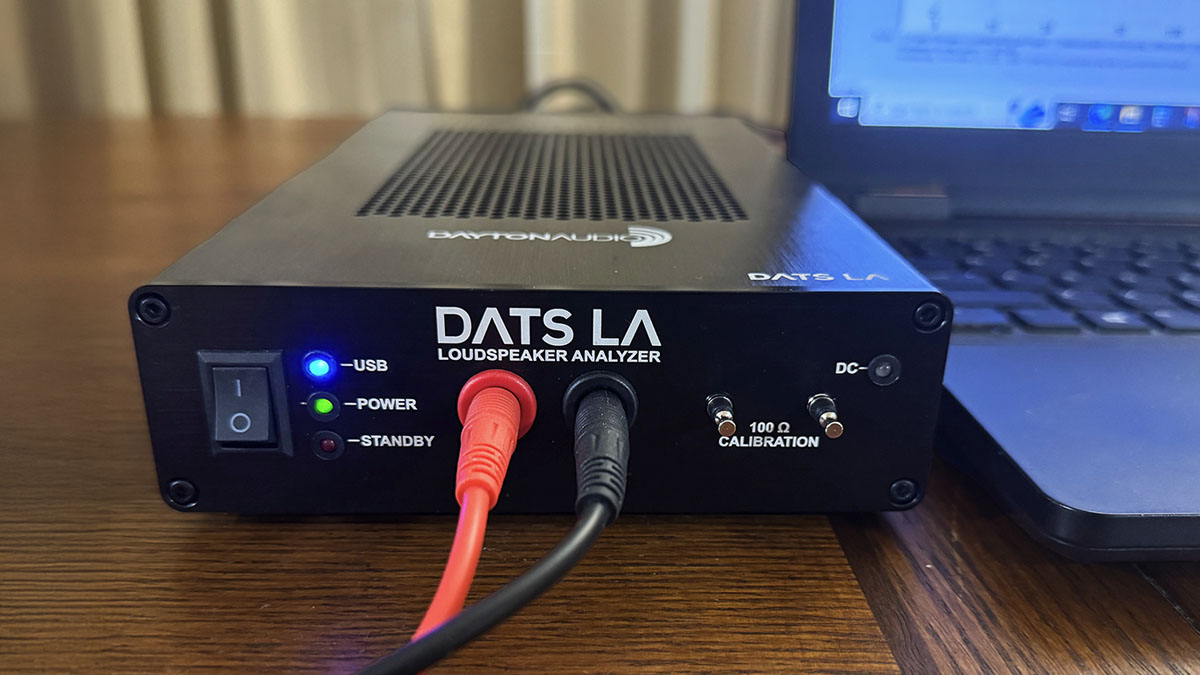

Physically, the DATS LA is literally a black box about half the size of a math textbook, yet it integrates several elements normally found in full lab racks. The unit houses a precision reference resistor for current measurement, a DC-coupled power amplifier rated for typical loudspeaker loads, and dedicated measurement hardware. On the front panel, status LEDs indicate power and USB connectivity, while a multicolor LED monitors DC offset at the amplifier output, warning users if offset exceeds safe thresholds. Calibration posts tied to the internal resistor help ensure consistent results over time. The rear panel provides power and USB connections plus trim controls for fine-tuning offset behavior. Connection to drivers is handled via detachable leads with heavy-duty alligator clips or banana plugs, eliminating the need for extra breakout boxes. Paired with Windows-based software over USB, the DATS LA becomes a plug-and-measure speaker analyzer tool that fits comfortably on a home desk.
Measuring Impedance and Thiele-Small Parameters at Home
At its core, the DATS LA delivers fast, automated impedance and Thiele-Small parameter measurements, a foundation for any serious loudspeaker design or evaluation. By sweeping frequency and monitoring voltage and current, the system derives an impedance curve that reveals resonance peaks, voice coil inductance, and enclosure interactions. From this data, the software calculates classic Thiele-Small parameters such as resonant frequency and total Q, essential for predicting alignment and box tuning. Users can perform multiple measurements with different test conditions—such as added mass or test enclosures—to extract compliance and other mechanical properties using purely electrical means. What once required a tangle of lab gear and time-consuming calculations is now condensed into a guided workflow that runs on a PC. For DIY builders and advanced hobbyists, this transforms loudspeaker measurement from a specialist skill into a practical step in verifying driver suitability and validating enclosure designs.
Beyond Basics: Linearity and Symmetry Analysis for Serious DIYers

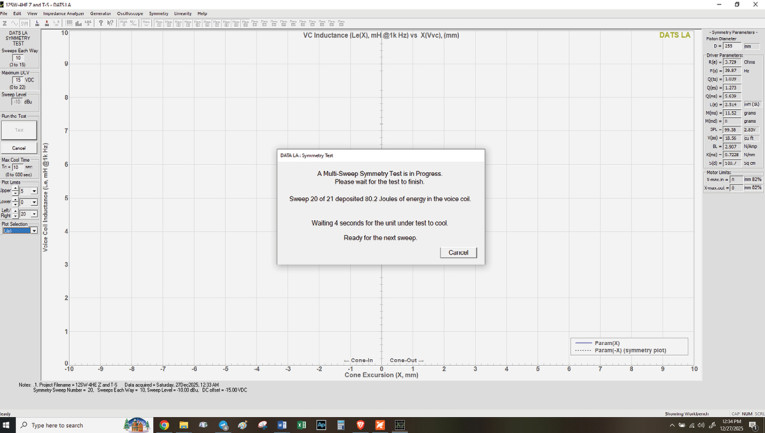

Where the DATS LA really distinguishes itself from simpler audio testing equipment is in its advanced nonlinear measurements. In Linearity mode, users can increase the swept signal level to explore how parameters shift at higher excursions, exposing behavior that small-signal Thiele-Small parameters cannot show. Because the amplifier is DC-coupled, the system can also offset the cone position forward or backward and repeat sweeps, enabling symmetry tests. The analyzer alternates positive and negative DC biases—a sequence of cone-in and cone-out positions—while running frequency sweeps, building a detailed picture of motor and suspension symmetry. This approach helps identify issues such as asymmetric suspension compliance, force factor variations, or thermal drift, all of which contribute to distortion and compression. For enthusiasts choosing drivers for a project, or verifying claims about low-distortion performance, these nonlinear insights provide a level of loudspeaker measurement previously associated with far more complex and costly test rigs.
Democratizing Loudspeaker Measurement for Audiophiles and DIY Builders
By integrating impedance, Thiele-Small, and nonlinear symmetry analysis into a single USB device, the DATS LA effectively democratizes professional-style loudspeaker testing. It does not attempt to replace flagship analyzers, but instead targets the 80% of lab capability most relevant to designers and serious hobbyists. With only a PC and the compact box, users can evaluate raw drivers before purchase, confirm whether a finished loudspeaker matches its claimed performance, or fine-tune DIY designs based on measured rather than assumed behavior. The ability to identify resonances, quantify level-dependent changes, and highlight asymmetries means fewer surprises once a project leaves the workbench. For audiophiles who want to move beyond subjective impressions, the DATS LA offers an accessible speaker analyzer tool that turns measurement into a routine part of system building, aligning listening experiences with the hard data behind them.
