Why the Raspberry Pi Pico Shines in Retro Computer Repair
The Raspberry Pi Pico has quietly become one of the most useful tools for retro computer repair. Built around the RP2040 microcontroller, it offers plentiful GPIO pins, precise timing peripherals, and newly certified 5V-tolerant inputs, all at a very accessible cost. For vintage hardware diagnostics, these traits are ideal: you can connect directly to classic 8‑bit bus signals, bit‑bang control lines, or generate accurate clocks without bulky external circuits. This makes the Pico a powerful bridge between modern microcontrollers and vintage computer architecture. Instead of hunting for rare original test equipment, you can implement custom Raspberry Pi Pico testing rigs to validate chips, exercise buses, and log behavior in software. The MC6850 ACIA serial interface tester is a strong example of how a Pico can stand in for a historical CPU system while giving you visibility and control that original machines never provided.
Understanding the MC6850 ACIA and Why It Needs Testing
The MC6850 ACIA, introduced by Motorola for 8‑bit systems, is a classic serial interface chip widely used in designs such as Grant Searle’s projects and RC2014 computers. It handles asynchronous serial data formatting, status flags, and handshaking signals, sitting between the CPU data bus and devices like terminals or modern USB‑serial adapters. Today the MC6850 is no longer manufactured, so builders rely on so‑called “new old stock” devices. Unfortunately, the market also contains pulls from old boards and even relabeled parts that are not true MC6850s. For reliable retro computer repair, being able to quickly distinguish genuine, working ACIA chips from duds is crucial. A dedicated MC6850 ACIA tester based on the Raspberry Pi Pico lets you validate each device before it goes into a carefully restored machine, reducing troubleshooting time and protecting your vintage hardware from unknown components.
Building a Pico-Based MC6850 ACIA Tester: Core Hardware Ideas

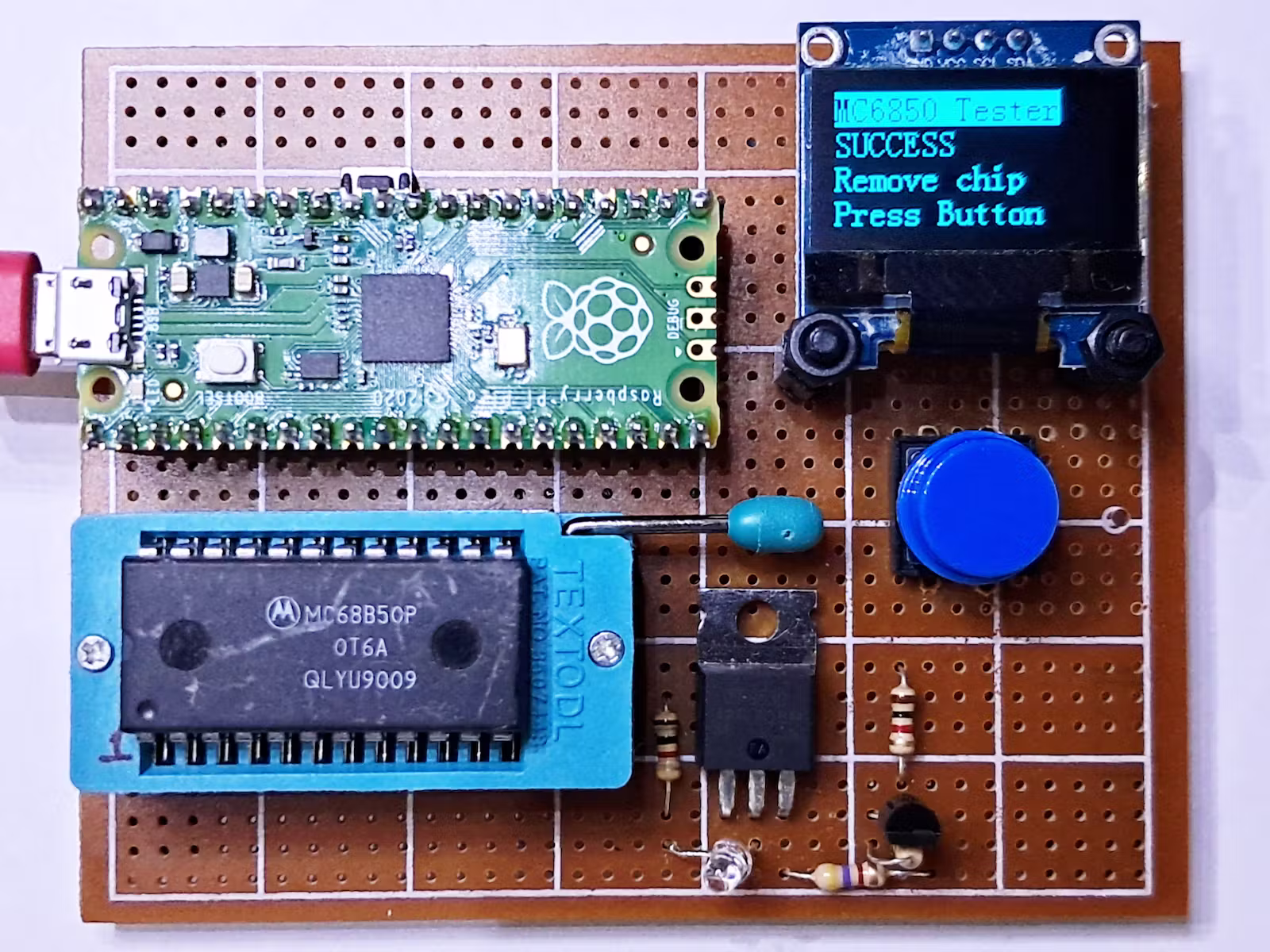

A practical MC6850 ACIA tester starts with one clear goal: connect as many MC6850 pins as possible to the Raspberry Pi Pico so the microcontroller can fully control and observe the device. The MC6850 normally operates at 5V, while the Pico’s RP2040 must have its I/O fully powered before seeing any 5V signals. To keep testing safe and hot‑swappable, the design places the Pico in charge of the MC6850’s 5V supply using an NPN transistor plus a MOSFET power‑switch arrangement. When the tester is idle, the chip can be removed or inserted without risking latch‑up or damage. A simple user interface—with a 128×64 OLED display, a single navigation button, a reset button, and an LED indicating that 5V is active—keeps the hardware compact but functional, while still leaving enough GPIO lines free to handle all MC6850 signals except CTS and DCD, which are tied low.
Using PIO, PWM, and GPIO for Vintage Hardware Diagnostics
The real power of a Raspberry Pi Pico testing rig comes from combining its PIO, PWM, and GPIO features. In the MC6850 ACIA tester, most firmware work is straightforward: driving address, data, and control lines high or low at precise times to mimic an 8‑bit CPU. A more interesting challenge is clock generation. The MC6850 derives its baud rate by dividing an external clock by 1, 16, or 64, with common retro designs expecting a 7.3728 MHz source (64 × 115200) or around 1.8432 MHz (16 × 115200). The tester uses the RP2040’s PWM peripheral, running the Pico at 200 MHz and leveraging a 12‑bit fractional divider, to generate practical approximations of these frequencies, such as 7.372 MHz and 1.845 MHz. When extended with PIO, the same approach can be generalized into precise, protocol‑aware vintage hardware diagnostics for many other buses and interface chips.
Practical Test Routines and Extending the Approach
With the hardware in place, the tester’s firmware runs a series of checks that mirror how a real system would use the MC6850. After applying power and reset, it reads the status register and observes RTS/IRQ behavior, both in normal operation and after disabling these functions via control registers. It systematically exercises the three chip select inputs, confirming that only valid combinations enable the device. Data‑path tests verify both directions: bytes sent by the MC6850 must be correctly received by the Pico, and data written by the Pico must be read back through the ACIA’s receive logic. Together, these tests make the Pico‑based MC6850 ACIA tester a reliable tool for vintage hardware diagnostics. The same pattern—controlled power, direct pin access, software‑defined timing, and clear pass/fail feedback—can be adapted to create custom testers for RAM, ROM, parallel I/O, or other legacy peripherals in your retro computer repair workflow.
