What Edge AI Inference Gives You (and When It Makes Sense)
Edge AI inference is the practice of running models like large language models and computer vision networks directly on embedded AI chips or mini PCs, so predictions stay offline, latency is low, and applications can keep working without any cloud connection.
If you run a small warehouse, a lab, or a privacy‑sensitive product, moving AI to the edge stops you from waiting on remote GPUs and keeps data local. Edge AI chips such as RK3576 and RK3588 can run both offline object detection and local LLM deployment with help from an attached NPU accelerator, so you can detect boxes on shelves and chat with a model from the same compact box. The main caveat: you still need basic Linux and Docker skills, plus enough RAM and cooling for long‑running inference. In return, you get predictable latency, lower power than a desktop GPU, and far fewer cloud surprises.
What You Need: Hardware, Software, and Models

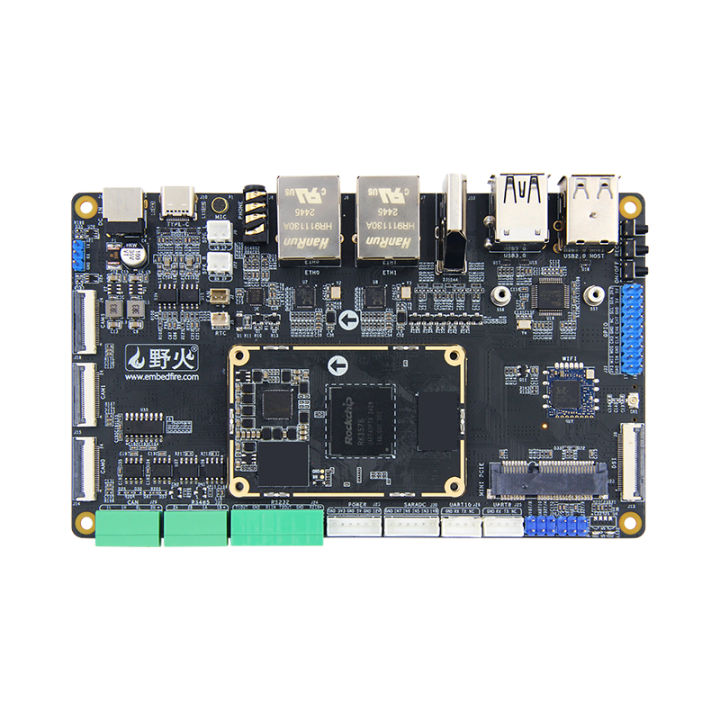

Before you start wiring up edge AI inference, make sure your hardware and software stack can handle both vision and language workloads. For computer vision, you need an RK3576 development board running Linux to host the web server and inference pipeline, plus an RK1820 AI accelerator to handle YOLOv8 object detection on its dedicated NPU. A camera or static warehouse images complete the setup, with future options such as USB, MIPI, or RTSP cameras if you expand into live monitoring.
For local LLM deployment, you need an ARM64 Linux board with an RK3576 or RK3588‑family SoC, Docker Engine, network access, and enough RAM for your chosen model; active cooling is recommended to keep the NPU happy during long chats. The models themselves are pre‑converted `.rkllm` files, while YOLOv8 models go through a PyTorch → ONNX → RKNN conversion pipeline so they can run through Rockchip’s RKNN runtime on the NPU.
Step-by-Step: Deploy Offline Object Detection and a Local LLM
Think of this as wiring two pipelines on the same edge box: one for offline object detection and one for a local LLM endpoint. The aim is to get real‑time detection for boxes and an API‑compatible chat model, both accelerated by NPU hardware.
- Prepare your RK3576 board with Linux, connect the RK1820 AI accelerator, and copy in a YOLOv8 warehouse box model that has been converted from PyTorch to ONNX and then to RKNN format, producing files such as best.rknn and best.weight for the NPU runtime.
- Install the Rockchip RKNN runtime (or RKNN3Lite) on the RK3576 board, then load the converted YOLOv8 model with a call such as rknn.load_rknn(model_path="best.rknn", weight_path="best.weight") so inference runs on the RK1820 NPU instead of CPU.
- Start the FastAPI‑based web server for warehouse detection by activating the rknn3_env virtual environment and running uvicorn from the demo’s server directory, exposing an HTTP interface on port 8000 for browser access.
- Open a browser on your laptop, point it at http://<RK3576_IP>:8000, upload a warehouse image, and let the system perform offline object detection, counting boxes and drawing bounding boxes with confidence scores on the result image.
- On the same or another RK3576/RK3588 board, install Docker Engine, then run RKLLM Docker with a single command that mounts /dev, uses a compatible Qwen or Gemma image, and exposes port 8001; this one command provides the model, runtime, dependencies, and API server without needing a Python environment on the host.
- Verify that the LLM server is ready by calling the /health endpoint on port 8001, then send a chat request using the familiar OpenAI /v1/chat/completions format so existing tools can talk to your local LLM endpoint without code changes.
The key win here is that both pipelines stay offline. The warehouse detection system runs YOLOv8 inference entirely on the RK1820 NPU at around 60–70 ms per 640×640 image, which is fast enough for near real‑time single‑image analysis. Meanwhile, the LLM endpoint uses RKLLM Docker to hide most embedded AI tooling: you pick an image like Qwen2.5 1.5B W4A16, run a single docker command, and get about 19.55 output tokens per second while using roughly 1.6 GB of RAM on RK3576.
Why NPU Acceleration Matters for Latency and Power
NPU acceleration is the part that turns these embedded AI chips from a science project into something you can ship. By offloading YOLOv8 inference to the RK1820 NPU, the warehouse demo reaches about 60–70 ms per image at 640×640 resolution, which is enough for responsive object counting without a GPU and with fully offline inference. This is ideal for offline object detection in warehouses where connectivity may be unreliable and data might be sensitive.
On the language side, the RK3576’s NPU can drive quantized LLMs such as Qwen2.5, Qwen3, and Gemma variants using RKLLM. In one test, Qwen2.5 1.5B W4A16 reached 19.55 output tokens per second while holding memory around 1.6 GB, and W4A16 was faster with lower memory use than W8A8 across comparisons. That means you can respond to prompts quickly without spinning up cloud GPUs. For edge AI inference, better throughput at lower power is where embedded AI chips shine, especially when you need continuous monitoring or long‑running chat sessions.
Use Cases and Takeaways: When Edge Beats the Cloud
Once this setup is running, you have a flexible toolkit: the warehouse demo already detects boxes, counts them, and generates visualization images entirely offline, producing outputs such as warehouse_result.jpg with bounding boxes and confidence labels. Applications extend neatly into smart warehouse tasks like package counting, inventory monitoring, and missing item detection, as well as industrial inspection and retail shelf checking. For these scenarios, edge AI inference removes cloud latency and keeps camera feeds on‑prem.
On the language side, RKLLM Docker turns an RK3576 or RK3588 board into a private local AI endpoint, exposing OpenAI‑ and Ollama‑compatible APIs so existing apps can talk to the NPU without custom client code. That makes it a strong fit for privacy‑sensitive local LLM inference, where prompts and outputs stay inside your network. The main thing to watch: keep the LLM server on a trusted network, since the experimental container does not yet include authentication or TLS and relies on privileged device access. If you can live within those constraints, running AI models locally on compact hardware ends up well worth the effort.
