What 4R CU-DIMM DDR5 Changes About Desktop Memory

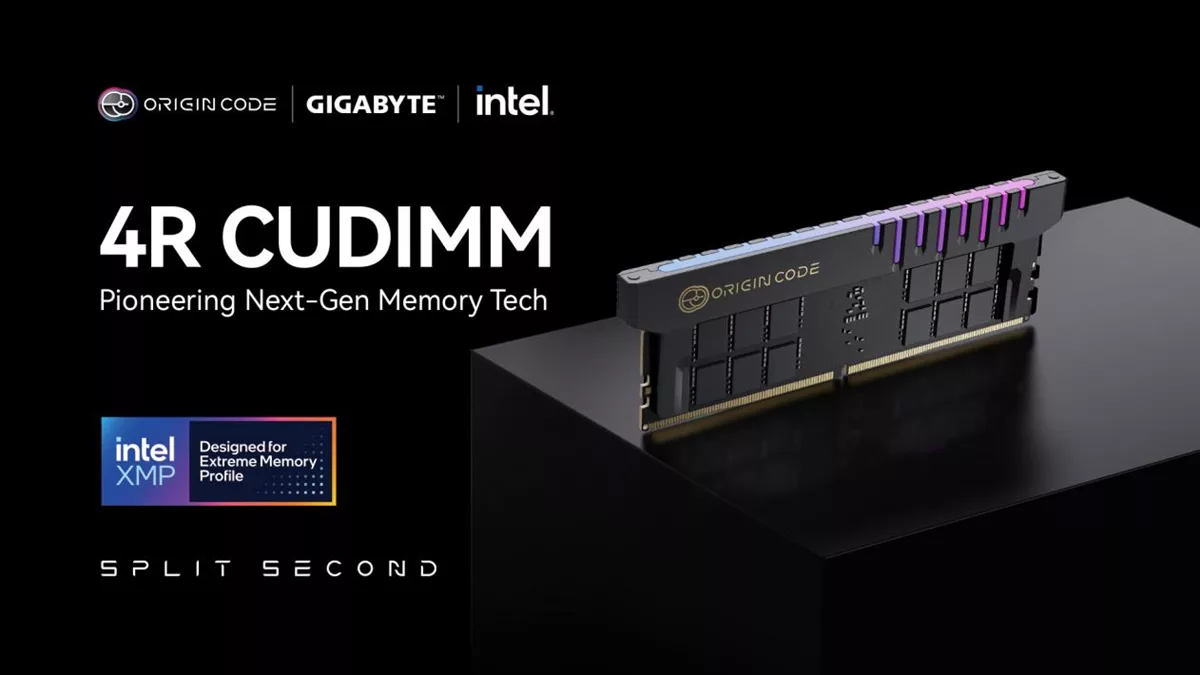

4R CU-DIMM DDR5 is a quad-rank, clocked unbuffered memory module design that integrates an on-board clock driver to carry high-capacity DDR5 memory at high speeds without the frequency drops and instability that typically appear when all desktop DIMM slots are populated. For years, reaching 256 GB DDR5 memory on a dual-channel desktop has meant filling four slots and watching memory clocks fall to keep signal integrity under control. Origin Code’s new 4R CUDIMM DDR5 modules, created with GIGABYTE and validated on Intel’s latest desktop platform, rewrite that rule by packing 128 GB per stick and running them at DDR5-8000 speeds. Two slots can now handle workstation-class capacity while keeping performance near the limits of the memory controller, directly addressing a long-standing bottleneck in high-capacity RAM builds.
Inside the 4R CU-DIMM Architecture: Quad Ranks and CKD
The core of the 4R CUDIMM DDR5 concept is its quad-rank layout paired with a dedicated Clock Driver (CKD). Standard DDR5 UDIMM modules are usually dual-rank, which keeps per-module capacity near 64 GB and limits how much memory a two-slot desktop can host. According to The FPS Review, “Origin Code’s 4R CUDIMM pairs four ranks of DRAM with an integrated CKD, enabling 128 GB per module at DDR5-8000.” The CKD drives cleaner clock signals across the greater electrical load of four ranks, so the controller does not need to downclock when total capacity rises. That means 256 GB DDR5 memory from two modules can still run at 8000 MT/s instead of stepping down to safer, slower presets. The design stays unbuffered, keeping latency lower than registered or fully buffered approaches used in traditional server hardware.
Keeping Frequency and Stability with Fewer Slots
On conventional DDR5 platforms, filling all four DIMM slots has been a reliable way to lose frequency headroom and invite marginal stability, especially near the limits of the memory controller. Signal reflections and added loading on the traces force motherboard vendors to reduce official memory support when every slot is populated. 4R CUDIMM DDR5 changes that equation by concentrating capacity into two high-density modules and then using the integrated CKD to preserve signal quality at high clocks. Origin Code’s 256 GB kit runs at DDR5-8000 with CL64 timings at 1.1V, while its flagship profile tightens timings to CL42 at 1.4V. Because only two slots are occupied, routing remains cleaner, and desktop builders can reach extreme capacity without downgrading to low-speed JEDEC defaults. For power users, that means fewer compromises between capacity, frequency, and real-world responsiveness.
G.Skill’s DDR5-9200 CU-DIMM: Speed at Standard Voltage
Parallel to the capacity story, G.Skill is pushing pure speed with its DDR5 CU-DIMM modules. The company has revealed DDR5-9200 CU-DIMM memory operating at JEDEC-standard 1.1V, delivering 9200 MT/s with CL74-74-74-148 timings in 32 GB kits made of two 16 GB modules. Overclock3D notes that these modules were tested on MSI’s MEG Z890 GODLIKE motherboard with an Intel Core Ultra 7 270K PLUS CPU, signaling that current platforms already have the electrical headroom for such speeds. Running DDR5-9200 at 1.1V lowers power draw and thermals, giving manufacturers space to bin tighter, higher-voltage profiles later. This also suggests a roadmap where next-generation platforms add broader DDR5 CU-DIMM modules support and make DDR5-9200 speed, or something close, a realistic target for high-end builds that care about bandwidth as much as capacity.
Why 4R CU-DIMM Matters for Workstations and Creators
High-capacity RAM has often meant choosing heavy, workstation-class platforms or accepting slower memory speeds when all desktop slots are filled. 4R CUDIMM DDR5 offers a different path: 256 GB DDR5 memory in two slots, at DDR5-8000, on a mainstream desktop board. For content creators juggling huge timelines, 3D scenes, or AI datasets, this reduces paging and keeps latency low enough for interactive work. Origin Code’s quad-rank design also pairs neatly with G.Skill’s DDR5 CU-DIMM progress, where DDR5-9200 speed at 1.1V hints at future modules that are both dense and fast. As platforms broaden support for DDR5 CU-DIMM modules, builders will no longer have to pick between capacity and frequency. Instead, they can plan systems where memory is sized around workloads and tuned for performance without reopening the old debate about filling every DIMM slot.
