Why Hybrid Driver IEMs Are Mutating So Fast
In-ear monitors used to be simple: one or two dynamic or balanced armature drivers handled everything. Today’s hybrid driver IEMs look more like tiny loudspeaker stacks, cramming dynamic, planar, balanced armature, MEMS, and even bone conduction drivers into a single shell. The idea is not gimmickry; it is specialization. Each driver type has strengths in a particular frequency range or sonic characteristic, so hybrid designs aim to assign the right job to the right driver. The result is more nuanced bass, cleaner mids, and airier treble, along with novel tricks like expanded soundstage and enhanced tactile bass. Models like Noble Audio’s Lu Ban, SIMGOT’s SuperMix 5, and Kiwi Ears’ Halcyon show how far this has gone, each combining three to five technologies in their own way. For audiophiles, these complex hybrids promise reference-grade flexibility without needing multiple IEMs for different genres.
Dynamic, Planar, and Balanced Armature: The Core Trio

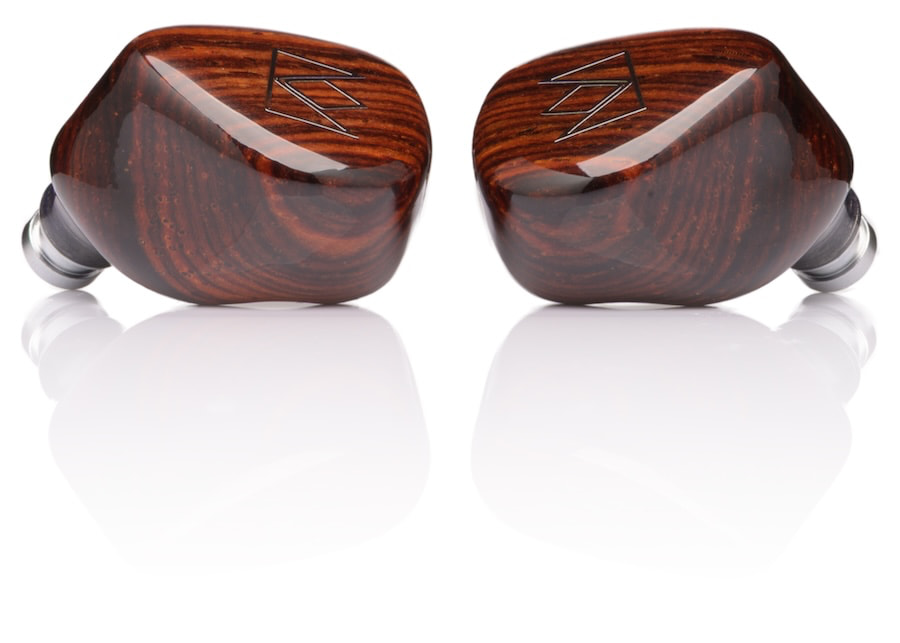

Most advanced hybrids still build around three pillars: dynamic, planar, and balanced armature drivers. Dynamic drivers use a traditional diaphragm and coil, prized for bass punch and natural decay. Noble’s Lu Ban centers its tuning on a 10mm wooden composite dynamic driver that acts as the sonic foundation, emphasizing weight, texture, and controlled low-end resonance. Planar driver earbuds add ultra-thin diaphragms with evenly distributed magnets, delivering speed, microdetail, and a more controlled transient response; Lu Ban supplements its dynamic driver with two super-magnetic planar units for this purpose. Balanced armatures, by contrast, excel in efficiency and midrange focus, providing a clean, articulate “balanced armature sound” for vocals and instruments. In SIMGOT’s SuperMix 5, dual balanced armatures handle the midrange, while an 8mm DLC dynamic driver covers low frequencies. This division of labor lets designers sculpt different parts of the spectrum with remarkable precision.
Planar Microdrivers, MEMS, and the Quest for Finer Treble
Above the midrange, designers often chase more resolution and smoother extension, which is where micro planar and MEMS drivers come in. SIMGOT’s SuperMix 5 uses a micro planar driver positioned close to the nozzle to manage treble. Its compact planar driver promises fast, controlled high-frequency response without the harshness sometimes associated with piezo tweeters, helping deliver detailed yet fatigue-free highs. Kiwi Ears’ Halcyon takes a different route by adding a MEMS driver dedicated to ultra-highs. MEMS microphone drivers use a microscopic moving mass, allowing extremely precise, lightweight motion. In practice, that can translate into higher perceived resolution and better extension in the upper treble, enhancing air, sparkle, and spatial cues. Halcyon pairs this MEMS unit with a 10mm composite-diaphragm dynamic driver for sub-bass and a trio of balanced armatures for mids and highs, using MEMS to add the final layer of shimmer and refinement at the very top end.
Bone Conduction Audio and 4–5 Way Crossovers
Bone conduction audio represents one of the more unusual additions to hybrid driver IEMs. Instead of pushing air through the ear canal, bone conduction drivers transfer vibrations through the shell into the listener’s skull, subtly reinforcing perceived bass and lower-mid energy. SIMGOT’s SuperMix 5 integrates a custom 10mm coil bone conduction driver operating from 200Hz to 7kHz, augmenting an 8mm DLC dynamic driver. Reviewers note this configuration produces a tactile, physical bass punch that feels distinct from ordinary hybrids, though the driver can sometimes “ping” with movement, reminding listeners that the tech is still evolving. All of this complexity requires sophisticated engineering: the SuperMix 5 uses a precision RC four-way crossover and 3D-printed acoustic ducts to keep drivers isolated and phase-aligned. As hybrids add more transducers—dynamic, planar, balanced armature, bone conduction—these multi-way crossovers are essential to avoiding chaos and achieving coherent, natural sound.
Are Complex Hybrids the Future of Reference IEMs?
At the premium end of personal audio, hybrid driver IEMs are increasingly marketed as reference-grade tools for discerning listeners who want specific, sometimes contrasting sonic traits in a single product. Noble’s Lu Ban leans into craftsmanship and a dynamic-plus-planar configuration to offer weighted, musical bass with planar-level detail. SIMGOT’s SuperMix 5 targets enthusiasts looking for experimental features like bone conduction audio and a micro planar treble driver at a more accessible price point of USD 219.99 (approx. RM1,040). Kiwi Ears’ Halcyon, at USD 259 (approx. RM1,230), showcases MEMS microphone drivers for ultra-highs alongside a traditional tribrid dynamic and balanced armature mix. Together, these designs show how stacking diverse driver types can unlock fresh combinations of slam, clarity, staging, and air. For audiophiles, the message is clear: the strangest-looking driver lists may now yield the most versatile listening experiences.
