What Gaming Controller Robotics Is and Why It Matters
Gaming controller robotics is the practice of repurposing consumer gamepads and their built-in haptic motors as wireless interfaces to control custom robots through microcontrollers and Bluetooth, blending familiar arcade-style input with low-cost DIY hardware. Instead of designing a control handset from scratch, makers tap into Steam Controller hacks, Xbox controllers, or PS4/PS5 pads as powerful, ergonomic remotes. The same haptic motors that once signaled in-game explosions can provide feedback about robot motion or status. According to TechEBlog, a simple web app can already drive a Steam Controller across a desk by pulsing its grip motors through a browser, showing how precise vibration patterns translate into movement. When you pair those ideas with an ESP32 gamepad robot and a dual H-bridge motor driver, you gain a full Bluetooth robot control link without exotic parts, helping the DIY robotics community cut time, cost, and complexity.
Hacking Haptics: Turning a Steam Controller into a Moving Test Bench
Before adding an ESP32 or motors, it helps to understand how controllers “move” and feel. Valve’s Steam Controller includes grip-mounted haptic motors that can do more than buzz your hands. In one experiment, a small web app connects through a Chromium browser and lets those motors pulse in patterns that drive the controller itself across a smooth table. Pressing W or the Up arrow causes both motors to beat in sync, sliding the body forward, while A or D slows one side to pivot left or right. A developer panel lets you change pulse length, frequency, and strength in real time, turning the controller into a live haptics lab. This kind of Steam Controller hack shows how vibration timing, not brute force, can push hardware around. It also hints at richer feedback for gaming controller robotics, where the same motors could signal speed, obstacles, or connection loss.
Building the ESP32 Gamepad Robot Core

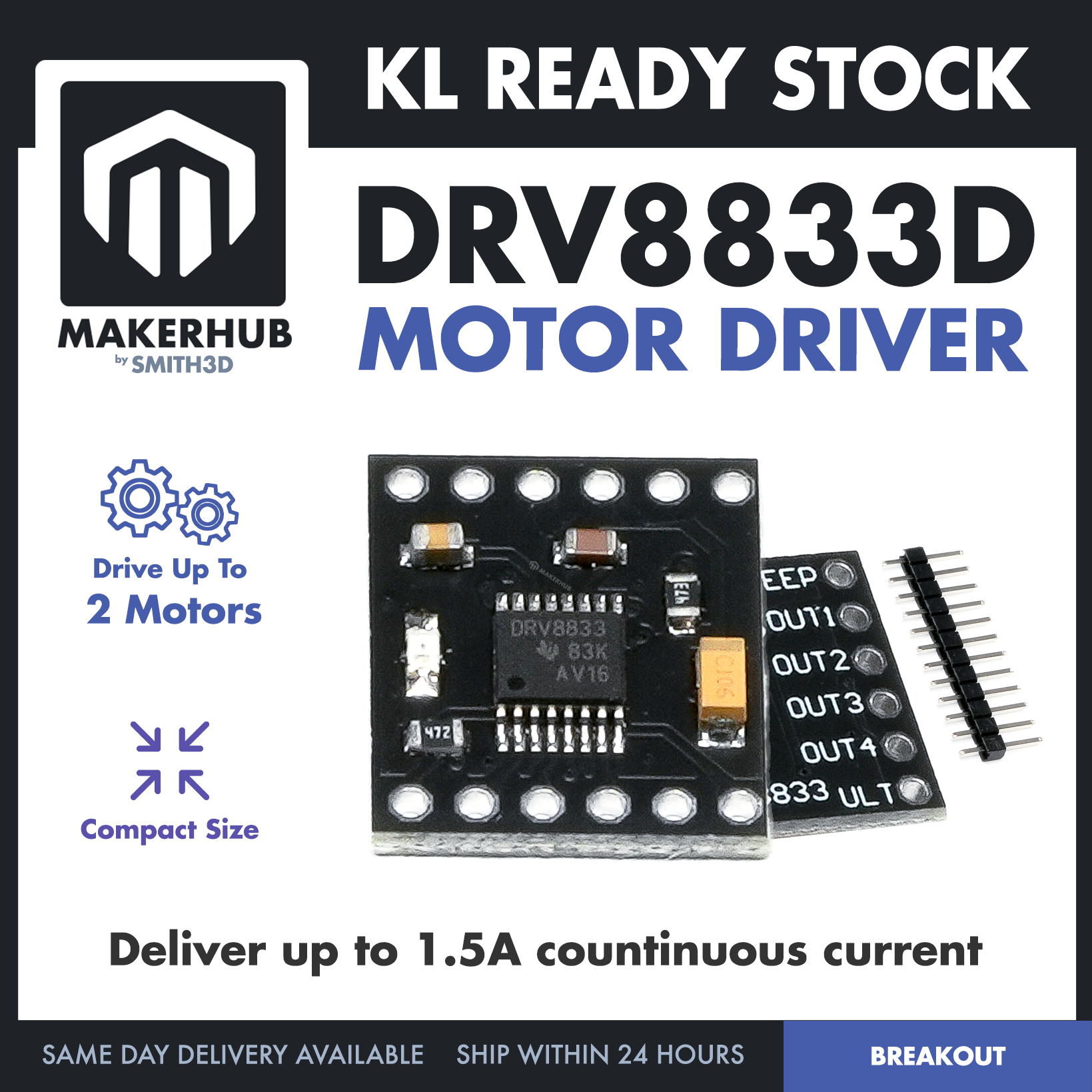

To turn concepts into a working DIY robot project, start with a proven control stack: an ESP32 microcontroller, a DRV8833 dual H-bridge motor driver, and a Bluetooth gamepad. In one rover-tank rebuild, the original Wi‑Fi control board was removed but its DC motors and tank treads were kept as donor hardware. Power from a 6xAA pack feeds the DRV8833 directly, while an MP1584 buck converter steps the same line down to 5 V for the ESP32. All grounds tie together so logic signals stay meaningful. Four ESP32 GPIO pins connect to the DRV8833 inputs, with PWM-ready pins driving each motor channel. Firmware built with PlatformIO and the Bluepad32 library takes care of BLE pairing with Xbox, PS4, or PS5 controllers. Once flashed, your ESP32 gamepad robot becomes a Bluetooth robot control hub: it listens to stick positions and turns them into per-motor speed commands for your chassis.
Arcade-Style Control Schemes That Feel Like Gaming
A big advantage of using gaming controllers for robotics is that arcade-style schemes transfer naturally from screen to workshop. In the revived rover tank, Bluepad32 reads the left stick’s Y axis as throttle and the right stick’s X axis as steering. These mix into track speeds with left = throttle + steer and right = throttle − steer, so pushing forward moves straight, pushing sideways spins in place, and diagonal motions blend both. The ESP32’s LEDC PWM hardware runs at about 20 kHz to avoid audible whine, while a small deadzone around center stops jitter when the sticks rest. A ramp limiter smooths acceleration, protecting gearboxes from sudden stalls. A disconnect failsafe cuts both motors if the gamepad drops its BLE link. Together, these details make gaming controller robotics feel intuitive, precise, and safe while reusing familiar hand controls instead of custom electronics.
Next Steps: From Cheap Prototypes to Smarter Robots
Repurposing controllers for gaming controller robotics is more than a clever hack; it is a practical way to build smarter machines faster. The DIY robotics community reuses Steam Controllers, Xbox pads, and other gamepads to avoid designing new control hardware or writing low-level wireless stacks from scratch. With an ESP32, DRV8833, and libraries like Bluepad32, you gain Bluetooth robot control, PWM motor outputs, and a path to add extras like LEDs, OLED status displays, or voltage monitoring. The Steam Controller RC experiment doubles as a test bench for haptic motion, while the rebuilt rover tank shows how to rescue older toys with modern brains. As you advance, you can add ESP32-CAM modules for video, different chassis, or more complex manipulators. The core idea stays the same: treat the controller as the robot’s remote brain, and let consumer hardware carry the heavy work.
