What a Desktop Headphone Amplifier DAC Really Does
A desktop headphone amplifier DAC is a self-contained unit that converts digital audio to analog, amplifies the signal with clean power, and provides appropriate impedance matching so demanding headphones can deliver their intended frequency response, dynamics, and stereo image in a stable, high-end headphone setup for critical listening. In other words, it is the heart of a serious desktop audio amplifier chain, not an accessory. The debate around tube vs solid-state amp designs is less about nostalgia and more about which sonic trade-offs you prefer baked into this heart. Solid-state units aim for low distortion and control, while tube amplifiers embrace harmonic coloration and depth. Your choice here dictates everything from how your Sennheiser HD800S or Beyerdynamic T1 responds to transients to how long you can listen without fatigue.
Solid-State Precision: SPL Phonitor X and Phonitor One D

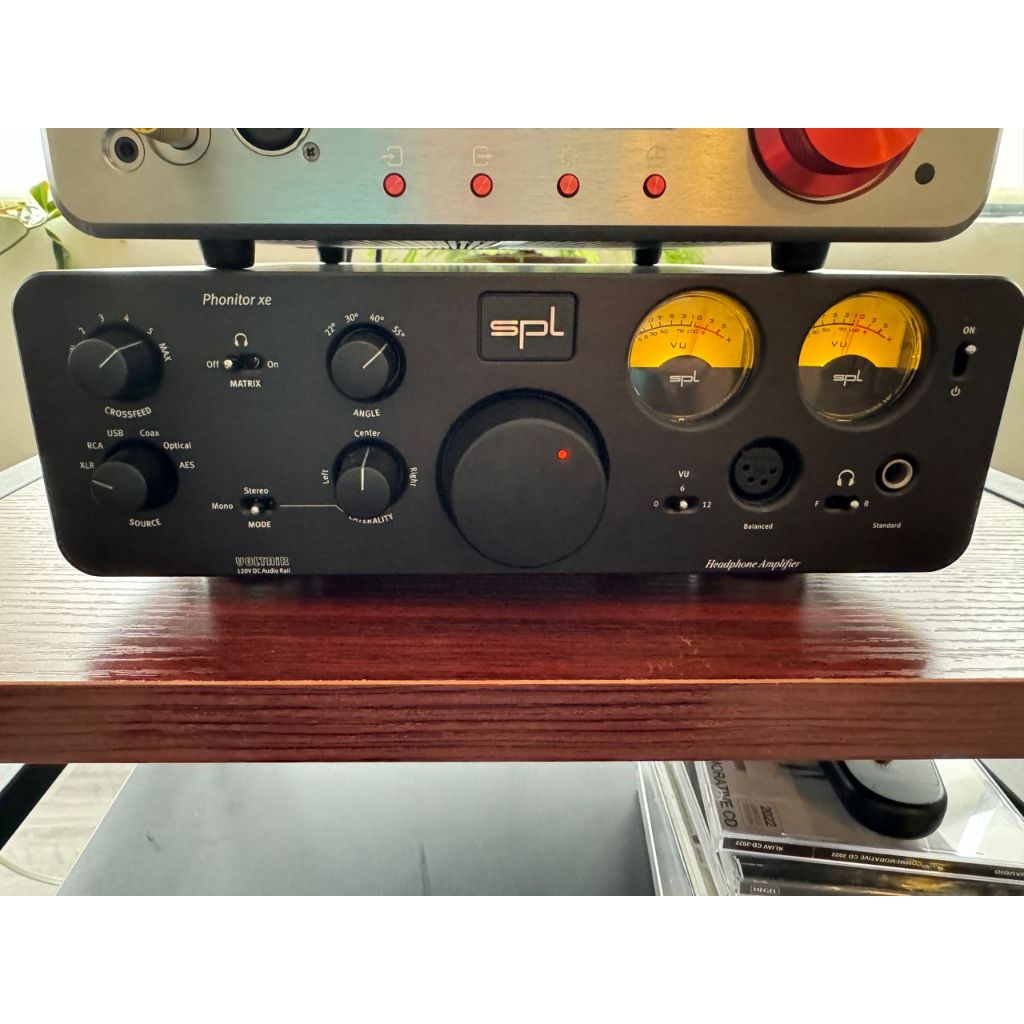

If you want accuracy above all, solid-state is the honest mirror you should live with. The SPL Phonitor X is built as a solid-state headphone amplifier and preamplifier with up to 3.7 W of output power, balanced and unbalanced headphone connections, and five selectable inputs, including USB, coaxial, and optical digital sources. Its Phonitor Matrix is designed so headphone playback mimics speaker listening, which is ideal if you mix or master on cans but want speaker-like translation. The sibling Phonitor One D doubles down on this philosophy: Burr-Brown OPA 2134 SoundPlus op-amps deliver extremely low noise and distortion, and a class AB push-pull output stage offers high output voltage and stable behavior with low-impedance headphones. Its AK4490 Velvet Sound DAC handles up to 768 kHz PCM and DSD256, turning the unit into a state-of-the-art headphone amplifier DAC and studio-grade converter in one box.
Tube Warmth: Auris Euterpe and the Case for Color
Tube amplifiers refuse to apologize for coloring the sound—and that is their whole point. The Auris Audio Euterpe is a single-ended tube desktop audio amplifier with an integrated asynchronous DAC based on xMos and ESS Sabre, so you can connect PCs or mobile devices directly. It uses NOS tubes (2 x PL95 and 1 x ECC81) and output transformers with Mundorf capacitors to create what the maker describes as a deep soundstage, strong tonality, and high dynamics. Instead of chasing vanishingly low distortion, it offers a switchable low and high impedance mode—around 40 ohms and 150 ohms respectively—to better align with different headphones. This tuning favors listeners who want harmonic richness and a more holographic presentation for a high-end headphone setup. Feliks Audio’s Elise MK II follows a similar philosophy: tubes as tone engines, not measurement trophies.
Power, Impedance Matching, and High-Impedance Headphones
When you plug in high-impedance headphones, power is not a luxury; it is survival. The SPL Phonitor X offers up to 3.7 W of output power, which makes it a natural fit for demanding models that thrive on voltage swing. On the tube side, the Auris Euterpe delivers about 0.9 W RMS and includes a two-step impedance switch—around 40 ohms for lower-impedance headphones and roughly 150 ohms for higher-impedance designs. That switch is a practical way to improve impedance matching headphones that differ wildly in load, especially when moving between sensitive planar magnetics and classic high-impedance dynamics. Solid-state hybrids like the Burson Audio Playmate 2 bring another angle: a 3 W per channel class A desktop audio amplifier section, with op-amp rolling to tweak voicing, lets you tune power and character together. In every case, poor matching will flatten dynamics long before any DAC chip does.
Integrated DACs and the Case for Fewer Boxes
Multiple boxes look impressive, but integrated headphone amplifier DAC units often sound cleaner because they avoid unnecessary interconnects and gain stages. The Auris Euterpe’s built-in xMos/ESS Sabre DAC means your digital source only needs a single cable to reach tube-powered analog warmth. The SPL Phonitor One D follows the same logic, with an AK4490-based converter handling USB audio from computers, tablets, or phones and passing the chosen input unchanged to line out when needed. Burson’s Playmate 2 adds a SABRE32 ESS9038Q2M DAC and Xmos USB input inside a compact chassis that doubles as a unified heat sink. In practice, these designs simplify the signal chain, maintain signal integrity, and can improve impedance matching because the analog stage is designed around the DAC’s output. For many high-end headphone setup builders, fewer boxes mean fewer variables—and that is a good trade when chasing repeatable, reference-grade listening.
