An Old Idea Under a New Hood
The Corolla Hybrid engine technology is a modern hybrid powertrain that combines electronic power management, electric motors, and energy recovery with a combustion sequence first demonstrated in 1876 by Nicolaus August Otto.Toyota’s latest Corolla Hybrid looks like a digital-age product, yet the heart of its powertrain beats to a 19th-century rhythm. The combustion side still follows Otto’s four-stroke architecture—intake, compression, power, exhaust—which made repeated, practical engine operation possible and now underpins more than a billion engines worldwide. Far from being a nostalgic quirk, this heritage is the point: Toyota is betting that thoroughly understood, time-tested hardware is the smartest foundation for a complex hybrid system. In a market obsessed with “all-new” technology, the Corolla Hybrid’s quiet advantage is that its clever software and motors sit on top of engineering that has already proved itself for a century and a half.
From Otto’s Four Strokes to Atkinson’s Efficiency Trick

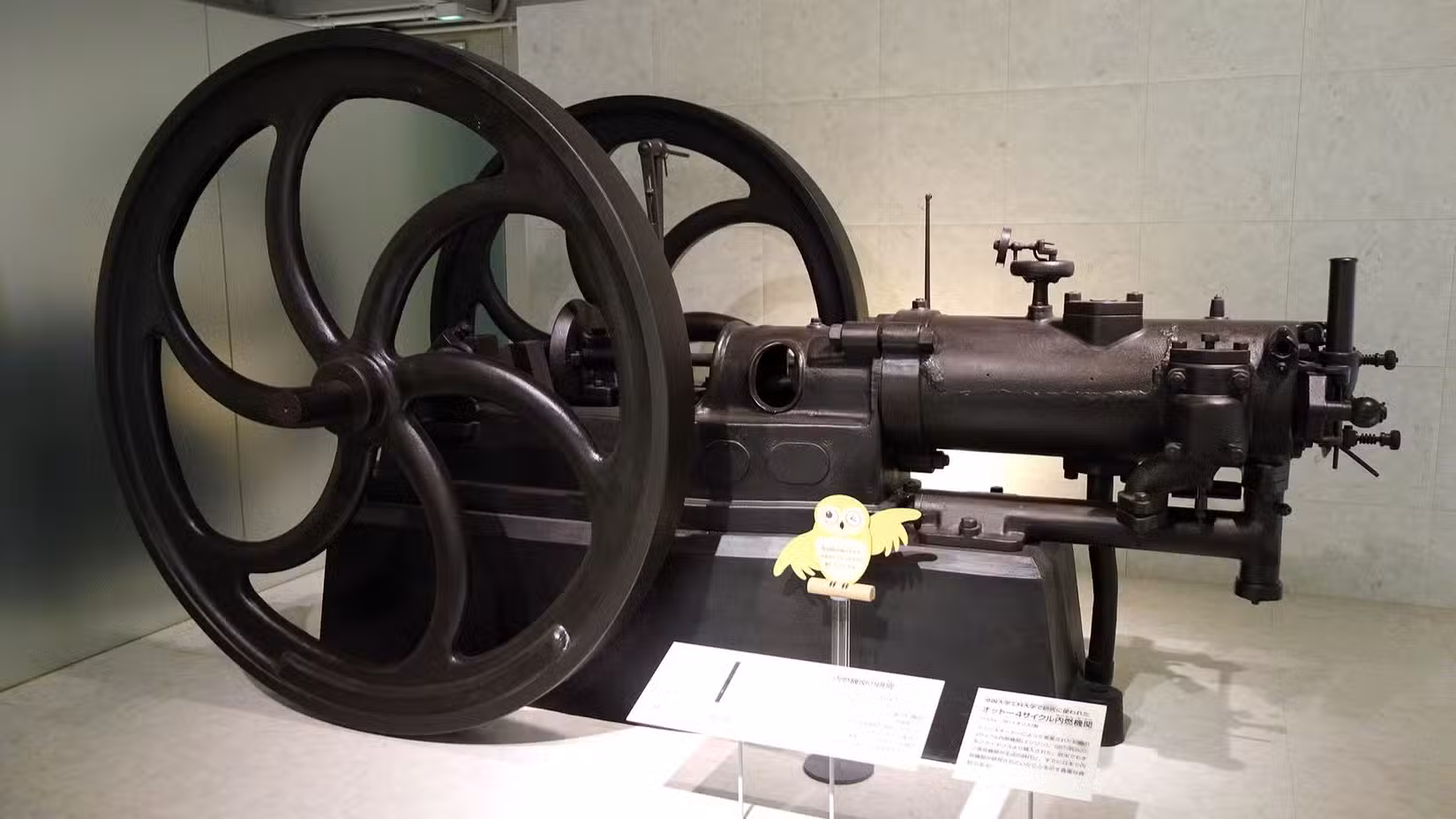

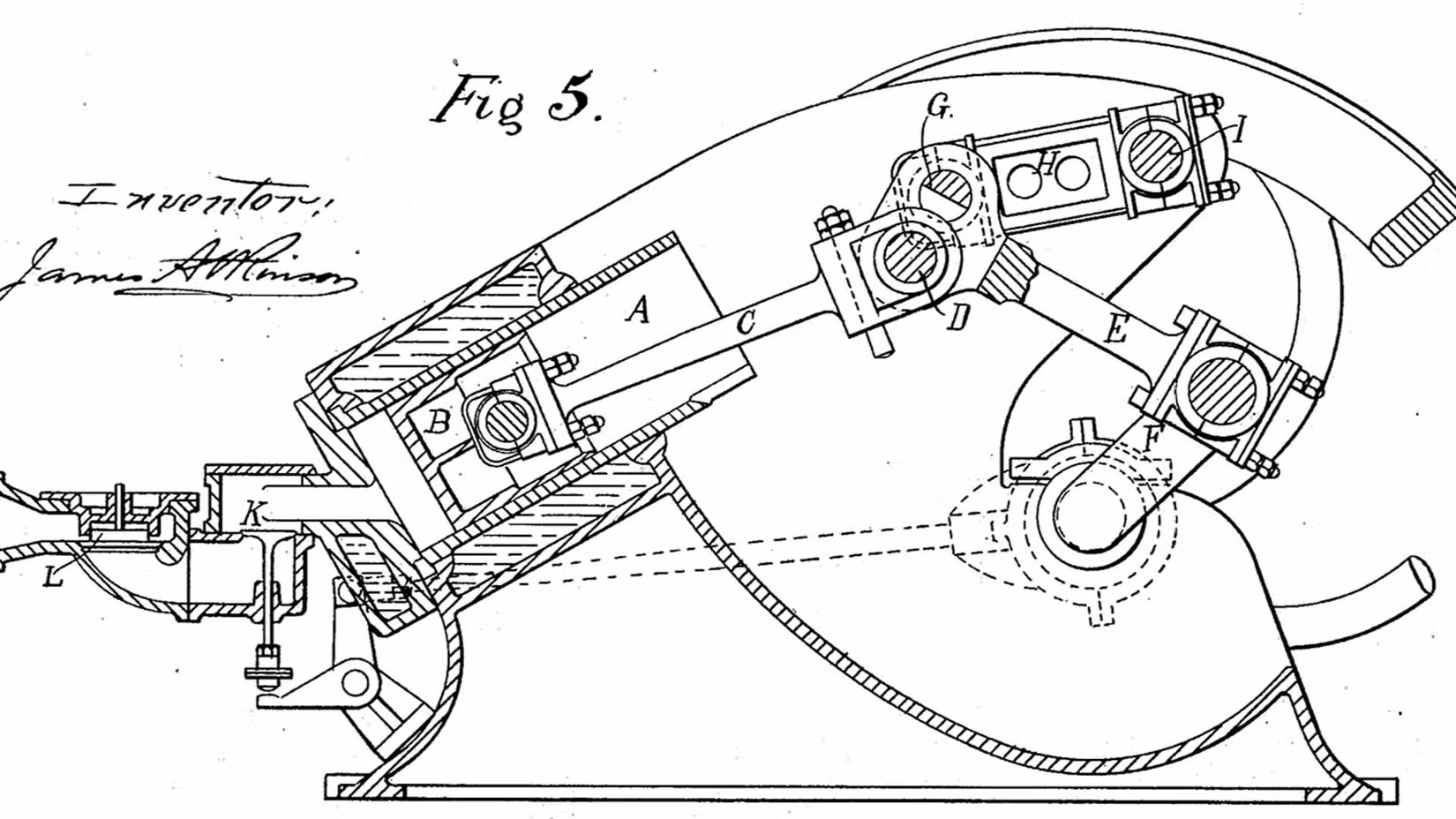

Otto’s original engine drew in a fuel–air charge, compressed it, ignited it, and used the expanding gases to push a piston down, then expelled exhaust before repeating the four-stroke cycle of intake, compression, power, and exhaust. That made engines practical, but not yet optimised for fuel efficiency. In 1882, James Atkinson pushed the idea further with his Differential engine, now called the Atkinson cycle engine design. His complex linkage let the piston complete all four movements in a single crankshaft revolution and, crucially, allowed a longer expansion stroke than compression stroke. Where the Otto engine used similar piston travel for compression and expansion, Atkinson’s design let hot combustion gases continue to expand before the exhaust valve opened, extracting more work instead of throwing energy out of the tailpipe. In plain terms, Atkinson traded some punch for less wasted fuel—a decision that makes far more sense in a hybrid than it did in early standalone engines.
How Toyota Bends the Atkinson Rule Without Exotic Hardware
Modern Toyota hybrids operate “in an Atkinson-like manner” without copying Atkinson’s awkward linkage. The pistons still run through conventional four strokes, but Toyota plays a clever timing game with the valves. By holding the intake valve open during part of the compression stroke, some of the fresh charge flows back into the intake tract, reducing the effective compression while keeping the full physical expansion stroke. That is how Toyota achieves a high expansion ratio—more time for the gases to push on the piston—without weird moving parts. This is where the Corolla Hybrid engine technology earns its reputation: mechanically familiar, but thermodynamically smart. Toyota began using this approach in production hybrids in 1997, and the basic philosophy has remained: avoid fragile gimmicks, use control over timing instead, and let electronics and software do the “complicated” work while the metal parts stay relatively simple.
Electric Motors Fix Atkinson’s Everyday Weakness
Atkinson-style engines shine in a narrow band where speed and load stay steady, but they are less efficient at low RPM or in stop‑and‑go driving and produce weaker torque. On their own, they would feel flat and fussy in city traffic. That is where the electric side of the hybrid steps in. Electric motors deliver high torque from zero RPM and instant response during acceleration, exactly the conditions where the Atkinson engine is least comfortable. In Toyota’s power‑split hybrid layout, the engine and motor‑generators share the workload; the system can even shut the engine off when it is not needed and recapture energy under braking. The result is not theoretical efficiency, but real‑world usability: you get the fuel-sipping nature of an efficiency-focused cycle without suffering through a sluggish commute.
Why the Corolla Hybrid’s Heritage Design Still Feels Modern

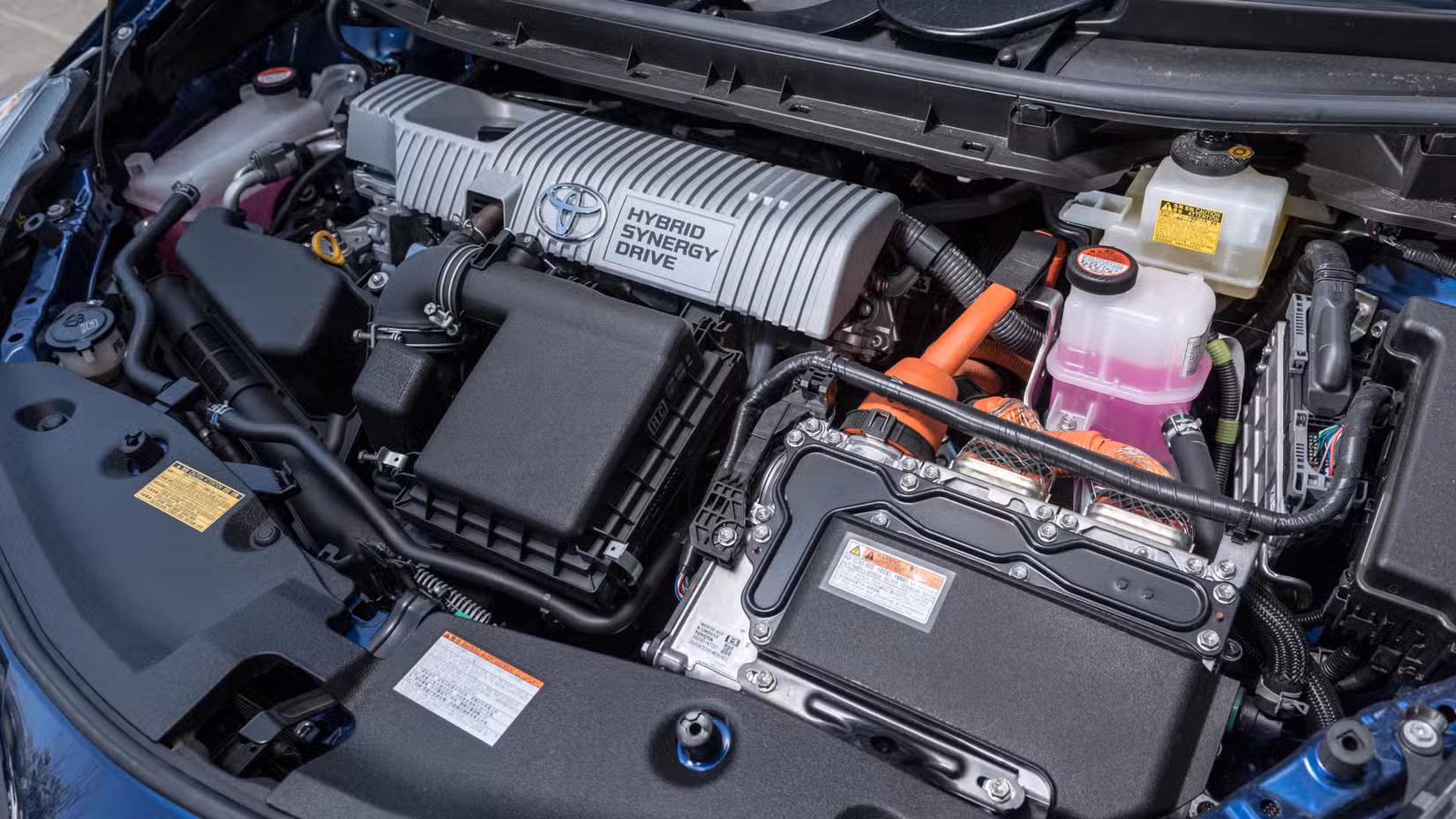

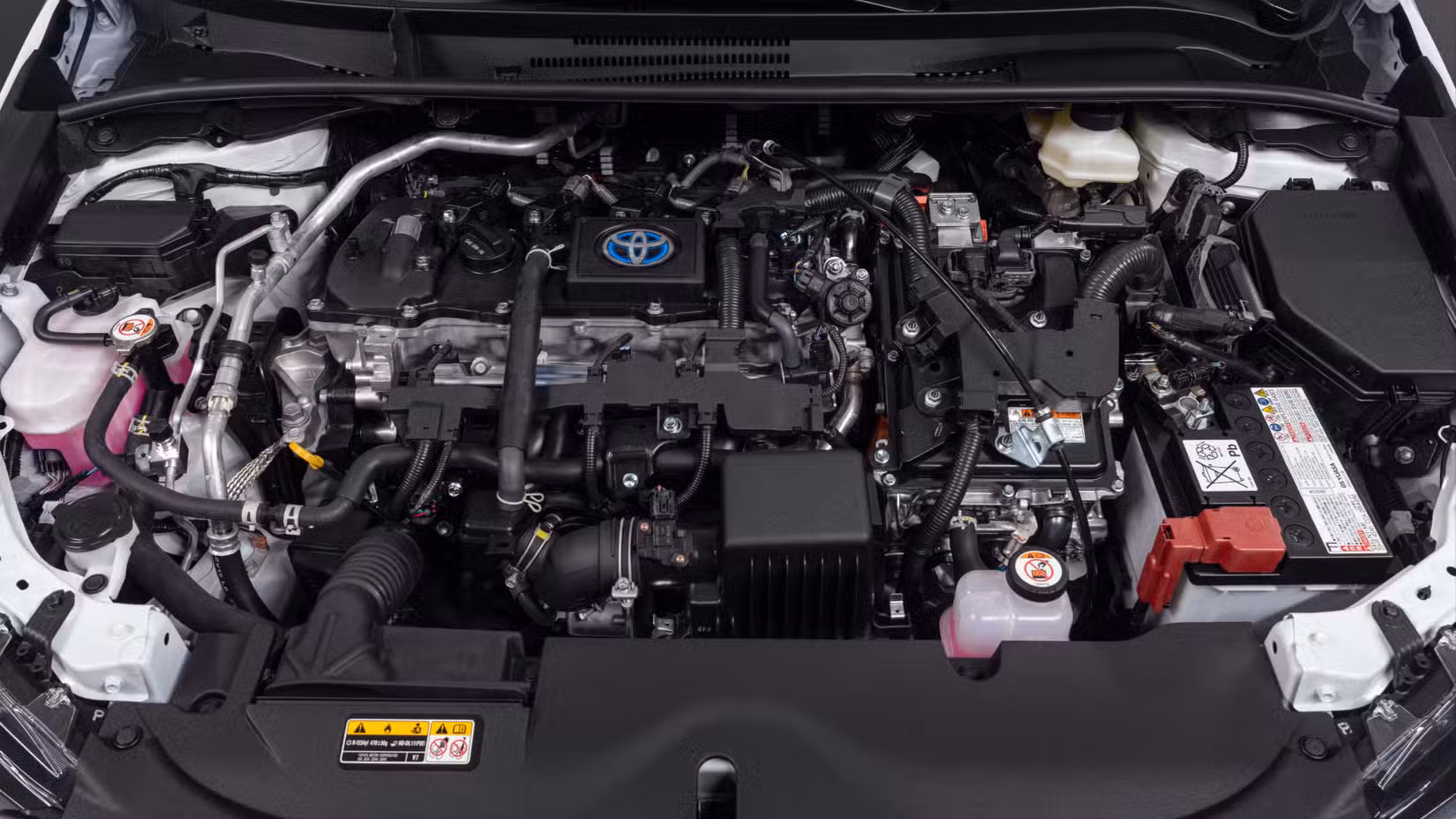

Toyota’s first Corolla Hybrid for the US used a 1.8‑liter 2ZR‑FXE Atkinson‑cycle engine, two motor‑generators, and a planetary electronically controlled CVT, blending familiar engine hardware with sophisticated electronics. Later, the fourth‑generation Prius refined this engine family with better combustion, cooled exhaust gas recirculation, and fewer mechanical losses. The latest fifth‑generation hybrid system, introduced in the Corolla, adds a more compact, higher‑output drive motor with a redesigned magnet and electromagnetic steel, plus a compact lithium‑ion battery beneath the rear seat. Through these steps, Toyota extracts 138 hp from the Corolla’s 1.8‑liter combustion engine while shrinking and simplifying key components. The point is clear: the combustion core stays rooted in Otto’s and Atkinson’s logic, while everything around it gets sharper. If you care about everyday usability more than headline‑grabbing novelty, that mix of old architecture and new refinement is exactly what you want in a hybrid.
