What HDMI Port Configuration Means for Your Home Theater
HDMI port configuration on an AV receiver is the way its different HDMI inputs and outputs are assigned and used so that every source, display, and speaker in your home theater can deliver the best possible picture quality and surround sound without delay, dropouts, or format limits. An AV receiver acts as the hub for all your audio video inputs, routing video to your TV and audio to your speakers. Modern receivers often mix HDMI 2.0 and HDMI 2.1 ports, plus analog and digital audio connections, which is why plugging devices into random sockets can lead to missing surround channels, no Dolby Atmos, or audio that lags behind the image. Once you understand which HDMI port does what, you can fix these problems and avoid them in future upgrades.
Know Your HDMI Inputs and Outputs: 4K, 8K, ARC, and eARC
On most AV receivers, HDMI ports are not identical. Inputs take signals from players and streamers; outputs send video to your TV. Some inputs support 4K, while others are marked 8K, hinting at newer HDMI 2.1 capabilities like higher bandwidth and better gaming features. According to MakeUseOf, “the three 8K ports on my receiver are HDMI 2.1 and the three 4K ports are HDMI 2.0.” For gaming consoles or high‑end streaming boxes, plug into the labeled 8K or HDMI 2.1 inputs. Then, connect the receiver’s HDMI OUT (ARC or eARC) to the matching HDMI ARC/eARC port on your TV. ARC lets the TV send audio back to the receiver over that same cable; eARC adds support for higher‑quality formats like Dolby Atmos. If ARC or eARC is not used, TV apps will be stuck with thin built‑in sound.
Getting Surround Sound and Dolby Atmos from the Right Ports
To unlock surround sound and Dolby Atmos, you need two things: HDMI ports that support those formats and speakers wired correctly to the receiver. First, connect Atmos‑capable sources (Blu‑ray player, streaming box, or console) to the receiver’s highest‑spec HDMI inputs, often labeled 4K/8K or HDMI 2.1. Next, set your TV and receiver to use ARC or eARC so audio from TV apps returns in full quality instead of compressed stereo. Then, use the receiver’s binding posts or spring clips to connect passive speakers, making sure each channel (fronts, center, surrounds, height) is on the correct terminals. A powered subwoofer usually connects via a single RCA “Sub” or “LFE” output. Soundbars may simulate surround, but for true multi‑speaker immersion you rely on the AV receiver’s HDMI and speaker outputs working together, not on a single front‑firing bar.
When to Use RCA, Optical, and Network Ports Instead of HDMI

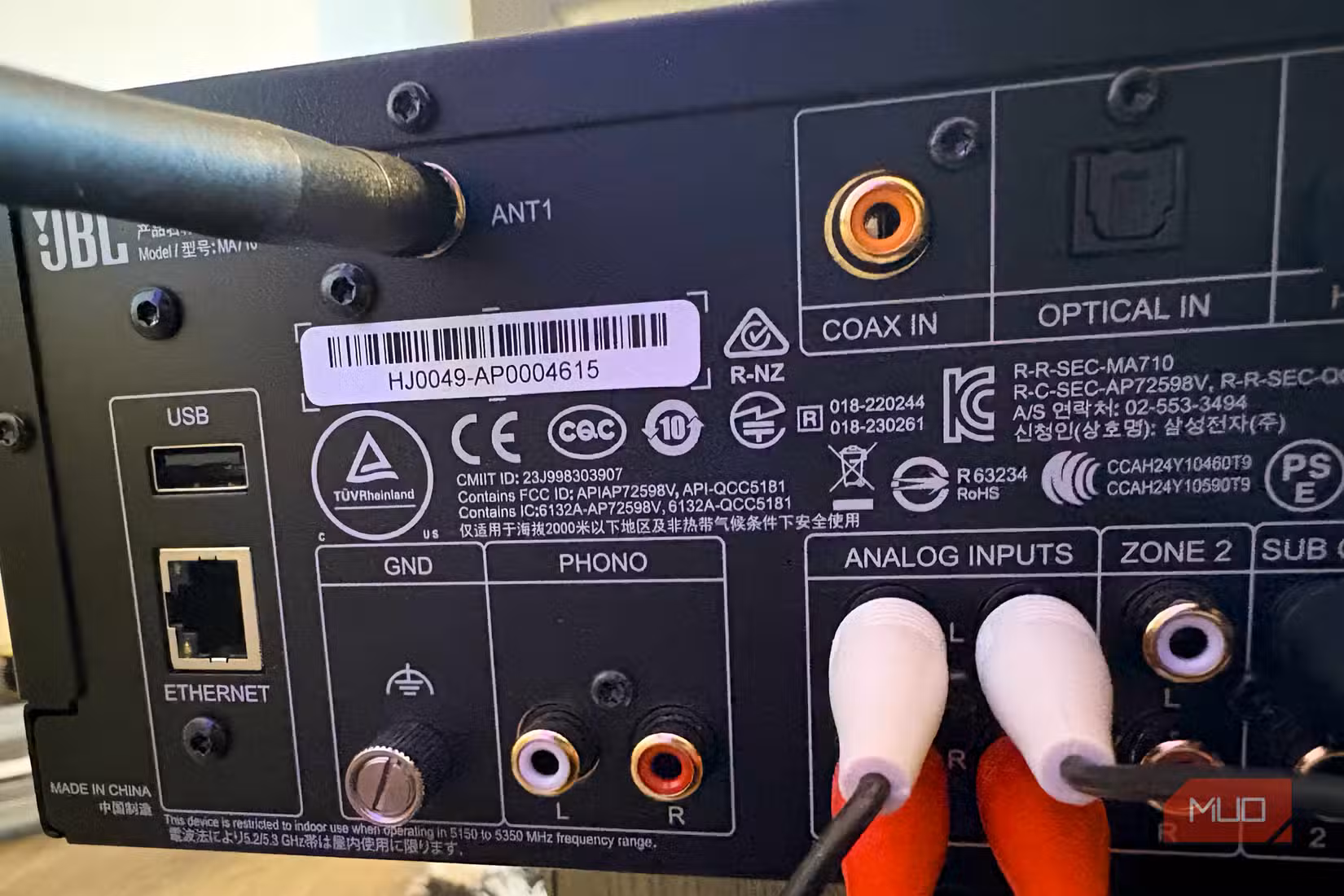

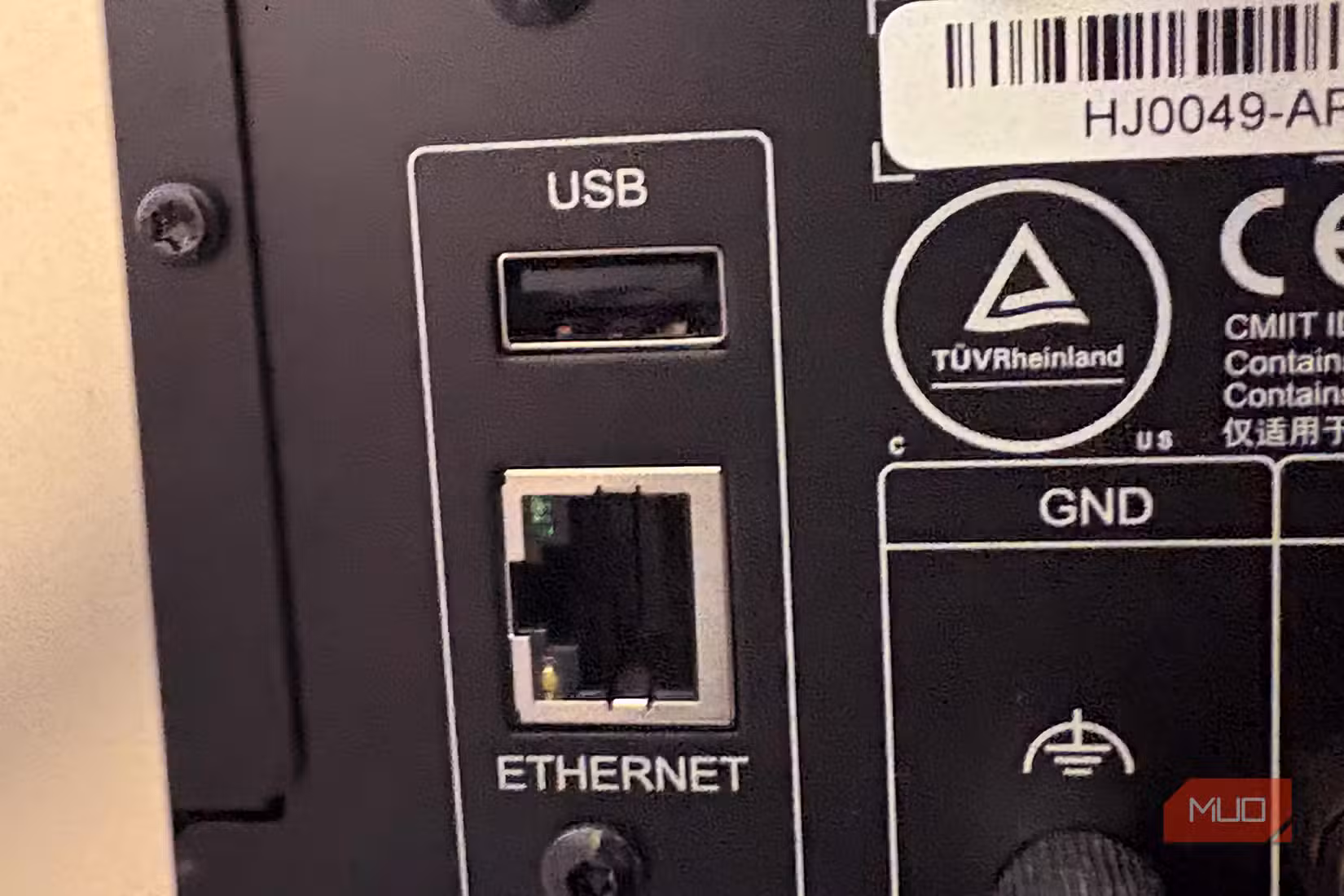

HDMI is the main link for modern home theater connections, but older and specialized gear often needs other audio video inputs. Stereo RCA inputs are ideal for analog sources like tape decks or CD players, while “Phono” RCA inputs handle turntables that do not have a built‑in preamp. A single RCA jack labeled “Sub” or “LFE” feeds powered subwoofers in both receiver‑based systems and some soundbar setups. Optical digital ports, such as the Toslink connection often shown on receivers, send digital audio without electromagnetic interference; they work well for TV audio when ARC is unreliable, though they cannot pass advanced formats like uncompressed Atmos. Ethernet ports on receivers enable stable streaming and app control, avoiding wireless dropouts. Each non‑HDMI port solves a specific problem, from legacy consoles to whole‑home audio zones, so match the connector to the device’s strengths.
Avoid These Common Port Mistakes in AV Receiver Setup
Many performance problems come from small HDMI port mistakes. Plugging a game console or 4K streamer into a 1080p‑only HDMI input can cap resolution and disable high‑refresh‑rate modes. Connecting the TV to the wrong HDMI OUT—one without ARC or eARC—forces you to use the TV’s weak speakers or run extra cables. Using optical instead of ARC/eARC may prevent Dolby Atmos and limit you to basic surround formats. On the speaker side, sending your subwoofer to an ordinary RCA output instead of the dedicated sub/LFE jack can leave bass weak or missing. Even soundbar owners can run into issues if they connect sources to the TV instead of the bar’s HDMI input or eARC port, which can block advanced audio formats and better bass integration. Label each cable by device and port type so future upgrades stay painless.
