RAM Speed vs. Price: The Upgrade That Beats Your Next GPU

JEDEC vs EXPO RAM: The Hidden Performance Divide

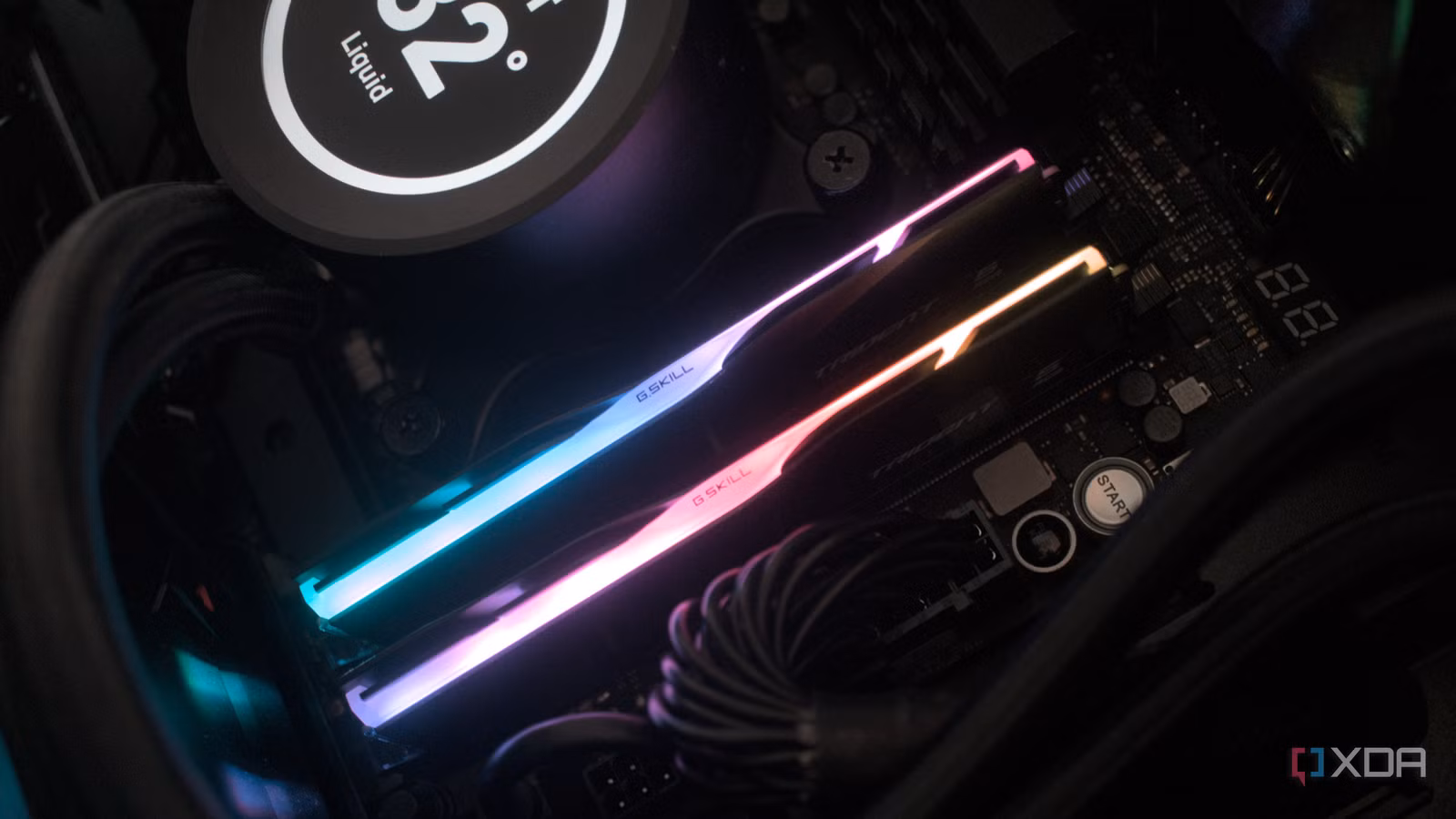

JEDEC vs EXPO RAM compares the conservative default memory settings defined by a standards body with the faster, vendor-validated performance profiles stored on your RAM modules and unlocked through the motherboard BIOS, and this difference can rival a hardware upgrade in real-world use.

If you build on a budget, your biggest upgrade might not be a new GPU but turning on the memory speed you already bought. Out of the box, every DDR5 kit boots at JEDEC baseline speeds, so a DDR5‑6000 kit falls back to DDR5‑4800 with looser timings until you change the setting. The faster EXPO (on AMD) or XMP (on Intel) profile sits dormant, waiting for you to enable it in the BIOS. In testing the same Ryzen system, GPU, and DDR5 kit at JEDEC DDR5‑4800 versus EXPO DDR5‑6000, the frame rate gap was large enough to feel like a component swap, even though the only change was a free BIOS toggle.

One quotable takeaway is: "Capcom's Pragmata jumped from 121 FPS to 145 FPS, a delectable 19.8% gain that's substantive enough to rival a chip upgrade." Titles that rely heavily on CPU and memory access, such as Microsoft Flight Simulator 2024, showed an even bigger jump, from 45 FPS to 64 FPS on the test bench, a massive 42% uplift that changes the feel of the game from choppy to smooth. For budget RAM performance, ignoring EXPO is like paying for a sports car and driving it with a limiter permanently on. The performance you paid for exists, but it has to be explicitly toggled.

How Much Speed Are You Leaving on the Table?

EXPO RAM profiles are not about synthetic bragging rights; they change how fast your games and apps respond compared with JEDEC defaults. In 1440p testing with the same GPU and CPU, switching from JEDEC DDR5‑4800 to EXPO DDR5‑6000 produced gains across every tested title, with changes tuned to how memory‑sensitive each game is.

These numbers matter because they frame RAM speed as part of value, not marketing. A modest 7.8% uplift in Forza Horizon 6 still improves consistency, but the near‑20% gain in Pragmata and the 42% uplift in Microsoft Flight Simulator 2024 are in the territory many people chase with expensive CPU or GPU swaps. When RAM is overpriced, it is poor value, but when you already own the kit, leaving it at JEDEC means you are underusing it. It costs nothing to check, and practically takes less time than reading this sentence. For budget builds, that makes EXPO tuning a higher priority than another mid‑range GPU tier.

Storage Upgrade Value: NVMe Adapter PCIe vs. New Hardware

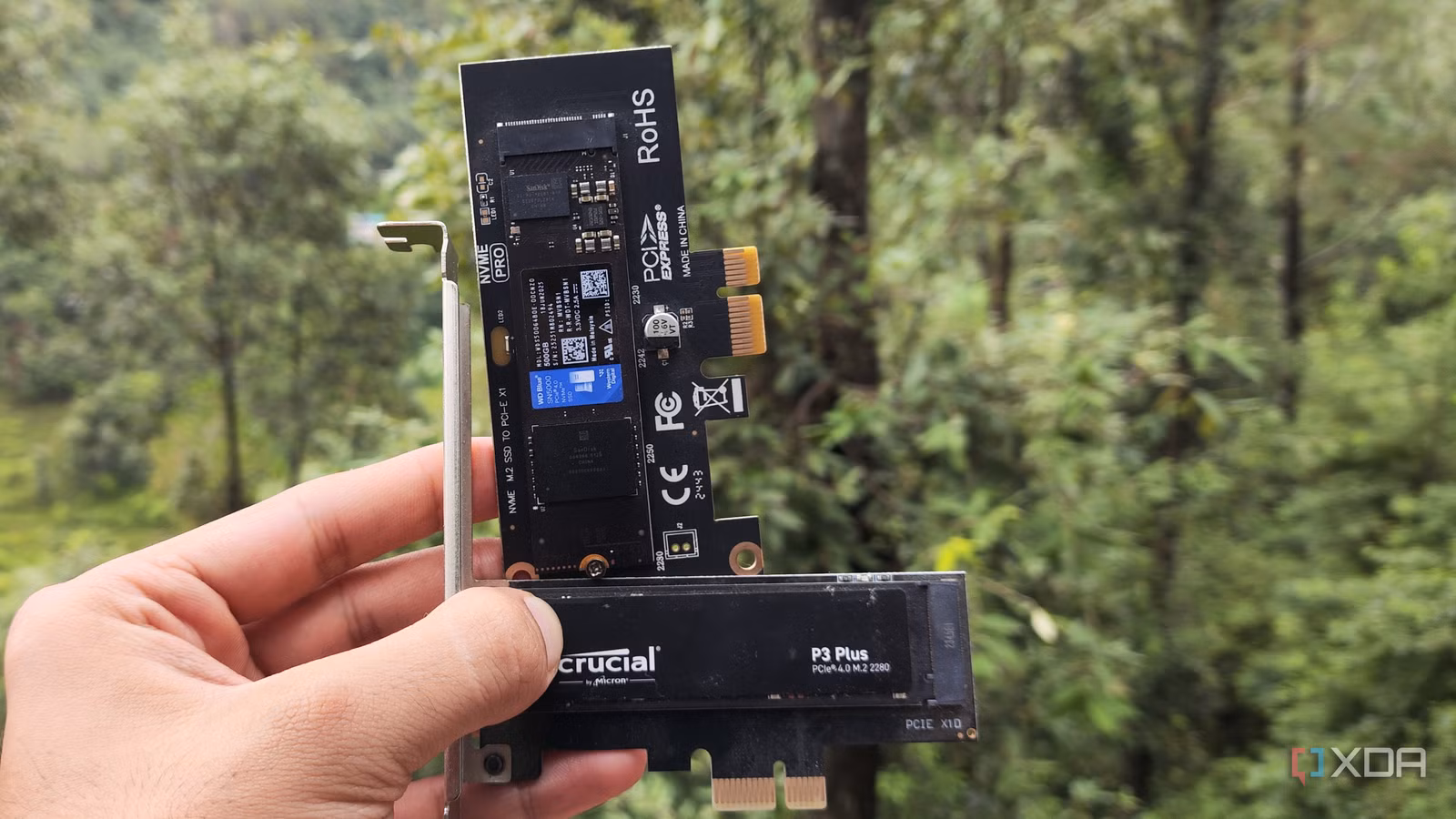

While memory profiles improve frame rates, NVMe adapter PCIe upgrades improve how your PC feels day to day. Many budget and older server‑style motherboards ship with few M.2 slots, sometimes only one or two, which is limiting if you game, edit video, or host virtual machines. Instead of buying a high‑end board, filling spare PCIe slots with PCIe‑to‑NVMe adapters adds high‑speed SSDs without major expense. In one workstation example, a cheap USD 15 (approx. RM70) adapter board and a spare PCIe slot were all that was needed to attach high‑speed NVMe drives for AI models.

These adapters were described as "the most convenience-enhancing PC upgrade" the tester had invested in. Once SATA bays were maxed out, bringing extra NVMe SSDs into the fray via PCIe adapters made room for dozens of virtual guests on a dual‑Xeon system without overprovisioning storage resources. Even PCIe Gen 3 SSDs are a massive speed upgrade compared to bulky older HDDs, so relocating games, AI models, or scratch files to NVMe cuts load times and keeps your main drive from slowing down when nearly full. For budget builders, this is storage upgrade value: more responsive systems and better workload separation, achieved through PCIe slot utilization rather than a costly platform change.

What Budget Enthusiasts Should Prioritize Before the Next GPU

If you are counting every dollar, the upgrade path should follow a different order than the marketing hype suggests. Before looking at a faster GPU, start by checking whether your RAM is stuck at JEDEC defaults and whether your storage bottlenecks come from cramped drives rather than raw graphics power. In many rigs, the memory profile is arguably the most important toggle in the BIOS, because switching from JEDEC to EXPO delivers free performance that can rival a hardware upgrade. Forgetting to enable it is common, especially after a CMOS reset returns the system to baseline profiles.

Next, examine PCIe slot utilization. Many boards have spare x4 or x16 slots sitting empty, even as users complain about limited M.2 capacity. Filling those with PCIe‑to‑NVMe adapters has been one of the strongest quality‑of‑life upgrades reported, adding fast storage for games, AI models, and virtual machines without paying for a premium motherboard. In effect, budget enthusiasts should prioritize RAM efficiency testing and storage expansion before chasing another GPU tier: enable EXPO or XMP, measure real‑world frame rates, then upgrade storage via PCIe if you are running out of fast space. Only once those gains are tapped does a graphics card upgrade give you full value.

Buy if / Skip if

• Buy the EXPO RAM approach if you already own DDR5 sticks running at JEDEC defaults and want a free performance uplift that can rival a hardware upgrade.
• Skip the EXPO RAM approach if you are unwilling to enter the BIOS at all, even though enabling a profile costs nothing and takes seconds.
• Buy the JEDEC baseline approach if maximum compatibility is your only concern and you run workloads that care more about stability than speed.
• Skip the JEDEC baseline approach if you paid for high-speed DDR5 and care about budget RAM performance in memory-sensitive games.
• Buy the NVMe adapter PCIe route if your motherboard has spare PCIe slots but limited M.2 connectors and you want high-speed storage without replacing the board.
• Skip the NVMe adapter PCIe route if every PCIe slot is already filled or airflow is so tight that additional adapter cards would cause layout problems.
• Buy the storage upgrade value path if you run many virtual machines, large AI models, or big game libraries and need more NVMe capacity than your SATA bays can offer.
• Skip the storage upgrade value path if your workloads fit comfortably on existing drives and your main bottleneck is confirmed to be GPU performance rather than RAM or storage.
