The RTX 5090 Power Connector Problem in One Sentence
The RTX 5090 power connector problem refers to recurring cases of 12V-2×6 and 12VHPWR power cables overheating, melting, and damaging graphics cards, power supplies, and related components even when high‑quality parts and proper installation practices are used, raising concerns that the connector design and broader power delivery ecosystem are not fit for handling the RTX 5090’s extreme power demands.
Recent testing failures have made one thing clear: RTX 5090 power connector issues are not slowing down, they are accelerating. Independent testers have turned brand‑new RTX 5090 units into “hot, smouldering” corpses after their 16‑pin cables and sockets melted mid‑load. Another reviewer saw the same kind of GPU connector failure on a separate RTX 5090 during controlled testing, with badly charred and deformed pins on both the card and the cable. These are not fringe builds with sketchy adapters; they used native 12V‑2×6 cables and a 1,000W high‑end PSU, firmly seated and routed as recommended. When supposedly compliant hardware incinerates itself under normal use, blaming users is no longer credible.
From 12VHPWR Nightmares to 12V-2×6 Déjà Vu
To understand why RTX 5090 owners are watching expensive cards die, you have to rewind to the RTX 4090 era. Soon after that card launched in 2022, the first reports of 12VHPWR cable melting started piling up. A specialist repair shop later said it worked on melted RTX 4090 connectors “every day,” highlighting how widespread the issue had become. The industry answer was the 12V‑2×6 connector, with shorter sensing pins and longer conductors to improve contact and detect loose seating. In theory, this should have ended 12VHPWR cable melting once and for all.
In practice, the RTX 5090 shows the fix is incomplete. The 12V‑2×6 standard was explicitly introduced to replace the older 12VHPWR design and solve GPU connector failure problems. Yet RTX 5090 power connector incidents still involve melted sockets on both the GPU and the PSU, plus fully destroyed cables. Meanwhile, GPU vendors, PSU makers, and accessory brands keep releasing “solutions” – smart PSUs with shutdown logic, silicon‑sheathed cables, load‑balancing adapters, temperature‑sensing leads – many of which themselves have been reported melting or burning out. An ecosystem that needs a dozen band‑aids is telling you the wound is deeper than user error.
What Is Actually Melting: Uneven Loads, Spikes, and Systemic Damage

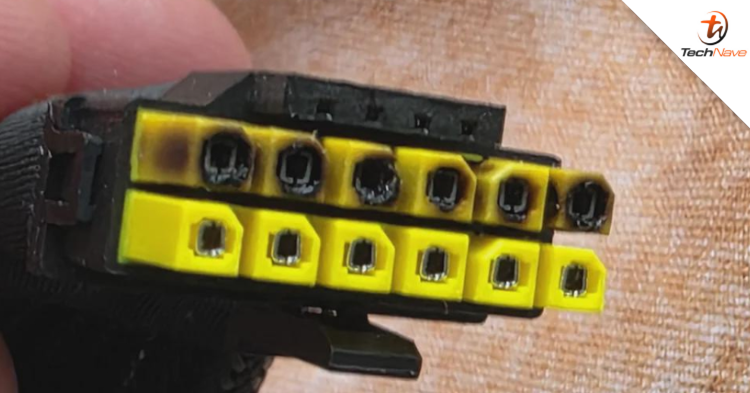

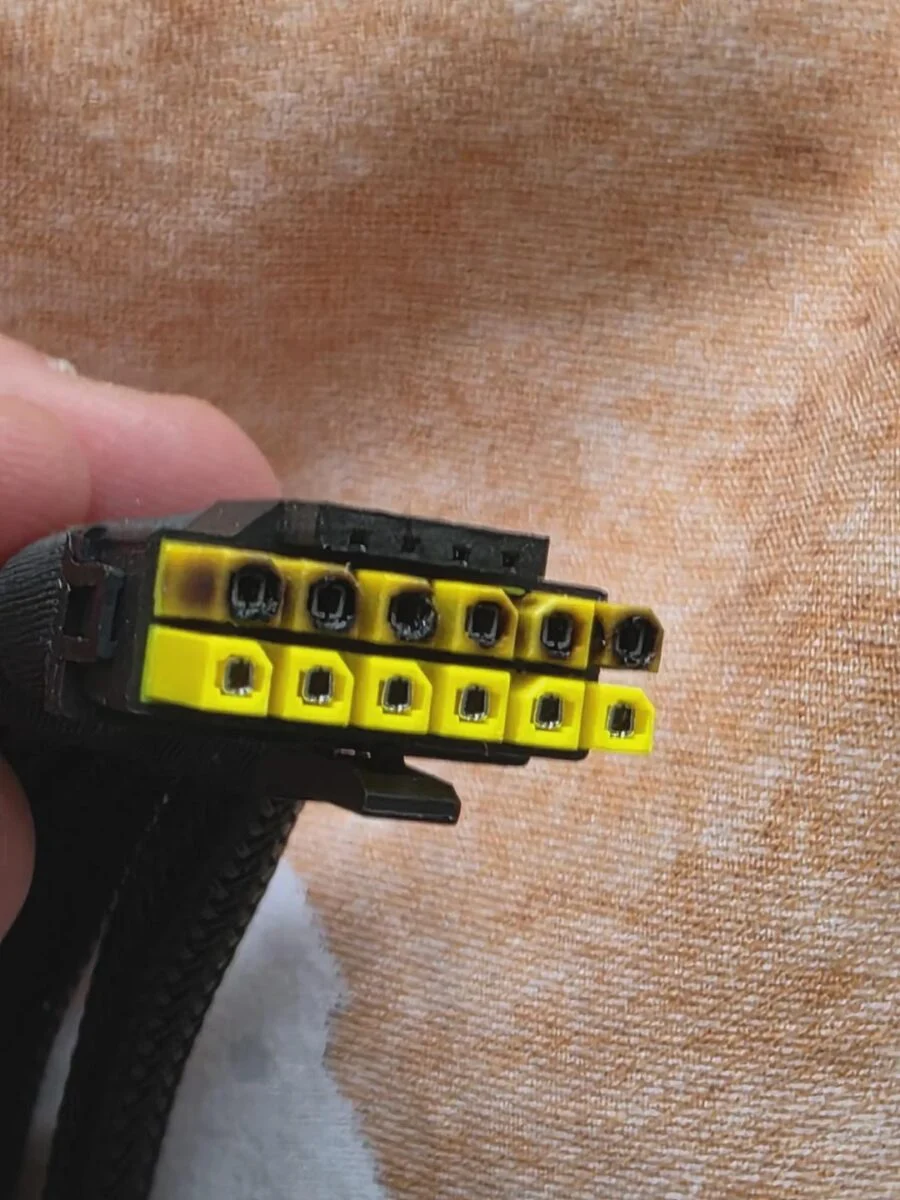

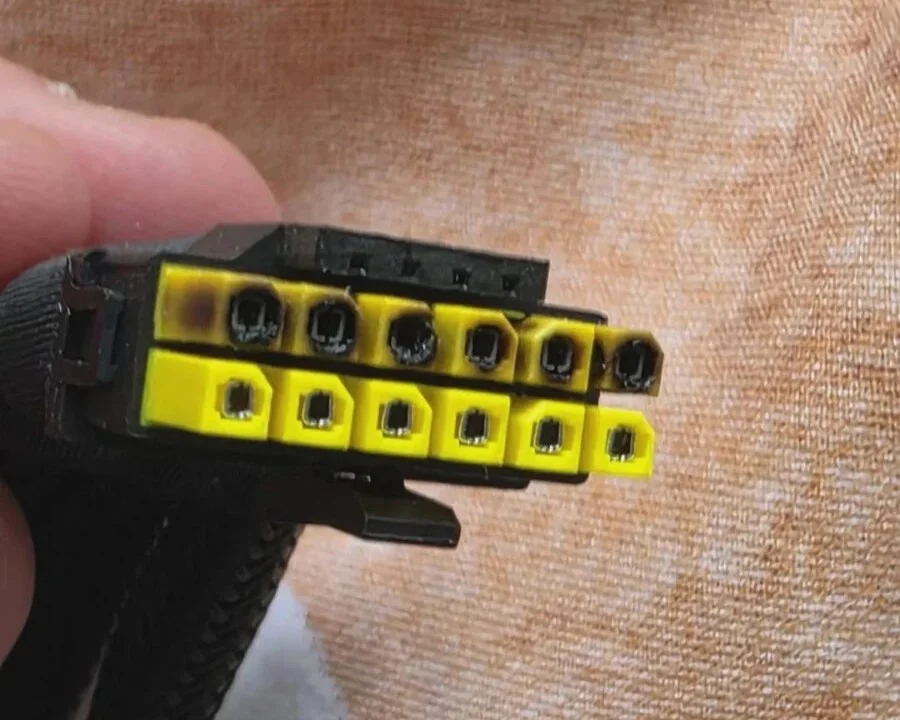

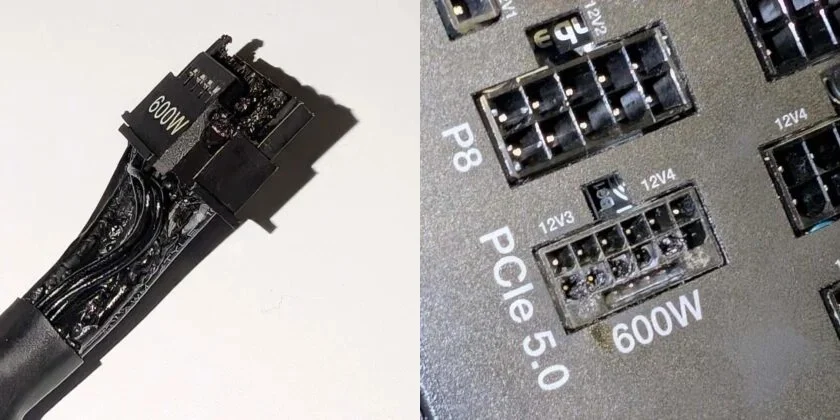

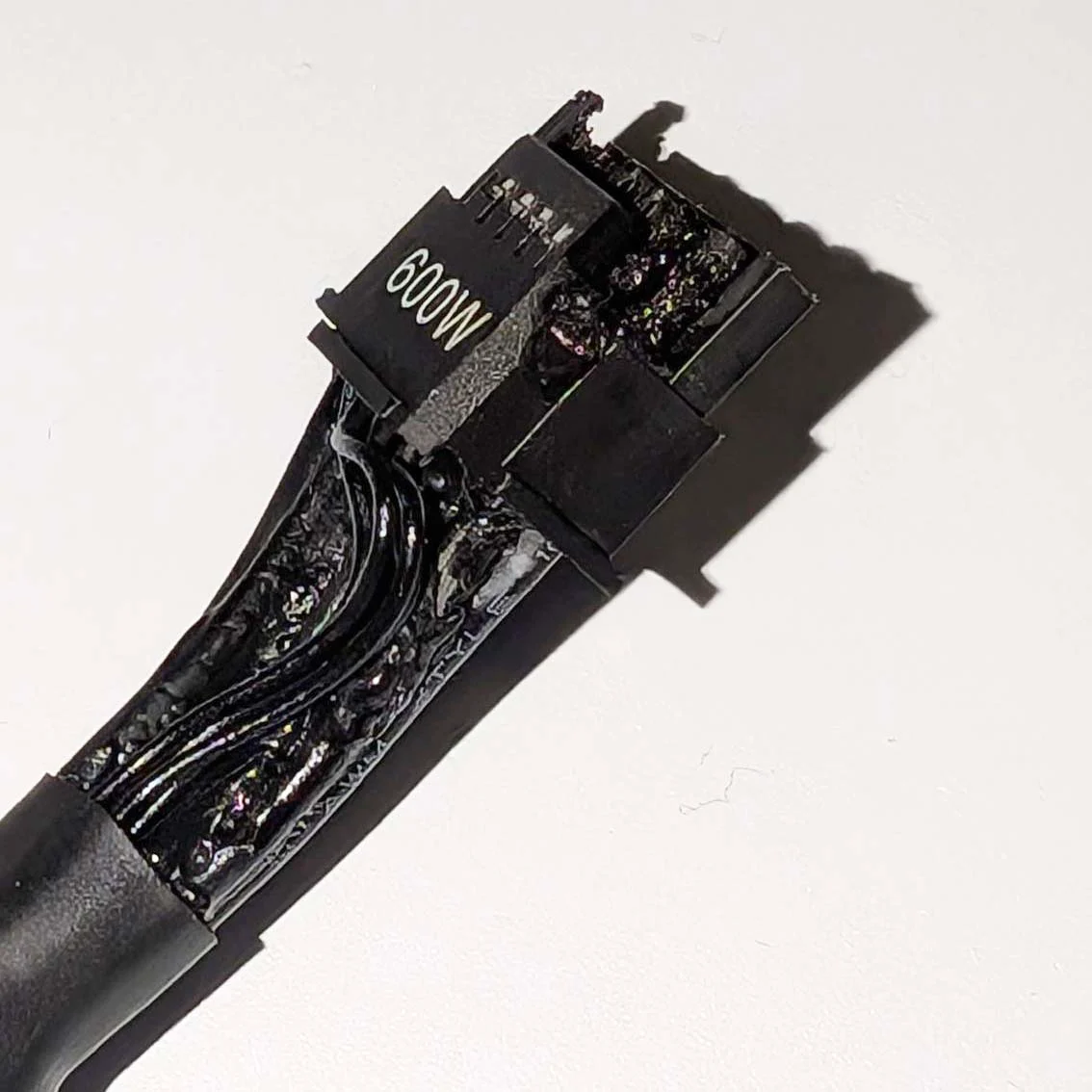

When an RTX 5090 power connector fails, it is not only the plug that suffers. One test rig saw the 16‑pin cable melt at both ends, destroying the GPU and killing the PSU outright. Photos from separate failures show badly charred pins on the graphics card, warped plastic around the connector, and scorched cable ends feeding into the power supply. This is power cable damage that propagates downstream, not a localized singe mark you can shrug off. Calling it an inconvenience ignores the risk of fire and the cost of losing multiple high‑end components at once.
Thermal measurements explain why these failures feel more like a design problem than a clumsy‑user problem. In one investigation, a 12VHPWR cable on an RTX 5090 showed a single wire hitting 150°C under load, pointing to extremely uneven current distribution across pins. At the same time, RTX 5090 power draw is not gentle; power spikes can shoot past 500–600W in real‑world use. Combine narrow contact surfaces, slight cable bends, and high transient loads, and the result is a connector that runs at the edge of its thermal envelope. Eventually, the weakest pin loses, resistance rises, and the plastic around it starts to deform and burn.
Why “User Error” No Longer Holds Up
GPU makers have leaned on one narrative since the first 12VHPWR fires: users are not plugging in the connector fully. That excuse collapses under current evidence. In one high‑profile RTX 5090 failure, the card was powered by a single, native 12V‑2×6 cable from a 1,000W flagship PSU, firmly inserted at both ends by an experienced tester. Another tester hit the same outcome using a 4×8‑pin to 12V‑2×6 adapter on a different RTX 5090. Both sets of failures occurred under supervised conditions, with power limits reduced in some cases and cabling checked beforehand.
These incidents stack on top of earlier RTX 40‑series cases involving different brands of adapters, aftermarket cables, and even motherboard‑side power solutions that all ended in 12VHPWR cable melting. Users are mixing and matching fewer variables than ever – often running the exact combination of GPU, native cable, and high‑quality PSU specified by vendors. Yet the pattern of GPU connector failure continues. At this point, the more convincing explanation is not a global outbreak of carelessness, but a connector spec that leaves too little margin for manufacturing variance, real‑world case layout, and power delivery spikes.
What Needs to Change—and What You Can Do Until It Does
The uncomfortable truth is that the RTX 5090’s power delivery story looks like an ecosystem failure. High‑power GPUs, current ATX 3.1 requirements, and the 12V‑2×6 connector form a triangle where each corner pushes the others to their limits. Testers who melted their RTX 5090s say outright that this connector “isn’t fit for purpose” and call for it to be replaced with something safer. One quote captures the scale of the problem: if a household appliance had a mains cable that behaved like this, it would be recalled on safety grounds.
There is a window before the next generation of GPUs arrives for vendors to fix this. The next ATX standard “needs to be better,” and industry players are urged to design a new socket that can safely handle high currents without melting. Until then, users who still plan to run an RTX 5090 should treat the 12V‑2×6 like a critical failure point: use a reputable PSU with native 16‑pin outputs, avoid sharp bends near the connector, check seating regularly, and consider modest undervolting or power limits as extra insurance. That will not solve a flawed spec, but it might keep your GPU and PSU from becoming the next charred headline.
