What a 3D Printed Steam Machine Case Gives You
A 3D printed PC case for a Mini-ITX Steam Machine is a compact, console-like housing designed around Mini-ITX motherboards and carefully chosen power supplies and graphics cards, letting you build a custom gaming PC that fits Valve’s Steam Machine aesthetic while using more flexible, modern hardware and layout options. If you want a compact gaming PC that looks like a console yet beats Valve’s official hardware on GPU performance, this is where it starts. The real prerequisite is comfort with basic PC building and access to a reasonably tuned 3D printer—this is not a first-ever build project. You’re trading prefab convenience for control over airflow, hardware, and front panel style, along with the satisfaction of saying, "Yes, that case is literally home‑made."
Choosing the Right 3D Printed Case Design

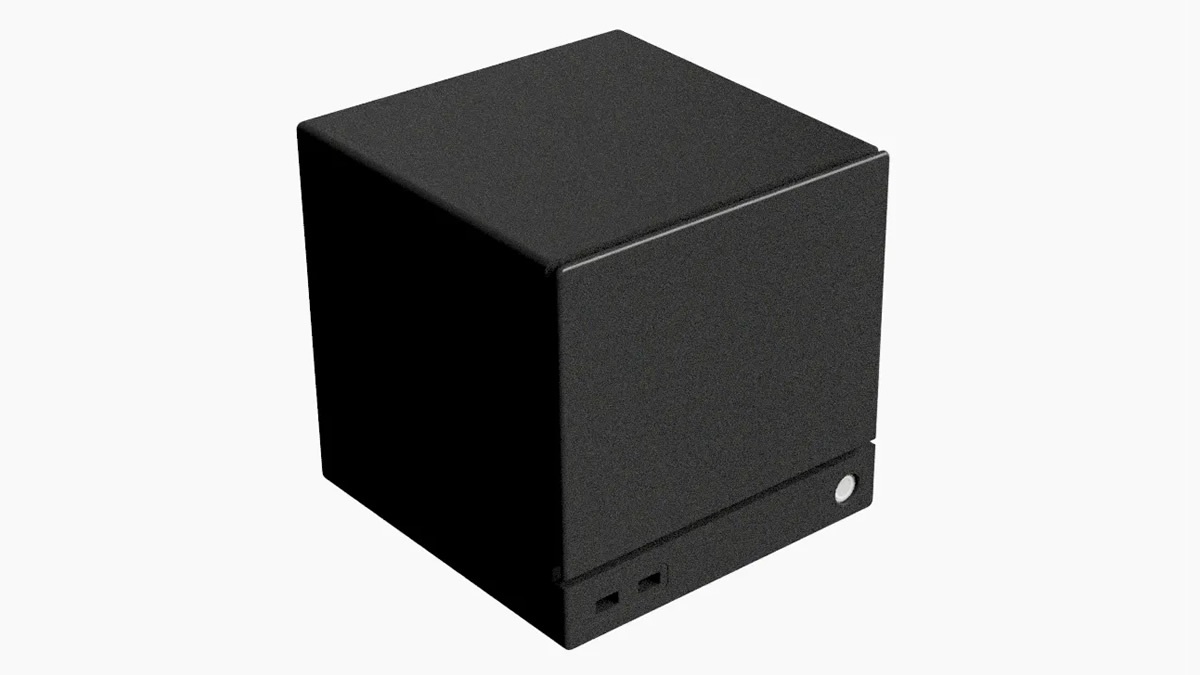

Before you print anything, you need to decide which Mini-ITX Steam Machine case design matches how you plan to use the system. Creator 3DCatt has published a 3D printable Steam Machine PC case that supports mini-ITX motherboards and low-profile graphics cards, proving you can build a faux-Steam Machine with your own hardware within Valve’s official form factor. That ultra-compact layout is neat but requires unusual parts like a low-profile PCIe GPU and a Flex ATX power supply, and it runs into ventilation limits if you push more powerful hardware. In response, 3DCatt’s newer design is slightly larger and supports Mini-ITX in a more standard configuration, including full-sized GPUs, bigger CPU coolers, and either Flex ATX or SFX PSUs. This second style keeps the compact gaming PC feel at 220mm x 220mm x 220mm while opening the door to better performance and easier part sourcing.
Step-by-Step: From STL Files to Assembled DIY Steam Machine
Once you’ve picked your design, treat the process like building a custom gaming PC inside a kit you fabricate yourself. The main gotcha is that unlike a metal case, your 3D printed shell depends heavily on part choice and airflow tweaks to keep thermals under control. Solid side panels and tight internal space can choke GPUs if you don’t plan for extra vents and sensible fan placement. Keep that in mind as you follow the sequence below.
- Download the 3D printable Steam Machine case files (STLs) from your chosen designer, such as 3DCatt’s Mini-ITX Steam Machine-like case.
- Review the hardware requirements listed by the designer so your parts match the intended layout (Mini-ITX board, GPU length, PSU type, cooler height).
- Slice the case parts in your 3D printing software, checking wall thickness and infill so panels are strong enough for handling and mounting.
- Print the case components, monitoring for warping or layer issues that could affect how tightly the panels and backplates fit together.

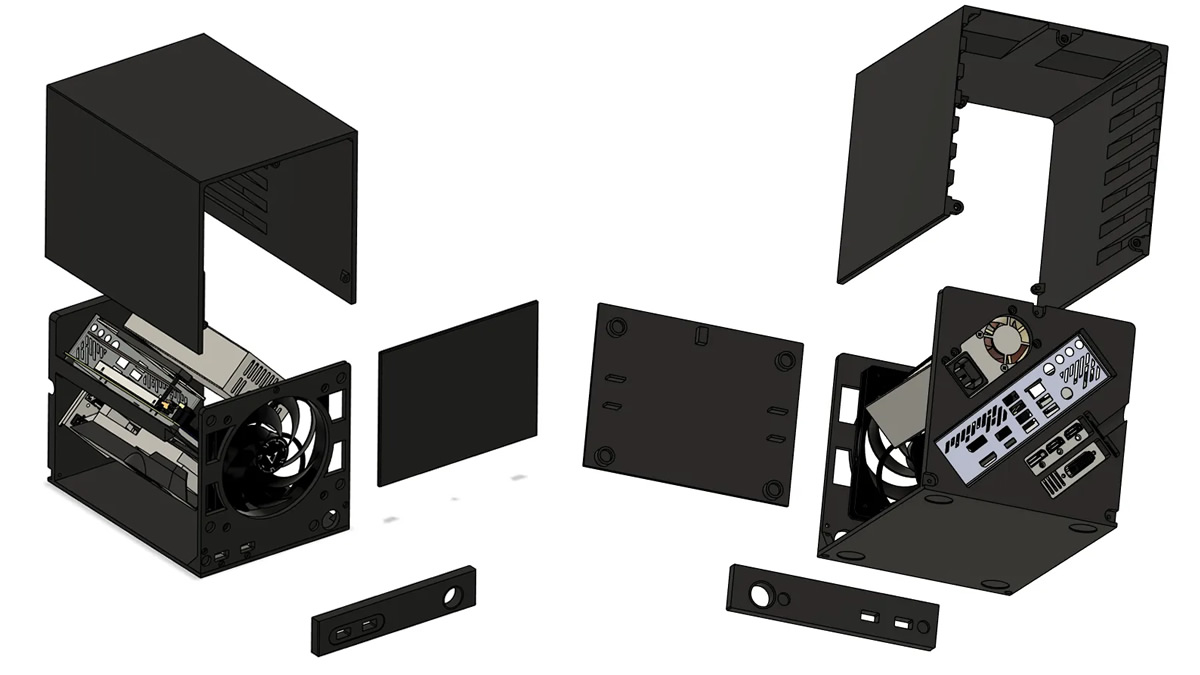

- Dry-fit the printed panels and backplates, confirming that motherboard standoffs, PCIe cut-outs and PSU mounting points line up as expected.

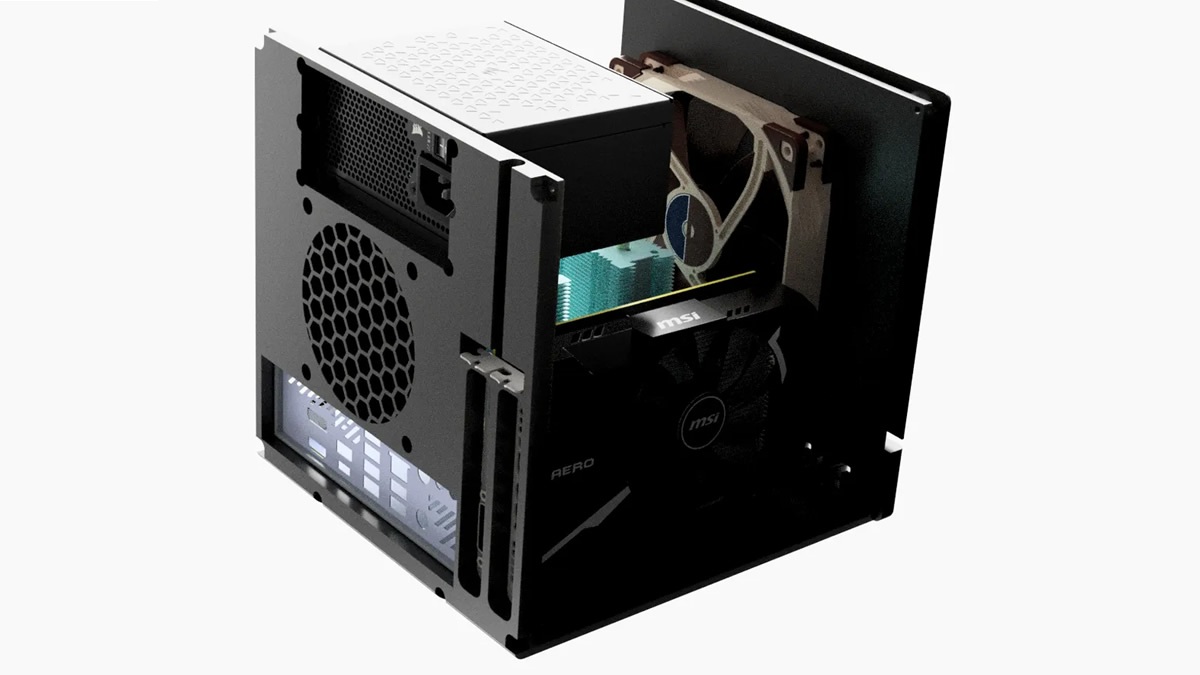

- Install the Mini-ITX motherboard and test-fit your graphics card—full-sized GPUs up to around 200mm can work in the newer design.

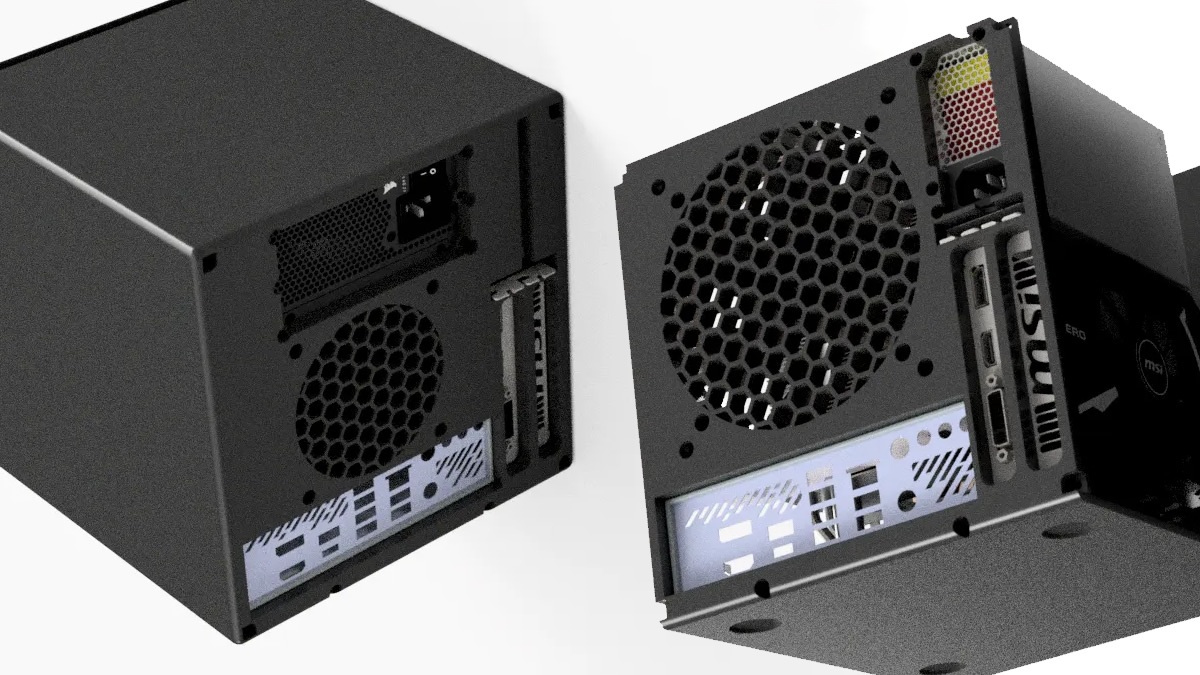

- Mount your chosen Flex ATX or SFX PSU using the matching backplate, and route power cables to avoid blocking critical airflow paths.
- Add case fans according to the backplate style (120/140mm with Flex ATX, or 92mm with SFX) to move air through the small internal volume.
- Mark hot spots—especially near the GPU—and modify the side or front panels in your CAD tool to add vents or openings where needed.
- Re-print any updated panel, complete assembly, and run thermal checks under gaming load to confirm your compact DIY Steam Machine stays within safe temperatures.
Notice that steps for testing hardware fit and adding ventilation come near the end; that’s deliberate. You want to confirm how your particular combination of Mini-ITX board, GPU and PSU behaves inside the 3D printed PC case before you cut extra openings. Solid side panels limit stock airflow to the GPU, so modders are encouraged to add vents or adjust the front panel design, echoing how Valve built its Steam Machine with front panel customisation. That flexibility is the real advantage of the DIY Steam Machine route: you are free to alter the case to suit your hardware, not the other way around.
Performance, Thermals and Mini-ITX Trade-Offs

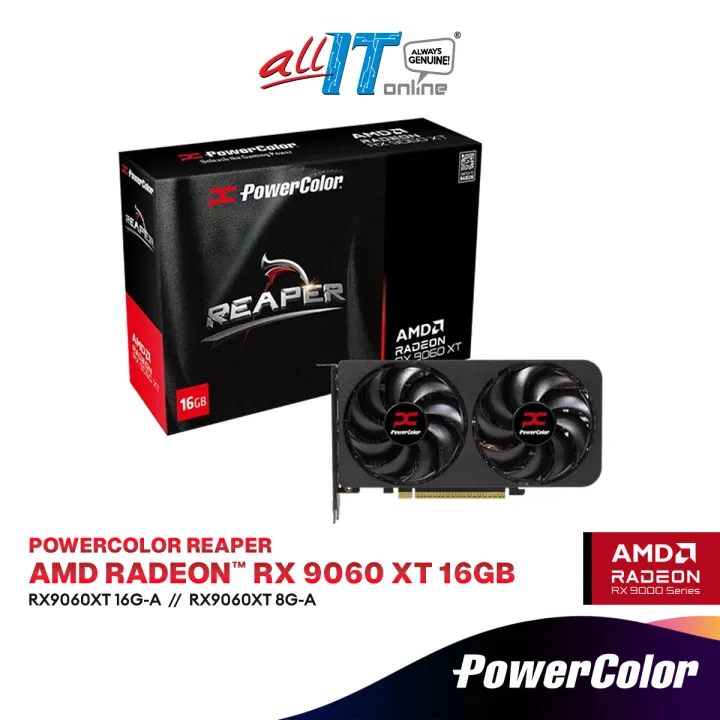

The appeal of a 3D printed Mini-ITX Steam Machine case is that you can often beat Valve’s official hardware while keeping a console-style footprint. The newer 3DCatt design supports GPUs up to 200mm long, including PowerColor’s RX 9060 XT 16GB Reaper, which allows builders to craft a custom Steam Machine with a GPU more powerful than Valve’s original version. That’s a big jump in capability for such a small box. At the same time, both the original form-factor case and the enlarged variant have thermal limits. The smaller build depends on low-profile cards and Flex ATX PSUs, which combine tighter space with limited ventilation; even its creator notes that airflow and thermals could become a problem with more powerful hardware. In the larger case, solid side panels still restrict GPU airflow until you add vents, and modders are expected to address those concerns through panel changes.
Is a 3D Printed Compact Gaming PC Worth It?
Building a DIY Steam Machine in a 3D printed PC case is mostly about freedom and fun. Mini-ITX as a form factor lets you create console-like gaming systems in compact designs, and 3D printing reduces the barrier to entry by providing downloadable, purpose-built case models for home-built Steam Machines. You can select your own hardware, decide between Flex ATX or SFX power supplies, and even change front and side panels to suit your taste or cooling needs. The downsides are clear: component choice is more constrained than in a large tower, ventilation needs deliberate planning, and you rely on plastic strength where metal cases would shrug off abuse. If you’re comfortable with those trade-offs and enjoy tinkering, the payoff is a compact gaming PC that looks like a console, runs the parts you pick, and feels far more personal than any off-the-shelf Steam Machine-style box.
