What the Z990 Chipset Is and Why Its Power Matters
Intel’s Z990 chipset is the new high-end platform controller hub for the Intel Nova Lake platform, pairing a 22% smaller die with more PCIe 5.0 connectivity and higher power consumption, which makes it a key example of how modern desktop platforms trade efficiency for bandwidth as they push toward faster I/O and heavier system-wide workloads. Early measurements suggest the Z990 die shrinks from about 93 mm² on Z890 to around 72.5 mm², with the package itself also getting smaller. Yet base Z990 chipset power rises to 7.9 W from 6 W, and it can reach up to 14 W when its PCIe 5.0 lanes are fully active. The thermal limit increases as well, up to 113 °C versus 108 °C on Z890, signaling that motherboard designers must treat Z990 as a hotter, denser I/O hub rather than a passive background component.
Die Shrink vs. Higher Draw: The PCIe 5.0 Thermal Impact
On paper, a chipset die shrink should lower power, but Z990 shows how PCIe 5.0 thermal impact can overturn that expectation. The die area drops roughly 22% compared with Z890, yet the chipset’s base power climbs and its peak rises to a reported 14 W under full Gen5 usage. Driving 12 chipset PCIe 5.0 lanes at high speed demands stricter signal integrity, equalization, and re‑timing, all of which increase switching activity and I/O driver power. According to TechSpot, the Z990 and Z970 chipsets are also rated for higher maximum operating temperatures, up to 113 °C, reflecting the expected worst‑case thermal load when many lanes are busy. In lightly loaded systems, with a single GPU wired to the CPU and a couple of SSDs, the Z990 chipset power consumption should stay closer to its base figure, but high‑end builds will push it toward that 14 W ceiling.
More Lanes, Fewer Compromises: How the PCH Was Rebalanced
The Z990 redesign is not only about speed; it is a re-balance of which lanes the platform controller hub exposes. Intel trims some PCIe 4.0 resources while expanding PCIe 5.0 paths and overall connectivity. Z990 supplies 12 PCIe 5.0 lanes from the PCH plus 12 PCIe 4.0 lanes, while moving the CPU–chipset link (DMI) to a Gen5 x4 configuration that keeps bandwidth roughly comparable to earlier, wider but slower links. For storage, Z990 prioritizes Gen5 M.2 slots, while Z970 keeps a single Gen4x4 lane for SSDs. USB 2.0 support disappears entirely on the 900-series, replaced by richer USB 3.x and planned USB4/Thunderbolt 5 options. This expanded I/O fabric means the PCH must handle more active high-speed endpoints at once, which erodes the efficiency gains from the chipset die shrink and explains why power budgets climb even as the silicon footprint shrinks.
Bandwidth Over Efficiency: What This Means for Nova Lake Systems

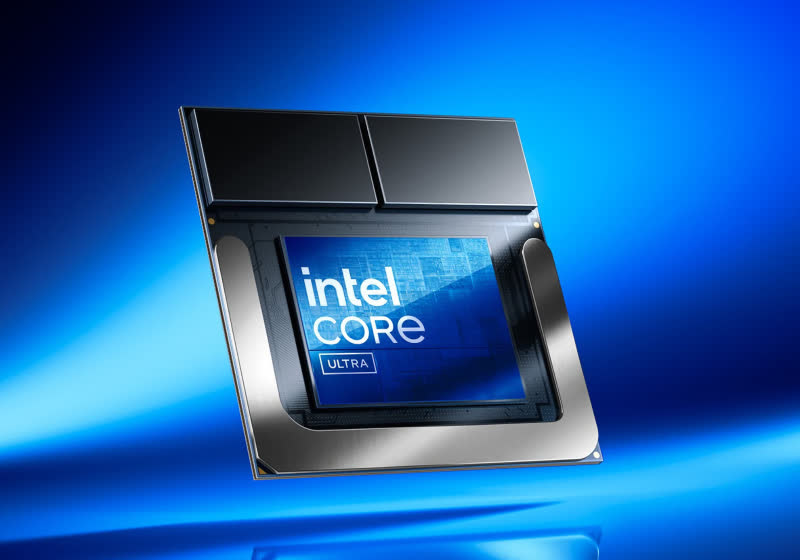

Z990’s design shows how the Intel Nova Lake platform prioritizes bandwidth and connectivity over traditional chipset efficiency metrics. Rumored Nova Lake desktop CPUs scale up to as many as 52 cores with very high peak power limits, and the platform controller hub is expected to feed these cores with more PCIe 5.0 devices, faster DMI, and richer USB and Thunderbolt options. In that context, an extra few watts on the PCH is an acceptable cost for higher sustained throughput. System builders, however, must factor the hotter chipset into the total platform envelope: a 14 W PCH under load adds to VRM, memory, GPU, and SSD heat. Board vendors are already talking about larger chipset heatsinks, and high-end Z990 motherboards advertise triple 8-pin CPU power connectors, underscoring that LGA 1954 designs must treat I/O power delivery and thermal control as first-class engineering constraints.
Implications for Motherboard Cooling and Power Budgets

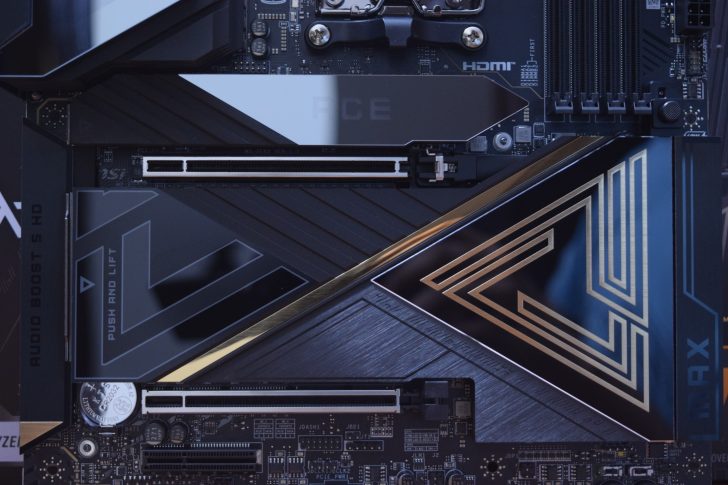

For motherboard designers, Z990’s higher ceiling reshapes thermal layouts and power routing on LGA 1954 boards. A chipset that can sit at up to 14 W with a 113 °C limit cannot be an afterthought hidden under a small, unventilated heatsink next to stacked M.2 drives and a hot GPU backplate. While board makers say Z990 does not require active cooling, they will likely rely on larger heatsinks, better airflow paths, and careful placement of PCIe 5.0 slots and controllers. Power delivery also changes: more total PCIe lanes, a Gen5 x4 DMI link, and higher CPU power headroom all increase the strain on the motherboard’s PCB traces and power planes. For buyers, the takeaway is that Z990 brings unmatched I/O flexibility for Intel desktops, but the platform’s real-world efficiency will depend on how well each board manages the chipset’s concentrated thermal and electrical load.
