What PCIe 8.0 Is and Why 1TB/s Matters
PCIe 8.0 is the next major version of the PCI Express interconnect, and its draft 0.5 specification is now available to PCI-SIG members. The standout figure is a raw data rate of 256 gigatransfers per second (GT/s), which translates into up to a 1TB/s bi-directional data rate on a x16 link. In other words, a single full-width slot could move roughly a terabyte of data every second in and out of a server component. This continues PCIe’s tradition of doubling bandwidth each generation, delivering another leap over PCIe 7.0’s 128 GT/s. For enterprise and professional systems, this bandwidth is more than a headline number. It is the I/O backbone that will connect future GPUs, SSDs, NICs, accelerators, and memory expansion devices, determining how quickly data can move between compute, storage, and network resources.
From PCIe 7.0 to Gen8: Generational Performance Gains

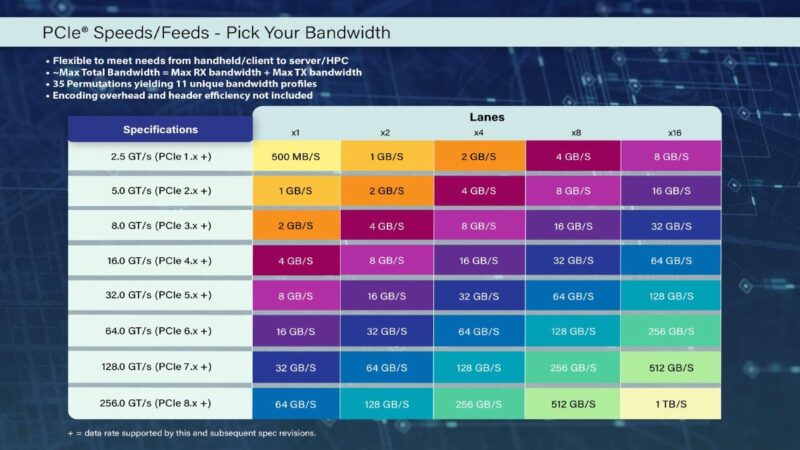

The PCIe 8.0 specification doubles the data rate of PCIe 7.0, moving from 128 GT/s to 256 GT/s while retaining PAM4 signaling and FLIT-based encoding. FLIT, or Flow Control Unit, standardizes traffic into 256-byte packets with built-in forward error correction, helping maintain low latency alongside higher throughput. On a practical level, PCIe Gen8 performance means a x16 link can offer up to 1TB/s of bi-directional bandwidth, while even a modest x4 link can reach around 256GB/s. These jumps are particularly meaningful as AI, data analytics, and high-performance networking increasingly saturate current PCIe links. The roadmap also underscores that PCIe 7.0 itself is still emerging: its spec only recently finalized and compatible hardware is not expected until at least 2027. PCIe 8.0 therefore represents long-term planning for the next wave of server bandwidth demands rather than an immediate upgrade path.
Timeline: When PCIe 8.0 Will Reach Real Hardware
Although the PCIe 8.0 specification draft 0.5 is a major milestone, it is only the midpoint of a long rollout. PCI-SIG expects the full PCIe 8.0 specification to be completed by 2028. Historically, compliance and shipping products trail the spec by several years. PCI-SIG notes that integrator lists, which certify interoperability, typically arrive about three years after a spec’s final release, with preliminary testing starting around the two-year mark. Experience with earlier generations confirms this lag: PCIe 6.0 was finalized in 2022, yet Micron only announced mass production of a PCIe 6.0 SSD four years later, and CPUs that can host it are still catching up. Similarly, PCIe 7.0 hardware is not expected before 2027. For PCIe 8.0, this suggests that server and workstation platforms adopting 1TB/s x16 links will likely appear several years after the standard is finalized, aligning with future CPU, GPU, and chipset cycles.
Impact on Servers, Workstations, and AI Platforms
The main beneficiaries of PCIe 8.0 specification advances will be enterprise servers, professional workstations, and AI platforms rather than mainstream consumer PCs. In these environments, PCIe is the primary I/O fabric linking CPUs to GPUs, accelerators, storage, networking, and memory expansion, making server bandwidth a central design concern. Higher PCIe Gen8 performance will help feed multi-GPU AI nodes, high-speed NICs, and ultra-fast SSDs without bottlenecks. PCI-SIG is also enhancing the ecosystem around PCIe, with features such as Unordered I/O improving flexibility for AI and data center workloads, and work on MultiLink and higher speeds addressing latency and scaling challenges. At the same time, electrical reach at 256 GT/s becomes more difficult, driving efforts in optical PCIe and improved copper interconnects like CopprLink. Together, these developments give system architects more freedom to build dense, high-bandwidth topologies for future accelerator-heavy platforms.
