From Prototypes to Production: The Rise of Advanced Printing Materials
Advanced printing materials in additive manufacturing are highly engineered metals, ceramics, polymers, and bio-based mixtures that allow 3D printed parts to meet demanding structural, environmental, and regulatory requirements in sectors such as defense, infrastructure, energy, and healthcare, moving the technology far beyond simple prototyping into mission-critical, production-grade applications. The latest wave of materials is tailored for specific jobs: armor steel powders for geometry-driven protection, bio-concrete for low‑carbon structures, ceramic systems for high-temperature operation, and functional composites for sensing. Instead of treating 3D printing as a fast way to make models, engineers now design end-use components around what each material can do, from energy absorption to bacterial cementation or UV‑curable ceramic networks. This shift is changing how vehicles are protected, how buildings are formed, and how animals are monitored for disease, tying material science directly to real-world performance.
3D Printed Armor Steel Reinvents Vehicle Protection
SSAB’s Armox 500 AM Powder brings its long-established armor steel plate into the 3D printed realm, creating 3D printed armor steel components with ballistic and blast resistance comparable to traditional plate. Instead of flat panels, designers can print solid hinges, housings, and multi-layered lattice or honeycomb structures that absorb and dissipate energy while cutting weight. These complex shapes would be difficult or impossible to achieve with machining and welding alone. The material targets exposed external components on armored vehicles where conventional panels cannot reach or would be too heavy. According to SSAB Special Steels head Per Elfgren, the company has “developed our own high-strength steel powders optimized for additive manufacturing, based on many decades of experience in high-performance steel products.” The result is armor that can follow curved surfaces, integrate mounting features, and respond to evolving threats without a complete redesign of the base vehicle.
Bio-Concrete Additive Manufacturing Aims at Low-Carbon Structures
At the University of Stuttgart, researchers have built a bio-concrete additive manufacturing process that uses live bacteria instead of conventional cement to create load‑bearing structures. The approach tackles a major climate issue: cement production accounts for about 8% of global CO₂ emissions, so any reduction matters. Their method relies on microbially induced calcium carbonate precipitation, where bacteria break down urea and trigger calcium carbonate crystal formation to bind sand grains. A modified consumer 3D printer deposits Sporosarcina pasteurii suspension along planned paths inside a carefully graded, moistened sand bed. Active compaction with a pneumatic vibrator after each layer increases packing density and strength, while a calcium chloride pre‑wetting step keeps bacteria from migrating during later flooding cycles. Repeated immersion in urea and calcium chloride then hardens the printed shapes. The work points to structural printing that needs no rebar or cement, potentially enabling sustainable walls, infill, or soil-stabilizing components.

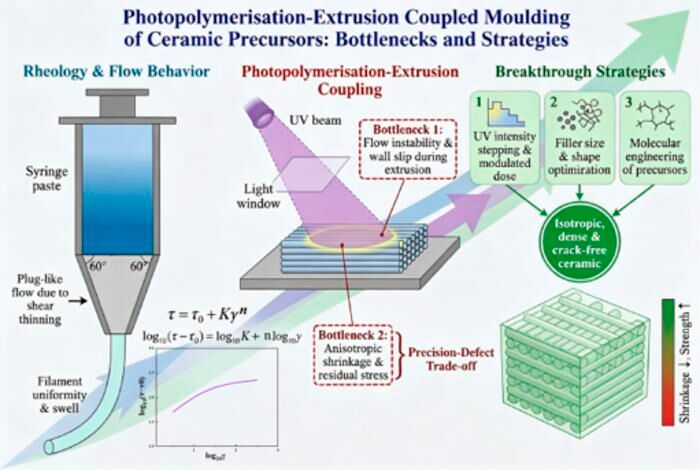

Coupled Extrusion and UV Curing Push Ceramic 3D Printing Toward Industry
A new ceramic 3D printing method based on photopolymerization‑extrusion coupled moulding combines filament extrusion with in‑situ UV curing to solve a long-running trade‑off between precision and defects in ceramic parts. Traditional ceramic 3D printing via photocuring needs low‑viscosity slurries that limit solid content, while pure extrusion often suffers filament collapse, weak bonding, warpage, and cracking. In the coupled process, a polymer‑derived ceramic slurry is extruded and immediately cured by coaxial or para‑axial UV light, locking each filament in place and stabilizing the build. Researchers have explored binary, ternary, and multi‑component precursor systems, from SiC to SiOC, SiCN, SiBN, and higher‑temperature SiBCN and SiOCB compositions that can operate beyond 2000 °C. The result is dense, crack‑free ceramic components with low shrinkage and reliable dimensional accuracy, opening ceramic 3D printing to aerospace, energy, biomedicine, and electronics applications that demand complex shapes and harsh‑environment performance.
3D Printed Biosensors Bring On-Farm Diagnostics to Livestock
In dairy farming, subclinical mastitis quietly erodes productivity because cows appear healthy while infection damages udders and lowers milk quality. Conventional tests can take days. A team at Virginia Tech has created a 3D printed biosensor called 2.5D MiSENSE that turns raw milk into a real-time diagnostic sample. The coin-sized device uses a stereolithography-printed microstructured electrode coated with an antibody that detects trace levels of N-acetyl-β-D-glucosaminidase, an enzyme linked to udder inflammation. According to Dr. Azahar Ali, “Subclinical mastitis costs dairy farmers millions each year because it often goes undetected until serious damage has already occurred.” By integrating MXene nanomaterials and machine learning with 3D printed microstructures, the sensor reaches high sensitivity without cleanroom fabrication. This kind of 3D printed biosensor shows how functional materials and smart design can deliver field-ready diagnostics that improve animal welfare and protect yields.
