Design, Build, and On-Set Practicality

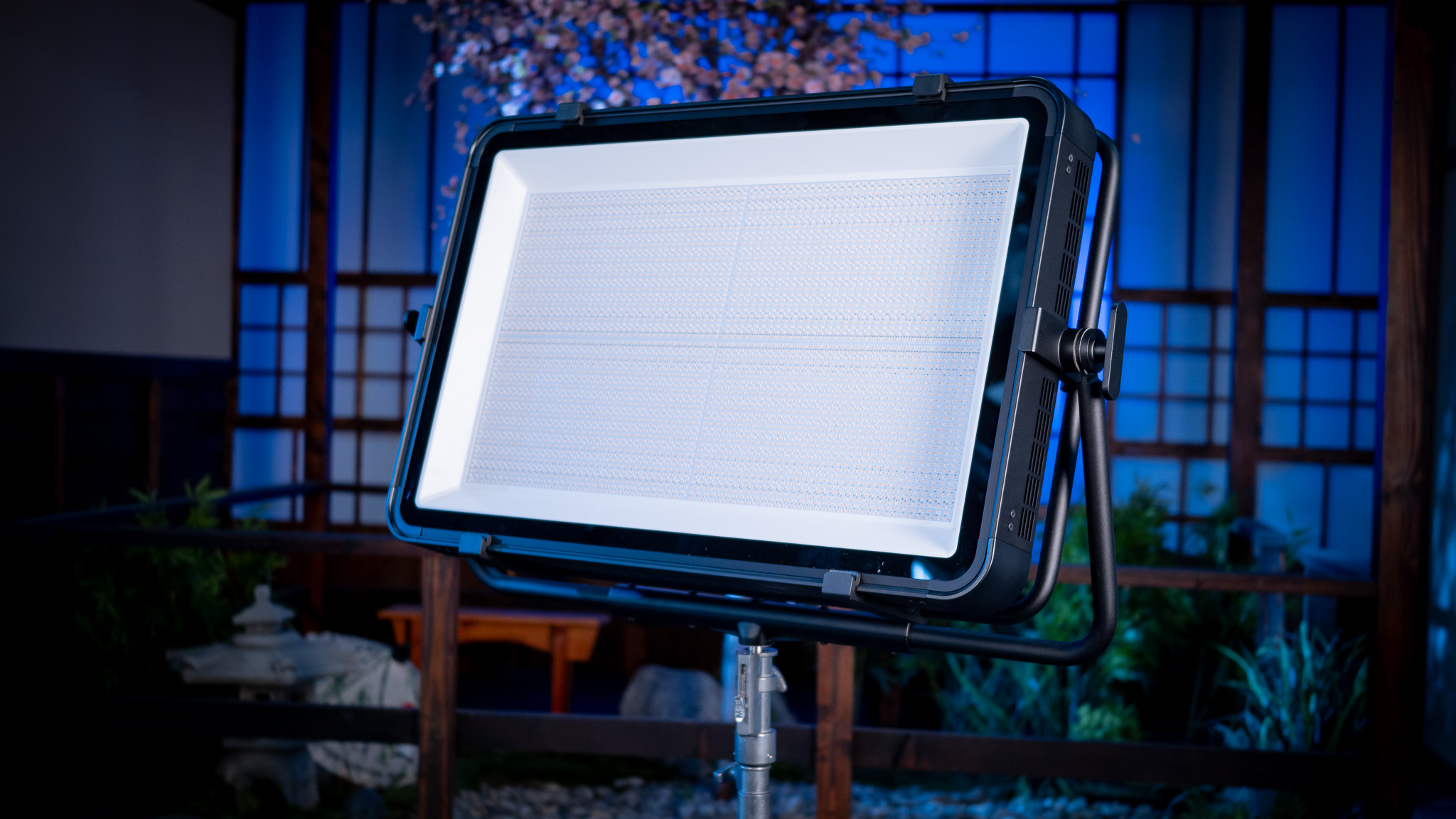

The Profoto ProPanel 3×2 is unapologetically big and unapologetically pro. Weighing 62.8 lbs with the yoke attached, it demands a robust combo stand and ideally a two-person lift, yet its boxy form and protective pads let it safely stand on its side between setups. Profoto integrates the ballast into the head, eliminating the usual tangle of external boxes and cables that slow down studio LED lights. Connectivity is intentionally minimalist: USB, 5‑pin DMX in/out, and a locking powerCON, with most complexity offloaded to robust wireless control options. The yoke’s dual friction handles and Junior pin mount provide secure, slip-free positioning in landscape or portrait orientation, which is crucial when you’re finessing soft key angles. Overall, the ProPanel 3×2 behaves like professional lighting equipment should: rugged, predictable, and fast to rig, even if it clearly belongs more on a grip truck than in a backpack.
Output, Color Modes, and the ‘World’s Brightest’ Claim

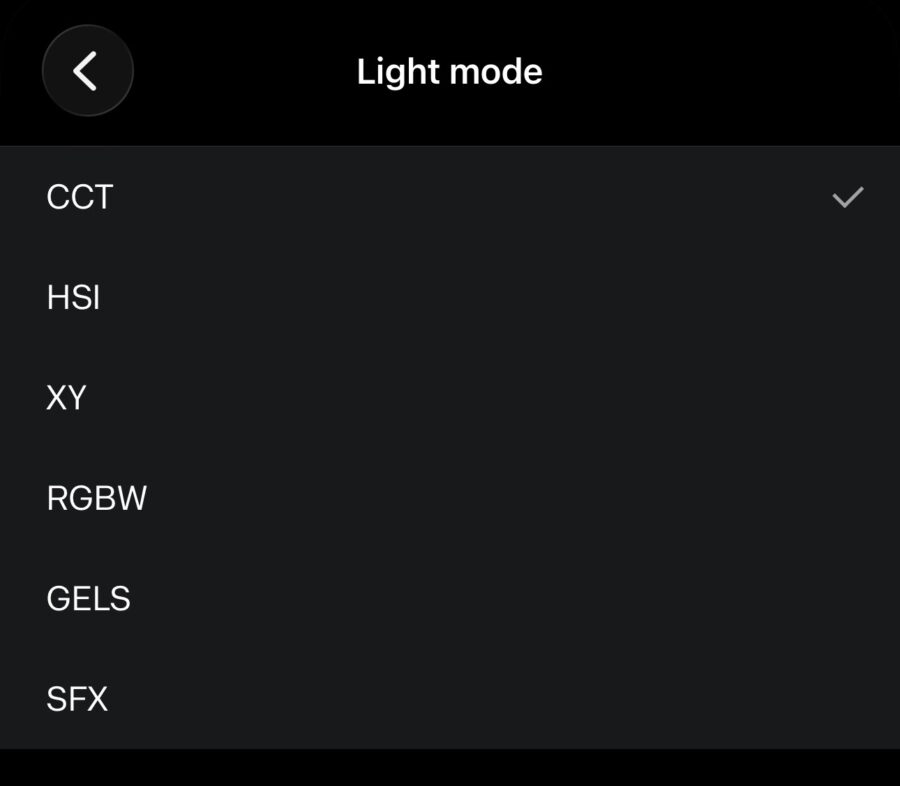

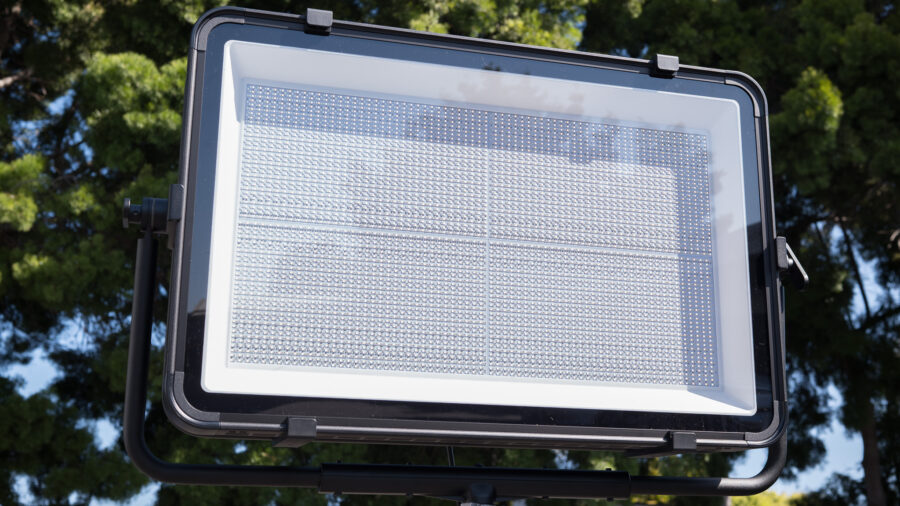

Profoto pitches the ProPanel 3×2 as potentially the brightest LED soft panel available, driven by a 2000W RGBWW engine and a wide 120‑degree beam angle. In practice, that translates to serious punch for a soft source, especially when used as a key on large sets or to compete with daylight through diffusion. The panel offers a 2000K–15000K CCT range with 16‑bit dimming down to 0.1%, plus green/magenta adjustment, ensuring precise white balance matching and fine exposure control for cameras. Multiple modes—CCT, HSI, RGBW, XY, gels, and effects—cover everything from clean, neutral lighting to stylised looks without physical gels. While “world’s brightest” is a bold marketing line, the sheer wattage and output ceiling clearly place this fixture in the top tier of studio LED lights. For gaffers and DPs, it feels less like a gimmick and more like a genuinely powerful, controllable soft source.
Control, Cooling, and Thermal Performance

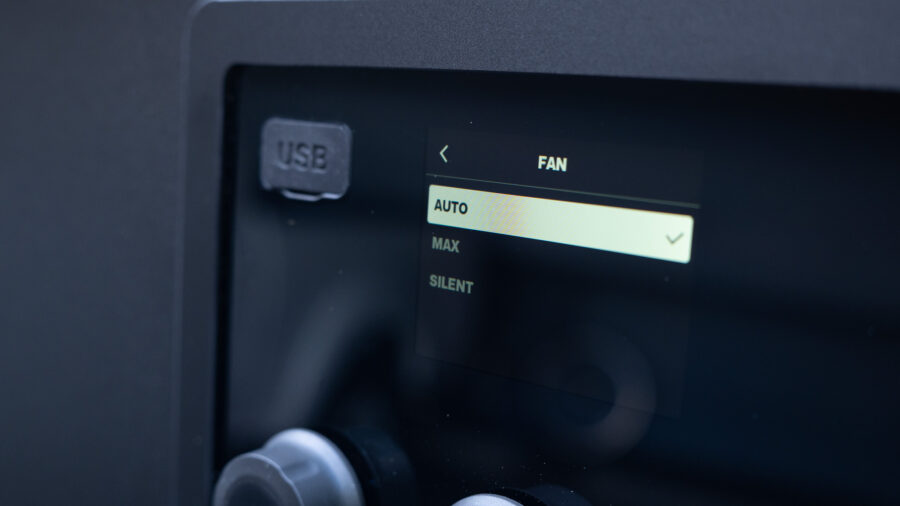

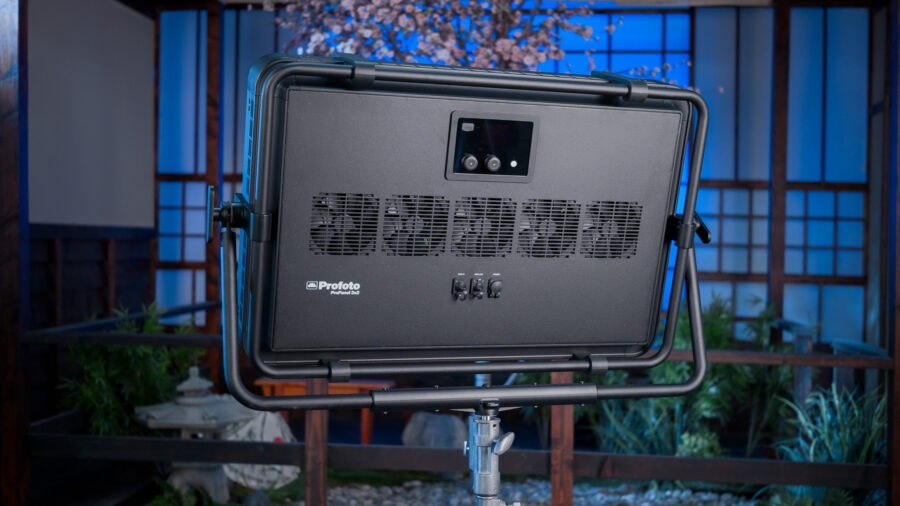

On the rear, five large fans and Profoto’s patent‑pending “CTech” cooling system handle the thermal load of a 2000W panel. Users can choose Max for hot environments, Silent for sound‑sensitive sets, or let Auto manage fan speed. Silent mode caps output at 200W, but in typical operation Auto keeps the light cool without the distracting ramp-up or slow-down fan noise some fixtures suffer from. Thermal management feels well tuned for real-world production where mics may roam near the key. Control-wise, the ProPanel 3×2 integrates seamlessly into modern workflows: 5‑pin DMX/RDM, TimoTwo CRMX for wireless DMX, the Profoto Control app on iOS/Android, and support for Profoto Air and AirX flash triggers. Four-zone pixel mapping is particularly attractive for virtual production, allowing nuanced gradients and effects across the panel. The result is a fixture that stays cool, quiet, and responsive whether you’re lighting drama, commercials, or LED volumes.
Powering Options and Location Flexibility

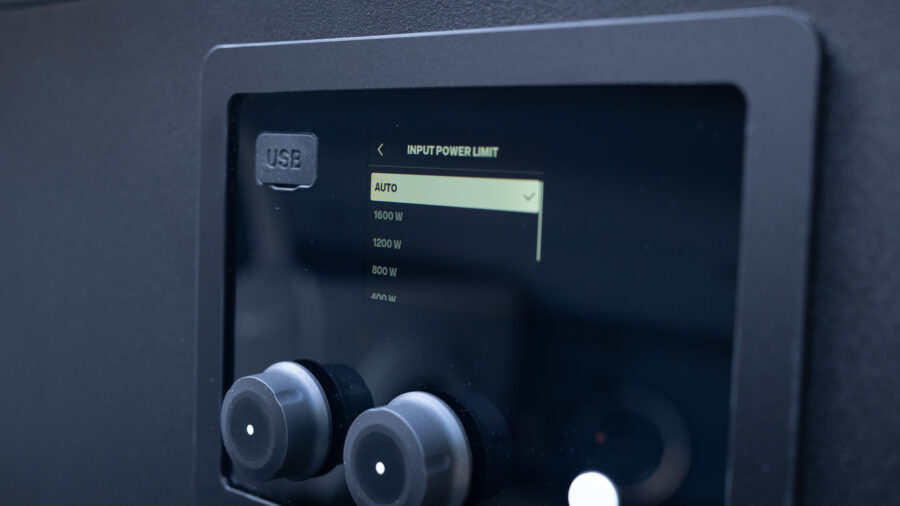

Despite its 2000W rating, the ProPanel 3×2 can run from standard AC circuits, provided you respect its current needs. Profoto specifies operation on 10A fuses at 200–240Vac or 15A at 100–120Vac. In certain markets, it ships with a PowerCon NEMA 5‑20P plug, which physically prevents connection to lower-rated household outlets, but you can work around this by using appropriate PowerCon cables, adapters, and by limiting power draw in the menu. The fixture’s Auto power mode detects supply and adjusts maximum wattage to avoid tripping circuits, though it would be helpful if the interface more clearly displayed what limit Auto has chosen. For location work away from mains, Profoto highlights compatibility with high-capacity block batteries such as the Instagrid ONE MAX, offering off-grid flexibility for a single ProPanel 3×2. On stages with robust power infrastructure, its draw is easily accommodated, making high-output soft lighting practical in both studio and field scenarios.
Workflow, Comparisons, and Who the ProPanel 3×2 Is For
Soft panels like the ARRI Skypanel once defined the category, but the ProPanel 3×2 arrives in a more crowded, cost-conscious market. Its integrated ballast, extensive wireless control, and record-chasing output clearly target top-tier commercial, film, and television productions where reliability, consistency, and speed trump compactness. The 4‑zone pixel mapping and wide CCT range also position it well for virtual production stages and high-end broadcast environments. Against other premium LED lighting solutions, the ProPanel’s value proposition lies less in versatility across small crew jobs and more in raw punch and pro-grade ergonomics. For photographers and videographers already invested in Profoto ecosystems, the Air and AirX integration adds extra appeal, bridging continuous and flash workflows. For many, this will be a rental-only fixture—an on-call “big gun” when you need the brightest LED panel with soft, controllable output. For high-budget productions, however, it feels like a serious, long-term lighting asset.
