What Unreleased Nvidia GPU Prototypes Reveal
Unreleased Nvidia GPU prototypes are early engineering samples and leaked specification sheets for graphics cards that were developed with concrete hardware configurations, tested internally, but cancelled or altered before reaching the retail market, giving rare insight into how Nvidia explores performance, memory layouts, and product segmentation beyond the final consumer lineup. The recent appearance of a GeForce RTX 2080 Ti Super engineering sample and a detailed RTX 50 SUPER leak puts that process in sharp focus. Together, these GPU engineering samples show how Nvidia experiments with higher CUDA core counts, wider memory buses, and more VRAM, then trims, renames, or scraps products to fit a commercial roadmap. They highlight a recurring theme: internally, Nvidia often considers bolder specifications than those that ship as consumer cards, revealing a gap between what is technically feasible and what marketing, yields, and positioning will support.
RTX 2080 Ti Super: The Turing Flagship That Never Shipped
The most concrete evidence of unrealised potential is the RTX 2080 Ti Super engineering sample that surfaced on eBay and was documented by Reddit user @tendermeemay. Based on the fully unlocked TU102 Turing GPU, it carries 4,608 active CUDA cores, a 5.8% increase over the commercial RTX 2080 Ti’s 4,352 cores. Base and boost clocks climb to 1,410MHz and 1,650MHz, up from 1,350MHz and 1,545MHz. Memory saw an even bigger upgrade. The card uses 12GB of GDDR6 on a 384-bit bus running at up to 20Gb/s, instead of 11GB on a 352-bit bus at 17.5Gb/s. That configuration lifts bandwidth from 616GB/s to 768GB/s, about a 24.6% gain. According to Club386, this prototype “was meant to bridge the gap between RTX 2080 Ti and the Titan RTX,” effectively a true Turing gaming flagship that Nvidia cancelled.
Design Details and Driver Limits of a Lost Turing Card

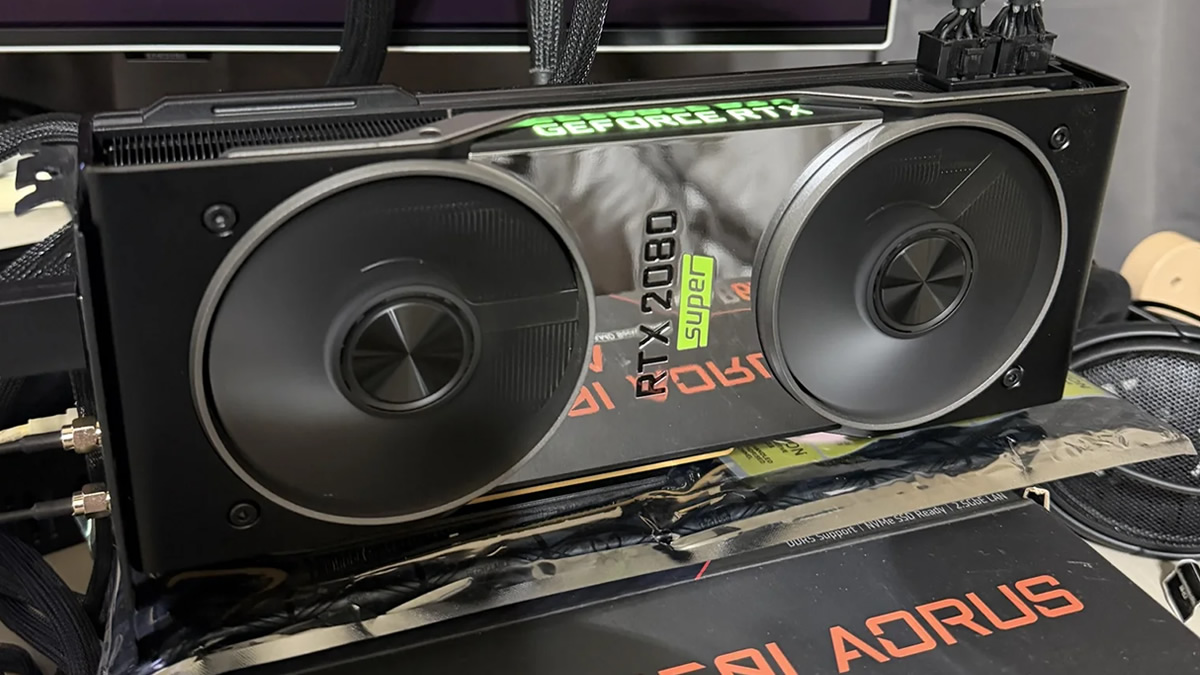

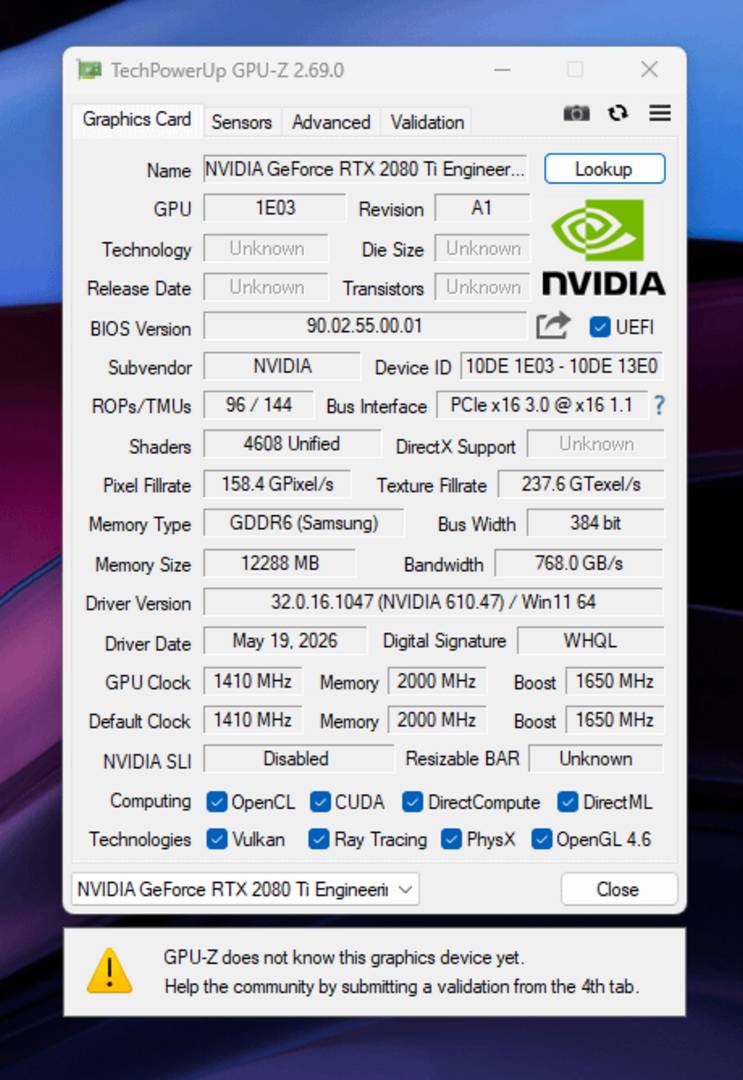

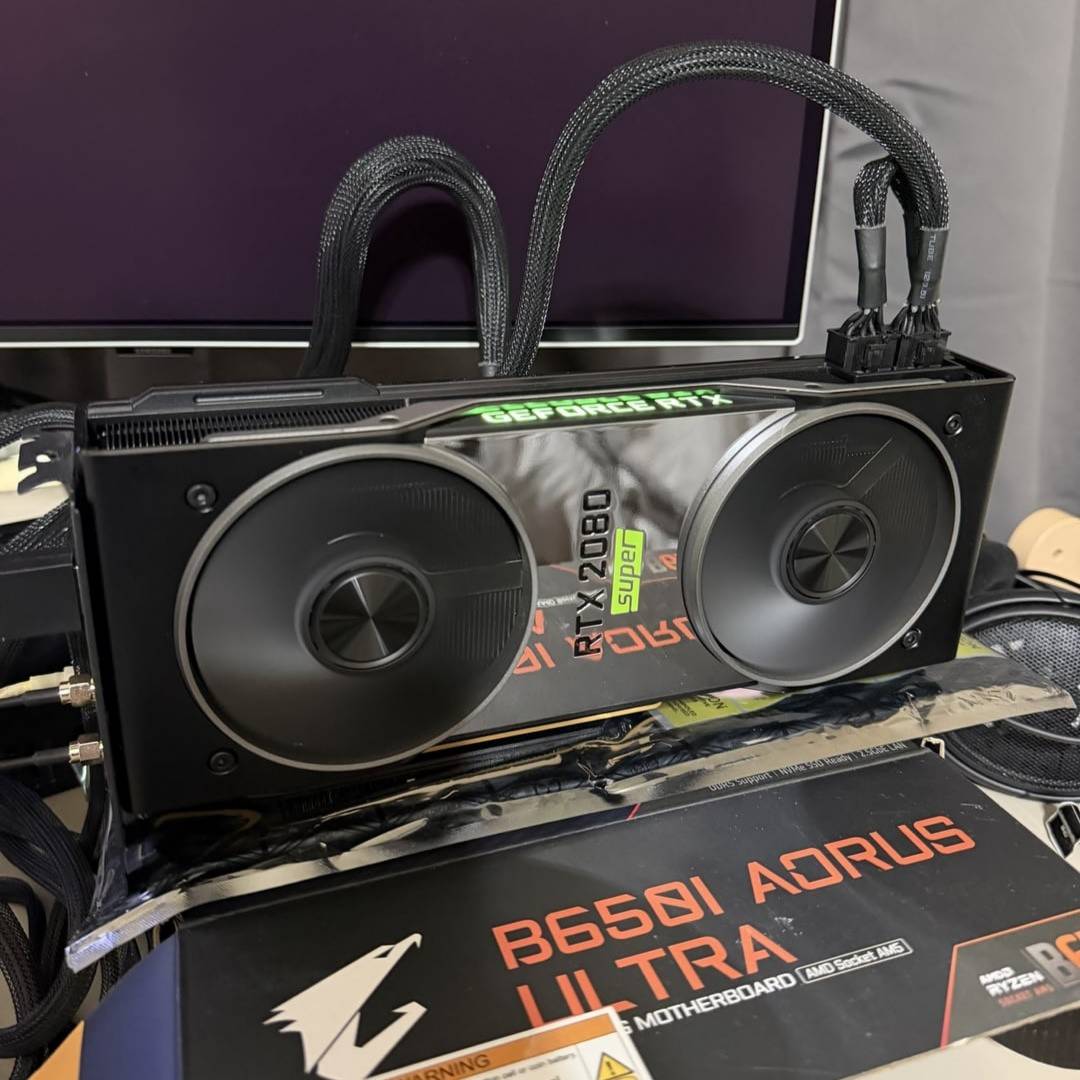

Physically, the unreleased RTX 2080 Ti Super follows Nvidia’s Founders Edition styling but swaps in a glossy front plate with a black frame and backplate, and its shroud lacks final branding, underscoring its status as a pre-production unit. GPU-Z identifies it as an RTX 2080 Ti engineering sample, even though the cooler is marked “RTX 2080 Super,” highlighting how fluid naming can be during development when silicon and marketing plans are still moving targets. As an engineering sample, the card exposes the practical limits of unreleased graphics cards in the wild. Official drivers do not recognise it, so the owner resorted to modified INF files to install support, and even then, performance data is scarce and unoptimised. Overclock3D notes that with 4,608 CUDA cores, faster memory, and higher clocks, this RTX 2080 Ti Super “would have been a solid upgrade” over the standard Ti, had it been launched.
RTX 50 SUPER Leak: Memory-Heavy Refresh and a 12GB RTX 5060
Fast-forward to the RTX 50 series, and leaks point to a different kind of experimentation. A detailed RTX 50 SUPER leak outlines TDPs, memory capacities, and CUDA core counts for multiple upcoming models, with a launch window targeted for Q4 2026 or Q1 2027. The headline change is memory: existing 2GB GDDR7 chips are replaced with 3GB chips across the board, increasing VRAM capacity by 50%. Most RTX 50 SUPER GPUs keep the same CUDA core counts as their non-SUPER counterparts, relying on higher TGP to sustain faster clocks. Only the RTX 5070 SUPER gains additional CUDA cores. One of the most intriguing entries is an RTX 5060 12GB, which may or may not carry SUPER branding and retains a 128-bit bus. The leak suggests Nvidia is weighing how far it can push a 12GB RTX 5060 without overshadowing the RTX 5060 Ti 8GB in its product stack.
What These GPU Engineering Samples Say About Nvidia’s Priorities
Viewed together, the RTX 2080 Ti Super prototype and RTX 50 SUPER leak map out how Nvidia balances engineering ambition with product segmentation. Turing’s unreleased card experimented with unlocking more of the die, widening the bus, and pushing bandwidth by roughly a quarter, hinting that Nvidia internally explored a gaming flagship much closer to Titan-class performance but later chose to keep that tier distinct. By contrast, the RTX 50 SUPER leak shows a generation where memory and power budgets do most of the work. Here, Nvidia appears to prioritise larger GDDR7 pools and modest clock bumps rather than broad increases in CUDA cores, especially on mid-range models. These unreleased graphics cards and GPU engineering samples underline a key reality: many of Nvidia’s boldest configurations exist only on lab benches and planning slides, shaping the direction of future lineups even when they never reach store shelves.
