From Slots to Cables: A New Era for Mini PC Expansion

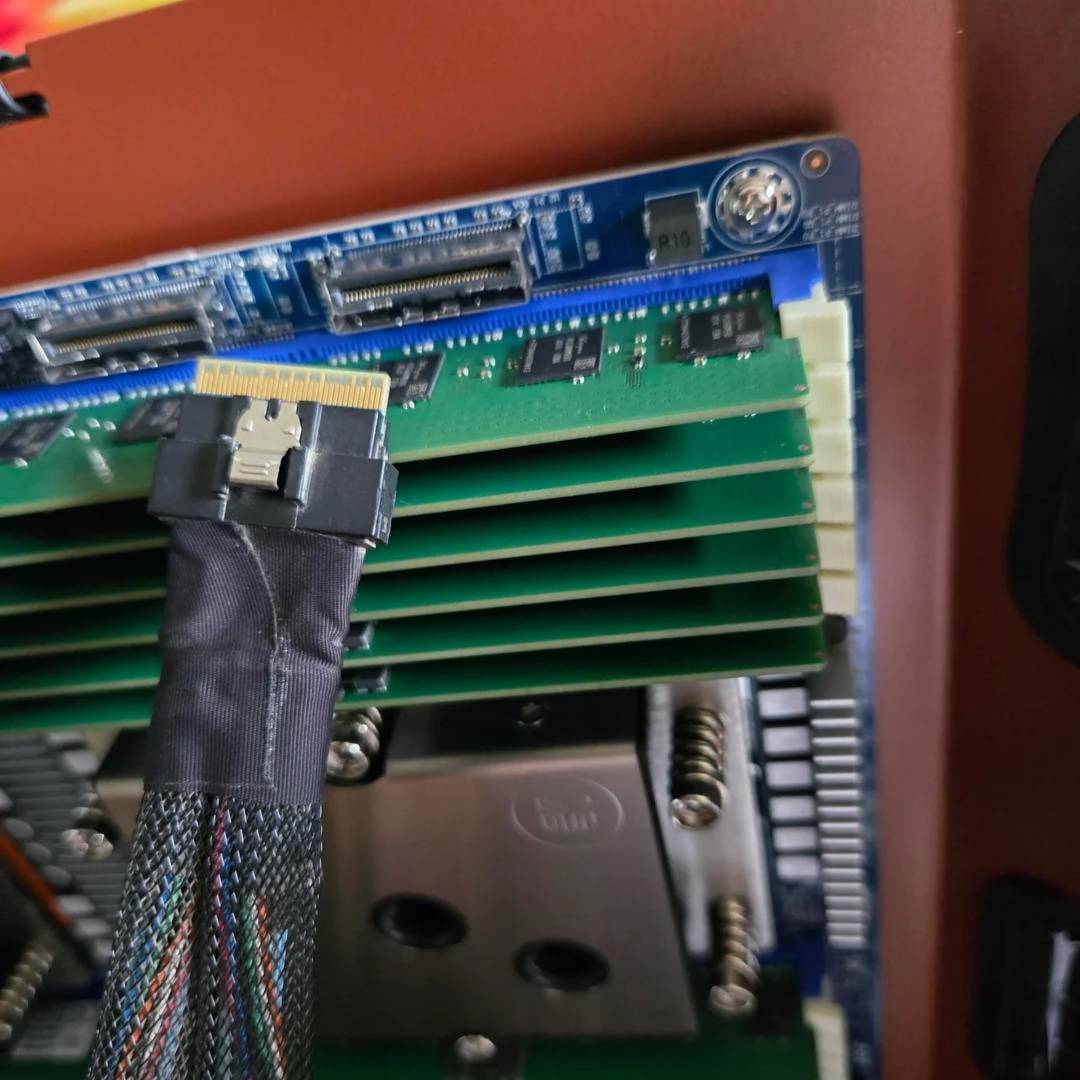

Cable-based PCIe expansion is a design approach where motherboards route PCI Express signals through compact connectors and cables, such as OCuLink, MCIO, or Thunderbolt 5, instead of full-size add‑in card slots, allowing mini PCs to support high‑bandwidth GPUs and peripherals while keeping systems smaller, cooler, and more flexible. This shift is happening fast in compact workstations and mini PCs that can no longer spare the board area and airflow budget for long PCIe x16 slots. Instead of locking the GPU and I/O inside a cramped chassis, PCIe lanes travel out to external enclosures or flexible risers. That makes it easier to pair small systems with big GPUs, storage arrays, or pro video cards without redesigning the whole box. The result is a new class of mini PC connectivity standards that rival full-tower workstations in bandwidth, not in size.
GMK Evo-X3: OCuLink External GPU Power in a PS4-Sized Box
GMKtec’s Evo-X3 shows how far cable-based PCIe expansion has come. Inside a PS4-sized chassis, it packs an AMD Ryzen AI Max+ 395 APU with 16 Zen 5 cores, 32 threads, and integrated Radeon 8060S graphics, plus up to 128GB of 8000MHz LPDDR5X and dual PCIe 4.0 M.2 slots for up to 4TB of storage. The defining feature for performance-hungry users is an OCuLink (PCIe Gen4 x4) port that carries native PCIe to an external GPU enclosure, enabling an OCuLink external GPU such as an RTX 40- or 50-series card for desktop-class 3D rendering or compute. GMKtec also promotes the Evo-X3 as a local AI workstation, claiming its 128GB configuration can run models like the 235-billion-parameter Qwen3 entirely offline. A vertical, server-like design and dual-fan, triple heat-pipe cooling underline how OCuLink expansion reshapes mini PC layouts.
MaxSun’s MCIO Connectors: Mini-ITX Without the x16 Slot

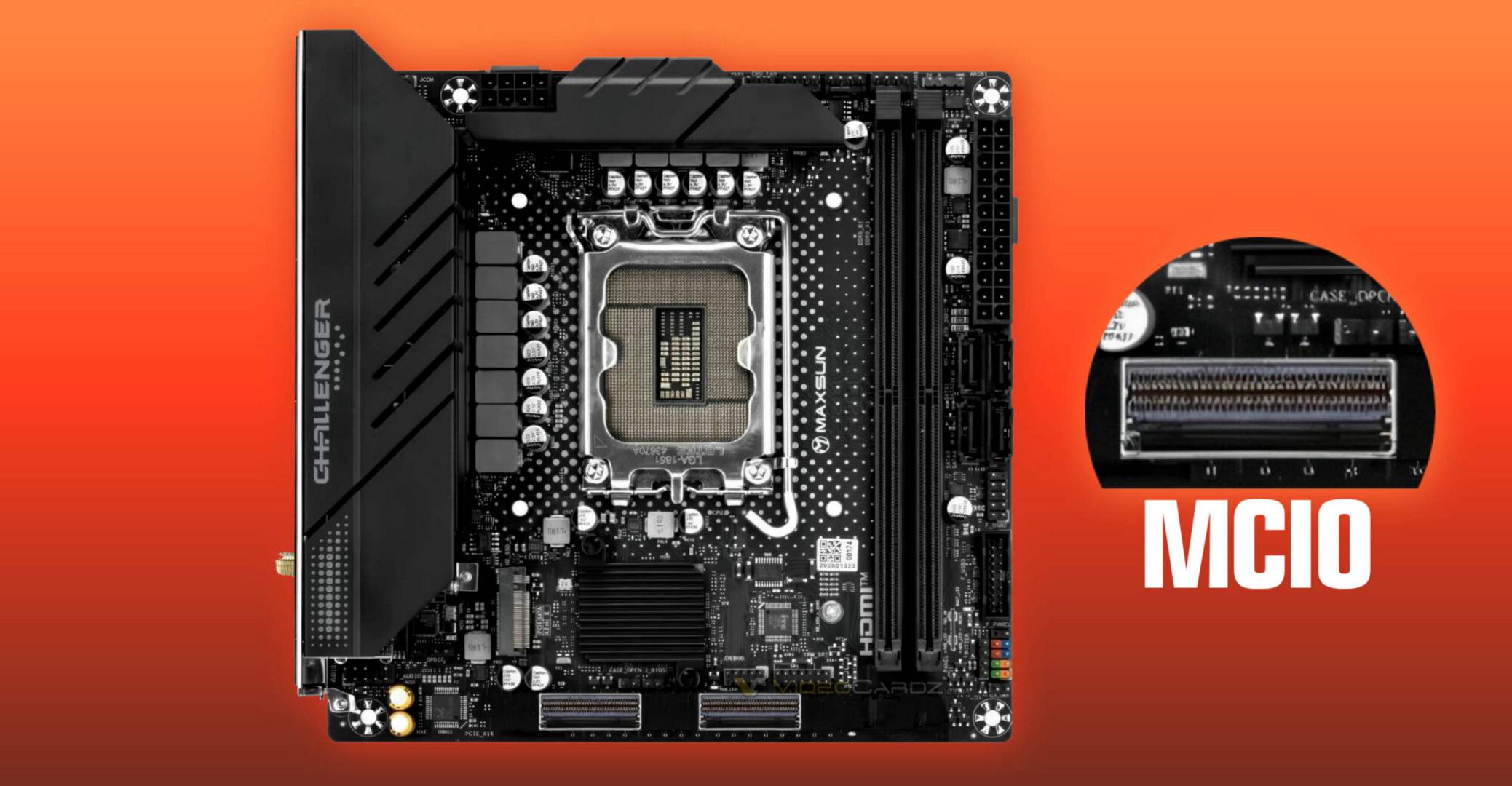

Where GMK leans on OCuLink at the system level, MaxSun is rewriting the motherboard itself. Its MS-Challenger MCIO ITX and MS-PC Farm B860I small-form-factor boards remove the traditional PCIe x16 slot and replace it with dual MCIO connectors that carry PCIe lanes over cables. MCIO (Mini Cool Edge I/O) is a compact connector system designed for high-speed signals like PCIe, SAS, and CXL, and can support up to x16 lanes and PCIe 6.0 speeds. On MaxSun’s Intel 800-series designs, the main x16 lane group can be split into x8 + x8 or x8 + x4 + x4, then routed via MCIO cables to risers, GPU mounts, storage cages, or external boxes. One board even relocates MCIO to the edge while keeping a small x4 or x1 slot. For mini PCs, MCIO connectors and cables free precious board space and allow airflow-friendly layouts without sacrificing bandwidth.
Thunderbolt 5 Expansion Chassis Bring Pro Workflows to Tiny Systems
Cable-based PCIe expansion is not limited to gaming GPUs. AJA Video Systems’ Io Xpand is a Thunderbolt 5 expansion chassis for full-height, half-length PCIe cards such as its KONA and Corvid video and audio I/O boards. According to AJA President Nick Rashby, “Io Xpand delivers a convenient, cost-efficient solution for harnessing our Desktop I/O capabilities with a smaller form factor workstation that travels easily.” Connected over Thunderbolt 5, 4, 3 or USB4 and supporting Windows, macOS and Linux, the enclosure provides up to 6000 MB/s of bi-directional PCIe bandwidth to the installed card, plus nearly silent operation and daisy‑chaining via a second Thunderbolt port. Thunderbolt 5 expansion like this shows how laptops and mini PCs can gain professional SDI, AES/EBU and machine-control interfaces without internal slots, using external chassis as modular, high-bandwidth accessories.
Why Cable-Based PCIe Expansion Matters for the Next Wave of Mini PCs
OCuLink, MCIO connectors in mini PCs, and Thunderbolt 5 expansion point to the same conclusion: high-performance computing is no longer tied to long internal slots. Cables can carry PCIe 4.0, 5.0 and even 6.0 signals to wherever space, cooling and noise constraints make most sense. For compact AI nodes like the Evo-X3, an OCuLink external GPU sidesteps internal GPU length and airflow limits. For boards such as MaxSun’s MCIO-based mini-ITX designs, cable-based PCIe expansion shrinks the motherboard footprint and opens up unconventional chassis layouts. And for creative workstations, Thunderbolt 5 expansion chassis such as AJA’s Io Xpand bring professional I/O to laptops and tiny desktops. Together, these mini PC connectivity standards allow small systems to compete with traditional workstations by hosting high-bandwidth GPUs, storage and video cards outside the box, without giving up PCIe bandwidth or flexibility.
