When Plastic Meets Rocket Fire
Turning a 3D printed rocket engine from a showpiece into working hardware pushes standard FDM plastics to their limit. Combustion chambers see scorching temperatures, rapid pressure changes, and intense thermal gradients that traditional hobby materials like PLA and PETG are not designed to survive. In early tests by makers such as Mr. More Gooder, FDM rocket engine prototypes failed dramatically: as soon as propane combustion began, inner walls softened, nozzles sagged, and molten plastic dripped away, destroying the chamber geometry within seconds. These quick failures, however, proved instructive. They revealed the true weak points of FDM designs—thin, uncooled walls directly exposed to hot gases—and highlighted why rocket engine cooling must be treated as a core design problem, not an afterthought. For hobbyists and students, the challenge is clear: create a thermal management additive manufacturing strategy that keeps low-cost printed engines intact long enough to generate meaningful thrust.
Water-Cooled Walls: A Maker’s Experimental Breakthrough

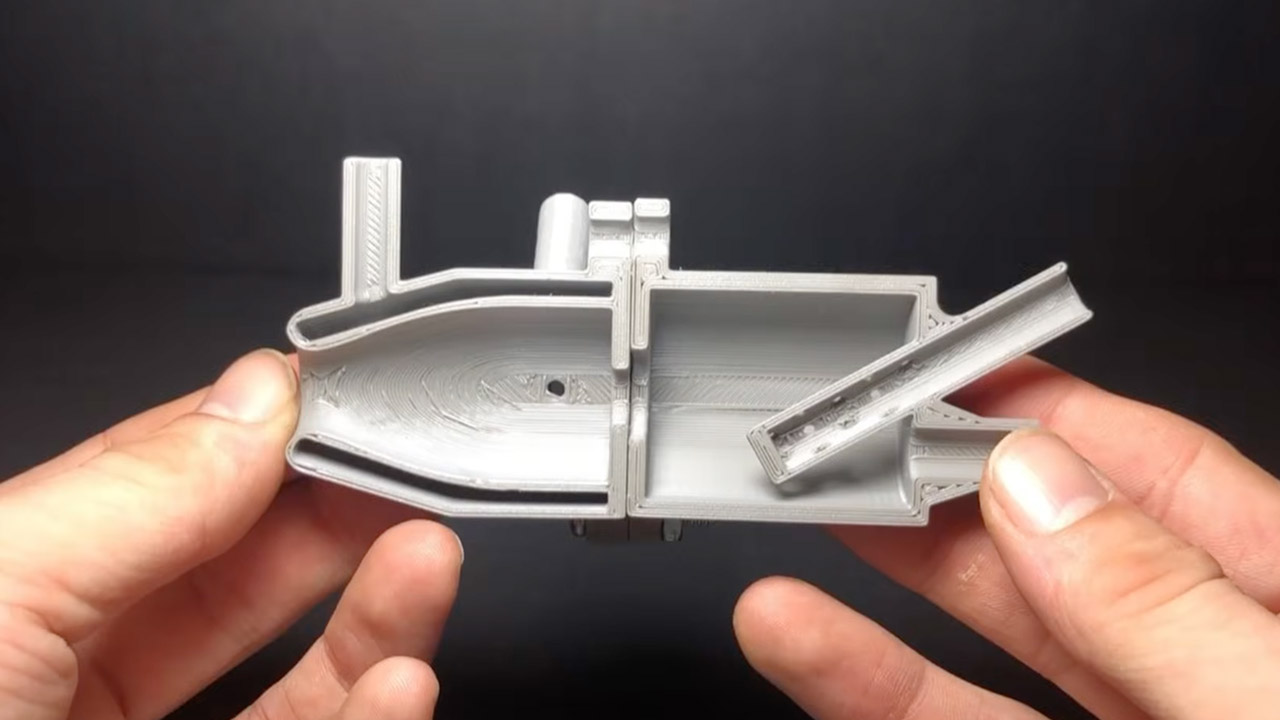

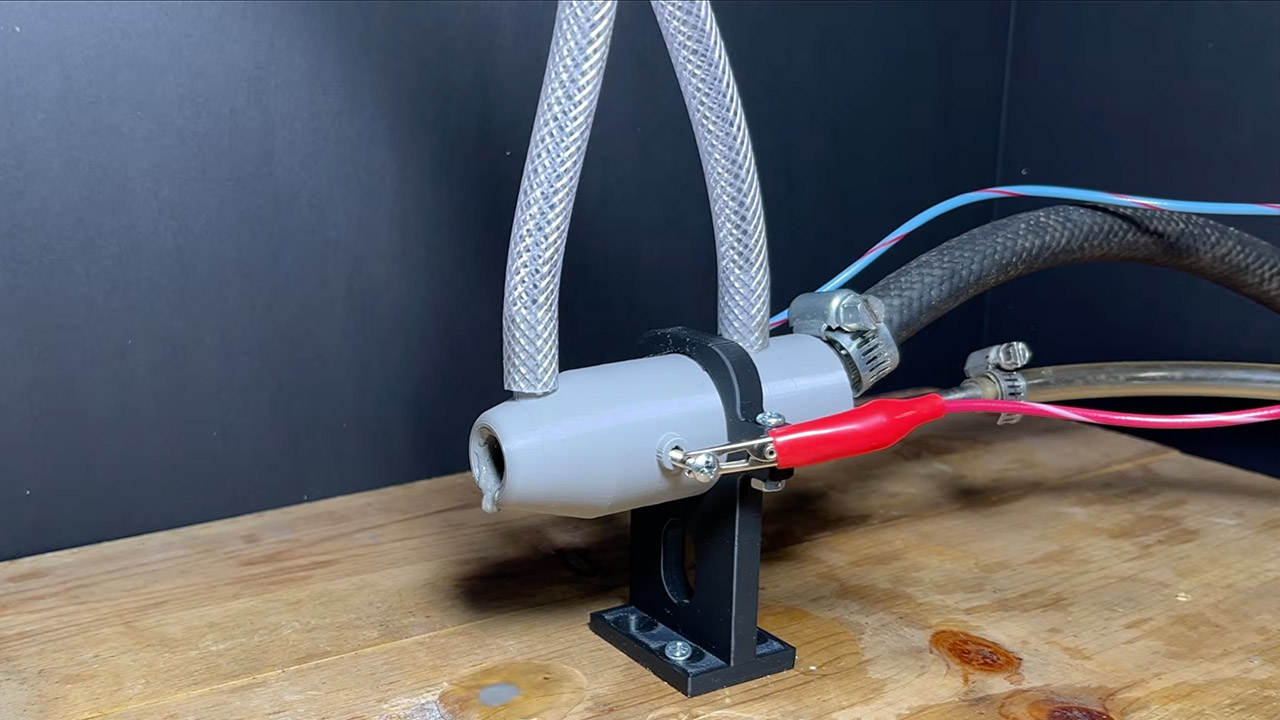

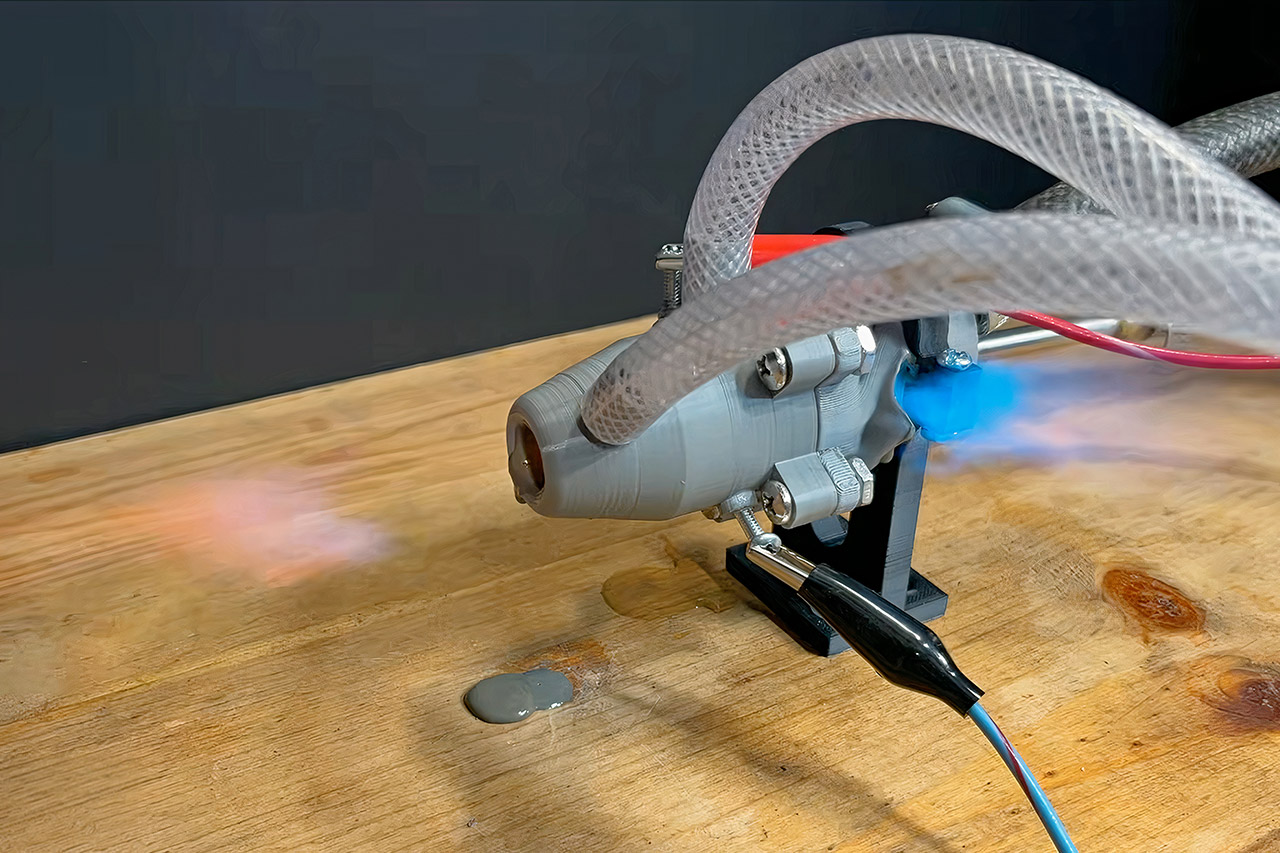

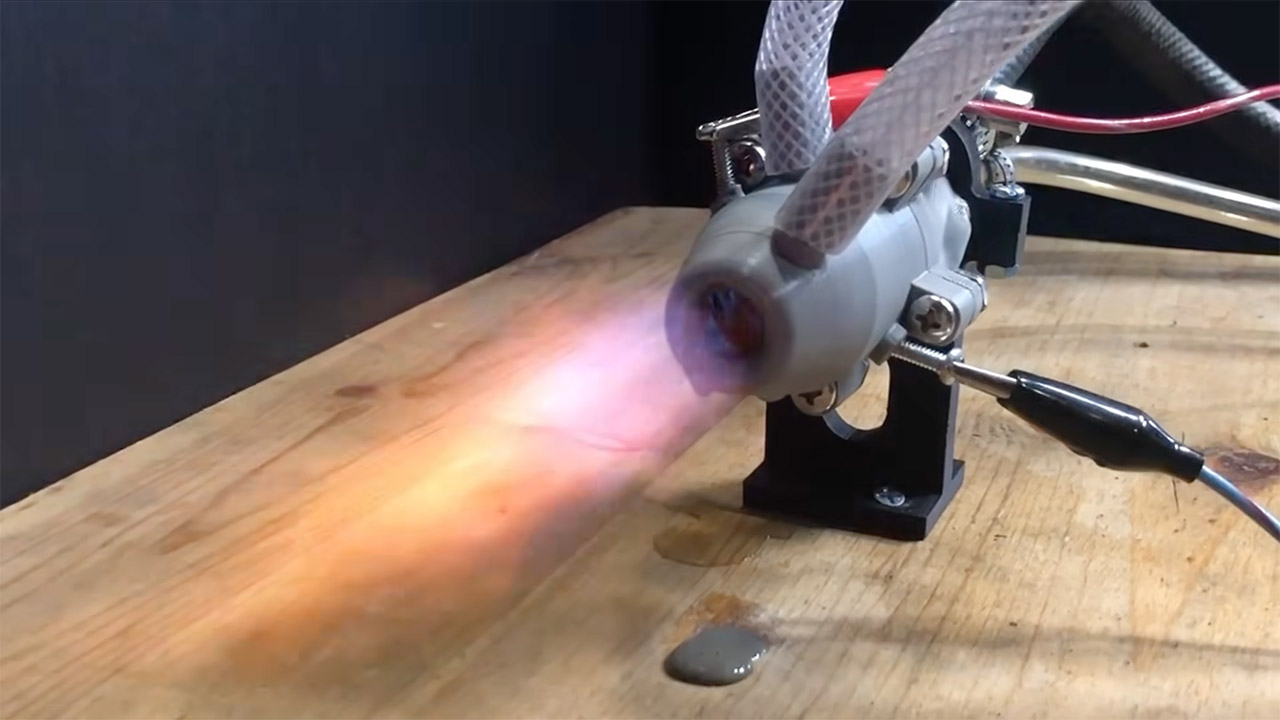

To move beyond melt-down tests, Mr. More Gooder reimagined his 3D printed rocket engine with water-cooling at its core. He adopted a double-wall construction, printing the combustion chamber and nozzle as a single piece with internal channels between inner and outer walls. During firing, a small pump circulates water through these channels, carrying heat away from the inner surface and slowing the temperature rise in the plastic. With this approach, flames stayed confined to the combustion chamber, thrust increased more steadily, and cooled sections remained structurally solid far longer than in uncooled designs. Yet the experiments also exposed subtle vulnerabilities: uncooled nozzle regions still sagged, and later tests revealed a small crack in the inner wall that allowed coolant to leak into the combustion flow, abruptly quenching the engine. The results show both the promise and fragility of printed water-cooled engines built on standard FDM printers.
Engineering Trade-Offs in FDM Rocket Engine Cooling
The water-cooled FDM rocket engine illustrates how complex rocket engine cooling becomes when working with plastic and consumer printers. A major constraint is material thermal conductivity: common FDM filaments do not transfer heat efficiently, so the inner surface must still approach its softening point before heat reaches the water channels. Thinning the walls would reduce this thermal bottleneck but at the cost of structural strength and pressure resistance. At the same time, expanding the coolant loop—larger tanks, more flow, bigger pumps—improves rocket engine cooling but adds significant mass and complexity, undermining any future flight potential. Makers must balance thicker walls for safety against the need for faster heat extraction, and weigh compact, lightweight cooling systems against robustness and leak prevention. These trade-offs are pushing hobbyists to think like professional propulsion engineers, using iterative design, careful sealing, and creative geometries to keep their 3D printed rocket engines alive.
From Hobby Benches to University Labs
While individual makers explore water channels and multi-wall FDM rocket engine designs, educational institutions are advancing thermal management additive manufacturing at a larger scale. University teams use metal and high-temperature polymer printing to integrate complex cooling networks directly into combustion chambers and nozzles, combining structural strength with efficient heat rejection. For students, these projects bridge theory and practice: they learn how coolant manifolds, wall thickness, and material selection interact under real combustion loads. Hobby experiments like Mr. More Gooder’s water-cooled engine serve as accessible, low-cost testbeds that mirror many of the same engineering questions—how to route coolant, prevent leaks, and keep walls below failure temperature. As these communities exchange ideas, techniques proven in home workshops can inspire simplified educational demonstrators, while academic research points makers toward smarter geometries and materials. Together, they are steadily expanding what is possible for a functional 3D printed rocket engine built on a desktop machine.
What’s Next for Desktop-Printed Rocket Engines
The next wave of 3D printed rocket engine experimentation will likely focus on smarter thermal management rather than sheer brute-force cooling. For FDM users, that means exploring higher-temperature filaments, composite materials, and wall designs that combine insulating layers with targeted water channels only where heat flux is highest. Some makers may adopt modular designs: a printed, water-cooled combustion chamber mated to a metal or ceramic nozzle, merging low-cost fabrication with durable, high-heat components. Others may experiment with alternative coolants, improved pump control, and real-time temperature monitoring to prevent cracks and leaks before catastrophic failure. Educational teams can build on these grassroots insights, translating them into structured design methodologies and lab exercises. As both hobbyists and students refine their rocket engine cooling strategies, the gap between experimental FDM rocket engines and more advanced additive manufacturing efforts will gradually narrow, turning today’s melting prototypes into tomorrow’s reliable, data-driven test platforms.
