Why DIY Pip-Boy Smartwatches Beat Simple Watch Faces
A custom Pip-Boy smartwatch is more than a themed watch face on an existing device. By rebuilding the hardware from scratch, makers like Huy Vector capture the chunky, retro-futuristic soul of Fallout’s iconic wrist computer. Instead of a flat image on an Apple Watch, you get a brass-and-copper frame, exposed screws, and a vivid green-on-black display that feels like it rolled straight out of a vault. Crucially, this is real wearable gaming tech: live vitals, responsive controls, and a game-accurate interface that you operate with deliberate touches rather than quick swipes. Licensed Fallout watch faces and decorative shells simply reskin mainstream devices, but a true custom Pip-Boy smartwatch rethinks the entire experience. If you’re a Fallout fan chasing authentic memorabilia that actually works, a DIY smartwatch build lets you create something unique, expressive, and far more immersive than commercial alternatives.
Core Electronics: Choosing the Brains, Screen, and Sensors
Start by selecting a compact but capable microcontroller as the heart of your custom Pip-Boy smartwatch. Vector’s build uses a Seeed Studio XIAO ESP32-S3 board, which squeezes a microcontroller, Bluetooth, and Wi-Fi into a tiny footprint that disappears beneath the display. Pair it with a 1.54-inch LCD to recreate the classic green-on-black interface; that size is large enough for readable stats without overwhelming your wrist. For health monitoring that rivals mainstream wearables, integrate a MAX30102 optical sensor on the back of the watch. It can track heart rate and blood oxygen levels in real time, giving your Fallout fan project practical value beyond aesthetics. Power everything with a small lithium-ion battery mounted discreetly inside the housing. Together, these off-the-shelf components give you a DIY smartwatch build that can handle live data tracking while leaving room for future upgrades like wireless connectivity or notifications.
Building the Brass-and-Copper Vault-Tec Frame

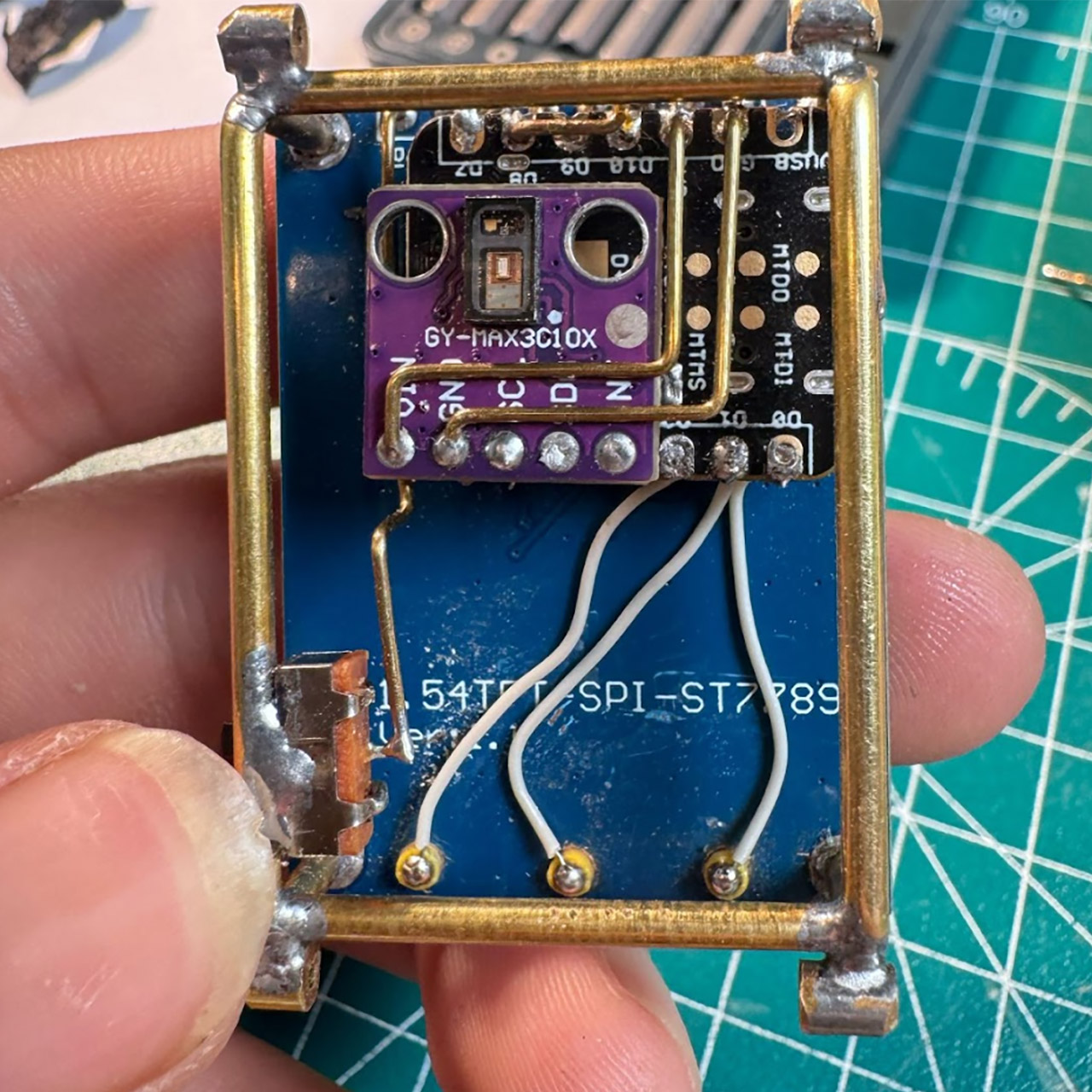

The housing is where your Pip-Boy-inspired smartwatch earns its retro-futuristic character. Vector’s approach uses 0.8 mm copper wire to form the core frame, reinforced with short lengths of brass tube that echo the industrial vibe of Fallout tech. M2 brass screws pull double duty: they physically hold the build together and serve as capacitive touch controls for navigation. Heat-shrink tubing around the bases of those screws prevents accidental touches, ensuring your interface doesn’t jump screens the moment you flex your wrist. A simple leather strap keeps everything wearable while letting the brass hardware take visual center stage. By bending, soldering, and polishing the copper and brass, you can tune the silhouette—bulkier for a bunker-built look, or slimmed down for everyday wear. This handcrafted housing is what turns generic electronics into a custom Pip-Boy smartwatch that looks convincingly vault-issued.
Programming the Green Pip-Boy Interface and Live Vitals

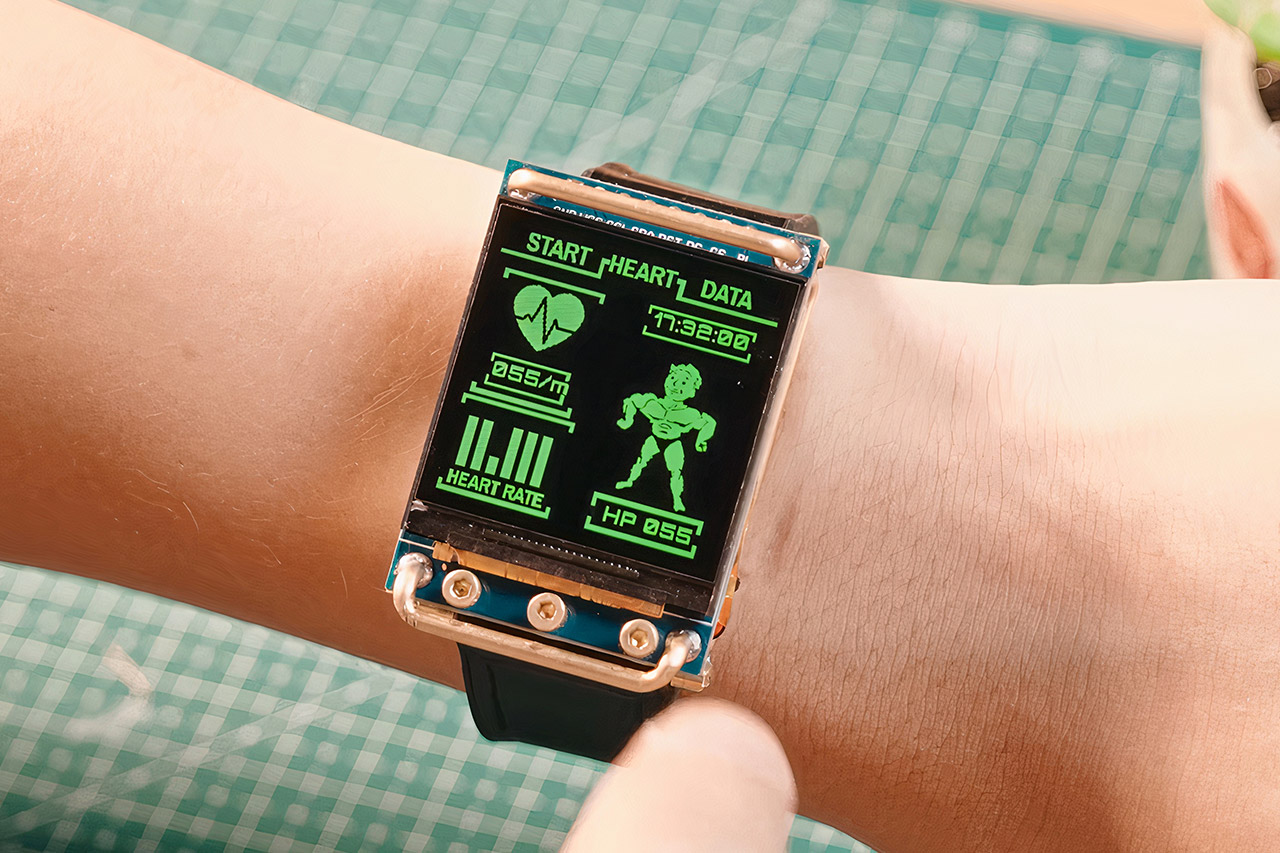

Once the hardware is assembled, the code brings your DIY smartwatch build to life. Vector’s firmware pulls data from the MAX30102 heart rate sensor and feeds it into a custom Pip-Boy-style interface. Using libraries such as Adafruit GFX for graphics and SparkFun’s MAX3010x tools for sensor readings, you can render crisp green text and icons against a black background, just like in-game. The ESP32 board is programmed over USB, letting you iterate quickly as you refine fonts, layouts, and animations. Brass screw touch points can be mapped to different screens, so a tap cycles between status, vitals, or settings. Live heart rate and SpO₂ readouts give the watch genuine utility, transforming it from cosplay prop into functional wearable gaming tech. Even without notifications enabled yet, the result feels more authentic and interactive than a static licensed Fallout watch face.
How DIY Pip-Boys Outperform Licensed Alternatives
Compared with official watch faces or decorative shells sold for mainstream wearables, a hand-built Pip-Boy smartwatch offers deeper customization and more authentic functionality. Licensed designs usually stop at graphics: you still swipe on a generic touchscreen, receive polished notifications, and live within a commercial app ecosystem. In contrast, a custom build lets you decide everything—from the exact hue of the green glow to how clunky or deliberate navigation feels. Vector’s project shows that you can match core smartwatch features like heart rate and blood oxygen monitoring while wrapping them in a brass frame that looks ripped from the wasteland. You also gain freedom to experiment: unused Bluetooth and Wi-Fi on the ESP32 leave room for future upgrades such as message alerts or game-inspired data. For longtime Fallout fans, this level of control turns a simple accessory into a personal, working piece of vault tech.
