From Simple File Servers to High-Bandwidth Compact NAS Boxes
Network-attached storage has traditionally been split between simple, entry-level boxes and bulky enterprise arrays with high-speed networking and expansion. That line is blurring quickly. A new wave of compact NAS box designs now combines 10GbE NAS storage, multi-bay NAS layouts and PCIe expansion NAS capabilities in chassis small enough to sit on a desk. Instead of relying solely on 1GbE or 2.5GbE, these systems integrate 10 Gigabit Ethernet and, in some cases, Thunderbolt NAS connectivity, enabling workstation-class bandwidth for creative teams and power users. At the same time, support for both 3.5-inch hard drives and M.2 SSDs inside a single compact enclosure allows tiered storage setups that used to require much larger racks. Together, these changes are pushing prosumer and small-business users toward architectures that look increasingly like scaled-down data center gear, but without the complexity or footprint.
ZimaCube 2 Pro: 10GbE, Thunderbolt and Dual PCIe in a Cube

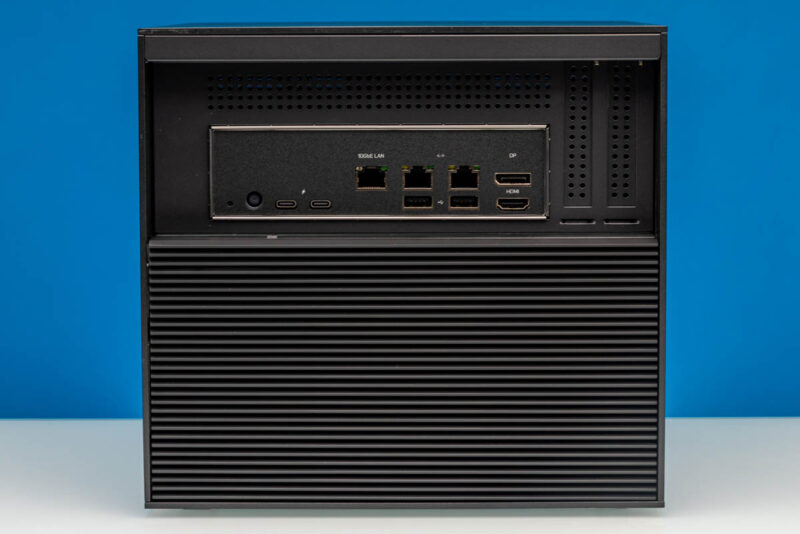

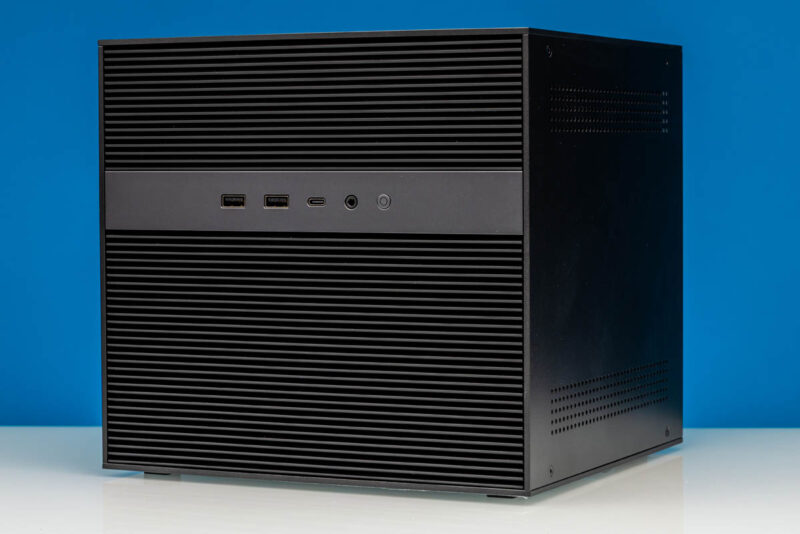

The ZimaCube 2 Pro exemplifies how far compact NAS design has evolved. Built around an Intel Core i5-1235U processor with Intel Iris Xe graphics, it combines six 3.5/2.5-inch SATA bays with a dedicated bay holding up to four PCIe Gen3 x4 M.2 SSDs, giving it ten data drives plus a separate PCIe Gen4 x4 system SSD. Despite its cube-style 240 x 221 x 220 mm form factor, it still offers two low-profile PCIe slots for add-in cards, turning this compact NAS box into a flexible PCIe expansion NAS platform. On the networking side, it pairs dual 2.5GbE ports with a Marvell-based 10GbE LAN port for high-speed 10GbE NAS storage, while two Thunderbolt 4 ports add 40Gbps external connectivity. This mix of internal expansion and external bandwidth allows the ZimaCube 2 Pro to act as both a traditional multi-bay NAS and a compact general-purpose server for media and virtualization.
AOOSTAR WTR MAX: 11-Drive Capacity and Affordable 10GbE

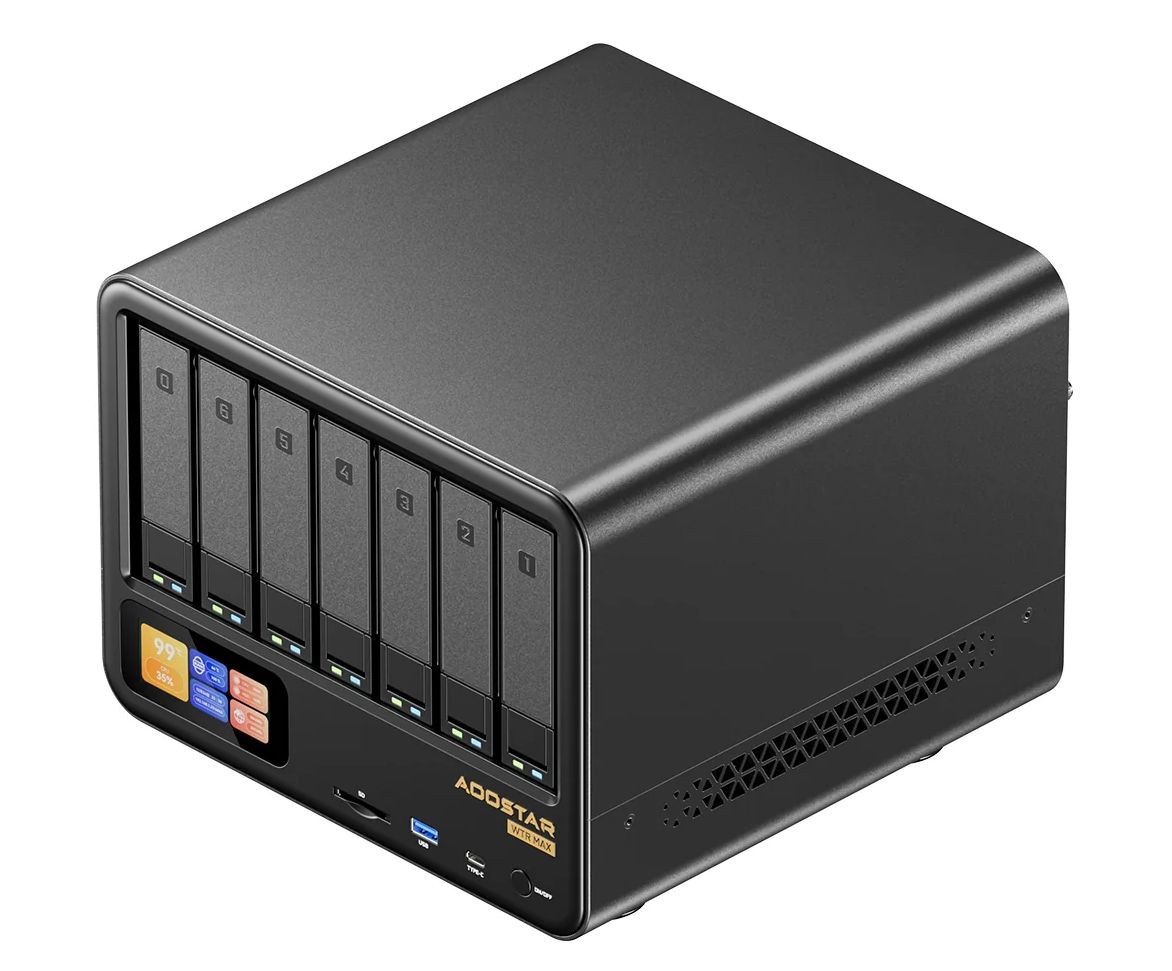

AOOSTAR’s WTR MAX extends these trends into the mid-range NAS space by emphasizing capacity and connectivity at a lower price tier. The new configuration with an Intel Core i5-1235U processor supports up to six 3.5-inch SATA hard drives plus five M.2 2280 SSDs, creating an 11-disk multi-bay NAS in a relatively compact chassis. While its CPU is a mid-range mobile chip, the platform focuses on I/O: two 10 Gigabit LAN ports, two 2.5GbE ports, USB4, and an OCuLink connector provide multiple pathways for high-speed data movement. Five M.2 slots running over PCIe 3.0 give ample room for SSD caching or all-flash pools, even if they are not as fast as PCIe 4.0 in the AMD-based variant. By combining generous drive support, 10GbE NAS storage capabilities, and modern USB4 connectivity, the Intel WTR MAX makes prosumer-grade performance accessible to users who do not need top-end CPU power.
Prosumer NAS Now Shares DNA with Enterprise Storage
Taken together, devices like the ZimaCube 2 Pro and AOOSTAR WTR MAX show how prosumer NAS is adopting features once reserved for enterprise arrays. Both pair dense drive configurations with multiple high-speed network interfaces, allowing sustained multi-gigabit transfers over 10GbE NAS storage links. The inclusion of Thunderbolt and USB4 effectively transforms them into hybrid Thunderbolt NAS or direct-attached storage appliances for creative workflows. Perhaps most significant is the move to real PCIe expansion inside compact NAS box designs: users can add networking, accelerators or additional storage controllers without replacing the chassis. This brings a level of future-proofing rarely seen in traditional consumer NAS. As more vendors follow this model, small studios, home labs and growing businesses can deploy multi-bay NAS systems that evolve over time, narrowing the gap between entry-level NAS and full-scale storage servers in both capability and flexibility.
