What Budget Backup Internet Is (and Why You Need It)
Budget backup internet is a mix of low-cost tools and DIY tweaks that keep your home network usable during outages by warning you when the connection fails, powering your WiFi gear from small batteries, and falling back to a mobile hotspot when your ISP goes down.
If your work, streaming, or smart home depends on a single ISP, you are one cut cable away from a wasted day. The idea here is not to build a data center in your living room, but to add a few cheap layers of home network resilience so you can finish a call, upload a file, or keep security cameras online when things go wrong. All three options—an ESP-based internet-outage alarm, a mini UPS for router backup power, and a spare phone as mobile hotspot failover—are DIY-friendly and use hardware many people already own or can build in an afternoon.
Build a DIY ESP Internet-Outage Alarm

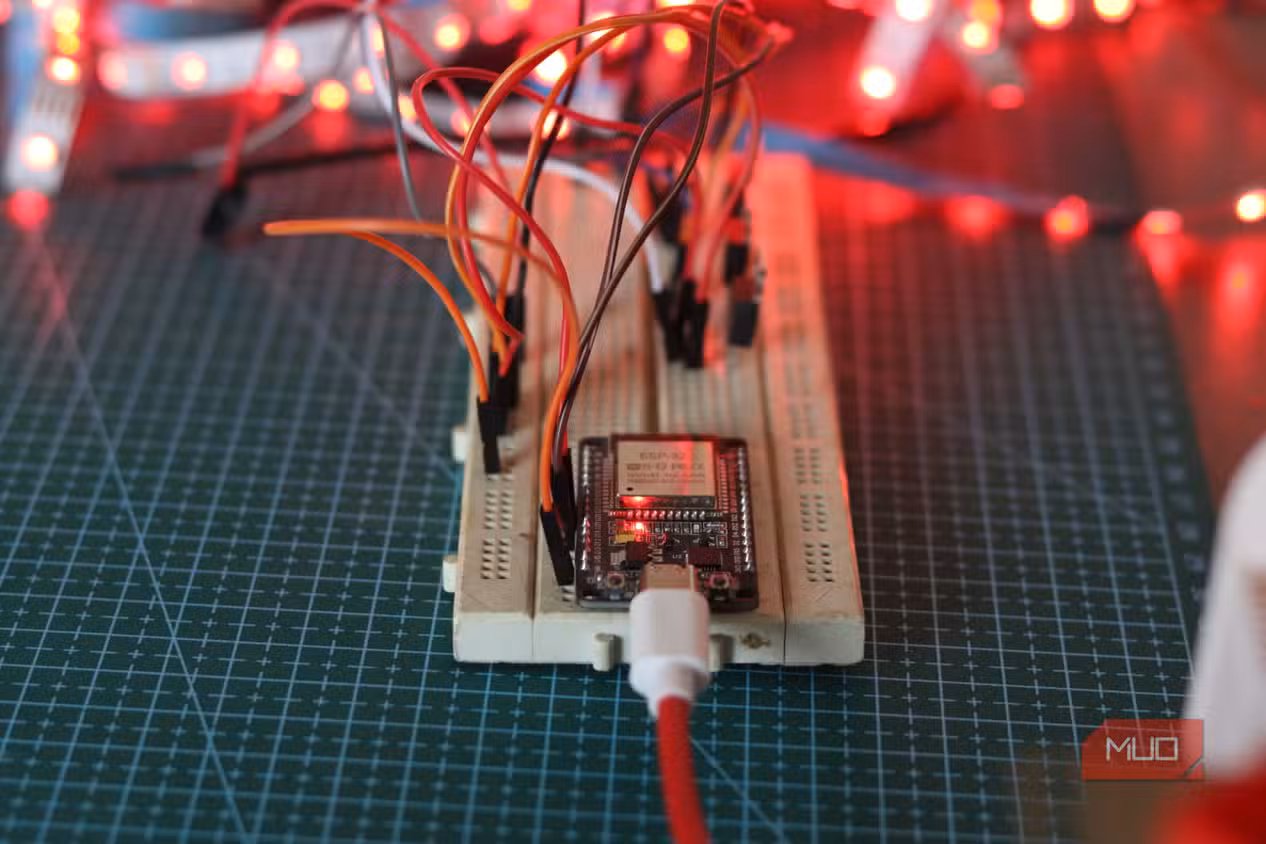

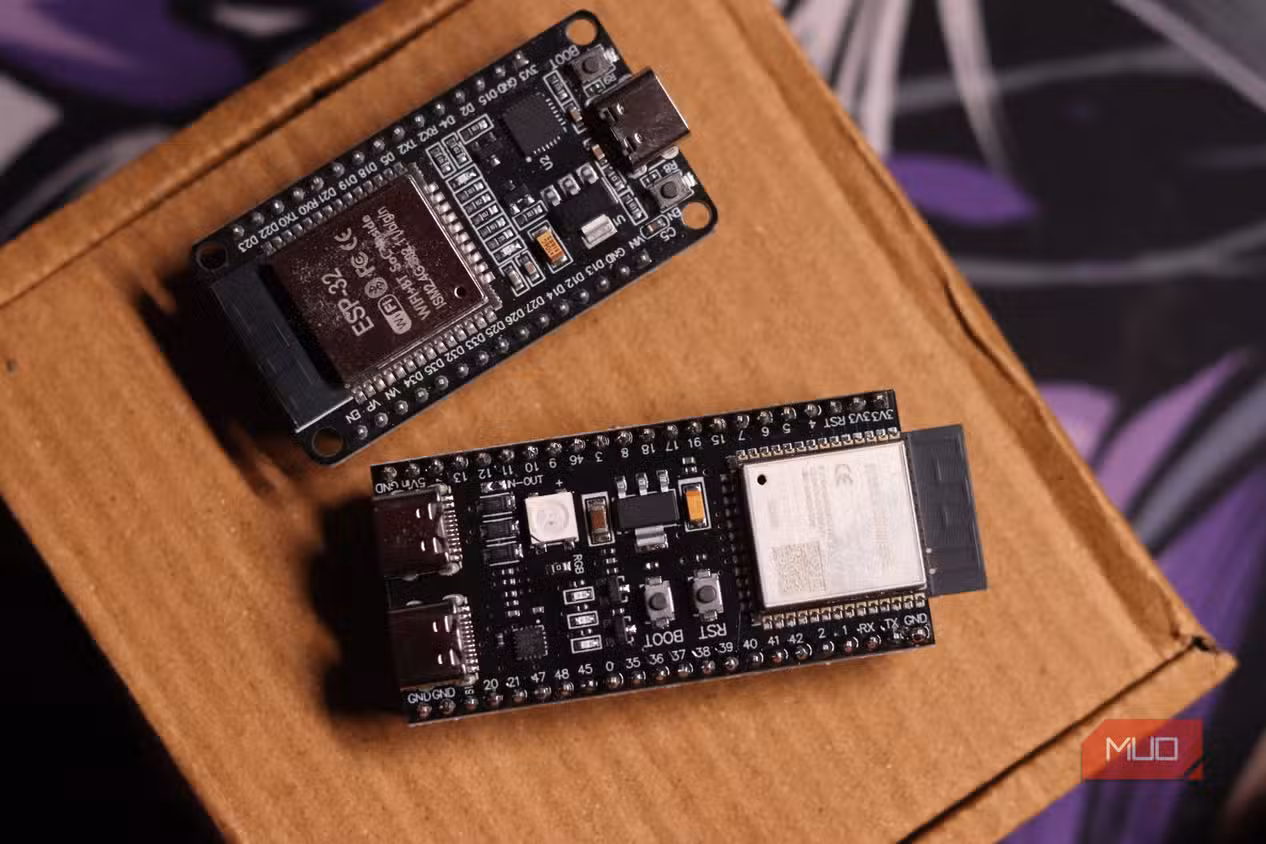

An internet outage backup alert is the first layer: it tells you the moment your connection dies so you stop blaming the wrong thing and start fixing the real problem. One ESP32 board, a few MOSFETs, and an LED strip are enough to make your wall “shout” in color whenever your WAN drops. No cloud, no subscription, and no guessing whether it is you or your ISP when everything freezes.

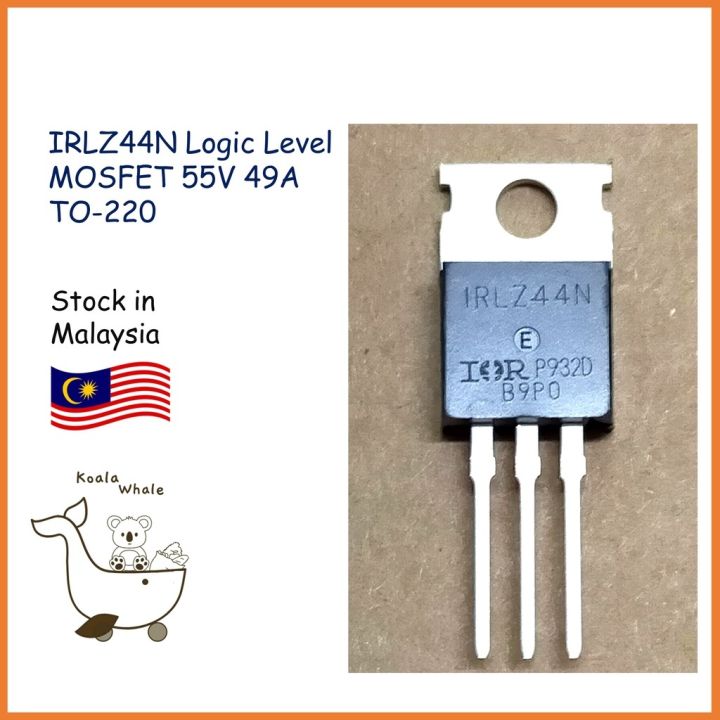

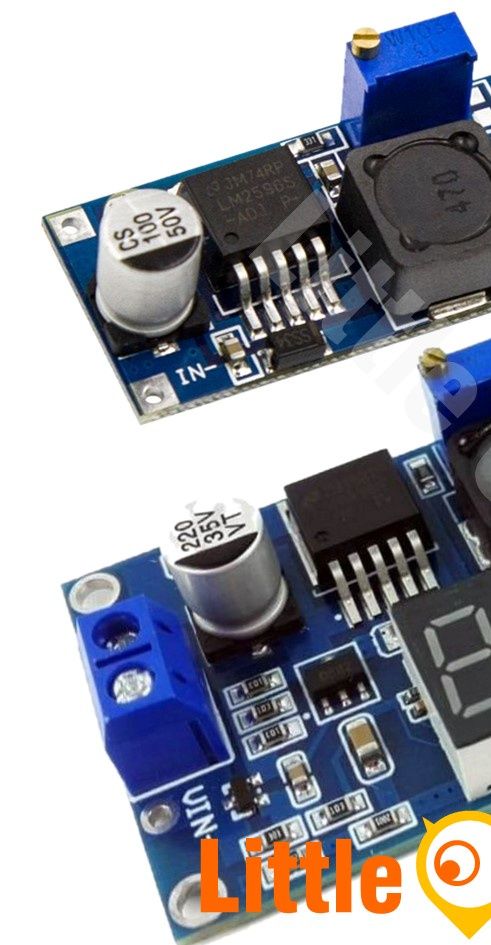

- Wire the hardware: connect the IRLZ44N MOSFET drain pins to the LED strip’s color channels, connect all source pins to a common ground rail shared with the ESP32, connect each gate pin to a PWM-capable GPIO on the ESP32, and add an LM2596 buck converter so the ESP32 can run from the same 12V supply as the LED strip.
- Flash the ESP32 with ESPHome and expose the LED strip as a controllable light; ESPHome uses YAML and a graphical interface to turn the board into a smart home device without complex coding.
- In your home automation system, enable the built-in internet connectivity checker so it exposes a WAN status binary sensor that tracks whether your external connection is up or down.
- Create an automation that triggers on the WAN status sensor changing from Connected to Disconnected, Unavailable, or Unknown, and set the action to flash the LED strip in a bright warning color so the outage is impossible to miss.
The main gotcha is configuration: if you drive an RGB strip with color and color-temperature controls at the same time, you can see odd behavior, so use settings such as color_interlock: true to stop the system from sending conflicting commands to an RGB-only strip. When the setup works, the payoff is huge: “when my internet dies, my wall quite literally screams about it in bright red,” and you know instantly whether the issue is inside your home or with the ISP.
Keep Your Router Alive with a Mini UPS
Once you can see outages, the next move is WiFi backup power. A small UPS for router and modem keeps them running through short power cuts so your connection survives the flicker that shuts everything else down. Most people focus on big appliances, but the weak link is often those two tiny boxes on your shelf.
A mini UPS like the CHINTE 10400mAh battery backup is sold for router and modem use at USD 41.99 (approx. RM196), and coupons can reduce that to USD 39.89 (approx. RM186). It provides DC outputs at 12V, 9V, and 5V, plus USB, USB-C, and PoE for compatible devices, which means it can also power some security cameras, IP phones, LED lights, and other small electronics during an outage. The key catch: this is not a generator, so expect it to cover short interruptions and blips, not all-night blackouts. Used correctly, “it’s a cheap way to protect your home network and a proactive way to buy backup power before the storm has already knocked everything offline”.
Turn an Old Phone into Mobile Hotspot Failover
Power is one thing; your ISP going dark is another. For that, a spare phone makes a surprisingly good mobile hotspot failover. As long as the phone supports tethering and has a cellular data plan, you can park it next to your router so it is ready the moment your primary connection fails. In a pinch, using the phone in your pocket is often the fastest way to get online again.
Start with a basic hotspot: enable it under Settings (Hotspot & tethering on Android or Personal Hotspot on iPhone), note the network name and password, and connect your PC or laptop like any other WiFi network. That was enough to get work going again when the main line was down, although lag and disconnects can be noticeable and large downloads or gaming may be off the table. For a cleaner setup, you can plug the phone into a compatible router, enable USB tethering, and let the router treat the phone’s cellular link as its internet source, sharing it with all your devices as a wireless WAN.
There are two big gotchas. First, not every router understands smartphone USB tethering, even if it has a USB port, so you need to check for features like USB WAN or mobile tethering in its settings. Second, some carriers cap hotspot data or slow it after a limit, so this is best as temporary backup internet, not your main connection. Still, an old phone dedicated to this job means you are not draining the battery on your primary phone while your network rides out the outage.
Putting It Together (and What to Watch For)
On their own, each of these ideas fixes a specific headache; together, they turn a flaky connection into something you can live with. The ESP-based internet outage backup alarm tells you when the WAN dies and keeps home automations firing even when the internet does not. The mini UPS for router and modem keeps your WiFi up during quick power cuts so your smart TVs, streaming boxes, and security devices stay online. And the hotspot-ready phone gives you a backup path when the ISP issues are out of your hands, even with cellular quirks and limits.
The real caveats are simple: be careful with ESP LED configurations to avoid odd color behavior, confirm your router supports the USB tethering features you expect, and remember that small UPS units are meant for short outages, not full-blown disasters. If you are willing to spend an afternoon wiring, configuring, and testing, you gain a cheap, no-subscription safety net that keeps your home network useful when everyone else in the neighborhood is staring at a loading spinner.
