The S3 Virge ‘pedestal bit’ bug and why blacks looked grey
Fans of vintage PC graphics have long noticed that many S3 Virge, Trio and early Savage cards never show true black. Instead, dark scenes look like charcoal, giving DOS and Windows 9x games a washed‑out, hazy appearance. This was no accident. S3 deliberately raised black levels in the VBIOS so that output would not appear too dark on old CRT televisions, especially those built around NTSC standards. The so‑called pedestal bit shifted digital level 0 up to a higher value, effectively baking a brightness lift into every frame from the moment the PC boots. On a mediocre TV in the 1990s this avoided crushed shadows, but on a good VGA monitor or modern LCD it ruins contrast. The result: decades of S3‑based systems where the background is never truly black, even on clean, freshly restored retro PCs.
How one S3 Virge VBIOS mod finally fixes washed‑out blacks

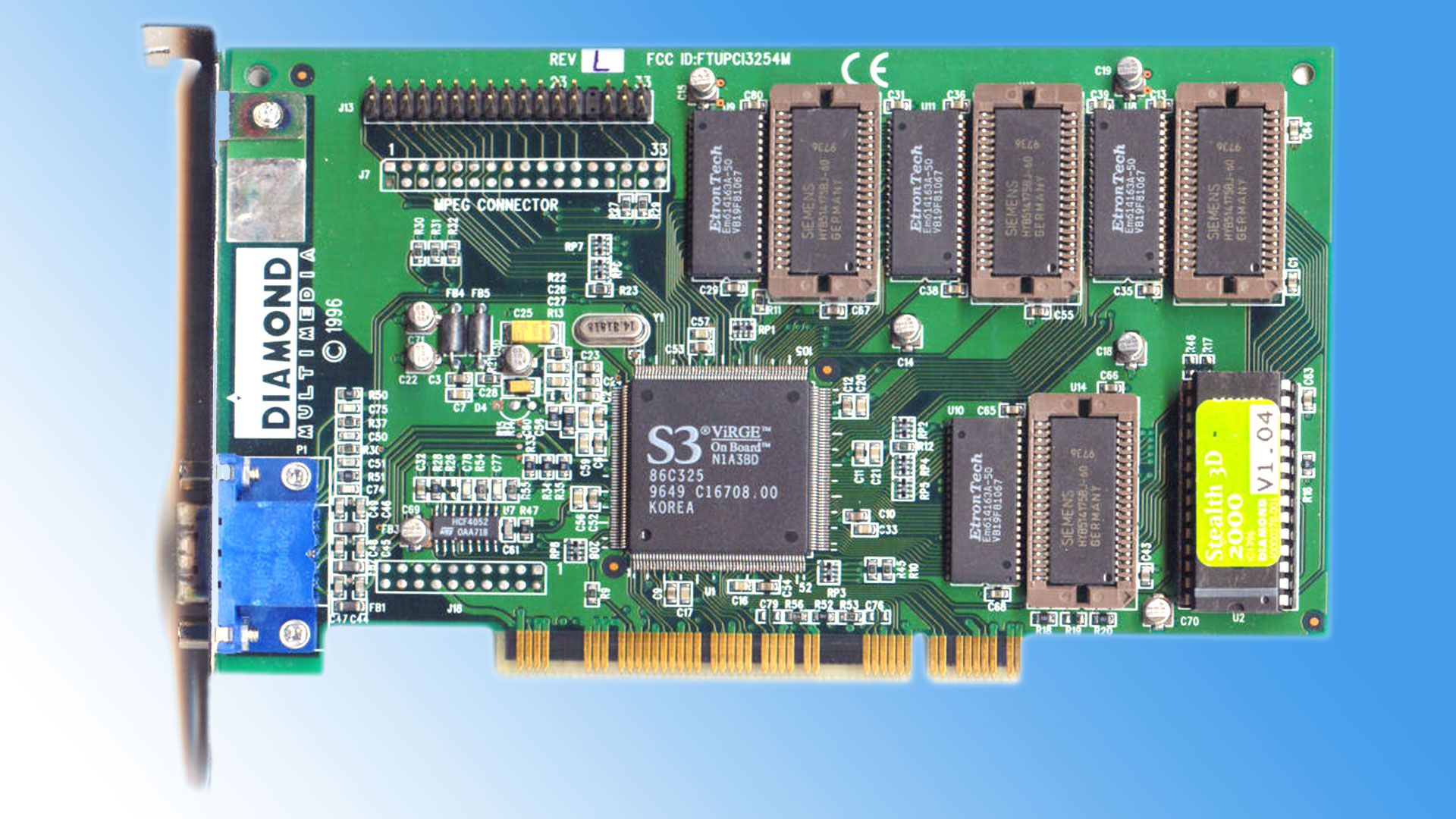

In a detailed investigation, YouTuber Bits und Bolts tackled the S3 Virge DX’s pedestal bit and produced a repeatable S3 Virge VBIOS mod to fix washed out blacks. Using a debugger, he probed the card’s registers and eventually targeted the 3C4h index 1Ah register. Zeroing this value darkened the background instantly, confirming that one of its eight bits controlled the pedestal. After narrowing it down, he dumped the Virge VBIOS with NSSI and opened it in Hiew to search for the relevant code pattern. Inside the firmware, a single hexadecimal field that had originally been 3F in behaviour was effectively changed to a lower value (identified as 1F during verification) by editing a corresponding hex entry from 20 to 00. He then recalculated and updated the VBIOS checksum in DOS and a Windows tool so the card would accept the modified ROM, and on first boot the desktop background appeared as a deep, convincing black.
What VBIOS actually does – and why flashing it is risky
For newcomers, VBIOS is the small firmware chip on a graphics card that configures how the GPU behaves at power‑on. It sets default clocks, memory timings, output modes and special flags like the S3 pedestal bit long before any driver loads. That means a single misconfigured byte can affect color levels, compatibility with CRTs and LCDs, or even whether a system posts at all. Modders edit VBIOS using hex editors and assembly tools, then flash the modified image back to the EEPROM. Done right, this can restore correct black levels, fix compatibility bugs or unlock hidden options. Done wrong, it can brick a card or cause unstable video output. That is why any VBIOS flashing guide stresses backing up the original ROM, checking checksums and testing changes incrementally. It is powerful, low‑level control, but it leaves very little room for mistakes.
Retro GPU hacking and Malaysia’s vintage PC revival
Stories like the S3 Virge pedestal fix highlight why retro GPU hacking is thriving alongside Malaysia’s growing retro‑PC scene. Collectors building period‑correct DOS and Windows 9x rigs want their machines to look and behave like they did in the 1990s, yet many now connect those systems to modern LCDs or upscalers rather than NTSC televisions. A tweak that can fix washed out blacks on an S3 Virge or Trio card is therefore a big deal: it makes original hardware more usable with today’s displays while preserving authentic colour and contrast. Enthusiasts running emulation front‑ends, CRT shaders or capture setups also benefit, because the source signal is finally clean. From Klang Valley flea‑market finds to online auctions, Malaysian tinkerers are discovering that careful VBIOS work can extend the life of vintage PC graphics, keeping beloved GPUs relevant in an era dominated by AI frame generation and ultra‑high‑refresh panels.
Safe VBIOS flashing tips and links to modern GPU tuning
Anyone tempted to repeat this S3 Virge VBIOS mod should approach it like surgery. Always dump and archive the original ROM first, ideally using both software tools like NSSI and a hardware EEPROM programmer so you can recover from a bad flash. Practice on a spare card rather than your rarest vintage board, and verify checksums after every edit so the card does not reject the firmware as corrupt. Lean on community forums and documentation to confirm register addresses and known good images. These habits carry over to today’s GPUs, where dual‑BIOS switches, custom fan curves and undervolting tools give similar low‑level control without needing soldering irons. Modern vendors are even adding features like multi‑frame generation via software updates. Whether you are fixing an old pedestal bit or tuning a current card, the same principles apply: understand the firmware, change one thing at a time, and always keep a path back.
