What NAS physical setup means and why it matters
A NAS physical setup is the combination of case design, cooling, cables, power delivery, and placement in your home or office that together determine how stable, cool, and protected your storage system is over time. Treating these as minor details is a mistake: poor NAS cooling setup raises drive temperatures, cheap USB cables can corrupt data, and bad data backup location choices can wipe out every copy in a single incident. RAID reliability depends not only on software and disks but on how the whole machine is built and where it lives. Thinking about airflow, cable quality, and physical separation of backups turns an average NAS into a dependable one and can prevent the kind of silent failures that only show up when you try to restore data and discover it is already gone.
Upgrade your NAS case: cooling, airflow, and drive health
A NAS case upgrade can be as impactful as swapping CPUs or adding RAM because it decides how well your drives stay cooled and how far you can grow. In a cramped mid‑tower, drives often sit behind a PSU shroud with almost no airflow, which leads to higher temperatures and stress. One home lab builder moved an array of 7200 RPM enterprise drives from a consumer chassis into a server‑oriented case with front‑mounted bays and dual 140mm intake fans, and drive temperatures fell from readings over 55–60 degrees down to 41 degrees in the proper storage configuration. Lower, stable temperatures extend drive lifespan and make RAID rebuilds less risky. When choosing a case, prioritize direct airflow across all bays, room for future disks, and easy access for cleaning filters and replacing fans. These changes directly support RAID reliability and reduce surprise disk failures.
USB cable quality, risky accessories, and power delivery

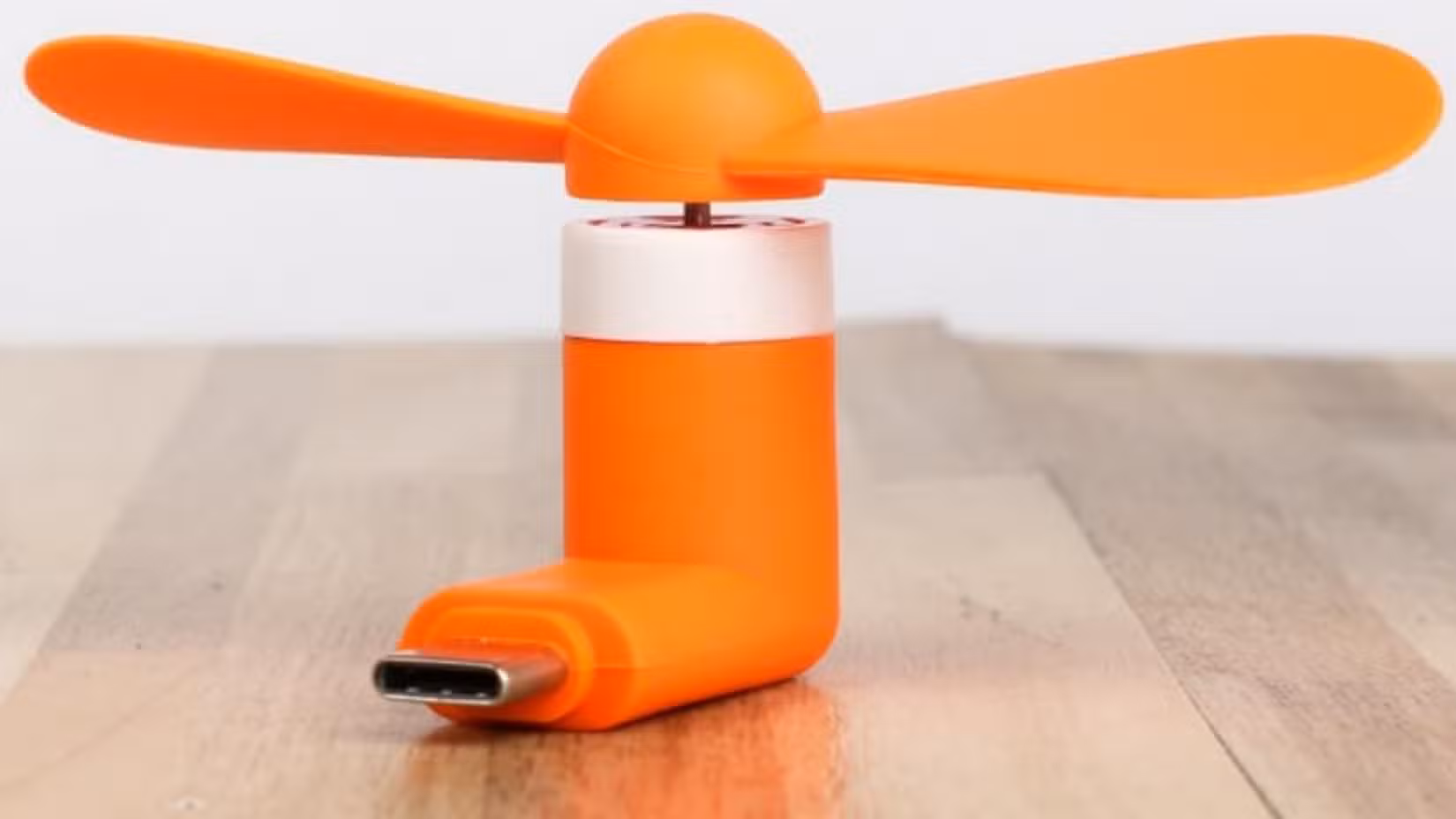

Those free USB ports on your NAS do not mean every USB device is a good idea. USB cable quality and accessory choice affect both power delivery and port health. Low‑quality cables can drop voltage under load, causing drives in USB enclosures to disconnect mid‑transfer, which risks data corruption and degraded RAID arrays. Avoid hanging USB‑powered fans directly off the NAS. Their constant vibration and torque are transmitted straight into the USB connector and solder joints, which can loosen or kill the port over months or years, while offering negligible cooling compared to a proper NAS cooling setup with internal fans and case airflow. Also, do not plug in unknown USB drives; beyond malware, there are devices designed to send dangerous voltage surges. Use short, well‑made cables from known brands, and connect high‑draw devices through powered hubs instead of relying on NAS ports alone.
Room placement, off‑site backups, and the 3‑2‑1 rule
RAID reliability and snapshots help only if the machine itself survives. If your NAS, backup drive, and secondary server all sit in the same room, a single incident can remove everything. One self‑hoster discovered that “three copies of your data mean nothing if they can all be taken out at the same time” after a minor flood scare. The classic 3‑2‑1 rule says: keep three copies of your data, on two types of media, with one copy off‑site. RAID does not count as a backup, and snapshots stored on the same pool will vanish with it in a fire, leak, break‑in, or ransomware attack. Improve your data backup location strategy by separating at least one copy: another building, a trusted friend’s NAS, or cloud storage. Local copies give convenience; off‑site copies give you a way back after a disaster.
Cable management and power: preventing silent NAS failures
Cable management is not only about a tidy rack. Poorly routed SATA, power, and USB cables can strain connectors, restrict airflow, and create intermittent faults that slowly erode RAID reliability. Tangled cables draped over fans warm up the case and raise drive temperatures, while loose power connectors can cause drives to disappear under vibration, leading to unexpected array rebuilds or degraded states. Plan clear airflow paths from intake to exhaust and keep data and power cables tied back from fan blades and heatsinks. Use a reliable power strip or UPS sized for your NAS and any attached enclosures so brownouts do not cause mid‑write interruptions. Label external USB and network cables and avoid daisy‑chaining unpowered hubs. Together with a solid NAS case upgrade, these habits reduce silent errors and help ensure that when you need your backups, they will be consistent and complete.
