Why Tiny CubeSats Struggle to Speak Up
CubeSats are ultra-compact, boxy satellites built from Lego-like units just 10 cm on a side. Their low cost and standardised frames have turned them into workhorses for scientific experiments, technology demos and Earth‑observation projects. But one piece of hardware stubbornly refuses to shrink: the antenna. To send back images, sensor readings or internet data, satellites need what engineers call high-gain antennas—hardware that can concentrate radio energy into a tight beam. High gain is like swapping a bare light bulb for a powerful flashlight: you can illuminate a distant target with the same battery. Traditional high-gain dishes, however, are far too big and heavy for a small satellite bus. As a result, many CubeSat communications links are slow, short‑range or both, capping mission ambition even as every other subsystem gets smarter and more capable.
Inside the Origami-Inspired Foldable Reflectarray

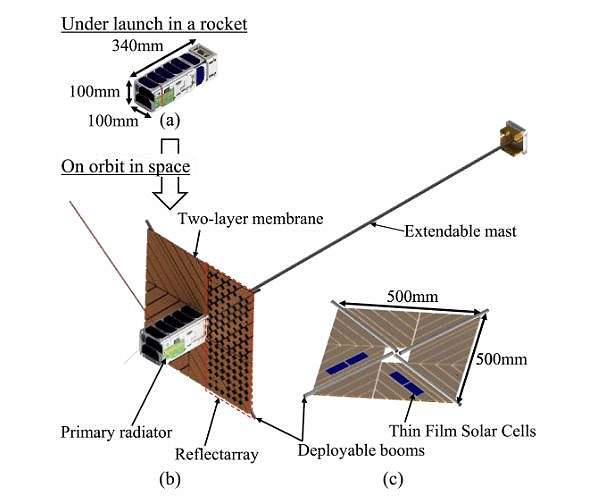

Researchers at the Institute of Science Tokyo have tackled this bottleneck with an origami antenna design tailored for 3U CubeSats such as OrigamiSat‑2, which measures 10 cm × 10 cm × 34 cm and targets 5.8 GHz CubeSat communications. Their foldable reflectarray weighs just 64 grams yet fits into a 10 cm × 10 cm × 6 cm volume during launch. In orbit, it deploys to about 2.6 times its stowed footprint, achieving a storage ratio of 265 percent. The system combines a primary radiator that generates the radio signal with a thin reflectarray surface that shapes and strengthens the beam. Built from a flexible two‑layer membrane of conductive and dielectric textiles, with tiny U‑shaped flexible circuit elements sewn in, the surface precisely controls how radio waves bounce off, forming a focused, directive beam comparable to much larger rigid antennas.
How a Flasher Fold Turns Textiles into Space Hardware
The heart of this small satellite tech is a folding pattern familiar to paper‑folding enthusiasts: the flasher. In paper, a flasher origami model compresses a broad disk into a tight, puck‑like bundle that springs open into a wide surface. The Science Tokyo team uses the same idea with technical textiles. The reflectarray membrane is creased along radial and circular fold lines so it can concertina inward like a collapsing fan. Shape‑memory booms act like a sophisticated pop‑up book spine: once released in orbit, they recover their pre‑programmed shape and pull the membrane out into its full, flat configuration. Because the folds are repetitive and symmetric, the structure is modular and scalable—add more panels and lines, and the same deployment choreography works for larger apertures without complex hinges, motors or heavy support frames.
What High-Gain Really Buys for CubeSat Communications
In practice, high gain means a CubeSat can push more bits per second through its radio link or talk over greater distances without cranking up transmitter power. The origami engineering behind this foldable reflectarray creates a much larger effective aperture than the satellite’s own face, concentrating radio energy into a narrow beam rather than spraying it in all directions. The antenna’s beam‑tilting primary radiator also helps avoid parts of the spacecraft blocking the signal, while the reflectarray elements convert linearly polarised waves into circular polarisation that ground stations commonly use. Measurements in anechoic chambers show performance comparable to much bulkier reflectors operating at similar frequencies. For tiny spacecraft that cannot afford large reaction wheels or gimbals, the ability to steer beams electronically instead of moving the entire structure is another crucial gain.
From Student Missions to Swarms of Smart, Foldable Spacecraft
Because the foldable reflectarray integrates into standard 3U CubeSat envelopes and deployer interfaces, it can be slotted into future missions with minimal redesign. That opens the door for student‑built spacecraft to return richer imagery and science data, and for commercial operators to explore space‑based internet or disaster‑monitoring services using swarms of small satellites. As origami engineering matures, we can expect families of modular, membrane‑based antennas tuned to different frequency bands, all sharing similar flasher‑style deployment schemes. Beyond antennas, the same design logic—flat, lightweight sheets that unfold into large functional surfaces—could extend to solar arrays, thermal shields or even drag sails. The broader lesson is clear: by borrowing ideas from paper folding, engineers are finding elegant ways to sidestep the volume limits that once kept CubeSat ambitions firmly close to home.
