Why Your Beautiful Case Is Cooking Your GPU
GPU cooling optimization in tempered-glass gaming PCs means reshaping airflow around the graphics card so it can pull cool air freely, avoid static pressure traps, and maintain sustained boost clocks without buying new cooling hardware or exotic mods, while still keeping a clean-looking build with reasonable noise levels.
If your expensive GPU pins itself in the 80s, fans screaming, while your case looks like a showroom build, the problem is probably the case, not the cooler. Modern triple‑slot cards pressed against a tempered glass side panel create a high‑pressure choke where the fans sit mere millimeters from a solid wall, so they spin loudly without moving much air over the fin stack. In 90% of standard PC configurations that use a vertical GPU mount for looks, this microscopic boundary layer around the glass destroys thermal efficiency. Meanwhile, many builders chase elaborate cooling tricks, from custom loops to wild experiments that combine PCs with household appliances, while ignoring the basic PC case thermal design that sets the ceiling for every cooler they install.
How Tempered Glass and Vertical Mounts Trap Heat
A vertical GPU mount flat against tempered glass seems premium, but in most mid‑towers it is an architectural error masquerading as a luxury feature. The glass wall forms an aerodynamic bottleneck, so instead of breathing open case air, the fans recirculate a thin, stagnant layer right in front of the panel. The face of the GPU intake fans ends up a few millimeters from this wall, creating an intense low‑pressure vacuum that starves the card of fresh intake air and spikes noise. When you hammer a heavy game at 4K, the result is thermal throttling and falling boost clocks even on high‑end cards. One of the most telling tests is to pull the tempered glass side panel while the GPU is under a looped load: if the core temperature drops by 5 to 12 degrees within 60 seconds, you have an airflow bottleneck caused by the panel.
There are a few honest exceptions. Slim water blocks or hybrid GPU coolers move the main heat load to radiators, so they are less sensitive to clearance near the glass. Some recessed or offset vertical brackets slide the card inward by 2–3 inches toward the motherboard, giving fans space to work in lower pressure air and restoring proper circulation. But those cases are the minority. For most air‑cooled, triple‑slot cards, a flush vertical mount against tempered glass is a thermal dead zone even if every other part of the build looks perfect.
Step-by-Step: Reclaim GPU Temps With Simple Case Tweaks
Before you throw money at new coolers, the most effective GPU cooling optimization is to fix how air reaches the card. We will walk through a single ordered sequence that helps you prove the problem, revert bad case decisions, and recover headroom using hardware you already have.
- Log a horizontal baseline: Mount your GPU in the primary motherboard slot horizontally, then run a 30‑minute loop of a demanding benchmark or game, and record steady‑state core temperature, hotspot delta, and sustained boost clocks.
- Install or confirm the vertical mount: Power down, unplug, and install your vertical PCIe riser bracket. Make sure the riser cable is fully seated, not kinked, and without visible stress points along its trace lines.
- Repeat the load test vertically: With the GPU vertical and the tempered glass panel installed, rerun the same 30‑minute test and watch how quickly the core hits its thermal ceiling and how much frequency and voltage the card sheds under boost limits.
- Remove the glass panel mid‑loop: While the vertical test is running, carefully slide off the tempered glass side. If your core temperature drops by 5–12°C within about a minute, you have confirmed aerodynamic starvation from the tempered glass cooling impact.
- Reposition the GPU: If your case supports it, revert to the horizontal mount in the top PCIe slot, or move to a recessed vertical bracket that slides the GPU 2–3 inches toward the motherboard to give the fans open breathing room.
- Improve case ventilation: With the GPU now in a better position, review intake and exhaust fan placement so the card sees a clear path for cool air rather than recirculated hot air around the glass panel.
These steps matter because they show, with numbers, where your performance goes. If the panel‑off test alone drops temperatures by several degrees and restores sustained clocks, you know the problem is PC case thermal design, not a faulty GPU cooler. "If your core temperature drops by 5 to 12 degrees within 60 seconds, your vertical mount is a definitive aerodynamic bottleneck that is starving your hardware of air".
Why Case Fixes Beat Exotic Cooling Experiments

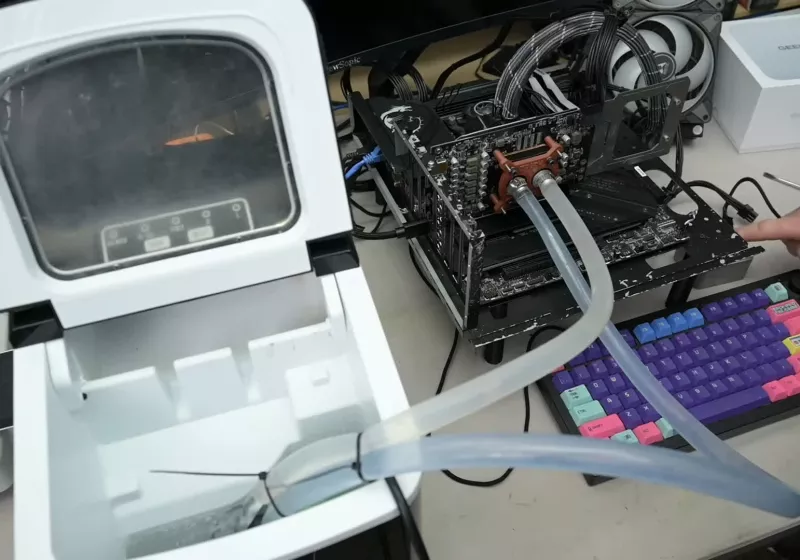

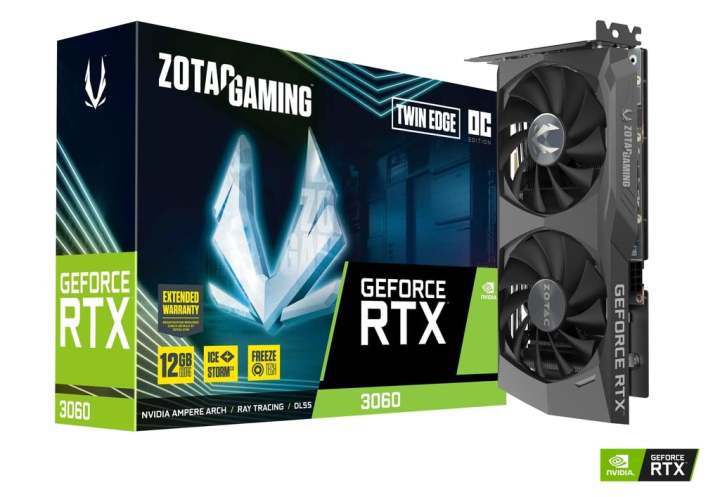

When a GPU runs hot, the temptation is to chase extreme fixes instead of correcting airflow. One modder removed the stock cooler from an RTX 3060, fitted a liquid‑cooling setup, placed a pump inside a countertop ice machine, and filled it with water to build a chilled GPU loop. The first run, effectively a bucket of water plus radiator, pulled temperatures down to around 44°C but could not stabilize because the card heated the water faster than the system could shed that heat. The answer was to bypass the ice maker’s normal cycling with an external thermostat so the compressor ran continuously, and submerge the evaporator using a small bucket inside the machine. Once the condensation issue was handled, the RTX 3060 stayed around 22–23°C in Cyberpunk 2077 after 15–20 minutes, cutting core temperature from about 60°C and dropping hotspot from roughly 75°C to 34°C.
Those are spectacular numbers, but that kind of setup combines a live PC, water, and a household refrigerator‑style appliance, and the experiment had to be stopped at one point because condensation covered everything. It is also the definition of solving the wrong problem for most people: if your case forces fans to suck through a microscopic boundary layer against tempered glass in the first place, you are paying for thermal headroom you will never see in normal use. Meanwhile, even if a vertical riser works electrically, it can threaten PCIe signal integrity and force a drop to lower link modes, causing extra stutter unrelated to heat. In short, fix the airflow before you build something you would hesitate to run unattended in your home.
Takeaway: Put Performance Ahead of Tempered-Glass Aesthetics
A clean glass case with a vertical GPU looks great on a desk, but it can turn into a glass‑fronted oven. By pressing a triple‑slot card against tempered glass, you create a static pressure trap that many builders do not notice until they see throttling, fan noise, and sagging frame rates. The good news is that simple repositioning—moving back to the primary horizontal slot or using a recessed bracket—and paying attention to how front intake air reaches the GPU can reclaim double‑digit degrees of temperature headroom without buying new coolers. Realistically, a beautiful setup means less if it compromises raw, sustained performance. Stop letting aesthetic build trends dictate your thermal health, and treat vertical GPU mounts as a tool you use only when your case and cooling plan support them, not as a default badge of a “high‑end” PC.
