Why Start a Gravel Bike Build from a Budget MTB Frame?

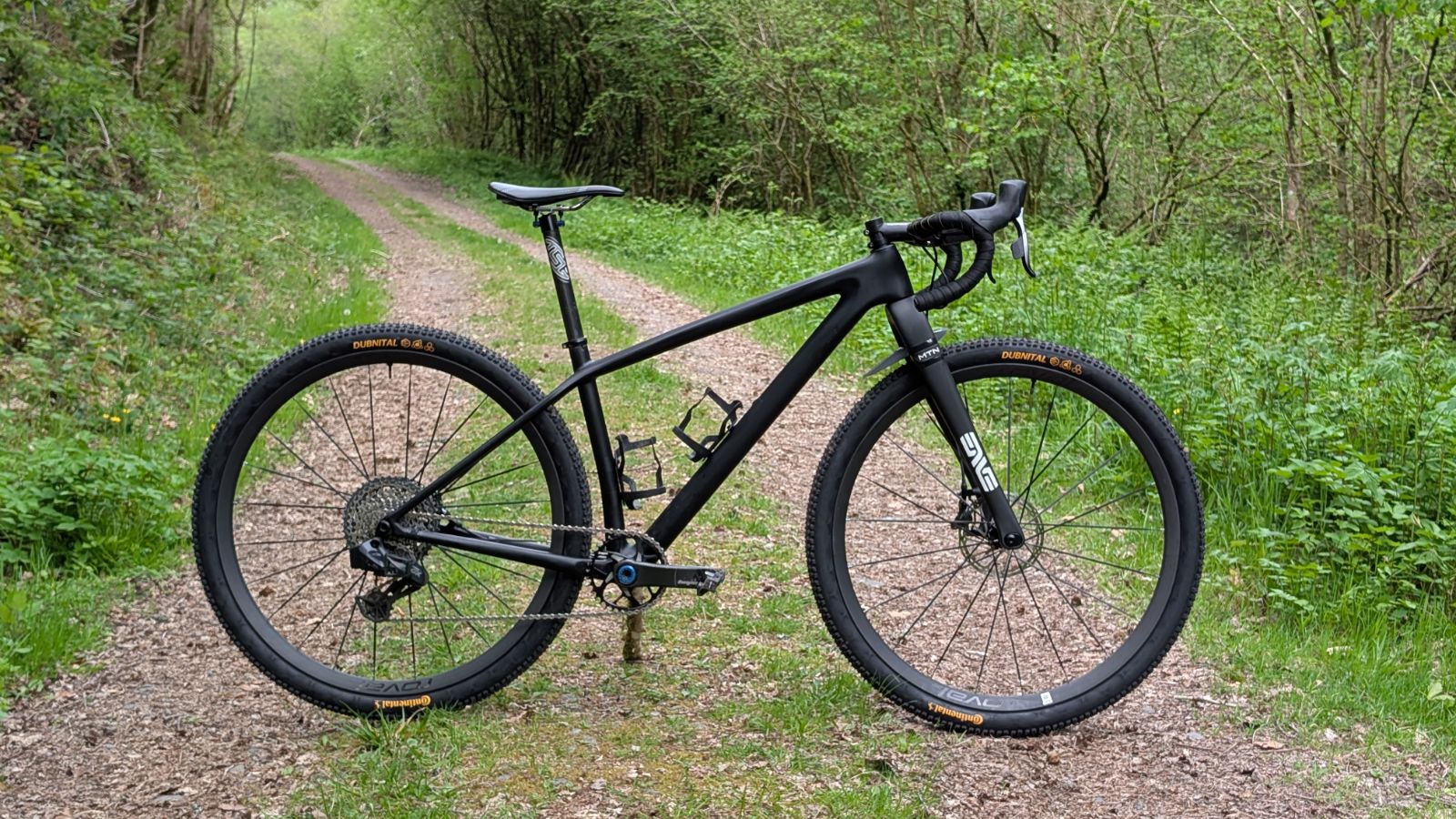

Modern gravel bike build trends are drifting closer to cross-country hardtails: wider tyres, slacker front ends and longer wheelbases. At the same time, complete bikes are getting more expensive, pushing many riders toward a DIY bike conversion using a budget bike frame from online sellers. A lightweight carbon XC frame can look very tempting, especially when it comes with a rigid fork and seatpost, and on the scales it may even rival high-end gravel frames. However, what works for flat bars and short stems does not automatically translate to a slick MTB frame gravel setup with drop bars. You must think beyond weight and paint. Geometry, tyre clearance, and component standards can make or break the project. The goal isn’t just to bolt parts together, but to end up with a bike that actually rides like a capable gravel machine rather than a compromised hybrid.
Frame Geometry, Fork Height and the Ride Position

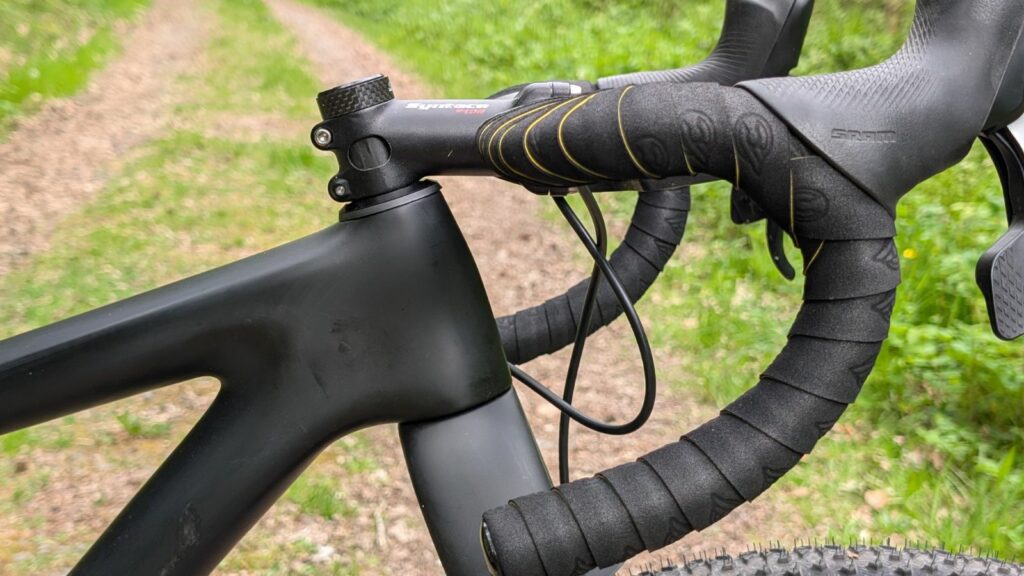

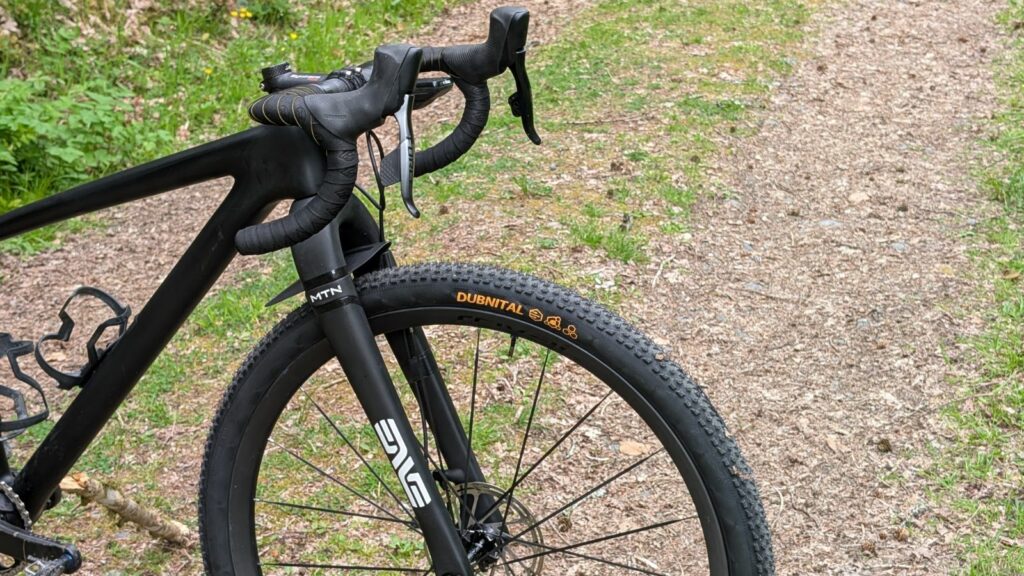

MTB frames are designed around tall suspension forks, and that shapes everything about the final gravel bike build. The reference frame used a geometry based on a 506 mm axle-to-crown fork, typical for a 100 mm suspension unit. Swapping to a shorter rigid fork—down to 485 mm and then 470 mm—steepened the head and seat angles, lengthened reach and dropped the bottom bracket. On paper, those numbers suggest quicker handling, but the real-world result was a front end that still felt tall and slightly sluggish in tight corners. Even with a slammed negative-rise stem, the rider needed to lean the bike further to make it turn like a dedicated gravel frame. When planning an MTB frame gravel conversion, check fork length carefully and run your geometry through an online calculator. Small changes in fork height can transform fit, confidence and cornering, for better or worse.
Tire Clearance, Chainrings and Drivetrain Compromises

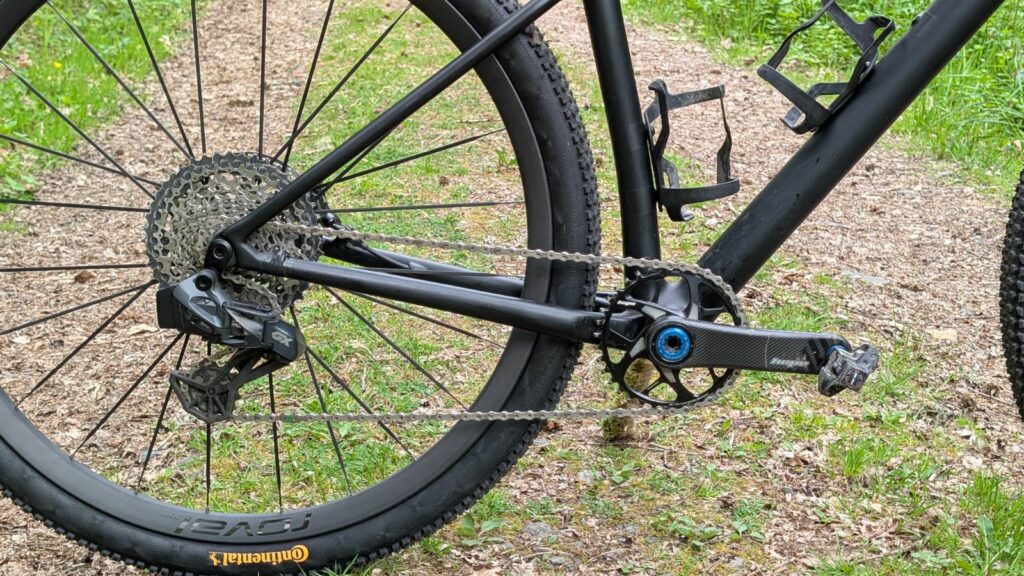

Gravel racing increasingly expects wide tyres and big chainrings, but an XC-based budget bike frame can impose strict limits. A typical gravel setup uses at least a 38-tooth chainring, with some race-focused bikes pushing to 44-tooth. The test build’s 73 mm bottom bracket shell locked it into a mountain bike crankset, and frame clearance capped the chainring at 36-tooth. Paired with a 10-tooth smallest sprocket, that was just about adequate, but still a compromise for faster events. More exotic cassettes with a nine-tooth cog could help, yet they add cost and complexity. The wider Q-factor of MTB cranks also changes pedalling feel compared with many gravel-specific options. For a successful DIY bike conversion, measure chainring and chainstay clearance before ordering parts, and decide whether you can live with a smaller top gear in exchange for the durability and value of a budget MTB frame.
Component Compatibility: Axles, Brakes and Shifters
Mixing gravel and MTB parts exposes how messy cycling standards really are. The reference frame and fork used post-mount brake fittings, while most modern gravel groupsets assume flat-mount calipers. Adapters didn’t always work as promised, forcing a switch to older post-mount road calipers sourced second-hand. Matching brake fluid type between levers and calipers is crucial—mixing DOT and mineral oil systems is not an option. Axle spacing adds another layer: boost frames and non-boost wheels can be combined with spacers, and some forks accept reducers to run 12 mm gravel hubs in 15 mm MTB dropouts. Gearing and pull ratios are another minefield. One practical solution is a wireless system that officially supports both road and MTB derailleurs, simplifying mixing and matching. Before buying anything, map out axle widths, rotor mounts, brake standards and drivetrain compatibility to avoid an expensive pile of mismatched parts.
Fit, Frame Space and When a DIY Conversion Makes Sense

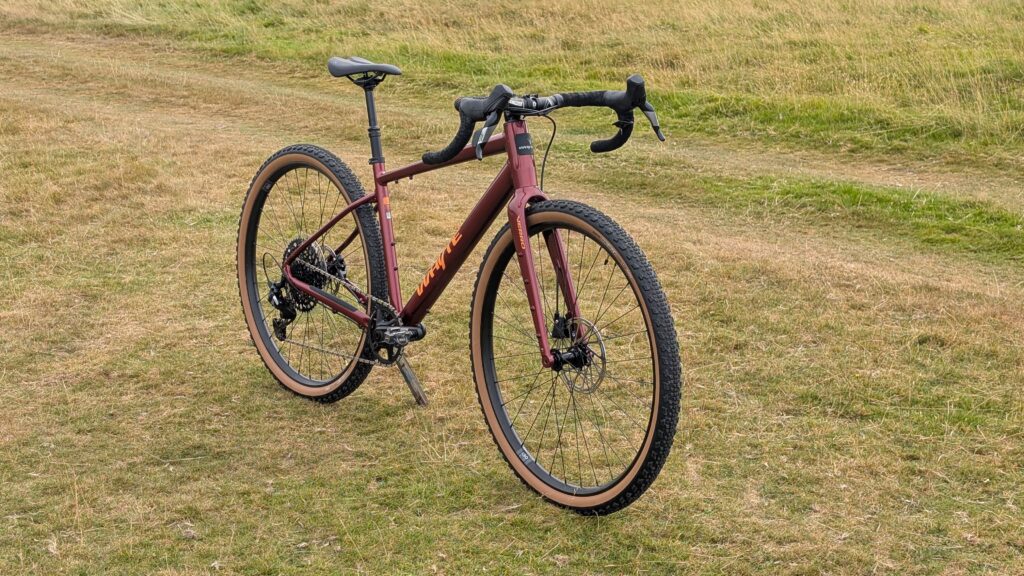

Even if you solve the mechanical puzzles, the rider fit and practicality can still fall short of a purpose-built gravel bike. MTB frames are stretched for wide flat bars and short stems, so a size that looks right on paper may feel too long with drop bars. Many riders will need to size down, which further reduces internal triangle space for bottles and frame bags. For bikepacking or long events, that smaller frame space can be a real limitation compared with a dedicated gravel frameset. Small finishing parts—brake adapters, hoses, axle spacers—also cause “price creep”, eroding the initial savings of a cheap frame. A budget MTB frame gravel project works best for tinkerers who enjoy problem solving and already have a cache of compatible components. If you value plug-and-play simplicity and dialled handling, an off-the-peg gravel bike may still be the more satisfying option.
