Why a PC Fan Controller Can Outperform a New Case
A PC fan controller is a small hub that centralizes power and control for multiple case fans, enabling precise speed tuning and airflow optimization that often improves PC cooling performance more than replacing the case itself. Many builders blame a “hotbox” chassis when their system roars under light workloads, but the culprit is frequently poor thermal management rather than bad hardware. Modern motherboards may offer only a few system fan headers, forcing users into splitter cables and uneven control. Meanwhile, default fan curves react to rapid CPU temperature spikes, making fans surge to maximum then fall silent seconds later. Instead of gutting a system for a PC case upgrade, a budget controller can reorganize intake and exhaust behavior, reduce noise, and protect motherboard headers from electrical overload, all while keeping temperatures under control.
The $15 Fix: How Fan Hubs Transform Thermal Management
One compact magnetic PWM hub at around USD 15 (approx. RM70) can rewire how a PC “breathes” without touching the case layout. According to XDA-Developers, a passive PWM hub takes clean 12V power from a SATA or Molex cable and feeds it to several case fans, while a single data line reports RPM and receives control from the motherboard. This separates power from control, removes heavy electrical load from fragile motherboard fan headers, and syncs up to eight or ten fans to the same speed signal. The result is unified, predictable airflow instead of a patchwork of splitters and mismatched speeds. This kind of hub is ideal when you run five or more fans but have only two or three SYS_FAN headers, and it turns chaotic cooling behavior into coordinated thermal management.
Airflow Optimization Beats Raw Case Hardware

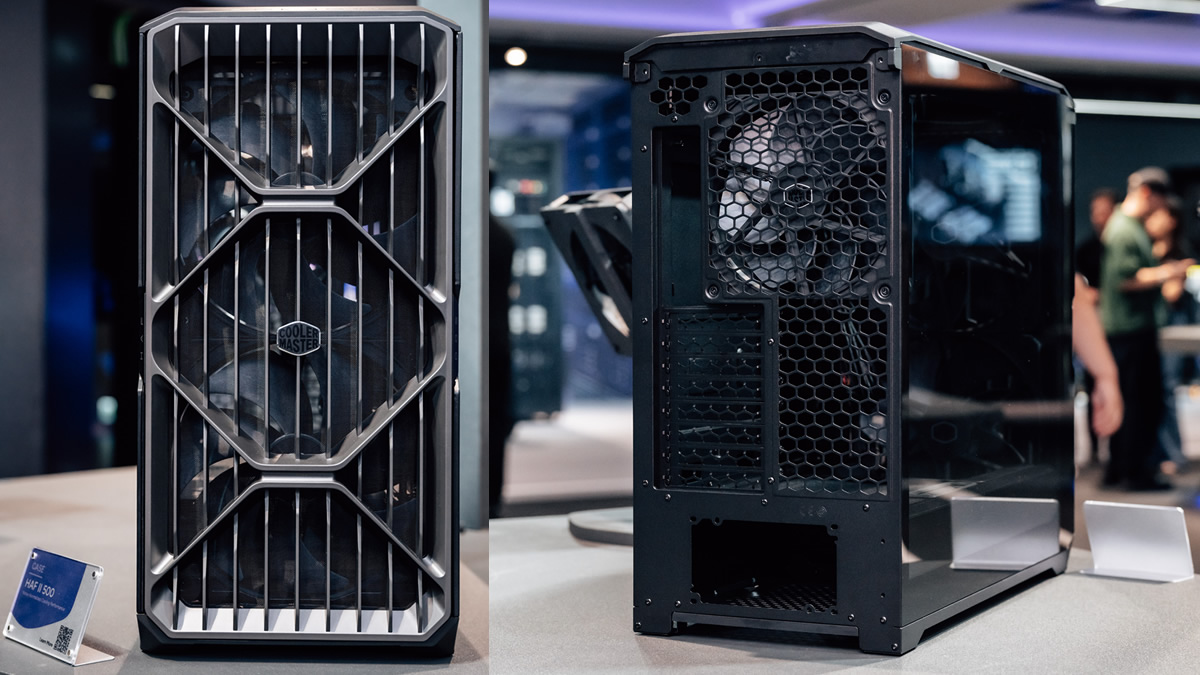

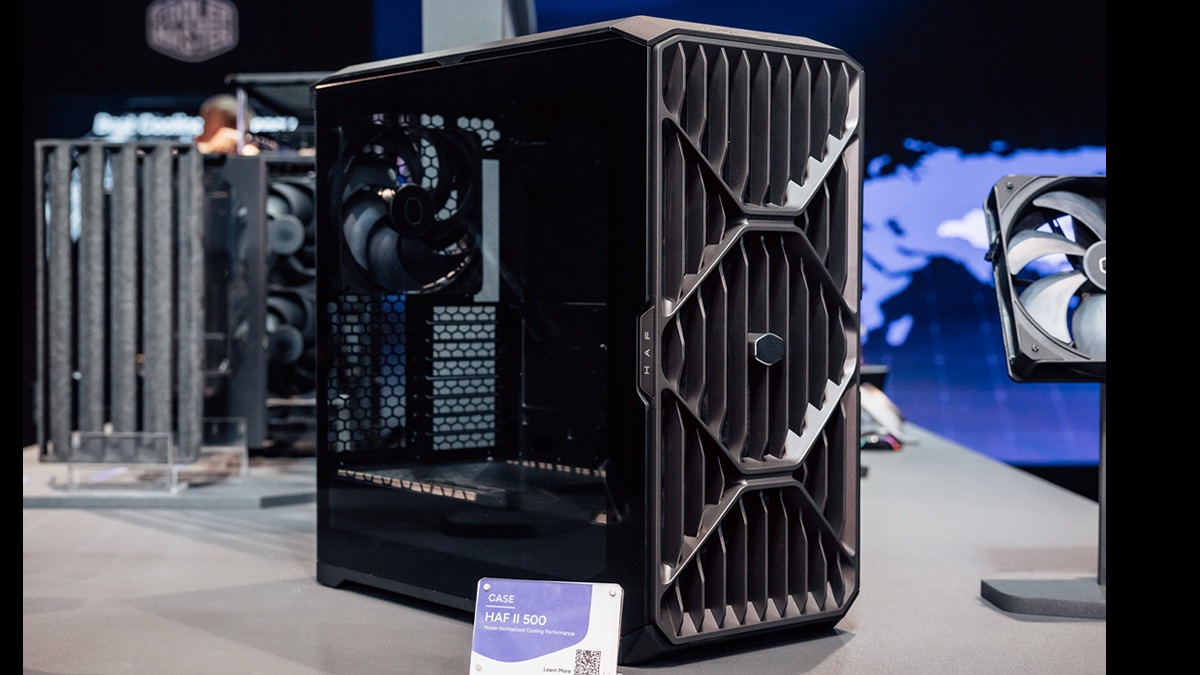

High-airflow enclosures like Cooler Master’s HAF II 500 promise “unmatched airflow and cooling performance” with huge 220mm and 180mm Mighty40 fans, thick Liquid Crystal Polymer blades, and a front design that minimizes airflow resistance. The case is large, supports EATX motherboards, and is clearly aimed at performance-focused gamers and heavy workloads such as AI and rendering. Yet even in a case built around airflow, fan control still decides how much air moves when the system heats up. Without tuned fan curves and balanced intake–exhaust ratios, bigger fans and larger interiors may end up underused or acoustically annoying. A PC fan controller and well-planned profiles let you tailor how those large fans respond to temperature, ensuring airflow optimization instead of relying on case marketing to solve thermal problems.
Tuning Fan Curves: The Real PC Cooling Performance Upgrade
Hardware alone does not fix aggressive ramping or poor thermal management; software control is equally important. Default BIOS curves often tie case fans directly to volatile CPU sensors, so a microsecond spike to 75°C for a browser tab can send every fan to 100%, only to drop again moments later. Tools like Fan Control let you retarget fan response to GPU temperature or an average of CPU and GPU, and then apply a linear curve with hysteresis. XDA-Developers recommends a hysteresis window of 3–5°C or a 5-second delay, so speeds only rise when heat persists. Combined with a PWM hub, this approach stabilizes airflow, keeps noise low during light tasks, and reserves higher RPMs for sustained gaming or rendering, turning a cheap controller into a practical PC case upgrade alternative.
Cost, Effort, and ROI: Controller vs. PC Case Upgrade
Swapping to a new chassis often means removing every cable, motherboard, cooler, and drive, then rebuilding and troubleshooting any new vibration or airflow paths. Meanwhile, adding a compact PWM fan hub takes minutes: mount it behind the tray, plug the fans into numbered ports, connect SATA power, and run a single PWM cable to a SYS_FAN header. You keep your existing case and fans but gain centralized control and cleaner wiring. On a cost–benefit level, a controller at around USD 15 (approx. RM70) offers a strong return: lower noise, safer power delivery, and more predictable PC cooling performance, without the physical effort and risk of a full PC case upgrade. For most systems without severe structural airflow flaws, smarter fan management delivers more than a new enclosure.
