What DNS-Based Home Network Monitoring Actually Is
Home network monitoring with DNS records means collecting, storing, and analyzing every domain lookup your devices make so you can see which device talks to which service, when, and how often, giving you far more detailed visibility than a router’s basic client list or traffic graph. Instead of trusting a dashboard that shows only high-level statistics, you read the "story" of each device’s behavior over time, including late-night sync jobs, chatty telemetry, and unexpected connections that may signal misconfigurations or security problems. This approach is useful for anyone running a home server, smart devices, or a small lab who wants to troubleshoot performance issues and watch for suspicious activity without buying enterprise gear.
I used to treat DNS as a set‑and‑forget service: install Pi‑hole or AdGuard Home, point the router at it, and only open the dashboard when something broke. The surprise came when months of logs revealed that my "quiet" network was anything but. Devices that looked idle from the router’s view were constantly reaching out to captive portals, telemetry endpoints, and cloud services that never showed up as meaningful patterns on standard dashboards. DNS logs, especially when monitored off the router and over time, expose these hidden activity patterns so you can track devices properly and spot problems early.
Prerequisites: What You Need Before You Start
Before you start building serious home network monitoring around DNS records analysis, you need three things: a DNS server that keeps logs, a machine to analyze those logs, and a way to reach your network remotely. DNS tools like Pi‑hole and AdGuard Home can log months of queries from all your devices. Moving DNS off your router to these tools gives you history instead of a short‑term snapshot and makes it easier to centralize logs across test setups. For analysis, you can use Python and a local AI model; one practical setup ran Gemma 4 E4B on an RTX 4070 Ti via Ollama to examine patterns in over 650,000 DNS queries. For secure remote access, you’ll want Tailscale so you can reach your monitoring box from anywhere without wrestling with traditional VPN configuration.
The most annoying prerequisites are not the tools but the data hygiene. If, like me, you rotate through DNS stacks for testing, your logs will be scattered across containers and different formats. Pi‑hole may store queries in a pihole‑FTL.db file, while AdGuard Home keeps them in querylog.json. Other servers, such as Technitium, might silently rotate old logs once a maxLogRecords value is hit, leaving you with only a fraction of the history you expect. Plan for where logs live and how long they’re kept; otherwise, your monitoring will have blind spots right where you need long‑term visibility.
Step-by-Step: From Raw DNS Logs to Clear Network Visibility
Here’s the practical flow I recommend, based on turning raw DNS data into a view of every device on the network. I’ll focus on genuine sequential steps so you can repeat this in your own home lab. The main gotcha is scale: hundreds of thousands of DNS records are too large to paste into an AI directly, so the real work is aggregating and summarizing first. You’re building a pipeline, not a one‑off query.
- Install and configure a DNS server (Pi-hole, AdGuard Home, or similar) off your router and point your router’s DNS to it so all devices use it.
- Let it run for at least a few weeks to build a history of DNS logs for home network monitoring, then collect log files from each DNS container or service.
- Write a short Python script to merge logs from different sources (for example, pihole-FTL.db and querylog.json) into one normalized CSV so every query has the same columns.
- Aggregate the CSV into structured JSON summaries client-side in a browser dashboard, using a streaming parser like PapaParse to group by device, domain, and time windows.
- POST the JSON summary to a lightweight Python proxy that forwards it to your local AI model via Ollama’s /api/chat endpoint, instead of sending all 650,000 raw rows.
- Review the AI’s output: top traffic sources, peak query windows, and suspicious or unknown devices based on domain groupings and volume patterns.

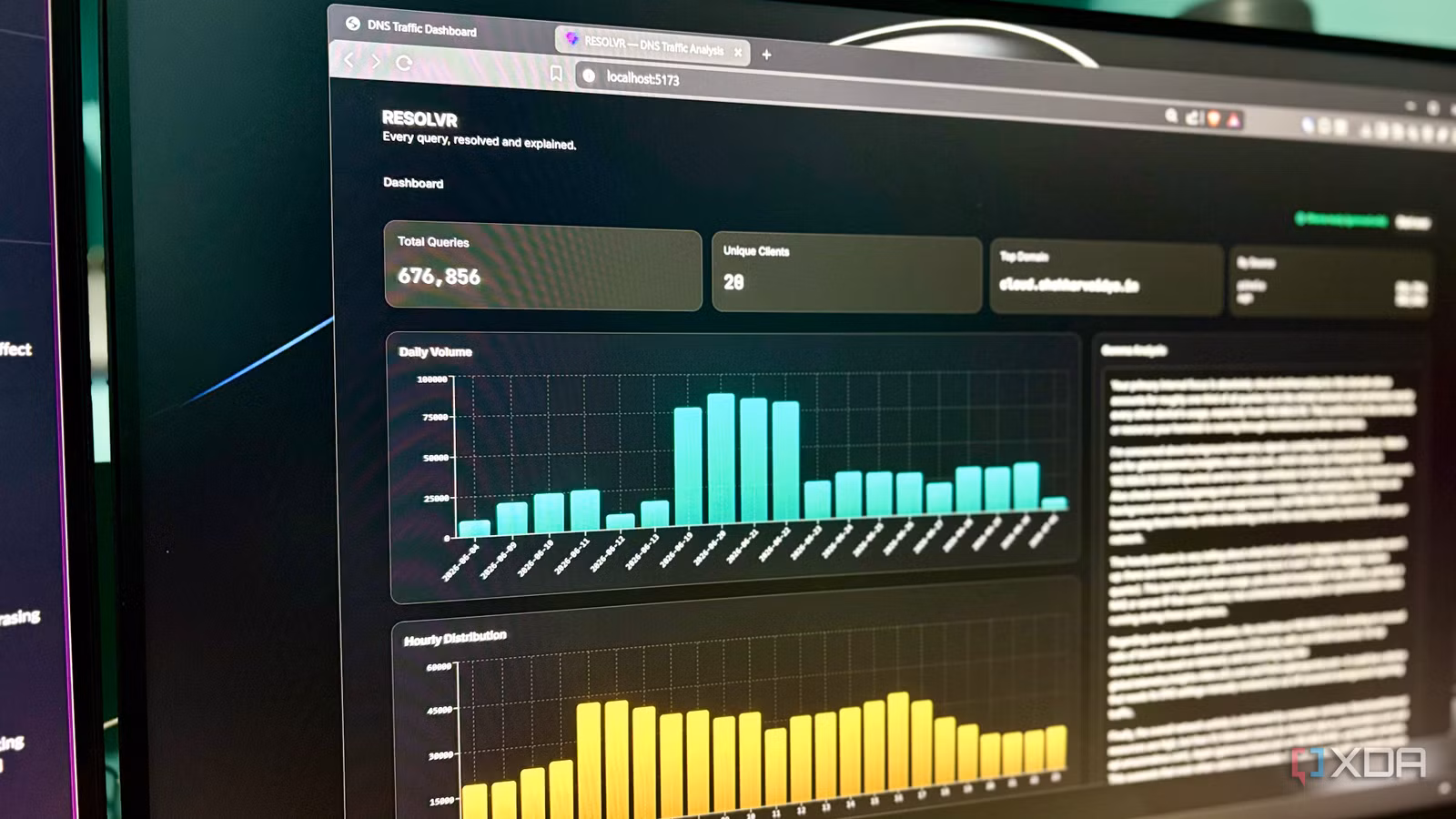

One quotable takeaway from this workflow is: "In the end, the local LLM never saw the 650K+ individual DNS records. It only ever saw a carefully prepared summary of the records." That’s the point: the intelligence comes from how you summarize traffic, not brute‑forcing every line into an AI. Once aggregated, a click on an "Analyze" button can return a readable map of your network within seconds: which devices talk most, which domains dominate, and when batch jobs run. From there, you can track unusual spikes, identify domains that belong to specific devices, and spot unauthorized clients that do not match any known hostname, improving your device tracking network significantly.
Add Tailscale for Remote Access and Easier Troubleshooting
Once you can read your DNS stories, you’ll want to reach this monitoring stack from anywhere. Traditional VPNs demand port forwarding, manual key handling, and firewall tweaks, and they funnel traffic through a central server that becomes its own problem. Tailscale solves this with a mesh VPN built on WireGuard that coordinates keys, device discovery, NAT traversal, access policies, and DNS from a control panel that never touches your actual traffic. Your devices form a tailnet, behaving as if they’re on the same LAN even when you’re on a coffee shop Wi‑Fi and your server is at home. That means you can SSH into your DNS box, view dashboards, and pull logs without opening firewall holes or worrying about dynamic IP addresses.
On a typical home server running Ubuntu or Debian, installation is a one‑liner: curl -fsSL https://tailscale.com/install.sh | sh. After that, you run sudo tailscale up, authenticate with a Google or GitHub account, and you’re "off to the races" with stable 100.x.x.x IPs on your tailnet. Repeat the process on every device you want connected. If you want your tailnet to see the entire home LAN, you can advertise routes from the server with sudo tailscale up --advertise-routes=192.168.0.0/24. MagicDNS means you can type hostnames instead of IPs, making remote monitoring tools and dashboards easier to reach by name. And if you dislike depending on a hosted coordinator, a self‑hosted alternative, Headscale, lets you own the whole stack while keeping the same WireGuard‑based mesh concepts.
What You’ll See and The Gotchas to Watch
When this is set up, the expected result is a home network that feels like it has night‑vision goggles. Once logs are aggregated and analyzed, an AI model can quickly summarize top traffic sources, peak query windows, and generalized telemetry, then suggest devices or behaviors that deserve attention. In one case, domains like firetvcaptiveportal.com, minerva.devices.a2z.com, and global.telemetry.insights.video.a2z.com were grouped together and correctly linked to a specific Fire TV Stick and its local IP address. The same process highlighted 4–7 AM bursts of queries that turned out to be scheduled syncs, Samba activity, and background jobs. Those patterns are difficult to see on simple router dashboards but stand out cleanly once DNS records are summarized and examined over time.
The most common mistakes are assuming your data is tidy and thinking you can paste everything into an AI prompt. In practice, logs may be scattered across containers, stored in different formats, or truncated by rotation settings like a low maxLogRecords value. Trying to feed hundreds of thousands of rows directly to a model will hit context limits long before you get useful answers. Instead, you need careful aggregation and a monitoring mindset: DNS logs stop being something you open only when troubleshooting and become a continuous record your tools can reason about. Paired with a mesh VPN like Tailscale, the network "just works" and devices stay reachable while you quietly watch for performance oddities and suspicious traffic patterns from anywhere. It takes some setup, but the payoff is clear: next time a device acts strangely, you’ll know exactly where to look.
