What Fingertip-Sized Arduino Boards Let You Do
Building functional projects on fingertip-sized Arduino boards means creating compact microcontroller projects that fit whole circuits, code, and I/O on miniature electronics design platforms where every millimeter counts and each feature must earn its place.
Tiny Arduino boards are no longer toys; they are fingertip-sized hardware that can act as the brains of small, useful devices where a full-size board would never fit. The Moddo Pinch is a good example: it is described as the "world's smallest" Arduino-compatible board and measures about 0.43 inches by 0.41 inches, small enough to sit on a fingertip. Even at that size, it carries USB-C, a 16-pin header for expansion, an RGB LED, and a reset button. That mix of features makes it suitable for very compact Internet of Things and smart home projects where fractions of an inch matter and you still want a bit of processing headroom.
If you are comfortable uploading sketches to a regular Arduino Uno and wiring simple circuits on a breadboard, you have enough background to start working with tiny Arduino boards. The main caveat is that the smaller you go, the more deliberate you must be: you will plan your project around the board’s limited pins, modest memory, and tight physical layout, instead of treating it as a shrunken version of a full development board.
Planning a Compact Microcontroller Project That Will Fit
Before you solder anything, you need a realistic picture of what fingertip-sized hardware can support. The Moddo Pinch uses a 32-bit Microchip ATSAMD11D14A microcontroller with 4KB of static RAM and 16KB of flash storage. That is enough for focused firmware, but it will not tolerate heavyweight libraries or sprawling feature lists. The board exposes a 16-pin header so you can still connect sensors, buttons, or communication lines when you design the rest of the circuit around its tiny footprint.
Think of good fit projects as ones that use a modest number of pins and run tight code: wearable sensors, tiny embedded monitoring systems, or compact input devices. The built-in USB-C port supports native CDC serial programming, input devices, and MIDI, so you can plug it straight into a computer for both power and communication. That makes it realistic to build compact microcontroller projects that show up as custom USB gadgets, or as tiny IoT nodes that report data back to a host over USB instead of wireless.
One quotable rule of thumb for scope control is: “If your feature list cannot fit on a Post-it, it probably will not fit in 16KB of flash.” Treat that as a friendly constraint, not a punishment. It pushes you toward clear, single-purpose devices instead of trying to cram a full development board’s worth of behavior into miniature electronics design.
Step-by-Step: Building a Tiny Smart Component Tester

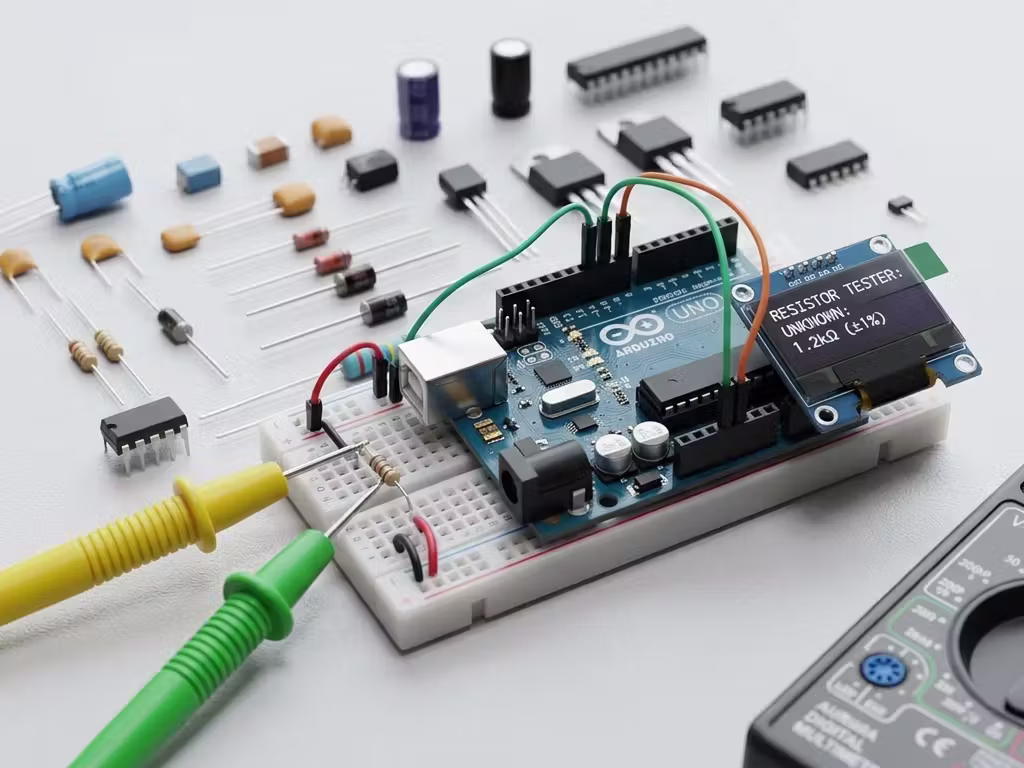

A good starter project for tiny Arduino boards is a smart component tester that measures unknown resistors. On a full-size Arduino Uno, the classic version uses the microcontroller’s analog pins and a voltage divider to compute resistance. We can adapt the same idea to fingertip hardware, as long as the board provides at least two analog-capable pins and USB-based serial output.
The core trick is simple: put a known reference resistor in series with the unknown resistor, apply a fixed voltage from the board, and measure the midpoint with an analog input. From that one reading, the microcontroller can calculate the unknown resistance using Ohm’s Law. This approach keeps the external component count tiny, which is perfect when space is tight.
- Prepare your tools and parts: a tiny Arduino-compatible board such as the Moddo Pinch, a breadboard or breakout, a 10kΩ reference resistor, two test leads, and a USB-C cable for power and programming. On a larger board, this same project is usually built with an Arduino Uno.
- Wire the voltage divider: connect one leg of the 10kΩ reference resistor to an analog-capable pin that will act as the reference side (equivalent to A0 on an Arduino Uno), then connect the other leg of this resistor to a second analog-capable pin (equivalent to A1). These two pins will also serve as the contact points for the unknown resistor.
- Connect the unknown resistor probes: terminate your two test leads so they can grip or contact loose resistors, then wire one lead to the first analog pin and the other lead to the second analog pin, matching the positions where the reference resistor legs are attached.
- Upload the measurement sketch: open your development environment, load a sketch that configures the two analog pins, reads the midpoint voltage, and computes resistance based on the known 10kΩ reference. Copying and adapting an existing Arduino sketch for a DIY smart component tester and uploading it to your board is a straightforward way to start.
- Test and calibrate: connect the tiny board to your computer via USB-C so it both powers the circuit and exposes a serial interface. Open the Serial Monitor, set it to 9600 baud, then place an unknown resistor between the test leads; you should see its resistance value printed every two seconds, based on the analog readings.
When everything is wired and coded correctly, the expected result is that each time you clip a resistor between the probes, the board reports its resistance value on the serial monitor at regular intervals. The experience is satisfying: “This project transitions you from a passive learner to a maker,” and provides a practical tool for your workbench while teaching voltage division and analog-to-digital conversion. On a tiny Arduino board, it also forces you to think about neat wiring and pin layout, which are skills you will reuse as your fingertip-sized hardware projects grow more ambitious.
Where Tiny Arduino Boards Shine in Real Use
Once you have a basic tool like a smart component tester running on a compact board, it becomes easier to imagine other uses. Because the Moddo Pinch can fit into very compact Internet of Things and smart home projects where fractions of an inch matter, it is a natural fit for wearable sensors tucked into watch straps, embedded monitoring systems hidden inside enclosures, or little USB gadgets that live on a laptop port. Its support for input devices means it can even act as the core of custom keyboards, mice, or MIDI controllers.

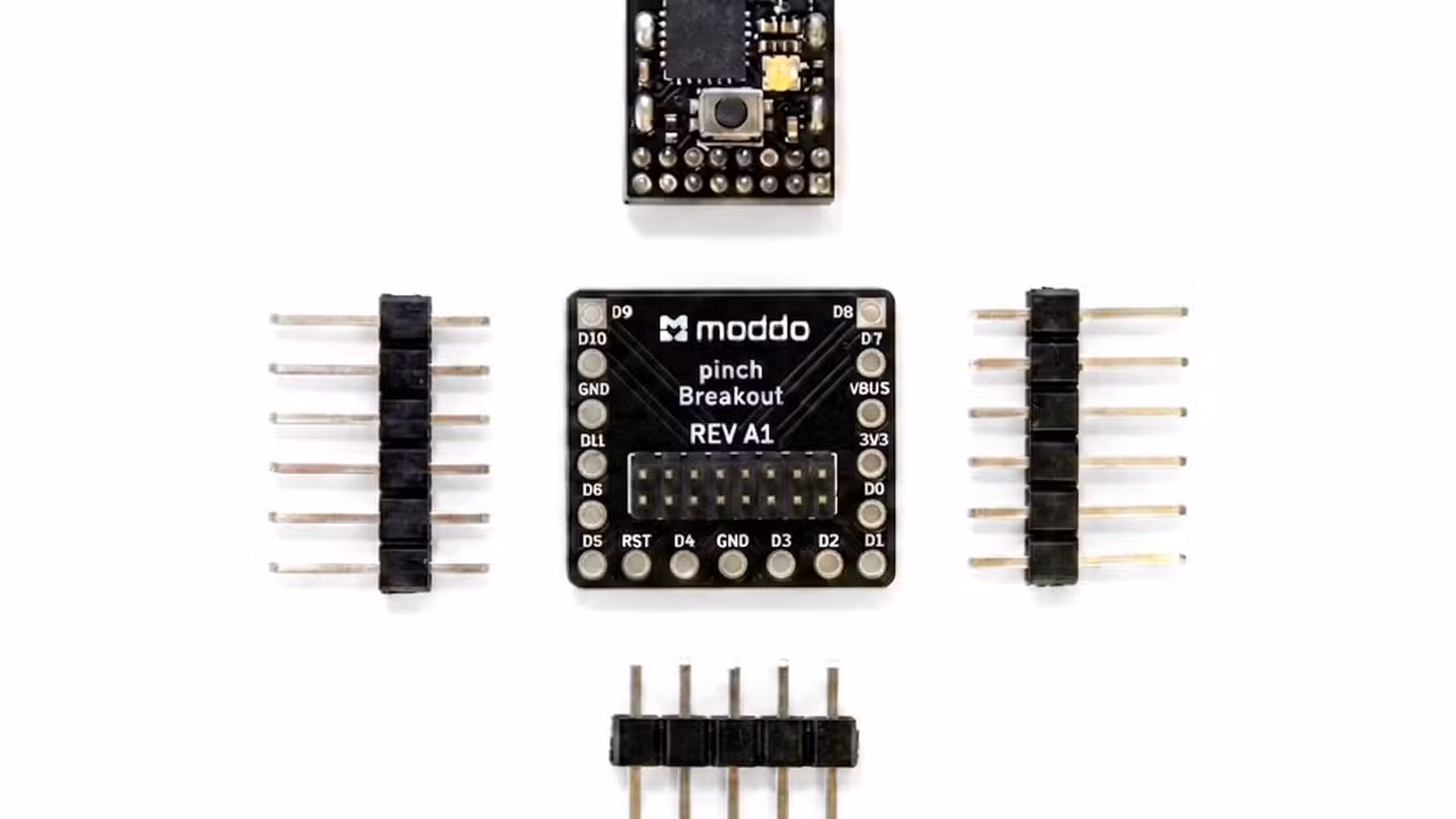

Space savings come with a cost, though. Pins are limited, and you cannot break them out as comfortably as you can on a larger development board. That is why the Pinch includes a breakout board kit, giving more breathing room when you prototype. Many builders keep the breakout connected during development, then move the bare board into the final enclosure when everything is tested. One quotable summary of its appeal is: “The size and relative processing power are the key — this can fit into very compact Internet of Things projects where fractions of an inch matter.”
From a budgeting standpoint, fingertip-sized hardware will not always be the cheapest option. The Pinch is available for pre-order for USD 16 (approx. RM74), including a breakout board and header pins. That price reflects the value of squeezing a 32-bit microcontroller, USB-C, and practical I/O into such a small package. In many projects, saving physical space and reducing wiring bulk is worth that premium compared with larger, less compact boards.
Putting It All Together: Is Fingertip Hardware Worth It?
The real takeaway is that fingertip-sized Arduino boards are most rewarding when you treat them as custom project cores, not as general-purpose tinker boards. They excel in roles where tiny Arduino boards can disappear inside a product while still running focused firmware and talking over USB or simple sensor links. Even a modest project like a DIY smart component tester demonstrates how these boards turn theory into a hands-on tool using only a reference resistor, a couple of pins, and a small sketch.
If you plan your feature list carefully, reuse proven example code, and design your circuits around concise, compact microcontroller projects, fingertip-sized hardware is worth the effort. The Moddo Pinch in particular shows how much can live on a 0.43-by-0.41-inch board that fits on a fingertip while still including a 32-bit chip and USB-C support. The main thing to watch for is how quickly extra features can eat into your limited memory and pins. Start small, build one focused function at a time, and let the constraints guide you toward cleaner, more thoughtful miniature electronics design.
